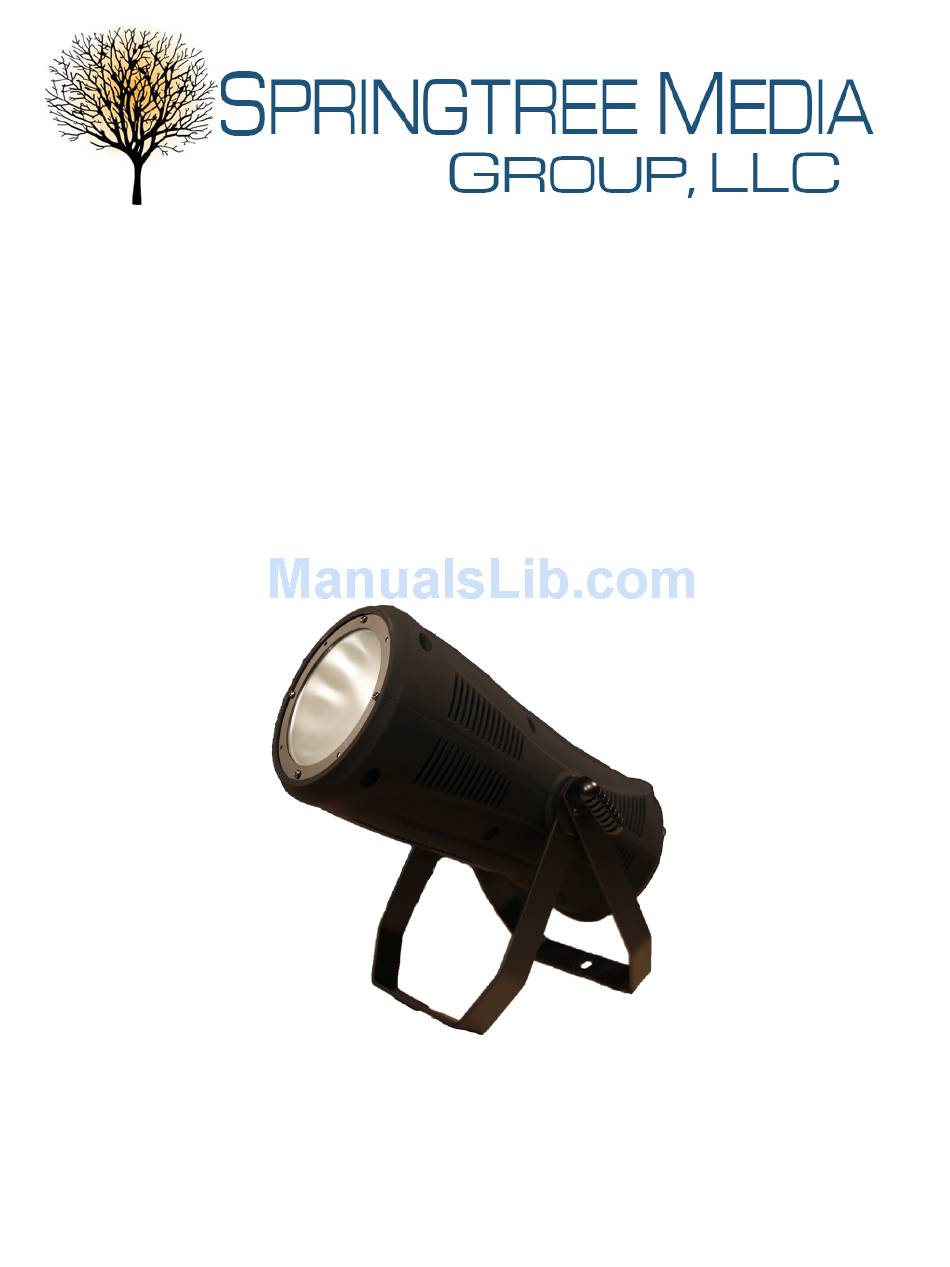

- Page 1 Springtree Spatial Wash COB RGBW USER MANUAL AND INSTALLATION GUIDE...
-
Page 2: Table Of Contents
2. Product Information Description..........................4 Features............................4 3. Installation Power supply..........................5 Mounting............................5 Rigging............................5 DMX linking..........................6 4. Operation Touch buttons...........................6 Operating modes........................6,7 LED display menu.........................7,8 5. Maintenance Cleaning your Spatial Wash COB RGBW................9 6. Technical Specifications Dimensions..........................9 Troubleshooting........................10 Contact us..........................10 (615) 599-1505 www.springtree.net... -
Page 3: Before You Begin
What is included When you open your package, there should be two items inside of the box: 1. One Spatial Wash COB RGBW light 2. One Powercon power cord *If any of these items is damaged or missing, please contact Springtree Media Group immediately! Safety precautions •... -
Page 4: Product Information
Product Information Description The Spatial Wash COB RGBW is a light-weight fixture with 1 120 watt RGBW COB LED (chip on board). With over 10,000 color combinations, this lamp is a powerfully bright DMX controllable LED fixture that is perfect for wide stage wash or house lighting. -
Page 5: Installation
Mounting The Spatial Wash COB RGBW may be mounted in any position, provided there is adequate room for ventilation around it. Operating in an insufficiently ventilated room can lead to an overheating of the device and may cause serious accidents. Keep a minimum distance of 0.5m around and above the device. -
Page 6: Dmx Linking
Operation DMX Linking The Spatial Wash COB RGBW can be connected to a DMX controller using a 3-pin DMX cable, allowing total control over one or more fixtures. To do this, connect a DMX cable from the DMX-output on your controller to the DMX-input (labeled DMX IN) of the lighting unit. -
Page 7: Operating Modes
Operation cont. Operating modes The Spatial Wash COB RGBW can operate in seven modes: • Auto mode - the unit will automatically chase through all of the different colors. • Master-slave mode - one unit will work as the master and other units in the chain will work in sychronization towards the master •... -
Page 8: Dmx Traits
DMX Traits Channel Function Value Red intensity 0-255 Green intensity 0-255 Blue intensity 0-255 White intensity 0-255 Dimmer Dimmer Off/On 0-255 Strobe Slow to Fast 0-255 Macro Various (see below) 0-255 Macro funtions Nothing 0-10 10-129 Cycle through colors, increasing speed Cycle through colors with fade in / fade out, increasing speed 130-249 Nothing... -
Page 9: Maintenance
Maintenance Cleaning your Spatial Wash COB RGBW Due to fog residue, smoke, and dust, cleaning the internal and external optical lenses must be carried out periodically to optimize light output. 1. Use normal glass cleaner and a soft cloth to wipe off the outside casing. -
Page 10: Troubleshooting
1. Quiet or high pitched sounds will not activate the unit. If problems are not resolved, contact your dealer for service. Contact us Springtree Media Group would like to thank you for choosing our company for your lighting needs! If you have any questions or concerns, please contact us. Office hours:...
