Summary of Contents for NiteRider LUMINA 40

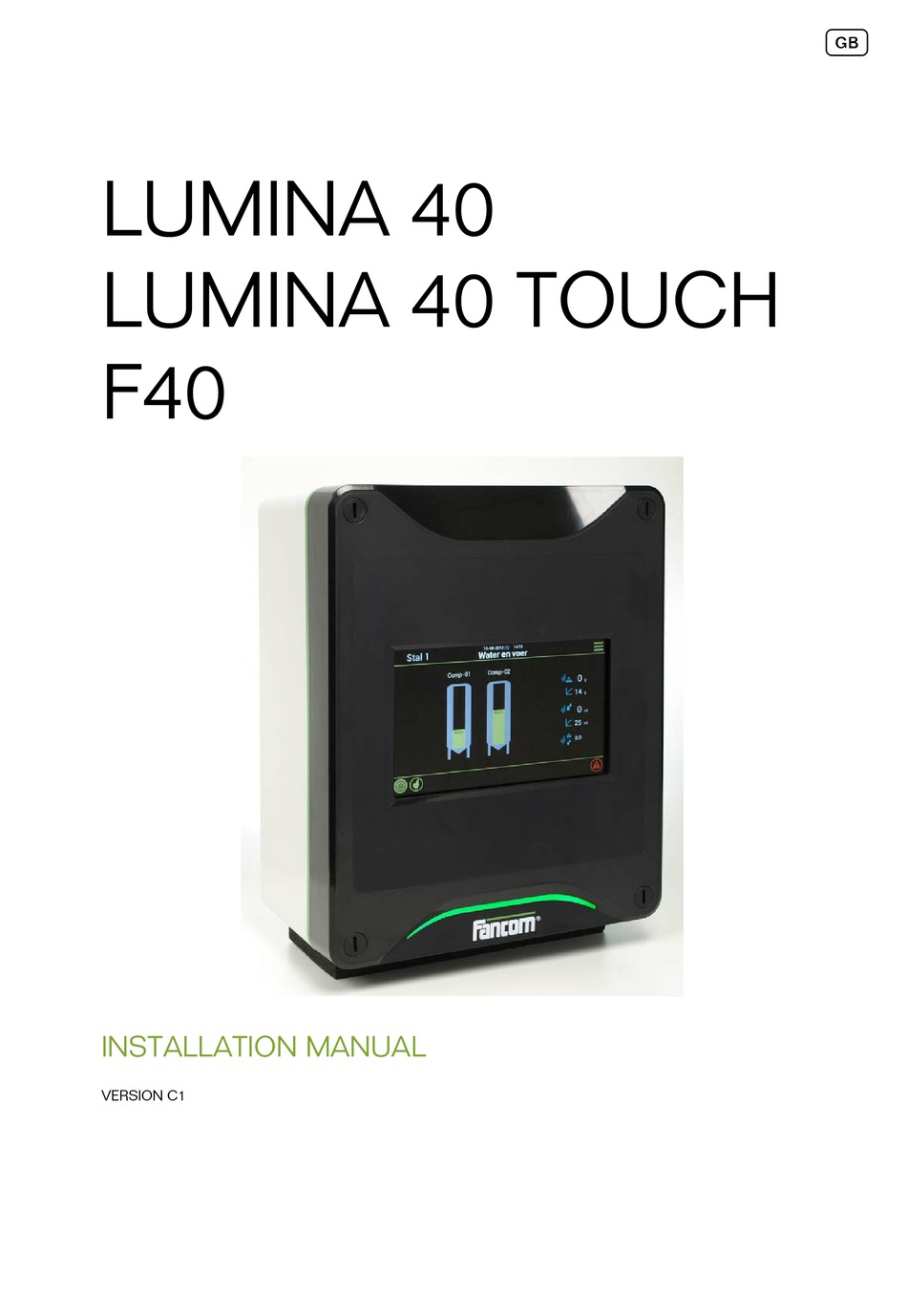

  • Page 1 LUMINA 40 LUMINA 40 LUMINA 40 TOUCH INSTALLATION MANUAL VERSION C1...
  • Page 2 N.B.: The original, authentic version of this manual is the English version produced by Fancom B.V. or one of its daughter companies (referred to further as Fancom). Any modifications introduced to this manual by third parties have neither been checked nor approved by Fancom. Modifications are taken by Fancom to include translations into languages other than English and the insertion and/or deletion of text and/or illustrations to/from the original contents.
  • Page 3: Table Of Contents

    Lumina 40 Table of contents Table of contents General introduction ..........................1 Documentation with the control computer ..................1 How to use this manual ........................1 Fancom helpdesk ........................... 2 F-Central FarmManager™ ......................2 The feed installation ........................... 3 Important terms ..........................3 Installing the control computer .........................
  • Page 4 Lumina 40 Table of contents 12.2 Bulk feed after stopping the feeding process (feeding BLOCKED during filling silo) ....34 Appendix: EG-declaration of compliance ....................36...
  • Page 5: General Introduction

    Lumina 40 General introduction General introduction This manual has been compiled with the utmost care. If, however, you should discover an error, please inform Fancom B.V.. Documentation with the control computer The documentation consists of the following manuals: • User's manual The user's manual is intended for the end user.
  • Page 6: Fancom Helpdesk

    Lumina 40 General introduction Fancom helpdesk For any questions and support, please contact the local Fancom Sales & Service Center. F-Central FarmManager™ Virtually all Fancom equipment can be controlled and managed from a central location. This requires the F-Central FarmManager software package and a communication module. The screens in the control computers are also used...
  • Page 7: The Feed Installation

    The feed installation The Lumina 40 is a computer used to control a feed installation. With the Lumina 40 the feed is transported from a weighed silo to the house. Parts of the feed installation A typical feed installation controlled by the Lumina 40 consists of the following parts: •...
  • Page 8 Lumina 40 The feed installation 2.1.5 Max. permitted dos.dif (%) The control computer compares the actual amount with the required dosing in amount. If the maximum dosing in difference is exceeded, the control computer will stop the feed process, then give a loud alarm. If too little has been dosed in, the dosing in process of the required ingredient will be re-started.
  • Page 9: Installing The Control Computer

    Lumina 40 Installing the control computer Installing the control computer Installation menu The installer can configure the control computer using the installation menu. This menu also contains screens for standard system settings and diagnoses. To call up the installation menu: press the navigation keys UP and DOWN simultaneously for a few seconds. The...
  • Page 10: System

    Lumina 40 System System Access the system menu by pressing the UP and DOWN navigation keys simultaneously for a few seconds. SYSTEM System   tab page SYSTEM SYSTEM Common Clock type Setting of the 12 or 24 hour time indication.
  • Page 11: Sd Card Menu

    Lumina 40 System   tab page SYSTEM SYSTEM Access Change password Setting of a password to protect advanced user settings (option More) from use by AdvancedMode non-authorised users. • The password must contain four numbers. • Enter code 1111 to deactivate the password protection.
  • Page 12: Application

    Lumina 40 System Restore data Restore data re-loads saved data from the SD-card back onto the control computer (type .FBU). Data saved on one control computer can only be loaded into another control computer if both computers are of the same type. In addition, the set control computer numbers must be identical.
  • Page 13: Io-Test

    Lumina 40 System The I/O net is a connection for intelligent network modules. For example, Intelligent Relay Modules (IRM), Intelligent Digital Modules (IDM) or Intelligent Sensor Modules (ISM).   tab page SYSTEM COMMUNICATION IO-Net Reset counters Setting used to reset all data to zero simultaneously.
  • Page 14: House Setup

    Setting indicating if a single silo (SINGLE) or a frame with a double silo (DUAL) is used. External alarms Setting indicating if one or more external alarms are connected to the Lumina 40 (Select YES). This allows a menu to be accessed where external alarms with their own report message text can be set.
  • Page 15: Tab

    Lumina 40 House setup Tab page Clocks In the tab page Clocks set which clocks are used, how they are linked and what must happen if there is an overlap.   tab page Installer HOUSE SETUP Clocks Overlap feed cycle...
  • Page 16 Lumina 40 House setup Clock end time Setting indicating that the control computer can shift the end time of a clock, for example, after a power failure. (With Extra clock • Water clock) TIME: The clock has no fixed end time. After a power failure the end time is one minute before the next start time.
  • Page 17: Silos And Ingredients

    Lumina 40 Silos and ingredients Silos and ingredients In the silos and ingredient menu enter the basic data of the silo(s) and feed ingredients used.  Installer SILO/INGRED. Tab page Silo    tab page Installer SILO/INGRED. SILOS. Silo Description Setting of the name of the function.
  • Page 18: Tab

    Lumina 40 Silos and ingredients Tab page Alarm    tab page Installer SILO/INGRED. SILOS. Alarm Wait time check Setting of the wait time after which the check on the minimum amount of decrease (Min decrease decrease in 30sec.) starts.
  • Page 19: Tab Page Dual

    Lumina 40 Silos and ingredients Tab page Dual    tab page Installer SILO/INGRED. SILOS. Dual Maximum silo content Setting of the maximum silo content ( kilograms). Silo relay address Setting of the address of the digital output (relay) of the outgoing silo auger.
  • Page 20: Weigher

    Lumina 40 Weigher Weigher In the weigher menu enter the basic data for the weigher used.  Installer WEIGHER Weigher 7.1.1 Tab page General   tab page Installer WEIGHER General Type weigher Setting of the type of weigher used.
  • Page 21 Lumina 40 Weigher Weigher simulation Setting used only for test purposes to set the weigher to simulation mode. Select start simulation mode. The following can be set in simulation mode: • Simulation mode to simulate the weigher input. Select Stable, None, Increase Decrease.
  • Page 22 Lumina 40 Weigher Calibrating silo weighing After the weigher has been installed, it must be calibrated. This allows the control computer to determine the feed weight more accurately. The weigher transmits a measured weight in the form of values as counts to the control computer. By calibrating the control computer, this pulse value can be converted correctly into a weight.
  • Page 23 Lumina 40 Weigher 7.1.4 Tab page Specs   tab page Installer WEIGHER Specs Type weighing card Setting of the type of weigher amplifier being used. ILM, or OTHER. Number of load cells Setting of the number of connected load cells.
  • Page 24: External Registration

    Lumina 40 Weigher External registration   Installer WEIGH/TRANSP. EXTERN.REGISTR. Type of registration Setting of the registration type being used: • Animpl: Registration per animal place. • Sect: Registration per section. Amount to Do Read out of the total amount of pulses to be sent.
  • Page 25: Feed Place

    Lumina 40 Feed place Feed place In the feed place menu enter per house the data for the feed places used (hoppers) and the sensor installed in the final hopper.  Installer Feed place Feed sensor Setting of the type of sensor: •...
  • Page 26: Clocks, External Registration And Alarms

    Lumina 40 Clocks, external registration and alarms Clocks, external registration and alarms In the clocks and registration menu enter the settings for the clocks used per house. In the menu HOUSE SETUP the clocks to be used have already been entered. The data for these clocks can be set here.
  • Page 27: Light Clocks

    Lumina 40 Clocks, external registration and alarms Description Setting of the name of the function. Time clock type Setting indicating how the user can use the clock: • ON/OFF: User enters on/off times. • ON/DURATION: User enters time and duration of activation.
  • Page 28: Extra Clock

    Lumina 40 Clocks, external registration and alarms 9.3.2 Tab page Control    tab page Installer CLOCK/REGIS. LIGHT Control Control on Setting of the way in which light is controlled. This option is only available if light measurement=YES has been selected at light clocks.
  • Page 29: Registration

    Lumina 40 Clocks, external registration and alarms Description Setting of the name of the function. Time clock type Setting indicating how the user can use the clock: • ON/OFF: User enters on/off times. • ON/DURATION: User enters time and duration of activation.
  • Page 30: External Alarms

    Lumina 40 Clocks, external registration and alarms Depending on the selected Registration Input the following settings will appear: SLOW PULSE QUICK PULSE Amnt per pulse Setting of the unit that corresponds to one pulse. Amount today Readout of the unit measured today. Reset this value to start all registration from zero again.
  • Page 31 Lumina 40 Clocks, external registration and alarms Alarm type Setting of how alarms are handled. • NONE: the alarm is deactivated. • STOP: in an alarm situation, the computer will carry out a stop, followed by a loud alarm. •...
  • Page 32: Checks And Tests

    Lumina 40 Checks and tests Checks and tests The installer can run a number of tests on the control computer to check the operation of the feeding system. 10.1 Weigher test The working of the installation can be tested using a weigher simulation. Weigher simulation only simulates the weigher's load cell(s).
  • Page 33: Technical Specifications

    Lumina 40 Technical specifications Technical specifications FDP25 Mains voltage 90Vac – 264Vac Main frequency 50/60Hz Maximum power consumption 25VA IOB.4 Power available for sensors and peripheral equipment 24Vdc (short circuit resistant) max. 500mA 12Vdc, short circuit resistant max. 70mA 4x analog outputs (AO)
  • Page 34: Interior Control Computer

    Lumina 40 Technical specifications 11.1 Interior control computer Touch screen HI mainboard LED strip FUNC (CPU) IOB.4 (I/O) FDP25 (Power supply) FRM.8 (Internal relay) 11.2 FDP25...
  • Page 35: Iob.4

    Lumina 40 Technical specifications 11.3 IOB.4 AI type Type analog input • Voltage measurement (U) • Resistance measurement (R) 4 Analog outputs 4 Analog inputs 4 Digital inputs Relay 4 Digital outputs (relays) 8 Extra digital outputs 11.4 FRM.8...
  • Page 36: Connection Fnet And I/O-Net

    Lumina 40 Technical specifications 11.5 Connection FNet and I/O-net Use of the terminal resistor depends on the location of the control computer in the FNet or I/O network. Looped control computers do not require a terminal resistor. Control computers or end stations at the beginning or end of the network require a terminal resistor. Depending on the device type a 120 Ohm resistance, a jumper or a dipswitch is used to terminate the control computer.
  • Page 37: Appendix: Concept Feeding System

    Lumina 40 Appendix: Concept feeding system Appendix: Concept feeding system At the start and at the end of each feeding time, the storage hoppers in the house and the transport auger must be completely filled up. The example below explains the feeding process.
  • Page 38: Bulk Feed And Dosing At The Same Time (Feeding Not Blocked During Filling Silo)

    Lumina 40 Appendix: Concept feeding system 12.1 Bulk feed and dosing at the same time (feeding NOT BLOCKED during filling silo) 12.1.1 Completely controlled 12.1.2 NOT controlled, only registration 12.2 Bulk feed after stopping the feeding process (feeding BLOCKED during filling silo)
  • Page 39 Lumina 40 Appendix: Concept feeding system 12.2.2 NOT controlled, only registration...
  • Page 40 Lumina 40 Appendix: EG-declaration of compliance Appendix: EG-declaration of compliance Manufacturer Fancom B.V. Address: Industrieterrein 34 Place: Panningen (the Netherlands) Hereby declares that: Lumina 40 Satisfies the conditions of: The Low Voltage Directive 2006/95/EC according to EN-61010 the EMC Guideline, directive 2004/108/EC...
