Matica Technologies EDISECURE XID 8300 Instructions

MEMO
Theresienhoehe 30 D-80339 Munich Germany
Copyright 2015 Matica Technologies AG.All rights reserved.Information in this document is subject to change without prior notice.
J-TECS infomation _PLEMIA_ Count:- Checked:00000 Date:20151204 Approved:00000 Date:20151204
Matica Technologies AG
Phone : +49 89 5108 588 0
Thank you for purchasing this product.
Please read through the "Instruction Manual" in the CD-ROM carefully in advance to ensure proper use of this product.
Also, to make sure that the product is used safely, please read through the "Safety Precautions" in the "READ ME FIRST"
booklet. Please store the manuals properly after reading so that they can be referred to whenever necessary.
Place this "Getting started guide" near the printer and use it as and when needed.
Accessories
o
CD-ROM ................................................................................1
0
Getting started guide ..............................................................1
0
READ ME FIRST (LST1013) .................................................1
0
Power Cord (2 m) ...................................................................2
0
Cleaning Card ........................................................................1
0
Card Stacker ..........................................................................1
0
USB 2.0 Cable (2m) ...............................................................1
0
0 Gloves ....................................................................................1
Tweezers ................................................................................1
0
Products sold separately
o
To purchase these items, consult our authorized dealers.
Use the retransfer film or ink ribbon within half a year after purchase.
• Ink Ribbon (YMCK), 1,000 frames/roll (Model: DIC10216)
• Ink Ribbon (YMCKK), 750 frames/roll (Model: DIC10217)
• Ink Ribbon (YMCK-PO), 750 frames/roll (Model: DIC10218)
• Ink Ribbon (YMCK-UV), 750 frames/roll (Model: DIC10313)
• ART Retransfer Film, 1,000 frames/roll (Model: DIC10319)
• Cleaning Kit (Model: DIK10044)
Set incl. 10 print head cleaning swabs, 10 cleaning tissues for
rollers and 10 special cleaning cards
• Magnetic Stripe Encoder Head Cleaning Cards (Model: DIC10311)
Box of 10 cards
CD-ROM Content
o
• Instruction Manual
Function & Option Checklist
o
Use the checklist below to identify the functions and options of the printer in use. Tick accordingly.
Model name:
Function
Single-sided Double-sided
Printing Printing
LST0995-001H

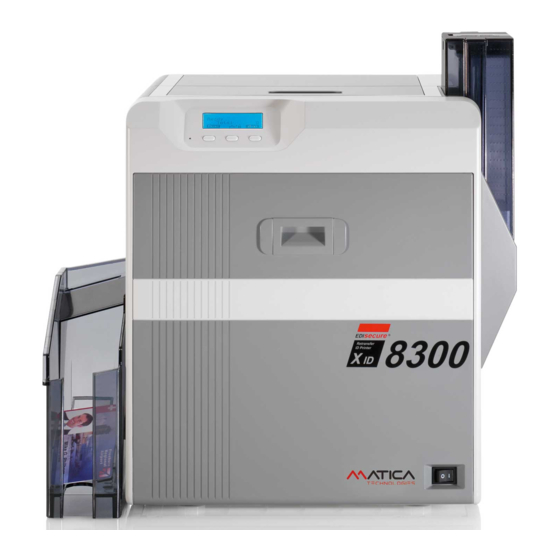

XID 8300 Retransfer Card Printer
Content of Instruction Manual
o
Before Use ...................................... Precautions, disclaimer, etc.
0
Operating the Printer ......................Procedures for printing cards
0
Replacement ........... Procedures for replacing consumable items
0
Maintenance ................................................Cleaning procedures
0
Troubleshooting ................... Actions to take when troubles occur
0
Setup ....................................................... Installation, connection
0
Specifications
o
Operating environment conditions
0
Temperature: 15 °C to 30 °C
(When peel-off ink, UV ink is used: 17 °C to 28 °C)
Humidity: 35 % to 70 % No condensation
(When peel-off ink, UV ink is used: 35 % to 60 %)
Storage environment conditions
0
<Printer unit>
Temperature : -15 °C to 55 °C
Humidity : 20 % to 80 %
<Printing media (retransfer film or ink ribbon) / card>
Temperature : 5 °C to 25 °C
Humidity : 40 % to 60 %
Power supply ........................................AC 100 V - 120 V, 50 Hz/60 Hz
0
Power consumption ........................................................... 310 W
0
(maximum power when all options are installed)
Current consumption ...................................3.5 A (100 V system)
0
Mass .....................................................................approx. 14.4 kg
0
(single-sided printer, excluding optional built-in items)
0 Dimensions ............... 343 mm x 411 mm x 322 mm (W x H x D)
* The specifications and appearance of this product may be modified
for improvement without prior notice.
Option
Contact IC
Bend Remedy unit Magnetic Encoder
Encoder
ISSUED
2015/12/04
Getting started guide
LST0995-001H
AC 220 V - 240 V, 50 Hz/60 Hz
1.6 A (200 V system)
Non-contact IC
Encoder
