THE
SANDWICH
"PANINI"
GRILL
OPERATION MANUAL
TSG-1G (All Grooved Surfaces)
TSG-1F (All Flat Surfaces)
TSG-2G (All Grooved Surfaces)
TSG-2F (All Flat Surfaces)
CECILWARE CORPORATION
43-05 20th Avenue • Long Island City, NY 11105
Tel: 800-935-2211 • Fax: 718-932-7860
3/29/00
Advertisement
Related Manuals for Cecilware TSG-1G
Summary of Contents for Cecilware TSG-1G

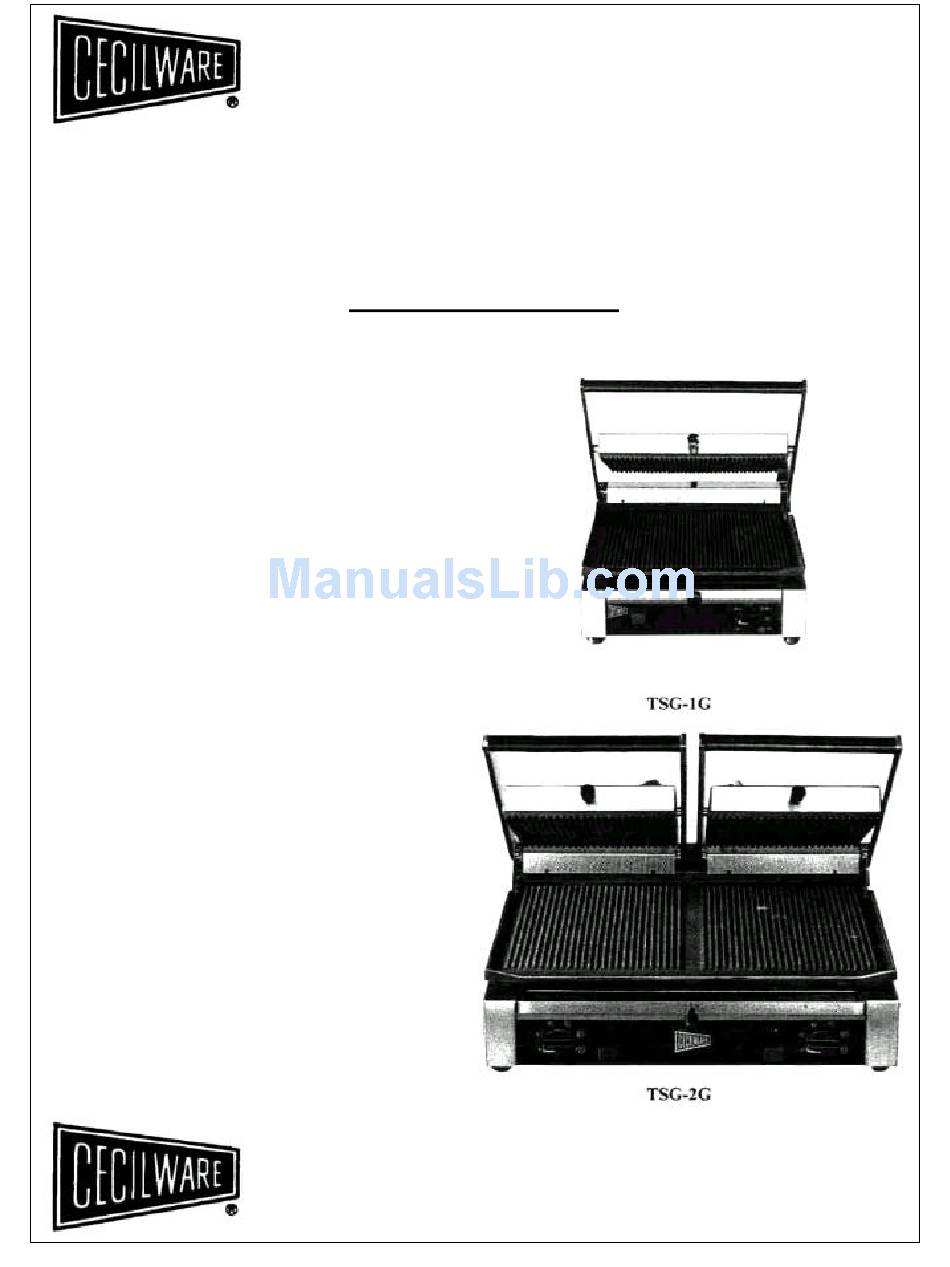

- Page 1 SANDWICH “PANINI” GRILL OPERATION MANUAL TSG-1G (All Grooved Surfaces) TSG-1F (All Flat Surfaces) TSG-2G (All Grooved Surfaces) TSG-2F (All Flat Surfaces) CECILWARE CORPORATION 43-05 20th Avenue • Long Island City, NY 11105 Tel: 800-935-2211 • Fax: 718-932-7860 3/29/00...
- Page 2 GENERAL SPECIFICATIONS MODEL SURFACES GRIDDLE DIMENSIONS ELECTRICAL NEMA PLUG SHIP WEIGHT AREA (W x D x H) TYPE TSG-1G Grooved 14 ½” x l0" 15"x 12 ½”x 7" 120/60/1 13Amps 5-15P 53 lbs. 1800 Watts TSG-1F Flat 14 ½” x l0"...
- Page 3 ELECTRICAL CIRCUIT DIAGRAMS FOR TSG-2G AND TSG-2F TOP ELEMENTS Rl -R2 -R3 -R4 = RESISTORS = PILOT LAMP T1-T2 = THERMOSTATS USE OF GRILL Prior to using grill make sure all the protective vinyl coating has been removed from stainless steel body. Make sure thermostat is in the off position.
- Page 4 SPARE PARTS LIST FOR SANDWICH GRILLS ITEM# PART# DESCRIPTION 01500 Thermostat - All TSG's 01501 Thermostat Knob - All TSG's 01502 Right Lifting Spring - All TSG's 01503 Left Lifting Spring - All TSG's 01504 Upper Element - 120V - TSG-1 (Only) 01506 Upper Element - 230V - TSG-2 (Only) 01505...
