Diamond vc500 Quick Installation Manual

1.1 Features and application

 Small size
 Use newest USB2.0 chipset which provides high data transmit rate to ensure video and audio work long at
the same time
 Powerful functions , installation easily with USB power
 Compatible with all laptop, LCD and USB2.0 port
 Supply many kinds of capture formats and MPEG models to make VCD, DVD, WMV convenient and easy to
release on internet
 Supply multi-video and S-video inputs.
 Deluxe User Interface, software make you do film DIY more easily

1.2 Application scope:

 Internet video meeting
 Video phone
 Video-audio animation transcribing and editing
 Make VCD, DVD and Website
 Enterprise bulletin and advertisement

1.3 System requirement

 Inter Pentium4 1.4G CPU, recommended Pentium4 2.0G or higher
 Windows 7, 8, 8.1 and 10 support
 Memory 128M at least , recommend 256M or higher
 A high speed USB2.0 interface
 VGA card supports DirectX9.0
 CD-ROM (for installation)
 300MB HD space(install driver and application ,like EZ Grabber 2), 600MB to 3GB per hour for recording

1.4 Contents

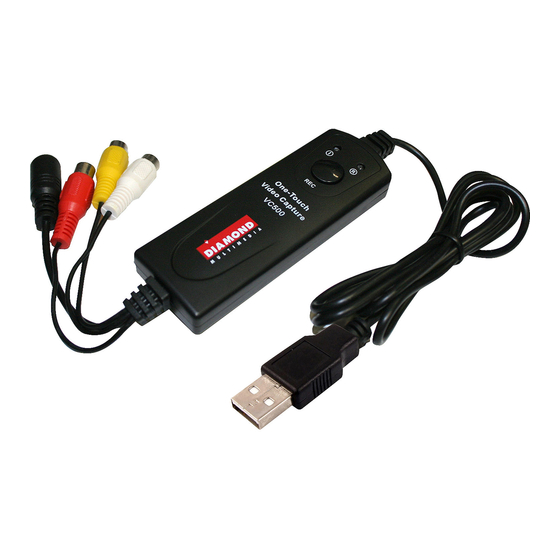

 VC500
 AV cable (Composite)
 Software Install CD

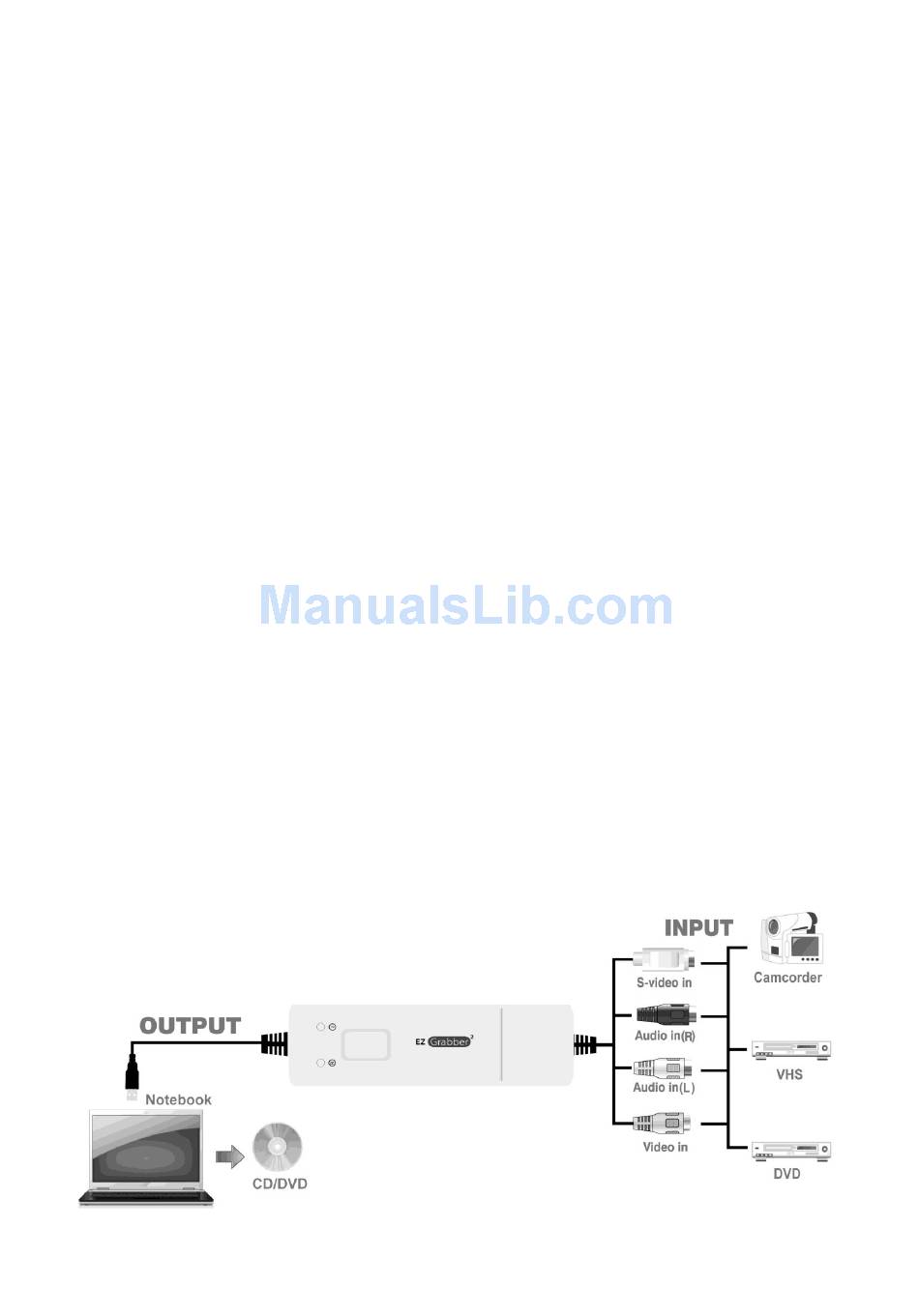

1.5 VC500 Connection Diagram
Note: make sure you connect the V500 to your video source outputs and then to the inputs of the
VC500. The device source example; your VCR will be labeled Video out. Connect the Yellow cable to
the Yellow video out of the source. Connect the Red and White cable to the audio out of the source.
2. Driver and Application Installation
VC500
Quick Installation Guidance
1
