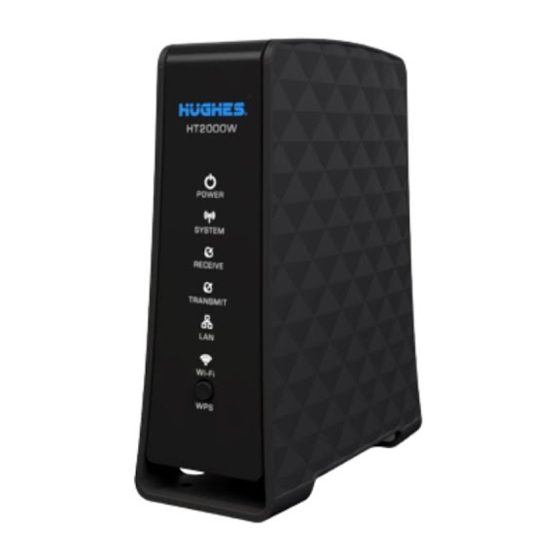

- Page 1 HT2000W Wi-Fi Module User Manual H57555 Revision A November 4, 2016 11717 Exploration Lane, Germantown, MD 20876 Phone (301) 428-5500 Fax (301) 428-1868/2830 ...
- Page 2 Hughes Network Systems, LLC has made every effort to ensure the correctness and completeness of the material in this document. Hughes Network Systems, LLC shall not be liable for errors contained herein. The information in this document is subject to change without notice. Hughes Network Systems, LLC makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. ...
- Page 3 Overview Ethernet Switch: Qualcomm QCA8337 2.4GHz Module: QCA9563 5GHz Module: QCA9882 Antenna Interface: 3 x U.FL PCB Antenna for 2.4GHz, 2 x U.FL PCB Antenna for 5GHz I/O Interface: MDI Features Dual Band Wi‐Fi Access Point 2.4GHz: IEEE 802.11 N, B, G 50 Mbps minimum at an unobstructed distance of 20 feet 20 Mbps minimum at a range of 50 meters horizontal and 15 meters vertical Max power of 23dBm 5GHz: IEEE 802.11 A, N, AC 200 Mbps minimum at an unobstructed distance of 20 feet 50 Mbps minimum at a range of 50 meters horizontal and 15 meters vertical Max power of 20dBm User Manual H57555 Revision A...
- Page 4 Compliance information FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device is restricted for indoor use. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. IMPORTANT NOTE: This module is intended for OEM integrator only and limited to host with brand: HUGHES and model: HT2000W. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. USERS MANUAL OF THE END PRODUCT: In the user’s manual of the end product, the end user has to be informed to keep at least 20 cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio‐frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: RAXHT2000W". The FCC part 15.19 statement below has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. User Manual...
- Page 5 Gain (dBi) Set Ant Brand Model Number Antenna Type Connector 2.4GHz 5GHz 1 1 Yageo ANTA0ZZ10511WLAN1 PCB I‐PEX 3.2 2 Yageo ANTA0ZZ10511WLAN2 PCB I‐PEX 3.69 3 Yageo ANTA0ZZ10511WLAN3 PCB I‐PEX 3.6 4 Yageo ANTA0ZZ10511WLAN4 PCB I‐PEX 3.9 5 Yageo ANTA0ZZ10511WLAN5 PCB ...
