K13440
Base top
1 pcs
K13445
Base top
1 pcs
L08060
Door Mano
Bumper
Dowel
7x1,5 mm
8x30 mm
1 pcs
10 pcs
Allen key
4 mm
1 pcs
15-05-2014 1
/
DCS80,060,***
K13428
Side
1 pcs
K13973
Cover
1 pcs
Mounting
plate
2 pcs
BP00029
Magnet
Plate for magnet
45,5x14,5x13
1 pcs
Screw flh
Screw rh
3x12 5
3x16 mm
1 pcs
2 pcs
MC675,060
K13429
Side
1 pcs
K13444
Shelf
3 pcs
Hinge
107 degrees
2 pcs
Screw flh
35x12x1
3,5x45 mm
1 pcs
13 pcs
K13443
Back panel
1 pcs
K13360
Suspension list
1 pcs
Screw confirmat
10x50
2 pcs
1 /
9
Advertisement
Related Manuals for Kvik MC675,060
Summary of Contents for Kvik MC675,060

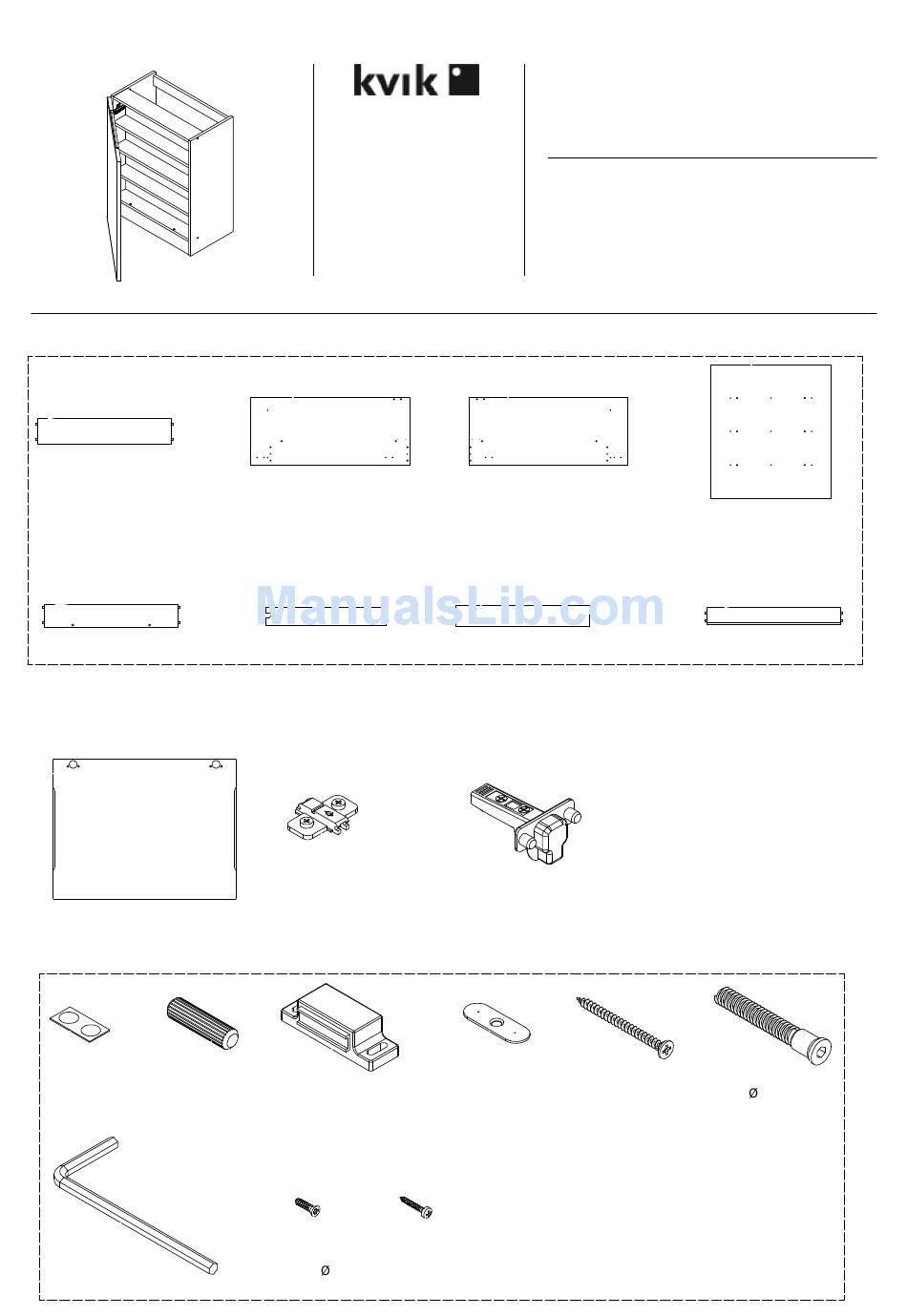

- Page 1 MC675,060 DCS80,060,*** K13440 Base top K13443 Back panel K13428 K13429 Side Side 1 pcs 1 pcs 1 pcs 1 pcs K13360 K13444 K13445 K13973 Suspension list Shelf Base top Cover 1 pcs 1 pcs 3 pcs 1 pcs L08060 Door Mano...
- Page 2 MC675,060 FIG. K13429 Side Screw ph 3x16 mm 2 pcs Magnet 45,5x14,5x13 Dowel 8x30 mm 2 pcs FIG. K13428 Side Dowel 8x30 mm 2 pcs 15-05-2014 1...
- Page 3 MC675,060 FIG. K13440 Base top K13429 Side K13360 Suspension list K13445 Base top K13428 Side OBS!!! Screw flh 3,5x45 mm 4 pcs FIG. Dowel 8x30 mm 6 pcs K13444 Shelf K13444 Shelf K13444 Shelf K13443 Back panel 15-05-2014 1...
- Page 4 MC675,060 FIG. Screw flh 3,5x45 mm 9 pcs FIG. Screw flh 3x12 5 Plate for magnet 35x12x1 15-05-2014 1...
- Page 5 MC675,060 FIG. Push, and that will make a mark on the backside FIG. Screw flh 3x12 5 Plate for magnet 35x12x1 Use mark 15-05-2014 1...
- Page 6 MC675,060 FIG. Click FIG. Click Hinge 107 degrees 2 pcs Mounting plate 2 pcs Bumper 7x1,5 Bumper 7x1,5 L08060 L08060 Door Mano Door Mano 15-05-2014 1...
- Page 7 MC675,060 FIG. Left L08060 Door Mano FIG. Left K13973 Cover 15-05-2014 1...
- Page 8 MC675,060 FIG. Right L08060 Door Mano Right K13973 Cover 15-05-2014 1...
- Page 9 MC675,060 Allen key 4 mm Screw confirmat 10x50 2 pcs Adjustment 15-05-2014 1...
