Interlogix NS3562-8P-2S Quick Installation Manual page 2

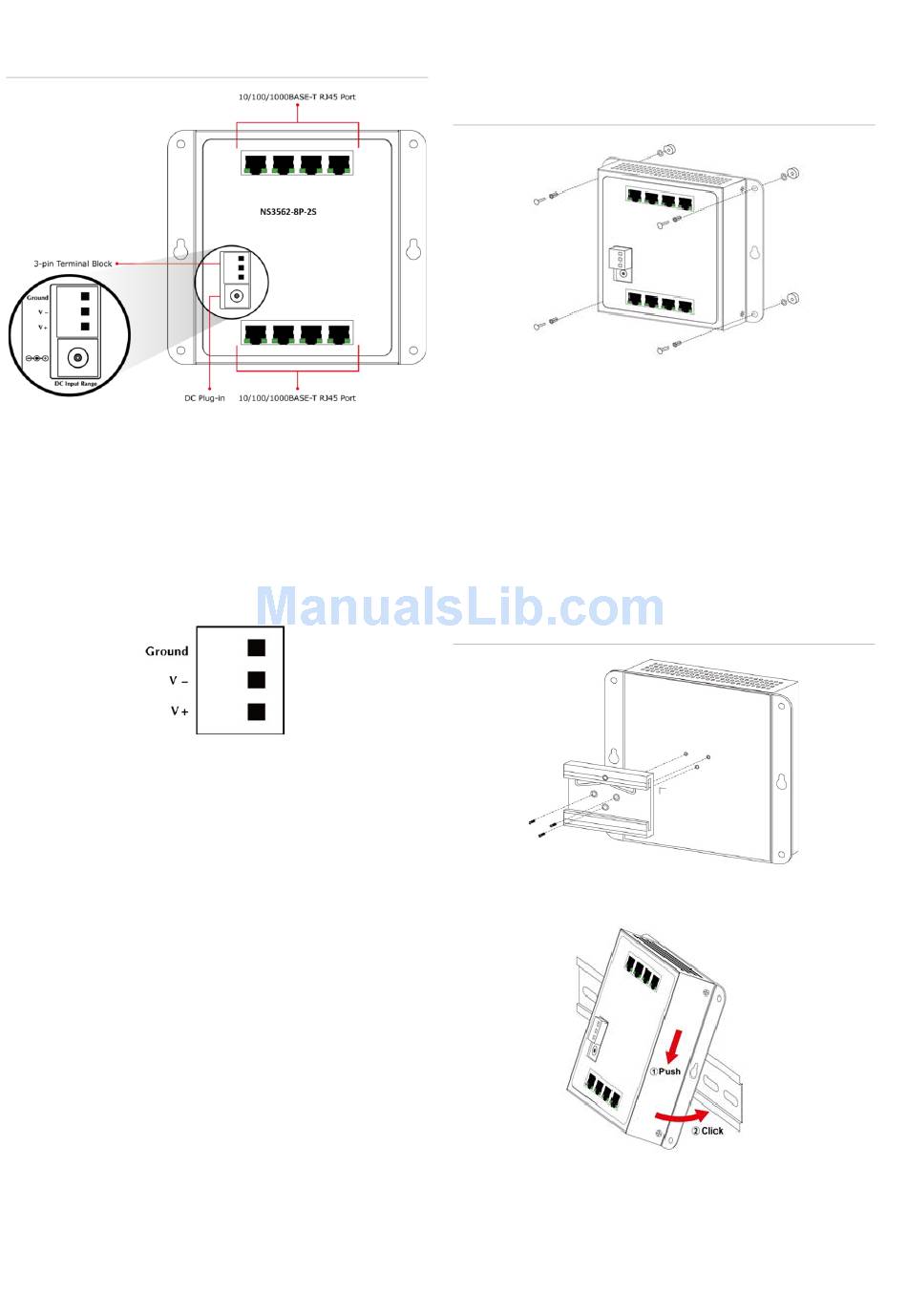

Figure 2: DC Power Input
V+ = Positive / V- = Negative / Ground
3.1 Terminal Block Connector Pinout
To install the 3-pin Terminal Block Connector on the
Wall-mount Managed Switch, follow these steps:
Step 1: Insert positive DC power wire into V+, negative
DC power wire into V-, and grounding wire into
Ground.
Step 2: Tighten the wire-clamp screws for preventing the
wires from loosening and plug into the Wall-mount
Managed switch
Note:
1. The wire gauge should be in the range from 12
to 24 AWG.
2. The device must be grounded.
4. Installation
4.1 Wall Mount Installation
To install the Wall-mount Managed Switch on the wall,
follow these steps:
Step 1: There are 4 holes with 8 mm diameter on the
wall; the distance between the 2 holes is 133 mm
and the line through them must be horizontal.
Step 2: Install a conductor pipe inside the board hole
and flush the edge of the conductor pipe with the
wall surface.
2
Step 3: Screw the bolts into the conductor pipe. The
Figure 3: Wall Mount install
4.3 DIN-rail Mount Installation
The DIN-rail kit is included in the package. When the
wall-mount application for the Wall-mount Managed
Switch needs to be replaced with DIN-rail application,
please refer to the following figures to screw the DIN-rail
on the Wall-mount Managed Switch. To hang up the
Wall-mount Managed Switch, follow the steps below:
Step 1: Screw the DIN-rail on the Wall-mount Managed
Figure 4: DIN Rail install
Step 2: Lightly insert the button of DIN-rail into the track.
Step 3: Check whether the DIN-rail is tightly on the
NS3562-8P-2S Industrial Wall-mount Managed Gigabit Ethernet Switch Quick Installation Guide
Wall-mount Managed Switch is between bolts and
conductor pipe, as shown
Switch.
track.
below.
