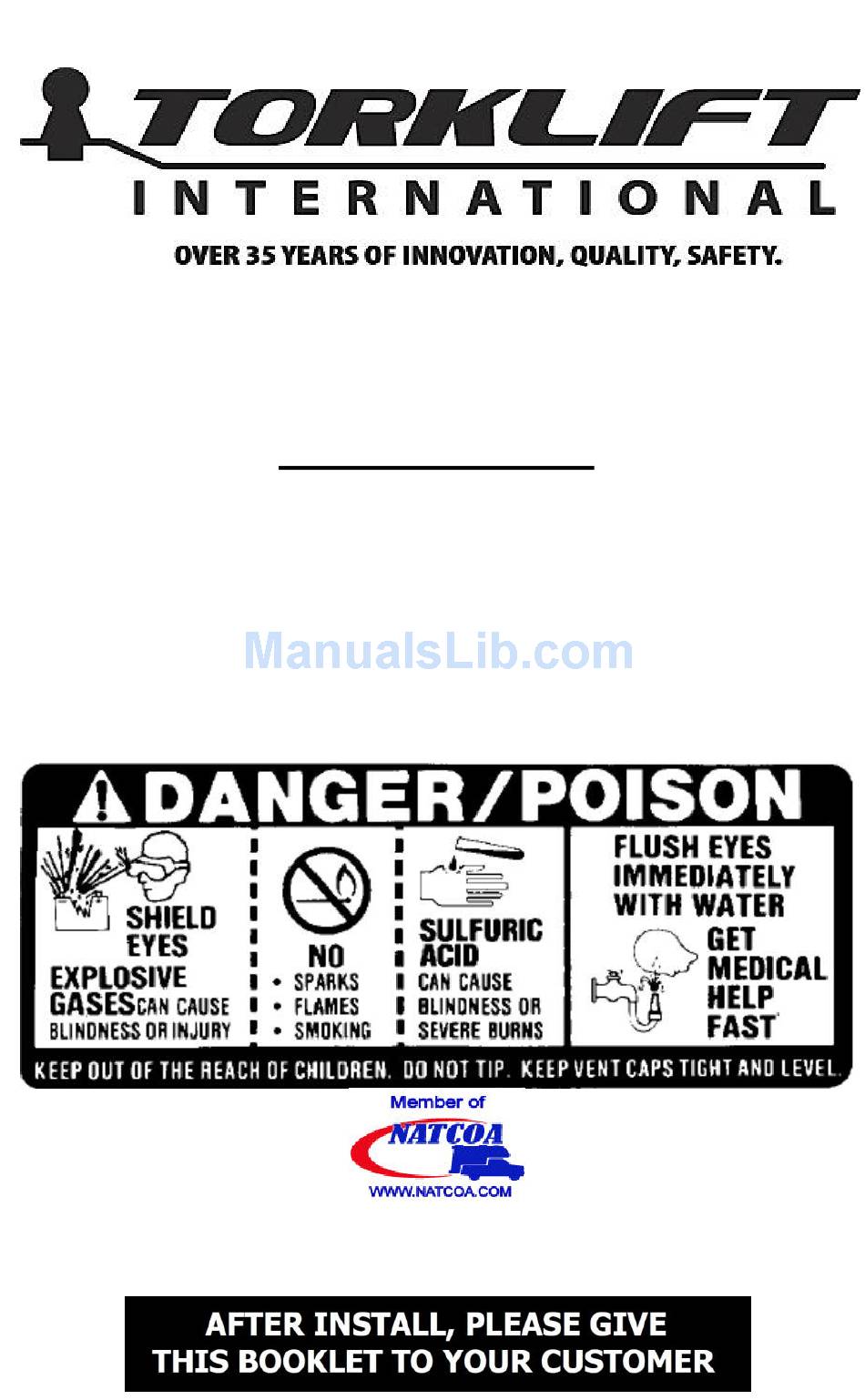

IMPORTANT OWNER-OPERATOR INSTALLATION
INSTRUCTIONS
A7720R, A7720RS
Warning!!
This battery box is made of aluminum and is
conductive! Do not allow the battery terminals to touch the aluminum
battery box. Be careful not to touch the battery box with a wrench while
tightening the battery terminals, as this could cause a short!
Version 1 BY: CW 5/11/2015
TECH SUPPORT (800) 246-8132

Advertisement

loading
Need help?

Need help?

Do you have a question about the A7720R and is the answer not in the manual?

Questions and answers

Summary of Contents for Torklift A7720R

  • Page 1 IMPORTANT OWNER-OPERATOR INSTALLATION INSTRUCTIONS A7720R, A7720RS Warning!! This battery box is made of aluminum and is conductive! Do not allow the battery terminals to touch the aluminum battery box. Be careful not to touch the battery box with a wrench while...
  • Page 2: Inventory List

    Box is acid neutralizing, and will help reduce any corrosion from spilled battery acid. It is a “wear” item and may eventually need to be replaced. New battery mats are available through Torklift International. Part numbers below. PN: A7722- A7720R(S)/A7720R(S) Battery Mat...
  • Page 3 Step 1: Remove the Power Armor Lid by sliding the lid away from the side with the lock, then lifting the front edge and unhooking the lid from the tabs on the rear of the box. The Power Armor Battery Box has slots cut into the bottom of the box.
  • Page 4 It can be mounted towards either the front or back as long as there is sufficient room to open and remove the Power Armor Lid. The A7720R and A7720RS power armor battery boxes may be mounted in two ways. Option 1: Universal mounting...
  • Page 5 Step 3 – Option 1 Place the Power Armor Battery Box on top of the mounting surface. Mark four to six locations in the box where it will screw down, and drill a 3/16” pilot hole in each. Use the 1/4" x 1” Self-Drilling Screws and 1/4" SS USS Flat Washers to screw the Power Armor Battery Box down onto the surface.
  • Page 6 Step 3 – Option 2 In some cases the Power Armor battery box will fit between the two steel of angles used to secure the stock battery box. If this is the case on your trailer, refer back to Step 3 - Option 1. If the Power Armor battery box is too wide to fit between the steel angles, begin by drilling two 1/4”...
  • Page 7 Figure 3.3 Insert one 1/4"-20x 1” SS Hex Bolt with one 1/4" SS USS Flat Washer into all four “Angle Extension Mounting Holes” on the Power Armor Battery Box. Place one 1/4"x 5/8”x 1/4” Nylon Spacer between the battery box and Angle Extension Brackets. Secure each bolt with one 1/4" SS USS Flat Washer and one 1/4"-20 Nylock Nut.
  • Page 8 Figure 3.4...
  • Page 9 Step 4 Reinstall the Battery Mat and Battery. To prevent any possible contact between the battery terminals and lock, the battery terminals should be oriented towards the side of the box with the 2” hole. Tightly secure the battery with the battery strap. Step 5 Insert the positive and negative battery cables into the box through the 2”...
  • Page 10 Step 6 To attach the Battery Box Lid to the Power Armor Battery Box , place it over the Power Armor Battery Box , and align it so the tabs on the Power Armor Battery Box fit through the slotted holes in the Power Armor Lid as seen in Figure 6.1 Figure 6.1...
  • Page 11 Step 7 Slide the Battery Box Lid away from the lock and lower it down over the front of the Power Armor Battery Box. Once the Power Armor Lid is sitting flat, slide it towards the lock so the Locking tabs on the lid slide into the Power Armor Battery Box as seen in figure 7.1 Locking Tab Figure 7.1...
  • Page 12 (on or off road). A rubber bed mat is not a requirement to maintain the lifetime warranty on a Torklift system, but a strong recommendation simply as a safety precaution to protect the truck bed, the bottom of the camper and to give the camper additional support.
  • Page 13 They are designed for each make and model to fit tight to the frame so as not to compromise ground clearance. Torklift tie downs are not universal ‘one size fits all’ therefore all the problems with correct fit for each particular application have been eliminated.
  • Page 14: Warranty Information

    Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Any damage to Torklift products as a result of misuse, abuse, neglect, accident, improper installation or any use violative of instructions furnished by Torklift or WHEN USED IN ANY COMMERCIAL APPLICATION WILL VOID THE WARRANTY.
  • Page 15 Or visit our website: www.TorkLift.com Dear Valued Customer, Thank you for making TorkLift your choice for truck, camper packages and accessories for your vehicle. By choosing TorkLift products, you have chosen a company that has been serving the RV industry for nearly 40 years and whose name has become synonymous with strength, quality and advanced design and installation.
  • Page 16 OFFICIAL WARRANTY REGISTRATION CARD PLEASE FILL OUT THIS FORM COMPLETELY AND RETURN TO TORKLIFT WITHIN 30 DAYS OF PURCHASE ACCOMPANIED BY A COPY OF YOUR ORIGINAL RECEIPT...
