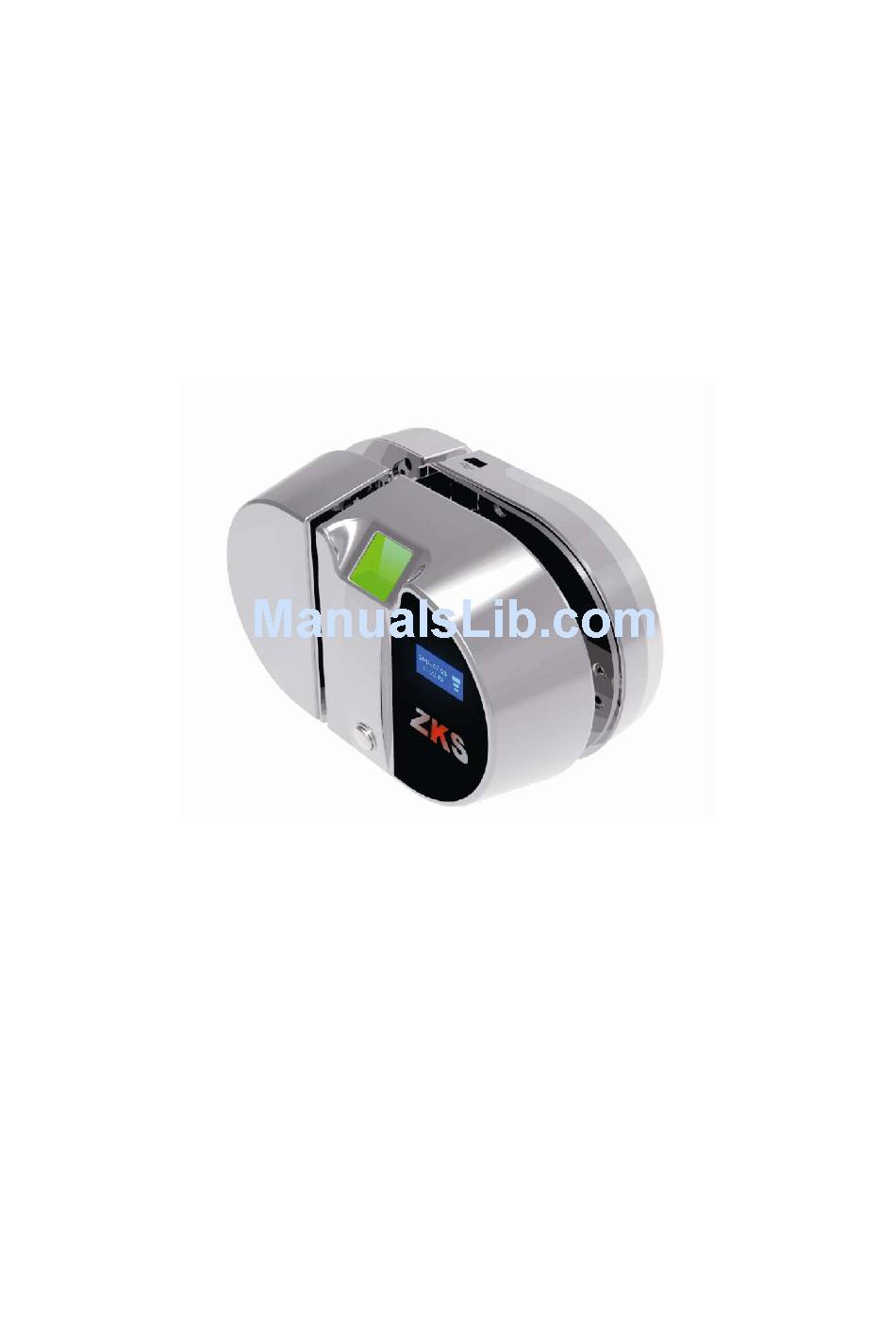

- Page 1 Glass Dog-Smart Fingerprint Glass Door Lock ZKS-M1/MW1/G1/GW1 User Manual...
- Page 2 1.0.0 Notice Thank you for using ZKS fingerprint glass door lock, please read this user manual carefully before installation, and also pay attention to the following points: 1. Please do not install the lock under the sunlight to avoid identification problem.
- Page 3 ZKS Group Company Limit sensor, and don”t use water to wash the sensor. 8. Please don”t use the corrosion material to clean this lock panel and sensor window, this may damage the panel and lock spare parts. 9. This lock has anti-lock function, when the lock is in anti-lock mode, the users can”t open the door by normal way, it needs to use the certain operation to cancel anti-lock to open the door.
-
Page 4: Table Of Contents
ZKS Group Company Limit Catalogue Chapter1 Introduction .............5 1.1 Brief Introduction..........................5 1.2 Structure ..............................5 1.3 Technical Parameters ..........................6 1.4 Spare Parts List............................7 1.5 Voice..............................7 Chapter2 Function ..............8 2.1 By Fingerprint............................8 2.2 Anti-lockup............................8 2.3 Cancel Anti-Lockup..........................9 2.4 Normal Open............................9 2.5 Cancel Normal Open ..........................9 2.6 Lower Voltage Prompt........................9... -
Page 5: Chapter1 Introduction
95% places are used glass door as decoration. Glass door decoration is increasing gradually, but this glass lock security risk did not reduce. Since 1995, ZKS has been concentrating on fingerprint door lock researching all the times, and established in door lock researching, designing and producing, and have accumulated the abundant experiences of producing door locks. -
Page 6: Technical Parameters
ZKS Group Company Limit Back Side 1.3 Technical Parameters Item Technical Parameters Resolution Ratio 450DPI Fingerprint Capacity 200 fingerprints Response Time <1 seconds Prompt Voice, Buzzer Temperature -10₤ ’50₤ Humidity 20%-80% Dynamic Voltage DC6V Alarm Voltage DC4.8V Dynamic Current <130ma Static Current <20ua... -
Page 7: Spare Parts List
ZKS Group Company Limit Display Clock, ID Number Input\output Connector 1.4 Spare Parts List Screws 8 pcs User Manual 1 copy Installation Chart 1 copy Warranty Card 1 copy Screw Tools 1 pcs Batteries 1 pair Glass Cloth 1 piece... -
Page 8: Chapter2 Function
ZKS Group Company Limit Chapter 2 Function Features 1. More convenient, no need to use a string of key to try. 2. Open the door through advanced optical fingerprint module. 3. More modernization, no hole design against thief. 4. Action status prompt, such ‡ Please close the door• , ‡ Closed• , ‡ Opened• , 5. -
Page 9: Cancel Anti-Lockup
ZKS Group Company Limit only the admin can open the door. The red and green light will shine alternately to hint you if the lock is lockup. 2.3 Cancel Anti-Lockup Press down 【 】 【 】 at the same time for 3 seconds at the back lock panel, you will hear Di from lock, this means anti-lock has cancelled. -
Page 10: Chapter3 Operation
ZKS Group Company Limit Chapter3 Operation 3.1 Setup System Time Admin can setup the door lock system time, such as following steps: 1. Press【0】for 3 seconds, then release the button if you hear DiDi prompt sound. 2. Input admin default password 111111 or press registered admin fingerprint, the screen show Success, while the lock gives Di┈┈Di┈┈Di┈┈•... -
Page 11: Add User
ZKS Group Company Limit button after input admin password 11111④. If the screen shows Failed, while the lock gives ‡ Di┈┈Di┈┈• , your fingerprint is failed to verify. 3. Press 【 】 button within 3 seconds, then release the button after you hear DiDi from the lock. -
Page 12: Add User Password
ZKS Group Company Limit enter into enrollment status. ⑤ Please input original admin password 111111 or identify your registered admin fingerprint, the screen shows Success, while the lock hint ‡ Di┈┈Di┈┈Di┈┈• (Press【 】 button after input admin password 11111④. If shows failed, then the lock may give ‡... -
Page 13: Add Admin Card
⑤Input original admin password 111111 or identify your registered admin fingerprint, you will hear success, At the same time, ZKS Logo on front panel will show green light once. If you hear Failed, means failed to verify admin fingerprint. If failed to verify finger for 2 times continuously, the system may exit admin verification automatically, you need to repeat this step. -
Page 14: Delete All Users
ZKS Group Company Limit input admin password 11111④. If shows failed, the lock may give• Di┈┈Di┈┈• , at this time, your fingerprint is failed to verify. ⑥Press【1】button, if you hear ‡ Di┈┈Di┈┈• , then enter into Delete User condition. ⑦Select ID number by value button, 【1】button means to add 1,【2】means to reduce 1, 【... -
Page 15: Clear Admin By U-Disk
3. Input original admin password 111111 or identify your registered admin fingerprint, the screen show Success, and ZKS Logo on front panel will shine green light once. If hear failed voice, means your fingerprint is failed to verify. If failed to identify for 2 times continuously, the system may exit the menu automatically, you need to repeat this step. -
Page 16: Usage Notice
ZKS Group Company Limit To make sure the lock higher security, the lock may create a piece of record when every user identifies their fingerprint to open the door, every record may include the following contents: Serial No, ID number, Date & Time, Verification mode (Fingerprint or Card or Password) 3.8 Usage Notice... -
Page 17: Chapter 4 Installation
ZKS Group Company Limit Chapter 4 Installation 4.1 Assembling Chart 4.2 Installation Notice 1. Fingerprint door lock is a kind of high technology products, the lock environment is playing an important part for its normal usage, especially in heavy dusty or in high... -
Page 18: Appendix 1 Maintenance
ZKS Group Company Limit please read the operation user manual carefully before using it. If any doubt, you can call ZKS after sale service department directly for help, our professional technical person will solve all your questions in time. 4.3 Appendix 1 Maintenance 1. - Page 19 ZKS Group Company Limit Press fingerprint, Door has anti-lockup, Cancel anti-lock setting green and red light shine only admin can open alternately the door Press valid fingerprint, Lockup minutes Waiting for enough time to LCD show red light 5 automatically if failed...
- Page 20 Glass Dog-Smart Fingerprint Glass Door Lock...
