Alto TMX160DFX Quick Start Manual

Hide thumbs Also See for TMX160DFX:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Start Manual

BOX CONTENTS

TMX160DFX
Power cable
Quickstart Guide
Safety Instructions & Warranty Information booklet

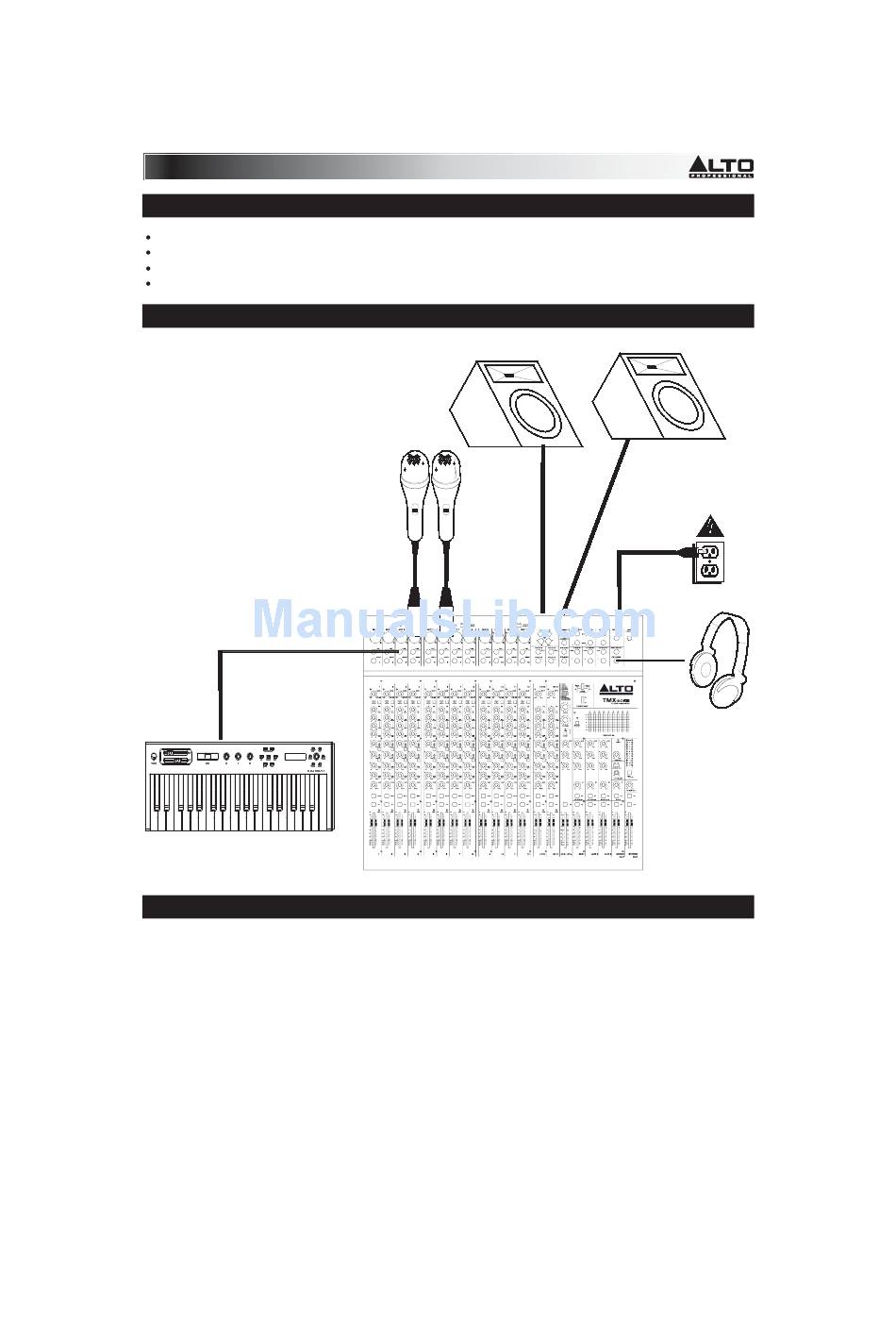

CONNECTION DIAGRAM

QUICK SETUP

Follow the procedure below to have a signal processed for each channel:
1.
Set all channel levels to zero, set pan to the middle, set output to zero, and set EQ's flat.
2.
Connect your mic and then apply phantom power if your mic requires this.
3.
Set the Main output level to no more than 75% and the Monitor output to no more than 50%.
4.
Bring up the channel level.
5.
Repeat steps 1 and 2 to setup more channels.
2

Advertisement

Table of Contents
loading

Related Manuals for Alto TMX160DFX

Summary of Contents for Alto TMX160DFX

  • Page 1: Box Contents

    BOX CONTENTS TMX160DFX Power cable Quickstart Guide Safety Instructions & Warranty Information booklet CONNECTION DIAGRAM QUICK SETUP Follow the procedure below to have a signal processed for each channel: Set all channel levels to zero, set pan to the middle, set output to zero, and set EQ’s flat.

  • Page 2: Channel Controls

    INPUTS MONO INPUTS – Connect a microphone or line level instrument to these inputs using MIC 1 standard XLR or ¼” cable. MONO Channel INSERT - Connect external sound processors such as compressor-limiter, equalizers, etc. The Insert sockets can be used as direct-outs to feed the input of a 4-track LINE IN tape recorder.

  • Page 3: Master Section

    HI EQ (TREBLE) – Adjusts the high (treble) frequencies of the channel. POST MID EQ – Adjusts the mid-range frequencies of the channel. POST LOW EQ (BASS) – Adjusts the low (bass) frequencies of the channel. AUX SENDS – Adjusts the level of the signal FREQ DFX1 (EXT)

  • Page 4: Power Amp

    AUX1-3 Controls - Adjusts the amount of the signal sent from the ST SUB IN1-3 jacks to the AUX 1, 2 and 3 buses. POWER ST (stereo) Controls - Adjusts the amount of stereo signal sent from the ST SUB IN1-3 jacks to the STEREO bus. PFL (pre-fader listen) Switch - When this switch is engaged, the signal at the point before the ST control knob is sent to the PHONES jack.

  • Page 5: Internal Effects

    INTERNAL EFFECTS 1. VOCAL 1 2. VOCAL 2 PRESETS Control - Adjust this knob to select the internal effect you want to use. 3. LARGE HALL 4. SMALL HALL 5. LARGE ROOM VARIATIONS Control - 16 variations for each preset to further adjust the internal effects. 6.

  • Page 6: Installation And Connection

    INSTALLATION AND CONNECTION MAIN L + MAIN R Mode The built-in amplifier drives two main speaker cabinets Left and Right. The AMPLIFIER MODE is on MAIN L+MAIN R position. Main Speaker Use either the Speakon jacks or 1/4" jacks Main Speaker AUX1 + MONO Mode With the AMPLIFIER MODE in AUX1+MONO position, Output 1 drives a Main speaker cabinet while Output 2 drives a stage monitor.

  • Page 7: Effects List

    Bridge Mode With the AMPLIFIER MODE switch in BRIDGE position the two power amplifiers drive together a single speaker cabinet with the sum of the power of the 2 amps. This is commonly used to drive a single subwoofer and the main output on the front panel is used to feed a pair of powered speakers.

  • Page 8: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE ACTION No sound from speaker. Signal source (mixer, instrument, *Check VU meters on the etc) is not sending. source mixer; *Verify that the tape or CD is playing; *Use headphones to verify that the instrument is actually sending an audio signal Signal sounds distorted Excessive input signal;...
