Summary of Contents for COMPANION COMP434

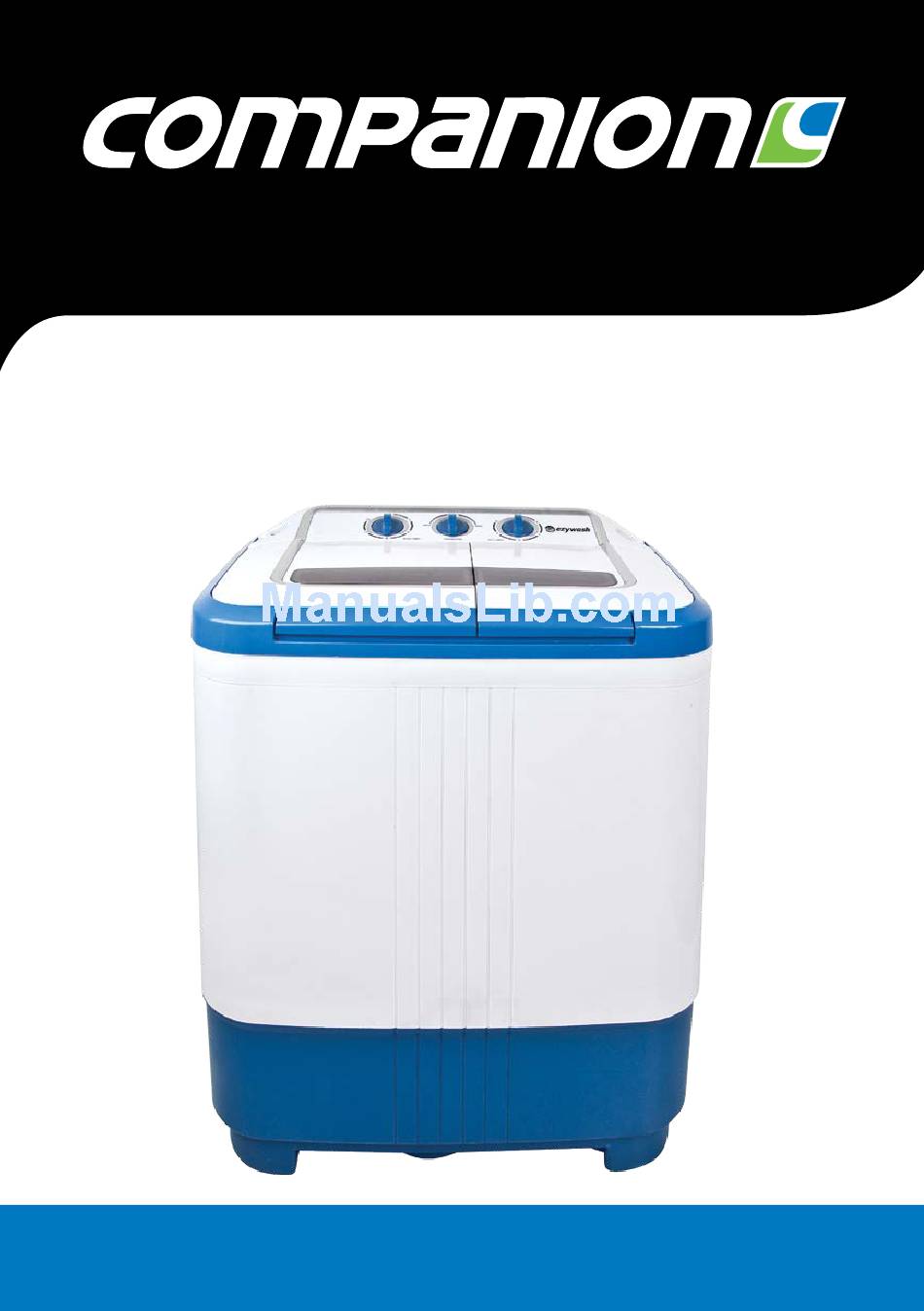

- Page 1 OWNERS MANUAL EZYWASH PORTABLE TWIN TUB WASHING MACHINE Part No. COMP434 Australia’s original Outdoor brand...
-
Page 2: Table Of Contents
INDEX Important Understanding your Appliance Specifications Installation Power Requirements Advice and Tips before Washing Sort your Laundry Clothing Washing Guide Washing Draining Rinsing Spin Drying Maintenance and Storage... -
Page 3: Important
OWNERS MANUAL IMPORTANT • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •... -
Page 4: Understanding Your Appliance
UNDERSTANDING YOUR APPLIANCE CYCLE SELECTOR SPIN TIMER WASH TIMER SPIN LID WASH LID DRAINAGE HOSE SAA-100334-EA SPECIFICATIONS Size 362(l) x 560(w) x 650(h) mm Weight (Empty) 12kg Max Washing Capacity 2.0kg Rated Voltage 240V AC/50Hz Rated Power 240W wash / 120W spin Outer Casing ABS plastic Inner Casing... -
Page 5: Installation
OWNERS MANUAL INSTALLATION It is important that your appliance is installed and operated in accordance with the manufacturer’s instructions. POWER REQUIREMENTS This appliance is designed to be operated on AC input only, voltage is required to be 220-240V AC at 50Hz. To ensure correct operation of your appliance read and understand the instructions fully prior to using the machine. -
Page 6: Washing Guide
WASHING GUIDE CLOTHING TYPE WASH/RINSE TIME SPIN TIME Delicates 3-5min 1-2min Cotton and Synthetics 5-9min 3-5min Towels and Sheets 12-15min 4-5min Heavy Soiled 12-15min 4-5min WASHING Step 1. Position appliance in a suitable location. Step 2. Connect to suitable AC outlet. Step 3. - Page 7 OWNERS MANUAL Step 4. Lift the lid and half fill tub with water via either the water inlet located on the top of the appliance (A) or directly in to the tub (B), taking care not to allow water to flow over the control panel. The detergent packaging will give a recommendation about how much detergent you should use based on the amount and level of soiled clothing that is to be cleaned.
-
Page 8: Draining
Step 6. Select the required washing level – Normal or Gentle. Step 7. Rotate the timer in a clockwise direction to select the length of time, in minutes, that is required. See the Washing Guide to set the correct time. DRAINING Step 1. -
Page 9: Rinsing
OWNERS MANUAL RINSING Step 1. Rotate the Cycle Selector in an anti-clockwise direction and select Normal. Step 2. Half fill tub with water via either the water inlet located on the top of the appliance (A) or directly in to the tub (B). Step 3. -
Page 10: Spin Drying
SPIN DRYING Step 1. Open the External and Internal lids of the spinning tub and remove the plastic spin disc. Note: It is important that the spin disc is used every time so as to allow correct operation of the spinner tub. Step 2. -
Page 11: Maintenance And Storage
OWNERS MANUAL Step 5. Open the External and Internal lids of the spinning tub and remove the plastic spin disc. Step 6. Rotate the Cycle Selector in an anti-clockwise direction and select Normal. MAINTENANCE AND STORAGE The appliance is fitted with a lint collection point that must be cleaned regularly. Step 1. - Page 12 Distributed by Companion Brands Bundoora Victoria 3083 www.companionbrands.com.au...
