Important - Fill Base completely with water before use
Front
Cover
Light
Switch
Upper
Blade Guide
Finger Guard
Platform
Right side of assembled saw
Motor Assembly

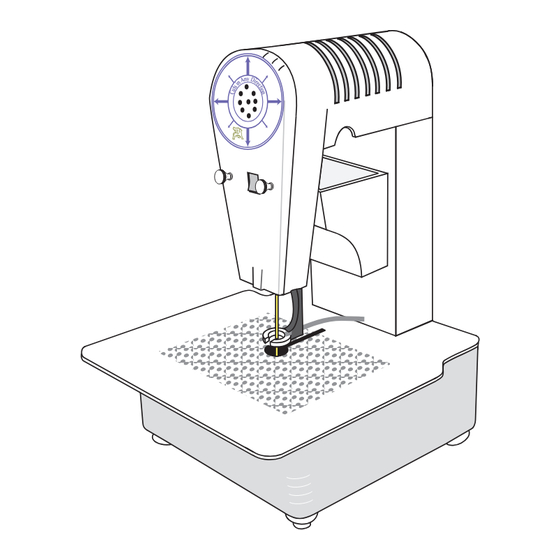

Gryphon Diamond Wire Saw model Omni-2 Plus+
• Unplug saw when changing blades or guides •
Motor Housing
Motor
Switch
Tubing
Base

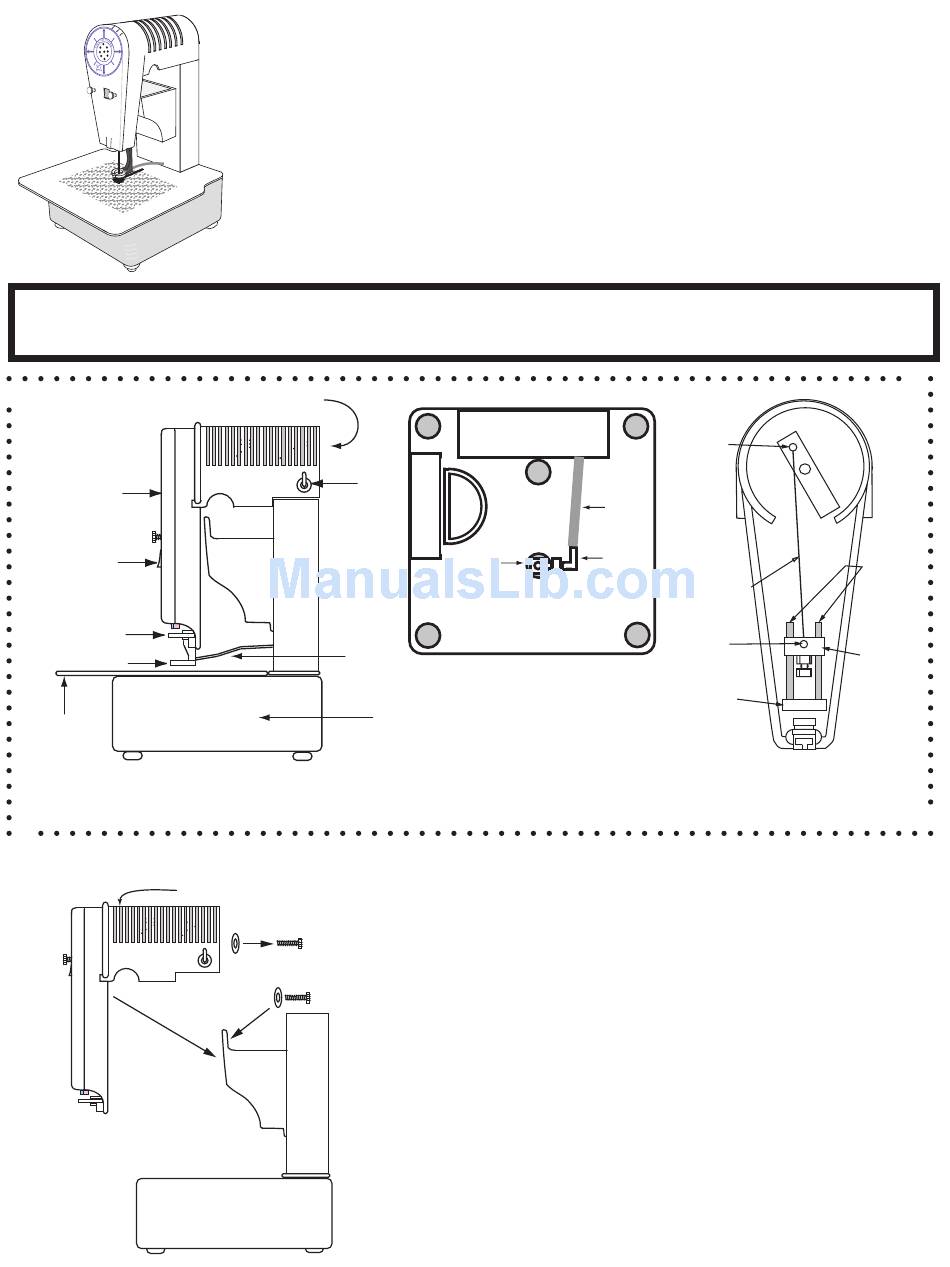

Gryphon Wire Saw Parts Identification
Instructions
• Always wear eye protection •
• Do not run blade dry- use plenty of water •
• Keep fingers clear of moving parts •
• Do not operate with finger guard removed •
• Do not operate with front cover removed •
Pump
Base of saw viewed from above
Assembly Step 1
Place motor assembly on top of base. Slip a plastic washer onto each of the two
plastic thumbscrews found in your parts bag. Insert thumbscrews into blue
vibration grommets at the upper outside corners of the housing. Tighten screws
into motor assembly snug tight only (do not overtighten in order to minimize
vibration).
Upper
Wrist
Pin
Clear
Tubing
Barbed
Fitting
Connecting
Rod
Lower
Wrist
Pin
Aluminum
Block
Upper Housing with Cover removed
Vertical
Shafts
Blade
Chuck
Advertisement
Related Manuals for Gryphon Omni-2 Plus+
Summary of Contents for Gryphon Omni-2 Plus+
- Page 1 Instructions Gryphon Diamond Wire Saw model Omni-2 Plus+ • Always wear eye protection • • Do not run blade dry- use plenty of water • • Keep fingers clear of moving parts • • Do not operate with finger guard removed •...
- Page 2 Assembly Step 2- Installing the Finger Guard and Tubing Take the finger guard from your parts bag and push it into the “T” shaped slot at the bottom of the motor assembly. Motor Insert Assembly Finger Push the upper end of the tubing through the hole in the Guard Finger Guard.
-
Page 3: Preparing To Saw
Preparing to Saw Important: Fill the base with water to a level that covers the lower guide . The water provides cooling for the blade Lower Blade Guide and extends guide life. Wear eye protection. Turn the switch on and observe that the pump is supplying water to the blade. - Page 4 Just like a band saw, or any other diamond tool, these blades will become dull from use and you will have to push harder to make cuts. Pushing extremely hard can break your blade. Finally the blade will need to be replaced. The beauty of the Gryphon Wire Saw is that the blades are inexpensive. The Gryphon Omni-2 Plus+ Diamond Wire Saw is far more economical to use that any other glass saw.
