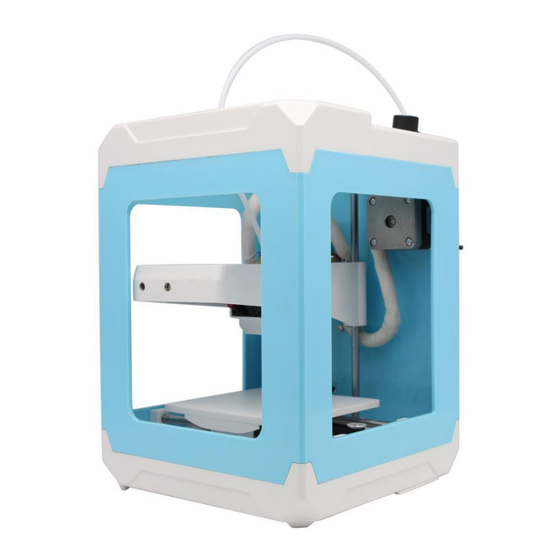

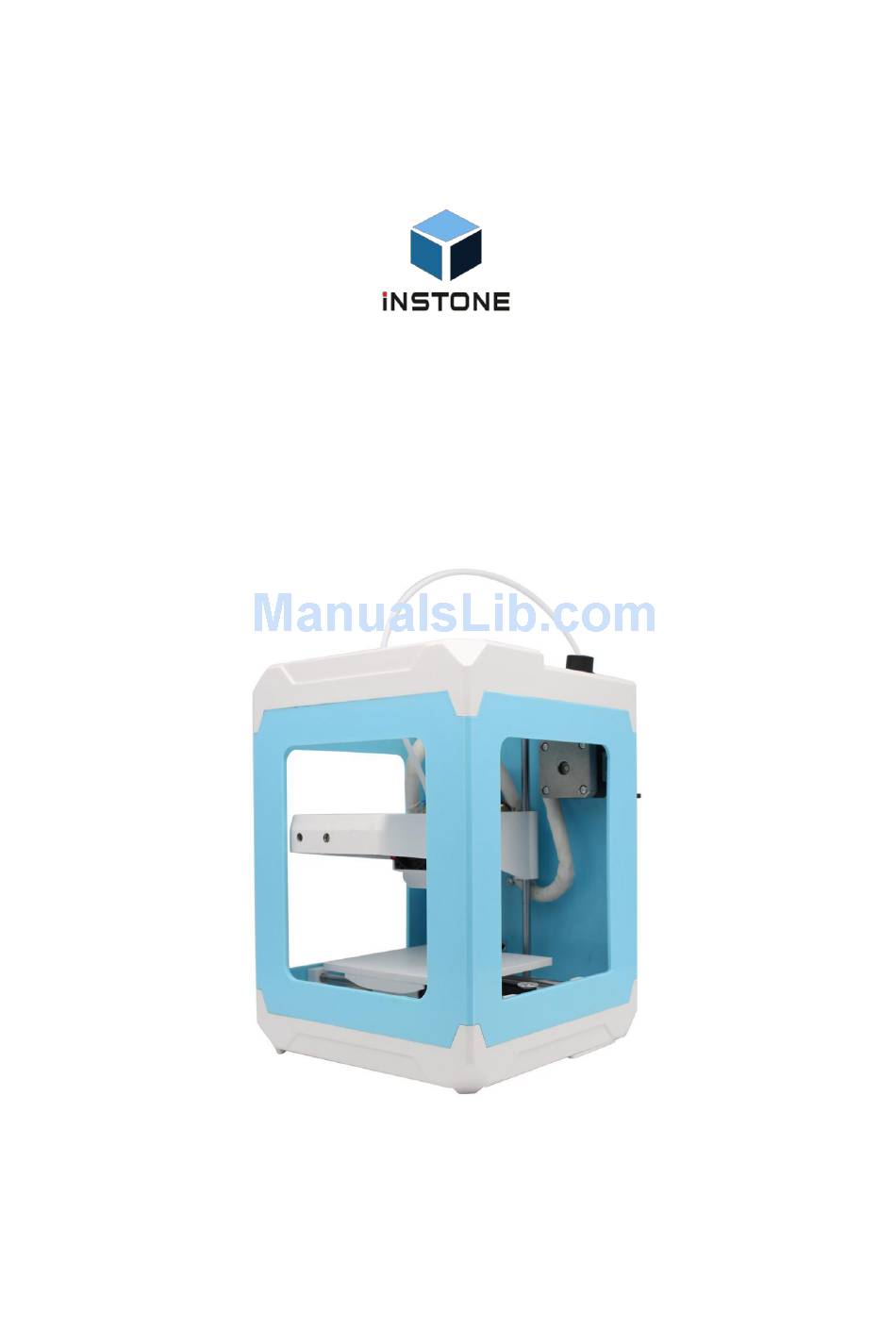

- Page 1 User Manual for Mini 3D Printer Copyright@iNSTONE 3D...
-
Page 2: Table Of Contents
www.instone3d.com Content Content............................... 1 Technical Parameters........................2 Packing List............................3 Installation............................4 Instructions............................5 I. Installation and Operating Guide of Slicing................7 II. Use of Slicing Software:.......................10 1. Understand and Know Well About Software Interface:..........10 2. Machine Settings:......................11 3. Load Model File:......................12 4. -
Page 3: Technical Parameters
Technical Parameters Name Mini 3D Printer Model EASIER Consumable Printer size 195*210*275mm Build volume 110*110*125mm Printing accuracy 0.1mm(Max) Printing principle Printing temperature 210℃ X, Y, Z axis position accuracy 0.1mm N.W. 2.4kg G.W. -
Page 4: Packing List
www.instone3d.com Packing List MINI 3D Printer *1 Power Adapter *1 Power Cable *1 Printing plate *1 TF card *1 Card Reader *1 Glue Stick *1 PLA Filament (280g) *1 Note：Once you received the parcel, please check all the parts; if anything missed, contact us (sales01@instone3d.com) ASAP... -
Page 5: Installation
www.instone3d.com Installation I. Remove the protecting clip on the plain shaft II. Install the Feed Pipe 1. Press down the feeding coupling aside the radiator, then insert the white feed pipe 2. Insert the other end of the feed pipe into the socket of the remote extruder III. -
Page 6: Instructions
www.instone3d.com Instructions Ⅰ.Printing 1. The LCD screen will display the home page after starting up 2. Press the control knob to enter into the main menu; rotate the knob to select the option “Print from SD card”, and press the knob to enter into the submenu 3. - Page 7 www.instone3d.com 1. At the home page, press the control knob, then the main menu pops up on the display screen 2. Rotate the knob, select the option “Auto-stripper”, and press the knob to enter into the operation 3. “Processing...” will show on the interface, and please wait patiently 4.
-
Page 8: Installation And Operating Guide Of Slicing
www.instone3d.com I. Installation and Operating Guide of Slicing 1. Double click the file in TF card to enter software installation interface. User can select installation catalog in the red frame, then single click [Next] 2.Installation option, Click [Install] for installation. - Page 9 www.instone3d.com 3. Installation is processing. 4. Single click [Next] install drive...
- Page 10 www.instone3d.com 5.After installing drive, single click [Finish] 6. Single click [Next] to complete installation.
-
Page 11: Use Of Slicing Software
www.instone3d.com II. Use of Slicing Software: 1. Understand and Know Well About Software Interface:... -
Page 12: Machine Settings
www.instone3d.com Import model View model Transparent Save Gcode file Normal X-Ray Overhang Layers Rotate Scale Mirror Lay flat To max Mirror X Reset Reset Mirror Y Mirror Z 2. Machine Settings: Select corresponding machine for setting, click the “Machine” and select “2Um1+Normal Print”, as shown in the following picture;... -
Page 13: Load Model File
www.instone3d.com 3. Load Model File: Open the model file, it supports file in the format “stl,obj,dae,amf,bmp,jpg,jpeg, png,g,gcode”. There are three ways of opening the model file: (1) click “file”, select “load model file”, open the catalog where the model file is stored and select the file; (2) click Load icon in the window directly to open the model file;... - Page 14 www.instone3d.com drag them to zoom out the corresponding axial size. Meanwhile, the model center hints the value. User can input specific figure in the dialog box. Please operate the model as per the following picture. X axis scaling rate Z axis scale Y axis scaling rate Z axis scaling rate Y axis scale...
-
Page 15: Basic Parameter Setting Of Slicing
Brim can solve edge warping problem effectively. however, when the bottom surface is big, it increase the difficulty of taking out the model. When Raft can make model on the print plate easier to take out, but the bottom surface of model is not smooth, user can select correspondingly. -
Page 16: Senior Parameter Setting Of Slicing
www.instone3d.com Flow: percentage of consumable usage amount is usually set as 100%. ⑹Machine Aperture of nozzle: 0.4mm. 6. Senior Parameter Setting of Slicing: (It is applicable to professional printing effect contrast. The common printing just adopts the default value without entering this setting) Click next tab control “Advanced”... -
Page 17: Additional Parameter Setting Of Slicing
www.instone3d.com ⑴Dual extrusion overlap (the machine doesn’t support this function, so the parameter is invalid): it is used for double-color printing to make the fusion of two colors more natural. ⑵Minimal layer time: ensure PLA to have full cooling time and make the printing effect perfecter. -
Page 18: Black Magic
www.instone3d.com ⑸Support Structure type: the type of support structure. Overhang angle for support: minimum angle triggering the printing support. Fill amount: fill rate of support. Distance X/Y: the distance between support and model subject on X/Y axis. Distance Z: distance between support and model subject on Z axis. ⑹Black magic Spiralize the outer contour: after it is enabled, it can print the surface in a spiral shape and eliminate the interface of each layer. -
Page 19: Browse Slicing File
www.instone3d.com 8. Browse slicing file: Click the icon on the top right corner and select Layers. The layer number bar occurs on the right side of interface. Move up and down to view the printing path. Click Normal to restore normal model view. 9. - Page 20 www.instone3d.com...
-
Page 21: Online Printing And Updating Firmware
1. As is mentioned above, connect printer to computer successfully, click “machine” in the software menu bar—“install custom firmware”, select file INSTONE*.*.*.hex. 2. When the dialog box progress bar is finished and displays “Done!Installed firmware:INSTONE*.*.*.hex”, it means successfully updated. -
Page 22: Tips
www.instone3d.com Tips 1. Avoid warping of the filament: In order to make the filament attached to the bottom plate in a preferable way, apply a thin layer of glue on the bottom plate before printing. 2. The TF card attached with the printer has contains some printing models which you can choose for printing;... -
Page 23: Service Support
Service support YIWU INSTONE 3D TECHNOLOGY CO.,LTD Website: www.instone3d.com Email: support@instone3d.com Tel: +86-579-89986523 Skype: Instone 3D Twitter: Instone 3D Facebook: Instone 3D Addr: Bld. 2, Area B, No.E21 Xinke Road, Yiwu, Zhejiang, China...
