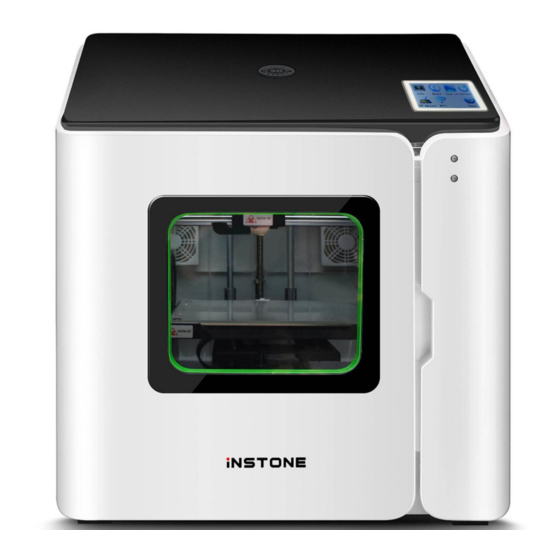

- Page 1 FDM 3D Printer INVENTOR PRO Yiwu Instone 3D Technology Co.,Ltd USER’S MANUAL...
-
Page 2: Table Of Contents
Legal Statement.....................- 3 - Important Security Information................- 3 - Brief Introduction....................- 5 - Overview........................- 5 - Get to know your INVENTOR PRO.................- 6 - Product List......................- 6 - Open-package......................- 7 - Brief Introduction of User Interface..............- 8 - Machine Installation and Operation Guide............- 11 -... -
Page 3: Declaration
Declaration All INVENTOR PRO 3D Printer will be tested and calibrated before delivery. With more than 8-hour continuous printing test, the following phenomena are normal: particle dust on the shell or the slight traces on the nozzle, etc.. Please read this manual carefully before using the printer to avoid damaging both the body and machine. - Page 4 Maintenance: If INVENTOR PRO is damaged or malfunctioning, please contact our company or authorized service provider. Do not open the INVENTOR PRO and try to repair by yourself. Disassemble INVENTOR PRO might cause equipment damage or personal injury.
-
Page 5: Brief Introduction
Overview INVENTOR PRO series, with the ownership of several patents ,is the new generation of 3D printer with independent design, development and manufacturer .After simple training ,you are able to create whatever model you like even you have never used it before. -
Page 6: Get To Know Your Inventor Pro
Get to know your INVENTOR PRO - 6 -... -
Page 7: Open-Package
Basic parameters: Product name: FDM 3D Printer Brand: Instone Model: INVENTOR PRO Input voltage: 110V/220V AC 50/60Hz Maximum power: 230W Forming principle: FDM Nozzle temperature: 245℃ (Max) Working condition: 10-40℃, Humidity 20-50% Moulding size: 240x160x160mm Printing speed:40-150mm/s Positioning accuracy: Axis Z: 0.0025mm, X/Y: 0.011mm Printing accuracy: ±0.1mm... -
Page 8: Brief Introduction Of User Interface
Brief Introduction of User Interface Logical Relationship SYSTEM HOMEPAGE - 8 -... - Page 9 FILE CHOOSE TOOL PRINTING INTERFACE FILE OPERATION PRINTING TOOL NUM KEYBOARD PREHEAT MANUAL - 9 -...
- Page 10 LEVEL FILAMENT WORKING CONDITION INFO WIFI - 10 -...
-
Page 11: Machine Installation And Operation Guide
Machine Installation and Operation Guide 1) Remove the platform glass from the packaging carton and apply a layer of printing glue or heat-resistant adhesive tape to the upper surface. In order to ensure the best printing state of model, we have to apply a layer of 3D printing special glue to the glass platform. - Page 12 Leveling method: As shown in Figure 2, the print platform can be raised or lowered by rotating the bottom of the four knobs to achieve. From the bottom-up perspective, clockwise rotation makes the plat lower, and counterclockwise rotation makes floor elevation. Leveling steps: ...
-
Page 13: Software Installation And Operation Guide
Software Installation and Operation Guide 1. Install the Instone 3D (Original ver.15.04.6) 1. Open the folder in the U disk with the machine, then double-click “Instone3D_15.04.6”. Choose the installation directory in the first interface or default, then click “NEXT”. 2. All the requests during installation, just click “YES”. Then click “NEXT” to finish the installation. -
Page 14: Basic Settings
2. Basic settings - 14 -... -
Page 15: Advanced Parameters Instruction
3. Advanced parameters instruction - 15 -... -
Page 16: Expert Settings
4. Expert Settings - 16 -... -
Page 17: Load Model File
5. Load model file 6. Rotate - 17 -... -
Page 18: Scale
7. Scale 8. Mirror 9. Right-mouse menu - 18 -... -
Page 19: Online Printing And Firmware Updates
2. Wait for the progress bar of dialog box to complete and display "Done! Installed firmware: INSTONE *. *. *. hex" to indicate that the update is successful. 3. Turn the printer off and on again. The firmware update is complete. -
Page 20: Precautions And Faq
C. When operating the equipment, it may cause irritating odor. Keep the environment ventilated and open when using INVENTOR PRO. D. Do not leave the INVENTOR PRO unattended while the INVENTOR PRO is operating. E. When printing is complete, the nozzle and filament are still hot, remove it from the print platform after cooling down. - Page 21 Remove the radiator and fan Figure 2 Unblock test, if ok, install the right cover Figure4 Clean the stuck material Figure3 Question 3: The material does not stick to the glass board then becomes a mass, or fall off for a while. Causes Solutions The temperature of glass board is not enough.
-
Page 22: Wifi Module Operating Guide
WIFI Module Operating Guide - 22 -... - Page 23 Thanks for choosing Instone! - The End- - 23 -...
