TracUSA™ MODEL TL201 PERSONAL GPS
TRACKING USER MANUAL
Contents Tables
1. Introduction------------------------------------------------------------------------------------------------------ 2
2. What's new? ----------------------------------------------------------------------------------------------------3
3. Main Features---------------------------------------------------------------------------------------------------3
4. Applications-----------------------------------------------------------------------------------------------------3
5. Specification----------------------------------------------------------------------------------------------------3
6. Start up-----------------------------------------------------------------------------------------------------------4
7. Get the position by calling the tracker-----------------------------------------------------------------5
8. Set the authorized number---------------------------------------------------------------------------------5
9. Delete authorized number----------------------------------------------------------------------------------5
10. Get position by sending SMS command-------------------------------------------------------------6
11. Continuous tracking function----------------------------------------------------------------------------6
12. SOS function---------------------------------------------------------------------------------------------------6
13. Listen in function---------------------------------------------------------------------------------------------6
14. Speeding alert-------------------------------------------------------------------------------------------------6
15. GEO-FENCE----------------------------------------------------------------------------------------------------7
16. Low battery alert---------------------------------------------------------------------------------------------- 7
17. Set the local time---------------------------------------------------------------------------------------------7
18. Modify the password----------------------------------------------------------------------------------------8
19. GPRS setting---------------------------------------------------------------------------------------------------8
20. Displaying location on Google map--------------------------------------------------------------------8
21. Displaying location on your cell phone---------------------------------------------------------------9
22. Tracking in the PC software------------------------------------------------------------------------------9
23. Caution & User Instructions IMPORTANT !!-----------------------------------------------------10
1
Advertisement
Table of Contents
Related Manuals for Diweitrack TracUSA TL201
Summary of Contents for Diweitrack TracUSA TL201
-

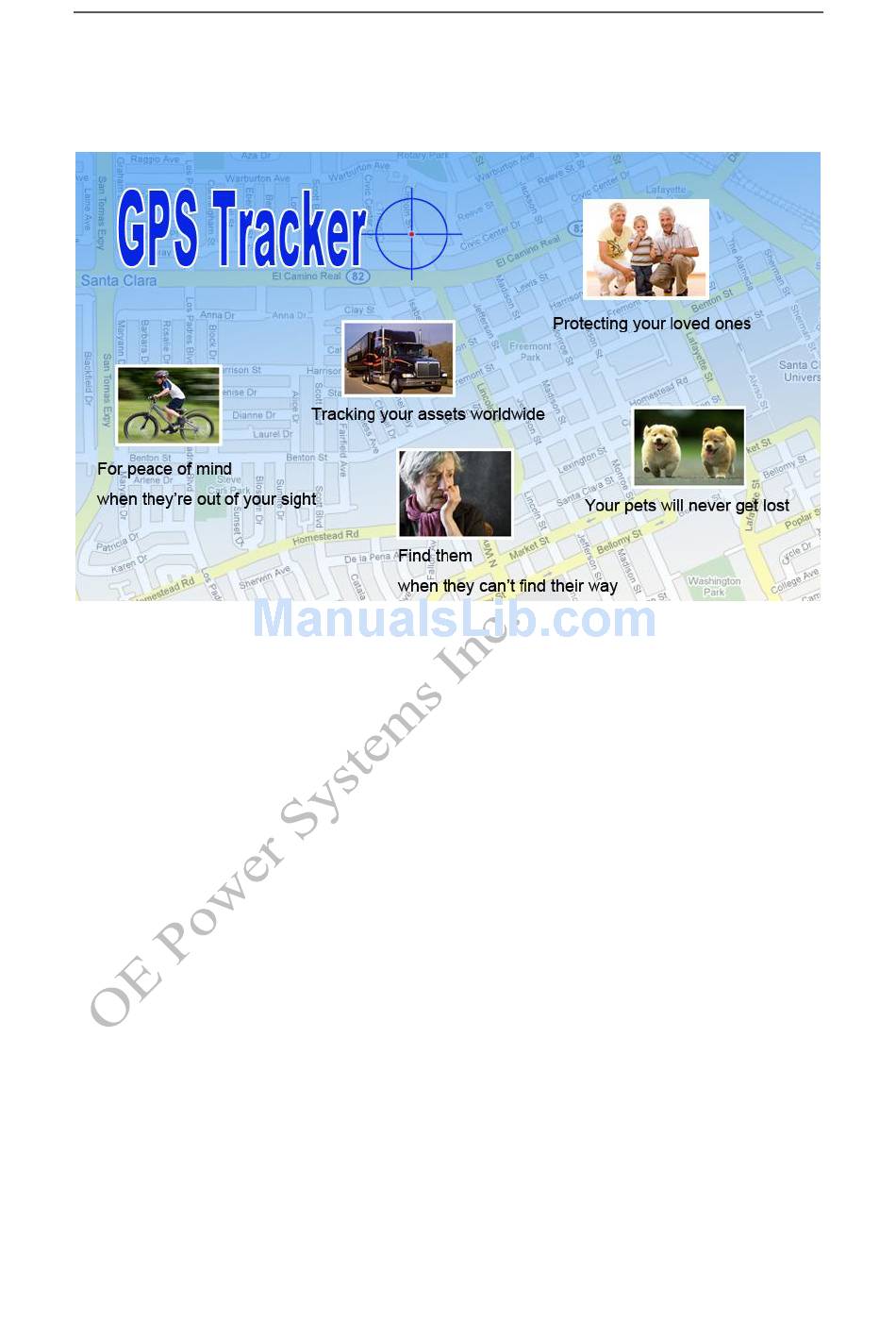

Page 1: Table Of Contents
TracUSA™ MODEL TL201 PERSONAL GPS TRACKING USER MANUAL Contents Tables 1. Introduction------------------------------------------------------------------------------------------------------ 2 2. What’s new? ----------------------------------------------------------------------------------------------------3 3. Main Features---------------------------------------------------------------------------------------------------3 4. Applications-----------------------------------------------------------------------------------------------------3 5. Specification----------------------------------------------------------------------------------------------------3 6. Start up-----------------------------------------------------------------------------------------------------------4 7. Get the position by calling the tracker-----------------------------------------------------------------5 8. Set the authorized number---------------------------------------------------------------------------------5 9. -
Page 2: Introduction
1. Introduction Working Based on existing CDMA/GSM /GPRS(cellular phone system) network and GPS satellites, this tracker is a small and powerful tracking device that is developed for personal, vehicle and pet protection. In addition to transmitting the longitude and latitude coordinate to your cell phone by SMS, The TL201 will also transmit the longitude and latitude coordinate to the designated server by GPRS. -
Page 3: What's New
2. What’s new? Mini size: Small enough to be attached to the key chain. Excellent design: Especially design for personal use, especially tracking children. Phone call function: It can make a phone call by pressing the button. ... -
Page 4: Start Up
Band 700/800Mhz 850/900/1800/1900Mhz GPS chip SIRF3 chip GPS sensitivity -159dBm GPS accuracy 5-20m Cold start 42 sec. Warm starts 38 sec. Hot start 1 sec. Battery Chargeable 3.7V 870mAh battery Operation temperature -20°C to +55°C Humidity 5%--95% non-condensing 6. Start up: Fully charge the battery to capacity in 8 -12 hours (overnight) for the first use using the supplied USB/microUSB cable and 120VAC adapter. -
Page 5: Get The Position By Calling The Tracker
Press the on/off button for 2-5 seconds until the LED lights operate, then unit will be turned on. Three LEDs will be bright at the same time during the tracker initialization. In 10 to 30seconds, the unit will begin to work and indicators will blink as the following: Three LED Bright at the same time The device is starting... -
Page 6: Set The Authorized Number
THE FOLLOWING INSTRUCTIONS ARE INFORMATIONAL ONLY, THESE SETTINGS WILL BE PRE-SET BY YOUR TracUSA REPRESENTATIVE AT TIME OF PURCHASE: 8. Set the authorized number. Send SMS“123456A1, phone number” to set the first SOS number. Send SMS“123456A2, phone number” to set the second SOS number. Send SMS“123456A3, phone number”... -
Page 7: Sos Function
reply to A1 number or it will reply to server. Note: M must be English In capital. M0 means turn off, M1 means turn on xxx means time interval and must be three numbers,030S means 30 seconds S means second, M means minute, H means hour H should be≤90, S,M should be <255 E.g. -
Page 8: Low Battery Alert
Geo-Fence is a system whereby the user can set a defined region, where if the device exceeds this region, a special SMS/Web Tracking System alert will be sent. This MUST be programmed by a qualified TracUSA representative. Contact your TracUSA representative if you desire this function added to your Model TL201. -
Page 9: Displaying Location On Your Cell Phone
before delivery to customer. This is for informational use only. DO NOT try and reset these settings, the settings provided by TracUSA are the only setting’s that will work with the web based tracking software. Send SMS “123456C$$$$,IP:Port” to set the APN, IP and port. Note: C must be English in Capital. -
Page 10: Tracking In The Pc Software
22. Tracking in the PC software If you want to track the device in our tracking software, please contact us for more information. TracUSA will provide detailed information concerning the availability and cost of web based tracking for the Model TL201. 23. - Page 11 This TracUSA model TL201 personal GPS tracking device/ mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 12 The highest SAR value for the TracUSA Model TL201 personal GPS tracking device/ phone as reported to the FCC when worn on the body, as described in this user guide, is.929 W/kg .(Body-worn measurements differ among device models, depending upon available accessories and FCC requirements.) This device is not recommended for use on the ear per the user manual instructions.
