Unitech UNI-335 Operation Manual

Lcd display 2-way alarm & starter
Hide thumbs Also See for UNI-335:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
UNI-335
LCD Display 2-Way Alarm & Starter
OPERATION MANUAL
UNI1:1-Way Remote Control
UNI2: LCD REMOTE CONTROL TRANSCEIVER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNI-335 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unitech UNI-335

Summary of Contents for Unitech UNI-335

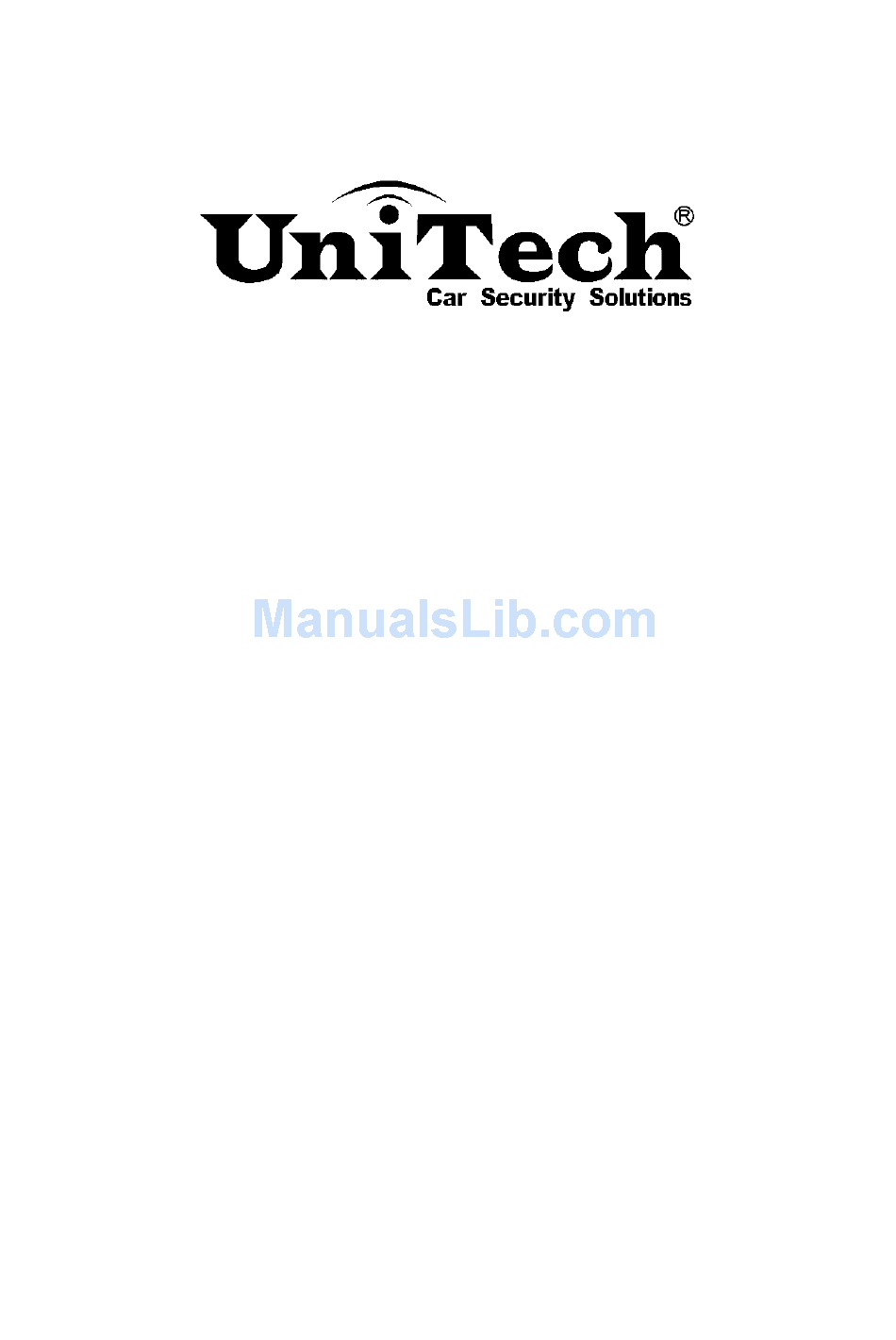

  • Page 1 UNI-335 LCD Display 2-Way Alarm & Starter OPERATION MANUAL UNI1:1-Way Remote Control UNI2: LCD REMOTE CONTROL TRANSCEIVER...
  • Page 2 THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY WARNINGS: As with any product that performs automatic functions, there are certain safety precautions that you must practice and be aware of. 1. Keep the transmitter out of children’s reach. 2. Do not leave anyone in the vehicle while running on remote control. 3.

  • Page 3: Battery Replacement

    A. BATTERY REPLACEMENT: This system needs no specific maintenance beyond remote control battery replacement. The 2-way remote is powered by a 1.5V AAA battery. The 1-way remote is powered by a pair of 3V, CR2016 batteries. Battery Level Indicator (2-way remote) The Battery Level indicator has three level indicators that serve as a visual indication of battery charge.
  • Page 4 Cranking by remote running control Timer Control Start Daily Start Engine start automatically Engine start automatically at every 2 or 3 the same hours. time next day Temperature Start Turbo Timer Engine start automatically Turbo timer was set up when reach programmed temperature.

  • Page 5: Parking Light

    Unlock Doors & Disarm System Two Steps Door Unlock & Disarm Press twice within 3 seconds. System(optional) Trunk Release (Channel 3) Passive Press and Hold for 2 seconds Arming By-pass While the system Disarmed. Activate or Turn Off The Remote Start Press button once.

  • Page 6: Passive Arming With Passive Door Locking

    security system will return to normal operation during the next arming cycle. Sensor By-Pass :Press the button two times within 3 seconds will arm the security system and by-pass the shock sensor. HIDDEN ALARM FUNCTION:Silent Alarm Press the button first; within 3 seconds press the button to activate the hidden alarm function.

  • Page 7: Disarming Without A Transmitter

    driver’s door only when disarming the security system. Pushing the button a second time within 3 seconds will unlock the other doors. AUTOMATIC RE-ARM: If this feature is selected, the security system will automatically re-arm itself in 60 seconds after disarming with remote transmitter. Automatic rearm will cancel if any door is opened before the 60 seconds timer has elapsed.

  • Page 8: Car Locator

    system is in valet mode, all alarm functions and remote start functions are bypassed, however, the remote panic feature and remote door locks will remain operational. To use the valet mode, the system must first be disarmed either by using your remote transmitter, or by operating the Manual Override sequence.
  • Page 9 NOISE ABATEMENT CIRCUIT: Your system has a “Noise Abatement Circuit”. It prevents annoying repetitive trigger sequences due to faulty door pin switches or environmental conditions such as thunder, jackhammers airport noise, etc. Here’s how “Noise Abatement Circuit” works: The alarm triggers 8 times. Each time, the same sensor or switch has triggered the alarm;...
  • Page 10 siren will stop and the system disarmed Note: If you use password pin code to doubl e protect the vehicle security, you will need to use it to completely disarm the system. SYSTEM’S TRIGGER CHECK (For two-way transceiver operation only) Press and hold button of LCD remote until 3 beeps sound , release and re-press “ALARM ”...

  • Page 11: Channel 4 Timer Control Output

    Press and hold button on the transmitter for two seconds to remote control the trunk release. CHANNEL 4 TIMER CONTROL OUTPUT. Press the transmitter buttons at the same time to acti ve Channel 4 function. Or Press and hold button of LCD remote until 2 beeps sound , release and re-press “CH 4”...

  • Page 12: To Remote Start The Vehicle

    a. Press and hold button of LCD remote for 1 second until 2beeps sound and then release the button. b. The text will flash on the LCD screen, press button to enter the menu. c. Press button to move upor down in the menu, find CAR SELECT on the menu.

  • Page 13: Temporary Stop Feature

    (While the vehicle is running, the “minutes” digit on the LCD screen will flash and the will indicate countdown timer based on the 5, 10, 20 or 30 minute run time set up by your installation center.) 5. The vehicle will run for a programmable 5 to 30 minute cycle before shutting down. (When the unit shuts off the countdown timer will turn off and the transmitter will play a melody.) NOTE: The Remote Start Unit will not start the vehicle if any one of the following...

  • Page 14: Timer Start

    3. The engine will run until the pre-programmed time elapsed or shutdown input is received. D. TURBO CHARGE MODE: Turbo charger mode keeps the engine running after arriving at you r destination for a programmable period of 1, 3 or 5 minutes, This allows the vehicle’s engine time to conveniently cool down the turbo after you have left the vehicle.

  • Page 15: Temperature Check

    feature.The parking light will flash (1) times. The siren chirps (1) times. The vehicle is now programmed to start at the same time of the next day. Your set time for the next day engine start flashes for approx. 3 seconds on the LCD screen. After 3 seconds icon stays displayed on the LCD screen.

  • Page 16: Hidden Alarm

    This feature allows your system’s remote start unit to be temporarily disabled to prevent the vehicle from being remote started accidentally. This feature is useful if the vehicle is being serviced or stored in an enclosed area. To disable the remote start, move the optional remote start enable toggle switch to the OFF position.
  • Page 17 Press THREE more TEMP and Press button to check the times within 5 seconds CHECK icon flashing Interior Temperature of the vehicle Press FOUR more times within Start timer and Press button to activate or 5 seconds cancel daily start. icon flashing Table 4: FOUR beeps to confirm (Press and hold until FOUR Beeps are heard) Button...
  • Page 18 0:30 - Parking hours - Adjusts parking hour (value 0 is flashing from 0 to 2). 0:30 - Parking - Adjusts parking minute minutes 30 is flashing (value from 0 to 59). - Toggle Parking - Enables parking countdown. countdown There is a beep 5 min.
  • Page 19 Back Light Color COLOR Default is COLOR COLOR 1- 7 - Adjusts color from Color 1 to Color 7 Confirmation Menu Default is VIBRTE - Toggle BZ VIB - Buzzer or Vibration VIBRTE + Button Lock Default is - Toggle button - button lock / Disable the lock transmission function temporarily...
  • Page 20 - 12H - Toggle power -24H save PAGER PAGER Tone Default is ON/OFF - Pager check on. -Pager check off. To Exit: Do not push any buttons for 20 seconds...
  • Page 21 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
