GWY005451

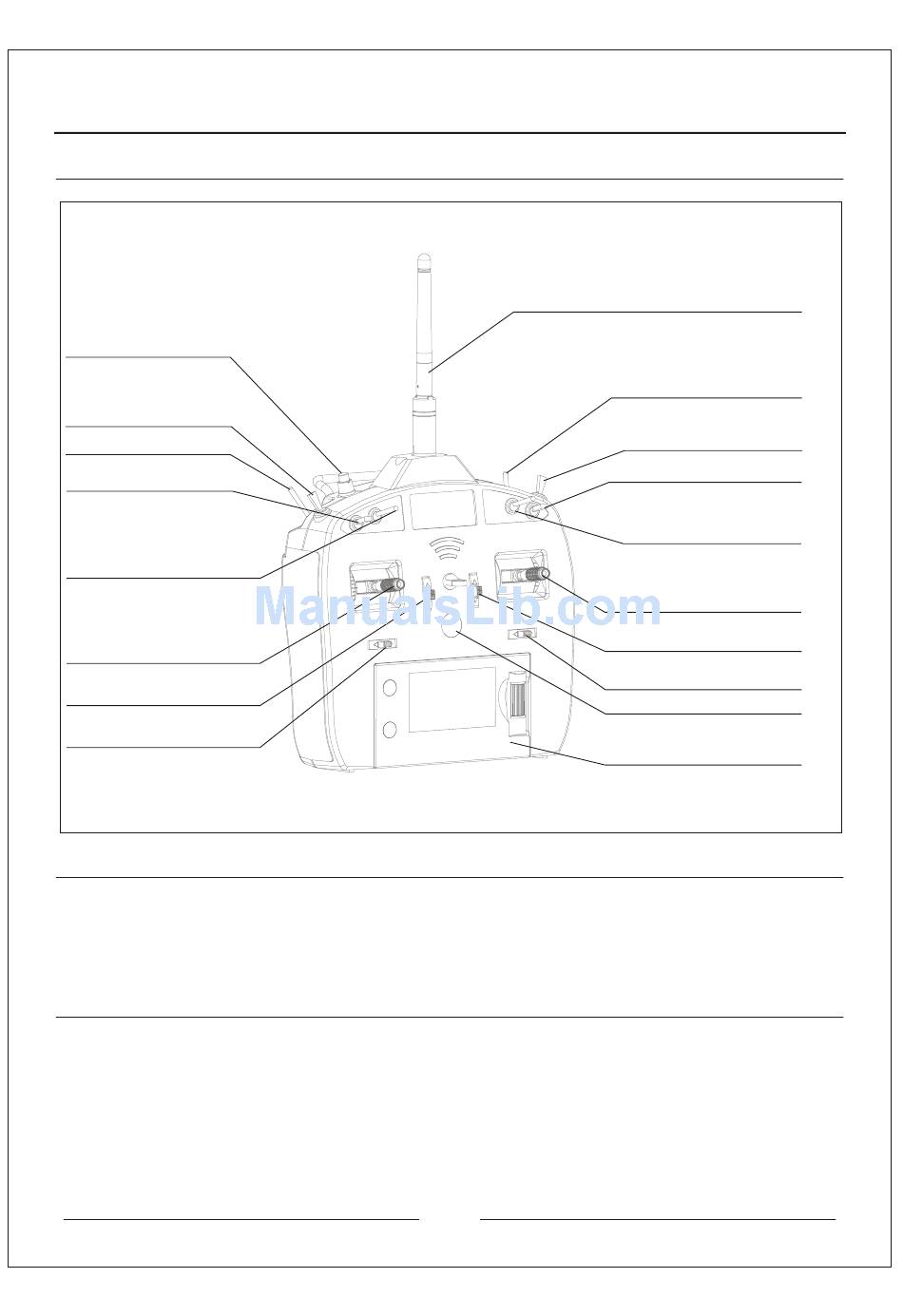

1.Transmitter components introduction
Trainer/Bind
3D switch (Mode 2/ Mode 4)
Tail Blade pitch (Mode 1/ Mode 3)
Gear
Elevator D/R
Flap Gyro
Mode1 elevator and rudder stick
Mode2 throttle and rudder stick
Mode3 elevator and aileron stick
Mode4 throttle and aileron stick
Mode 1 /Mode 3 elevator trim
Mode 2 / Mode 4 throttle trim
Mode 1 / Mode 2 rudder trim
Mode 3 / Mode 4 aileron trim
2.Transmitter standard and parameters
1)The frequency bandwidth: ISM 2.4GHz (2.400~2.480GHz)
2)number of controller is 6CH
3)The operation current is not greater than 150 mA (include LCD screen);The charging current is not
greater than 500mA.
4)The battery is Li-Polymer battery (3.7V), the volume is 780 mAh
3.Product Features
1)
The transmitter is using 2.4G ISM frequency channel, allow auto detection while using the transmitter.
2)
The transmitter receive or distribute the frequency by ID identify technology, protect external jamming,
provide stable and reliable during the operation.
3)
The LCD setting module is dividable, user-friendly and setting the trim easily.
4)
Interchanging interface easily (Change Mode + Menu setting)
5)
Trainer connector is using wireless technology
6)
The power button is using soft material to become the button, it is durable and change the connection
defect while pushing the roller power button
7)
The transmitter is based on the ergonomic technology to design the transmitter
6TL Transmitter
Antenna
Mix / Hold
3D switch (Mode 1/ Mode 3);
Tail Blade pitch (Mode2 /Mode 4)
Aileron D/R
Mode1 throttle and aileron stick
Mode2 elevator and aileron stick
Mode3 throttle and rudder stick
Mode4 elevator and rudder stick
Mode 1 /Mode 3 throttle trim
Mode 2 / Mode 4 elevator trim
Mode 1 / Mode 2 aileron trim
Mode 3 / Mode 4 rudder trim
Power button
LCD setting module
1
Aux 1
Advertisement
Table of Contents
Related Manuals for Zonda GWY005451
Summary of Contents for Zonda GWY005451
-
Page 1: Product Features
GWY005451 6TL Transmitter 1.Transmitter components introduction Antenna Trainer/Bind Mix / Hold 3D switch (Mode 2/ Mode 4) Tail Blade pitch (Mode 1/ Mode 3) 3D switch (Mode 1/ Mode 3); Tail Blade pitch (Mode2 /Mode 4) Gear Aileron D/R Elevator D/R... - Page 2 4.Interchanging position of throttle and elevator control Structural adjustment: Before the adjustment, please take out the four rubber pistons (A, B, C and D) on the back of the transmitter, as shown in the figure Left Throttle to Right Trottle (Mode 2/Mode 4 to Mode 1/ Mode 3) Use a cross-drive screw driver to loosen Screw A.
- Page 3 Select your desired control mode by pushing the T/E Trim (Throttle/Elevator Trim) as instructions and picture shown below: Push the right T/E Trim upward for MODE 1, one beep sound will be emitted. Push the right T/E Trim downward for MODE 2, two beeps will be emitted. Push the left T/E Trim upward for MODE 3, three beeps will be emitted.
- Page 4 6.Normal and aerobatics mode 6T channel helicopter is installed an aerobatics curve in the transmitter, switch off the transmitter, the pitch and throttle is automatically exchange into suitable for aerobatics mode used. The picture below: (Left throttle). F MODE / OFF Normal When the transmitter is closed the aerobatics mode, the throttle curve is linear from 0% to 100%.
- Page 5 7.The transmitter control instruction Mode 1 Mode 2 Mode 3 Mode 4 When the throttle stick is pushing up, the helicopter will increase the speed and flight up. When the throttle stick is pushing down, the helicopter will decrease the speed and flight down. When the rudder is pushing left, the helicopter will turn left;...
-
Page 6: Trouble Shooting
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Hereby, ZONDA HOBBY TECHNOLOGIES ELECTRONIC LIMITED, declares that this GWY005451 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC...
