PINNACLE TABLETOP AND FULL HEIGHT LECTERN
SW3240

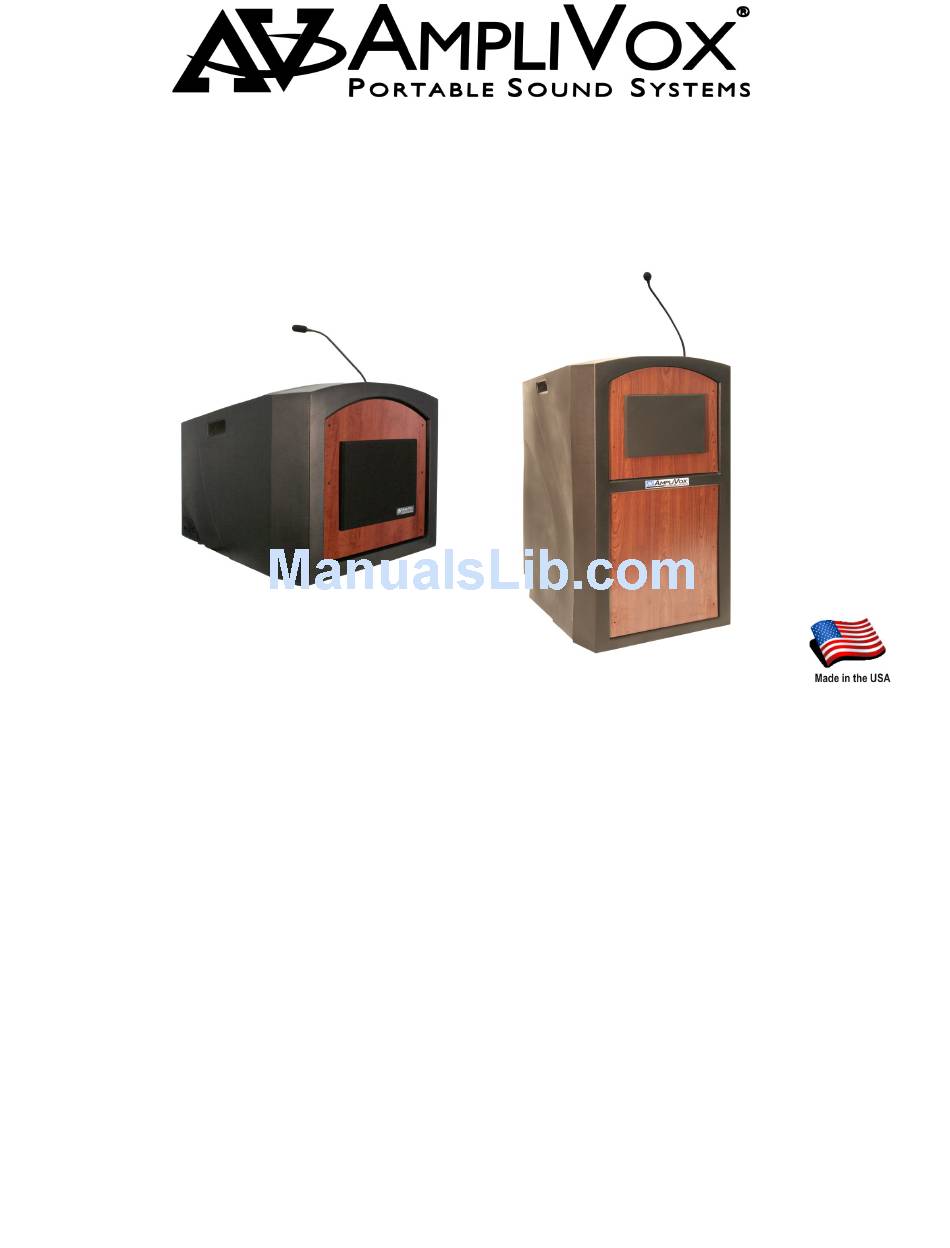

Thank you for choosing the PINNACLE
SW3240 Tabletop or the SW3250 Full
Height Lectern from AmpliVox Portable
Sound Systems. Our system combines
flexibility with functionality. Please refer to
this user guide as you enjoy the unique
capabilities of another quality product from
AmpliVox Portable Sound Systems
We encourage you to visit our website
www.ampli.com to register your prod-
uct for its warranty coverage, sign up to
receive our newsletter, download our
catalog, and learn more about the com-
plete line of AmpliVox audio visual
products, including portable PA sys-
tems, and lecterns.
As always, you can reach us at 800-267-5486
or at 847-489-9000
Monday - Friday 8am - 6pm CST.
User Guide
WITH SOUND SW3240 / SW3250
SW3240 Tabletop
•
150 W. Multimedia Stereo Amplifier
•
Bluetooth Module and Control Panel
•
15 foot XLR mic cable
•
21" Electret condenser gooseneck
mic with Shock Mount Holder
.
•
16 CH UHF Wireless Microphone
•
2 - Built in Speakers
•
Speaker Grille Cover
•
Power Strip
•
10 foot AC Power Cord
Gooseneck Microphone ......................................................... 2
Dashboard ............................................................................. 2
Wireless Mic Setup ................................................................. 3
BLUETOOTH MODULE ..................................................................4
Problem Solving ....................................................................... 4
SW3250
'
WHAT
S IN THE BOX
SW3250 Full Height
•
•
•
•
•
•
•
•
•
USER GUIDE
150 W. Multimedia Stereo Amplifier
Bluetooth Module and Control Panel
15 foot XLR mic cable
21"Electret condenser gooseneck
mic with Shock Mount Holder
16 CH UHF Wireless Microphone
2 - Built in Speakers
Speaker Grille Cover
Power Strip
10 foot AC Power Cord
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AmpliVox SW3240
Summary of Contents for AmpliVox SW3240
- Page 1 WITH SOUND SW3240 / SW3250 SW3250 SW3240 ’ WHAT S IN THE BOX Thank you for choosing the PINNACLE SW3240 Tabletop or the SW3250 Full SW3250 Full Height SW3240 Tabletop Height Lectern from AmpliVox Portable • • 150 W. Multimedia Stereo Amplifier 150 W.
- Page 2 CD player or MP3 device for example. The XLR output may also be modified to deliver a line-level output if needed. Contact AmpliVox Customer Service for further details. POWER INPUT Connect lectern to power outlet using the 10 foot IEC power cord.
- Page 3 • (F) is set at half way mark when it leaves the MUTE LEVEL ON RECEIVER CONTROL PANEL factory. If speaker sound is breaking up, turn level clockwise with small screwdriver until condition improves. Select a channel (1-16) on side panel (I) of bodypack using the supplied screw driver to select channel number.
- Page 4 “The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, needed. Inc. and any use of such marks by Amplivox Portable Sound Systems is under license. NEED HELP? Call 800-267-5486 Other trademarks and trade names are those of their respective owners.
