CB2 Platform Coffee Table Assembly Manual page 3

platform
left side
panel

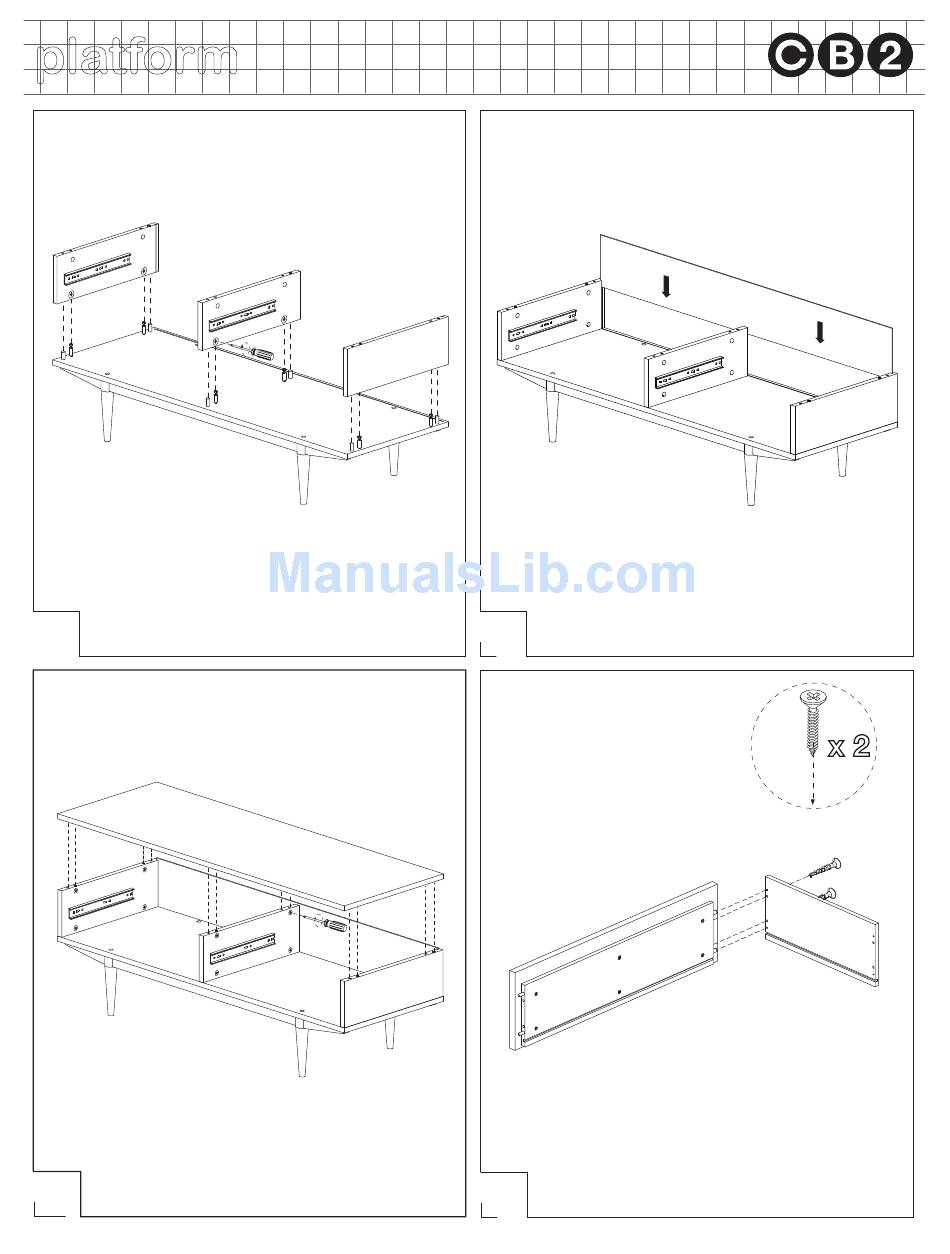

With the assistance of another adult, position unit
upright. Fit dowels of assembled unit into
corresponding holes of left/right side panels
and partition. With a screwdriver, turn each cam
clockwise until it securely engages each cam
5
screw.
With the assistance of another adult, fit dowels
of top panel into corresponding holes of
7
assembled unit. Secure all cams.
Made in Vietnam - r04
COFFEE TABLE
partition
right side
panel
top panel
Customer Service 800.606.6252 | Latest instructions available on www.cb2.com
Fit back panel into corresponding grooves of
6
assembled unit as shown.
NOTE: Make sure open end
of glides are positioned toward
back panel and grooves in all
panels are aligned
drawer front
Fit dowels of drawer front into corresponding
holes of drawer left and attach with 2 screws as
shown. Secure, but do not over tighten, screws
8
with a screwdriver.
back panel
drawer left
NOTE: Do not over
tighten the screws
Page 3 of 4
