Pro Cube
FOR THRU-DASH INSTALLATIONS, ATTACH RUBBER GASKET TO PRO-CUBE
TO FILL GAP AND PREVENT METAL-TO-METAL CONTACT WITH DASH.
UNIT MUST FIT SNUG IN DASH OPENING.
ORDER OUR INSTALLATION KIT FOR FAST, EASY THRU-DASH MOUNTING.
KIT INCLUDES A BEHIND THE DASH MOUNTING BRACKET, GASKET, AND SCREWS.

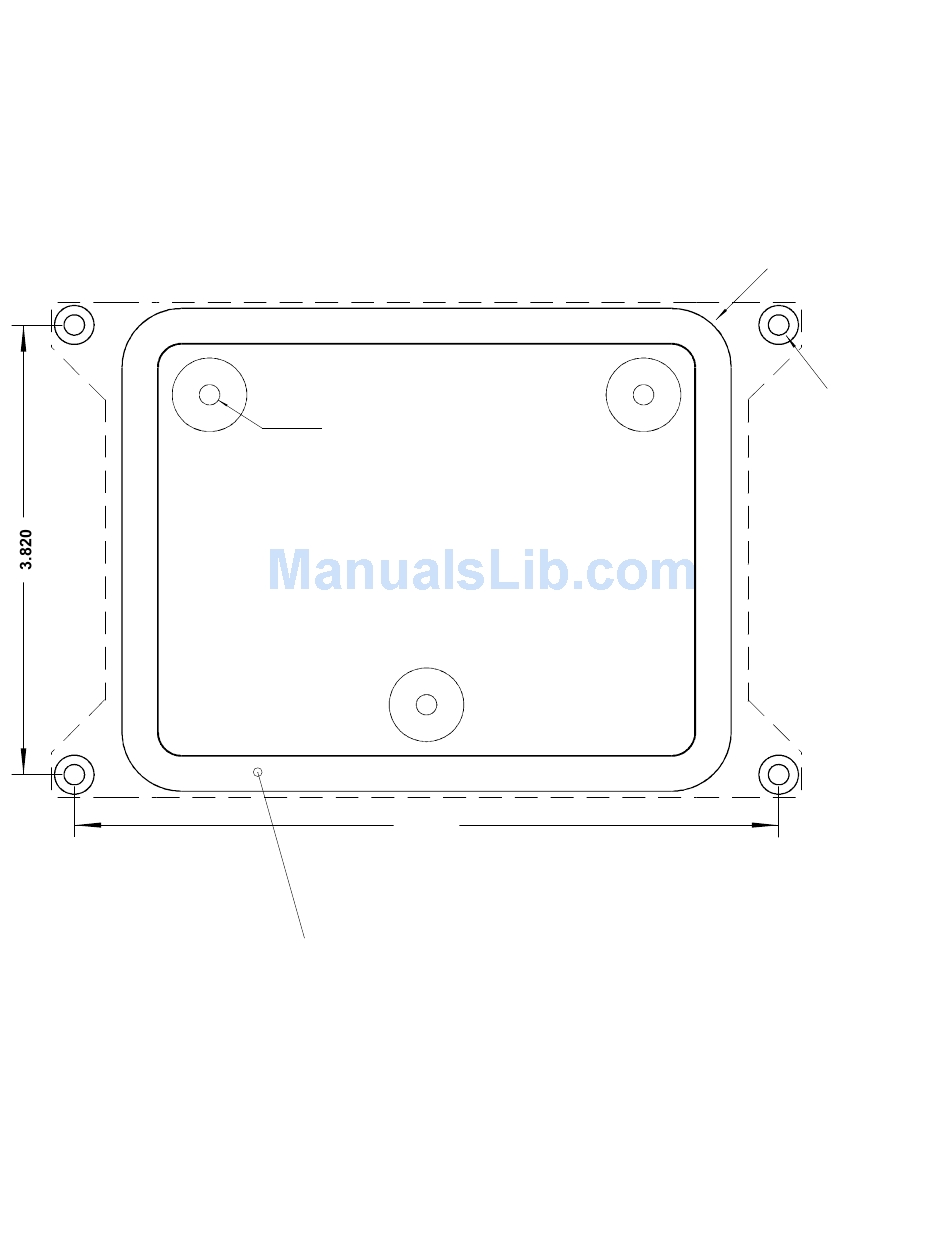

MOUNTING TEMPLATE
FRONT PANEL: 4.5" x 3.5"
TOP
HOLE SIZE: 11/64" (3 PL)
NOTE: RUBBER MOUNTS ARE NOT REMOVEABLE
IMPORTANT!
5.900
11
K+R Performance Engineering, Inc.
DASH CUTOUT: 5.1" x 4.1"
0.5" RADIUS
HOLE SIZE: 11/64"
FOR THRU-DASH
MOUNTING BRACKET
(4 PL, COUNTERSINK)
