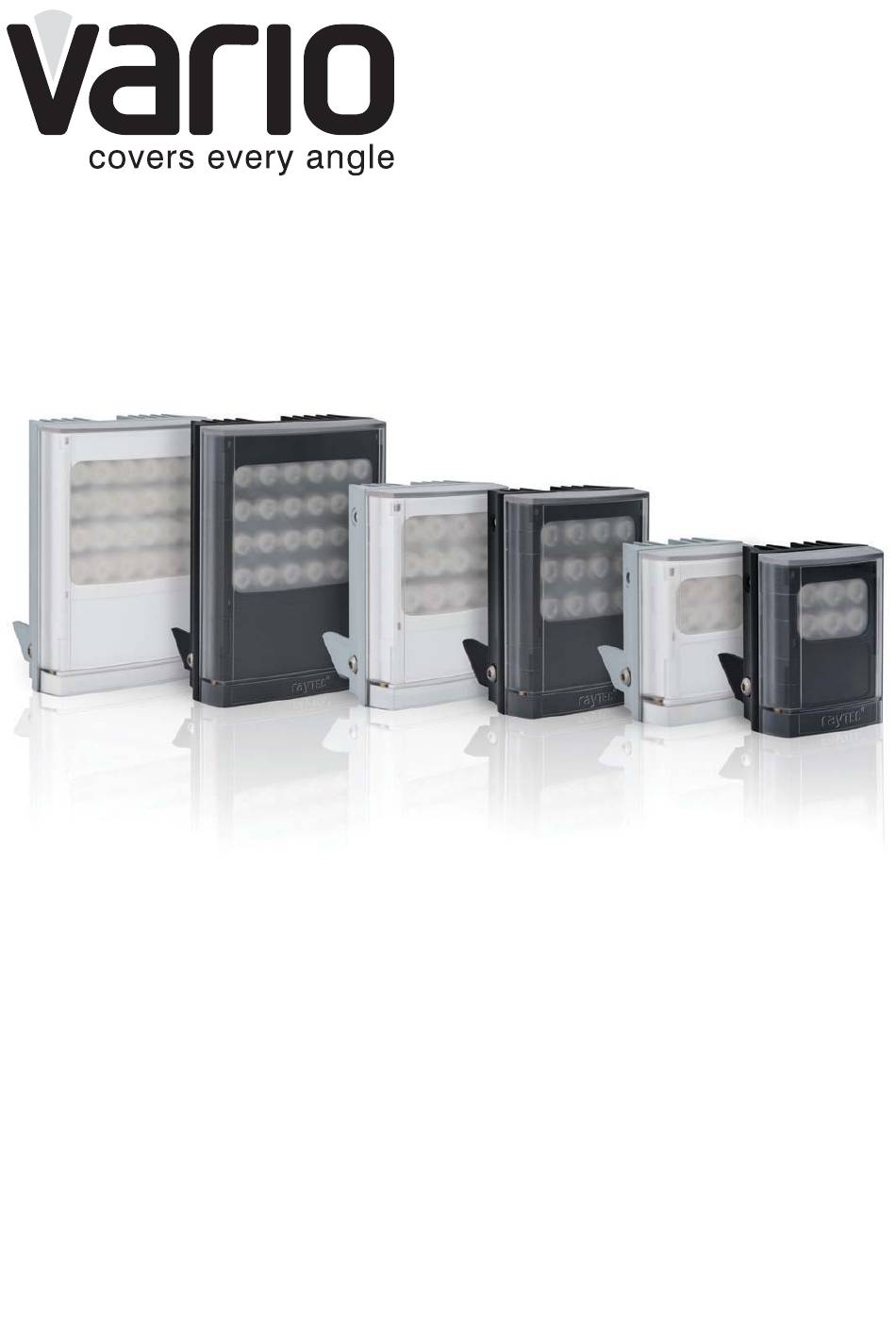

- Page 1 Installation and Setup guide VARIO Series VARIO w8 VARIO i8 VARIO w4 VARIO i4 VARIO w2 VARIO i2 Contents Page 2 Quick Set-Up and Factory Defaults Pages 3 - 4 Complete Set-Up and Installation Page 5 VARIO Remote Controller (VRC)
-
Page 2: Factory Default Set-Up
Installation Steps – Quick Guide 1. VARIO is factory set and delivered with a 35˚ beam width. To alter to 10˚, simply remove interchangeabIe holographic diffuser (IHD). See page 3 for detailed instructions To alter to 60˚, replace with other IHD supplied. 2. - Page 3 VARIO Complete Set up and Installation Step 1. Select different beam angle – if required VARIO is factory set and delivered with a 35˚ beam width angle. To alter to 10˚, simply remove interchangeabIe holographic diffuser (IHD) lens. To alter to 60˚, replace with other IHD lens supplied. Other angle IHD lenses are available to order: 80˚...
- Page 4 Step 2. Mounting Illuminator VARIO is delivered as standard with bracket at the bottom of the unit. This can be moved to top the of unit if required. See page 6 for optional brackets TARGET Position illuminator Adjust vertical position of Tighten all fixings adjacent to camera and point lamp to ensure full field of...
-
Page 5: Vario Remote Controller (Vrc)
VARIO Remote Controller (VRC) Optional Accessory Full instructions provided with VRC when supplied Photocell Adjust Timer Setting To select 3 different photocell sensitivity levels to accommodate different The timer function allows the operational requirements. illuminator to be triggered via the telemetry input and remain on for a pre-defined period of time. -
Page 6: Feedback System
Feedback system VARIO LED Status Indicators (in Programming Mode) SOLID GREEN status LED indicates unit has power applied. FLASHING GREEN status LED indicates a problem GREEN with the remote control IR receiver. The maximum remote operating distance is 8m (26ft). FLASHING AMBER status LED indicates unit is in programming mode. -
Page 7: Standard Bracketry
Standard Bracketry (not to scale, dimensions rounded to nearest mm) VARIO 2 series VARIO 4 series 56mm 52mm VARIO 8 series 53mm Optional Bracketry (not to scale) Pole Mount Wall Mount Ptz Mount Dome Mount... - Page 8 VARIO Specifications Infra-Red Series & White-Light Series VARIO i8 VARIO w8 VARIO i4 VARIO w4 VARIO i2 VARIO w2 220m (10˚) 150m (10˚) 120m (10˚) 90m(10˚) 65m (10˚) 50m (10˚) 120m (35˚) 80m (35˚) 65m (35˚) 55m (35˚) 45m (35˚) 35m (35˚)
- Page 9 VARIO Troubleshoot Ensure all tests are undertaken by a qualified, trained engineer. Ensure safe working practices are followed at all times. Step 1: Basics • Check polarity of Lamp connection red=+ve, black=-ve • Ensure power is 12-24V AC or DC •...
- Page 10 Step 3: Set up camera, lens, and illumination • Check model number to RayLED performance specification to ensure required distance is achievable; - Check unit is set to max power - Check orientation of unit and ensure it is pointing in correct direction - Check angle of unit (Holographic lens) –...
- Page 11 • Check unit is responding to remote. If not.. - Programming may be disabled. Turn power off/on to ensure unit returns to programming mode. - Status indicators may be turned off. Turn on with remote. This can be done even if programming has been disabled - In extreme sunlight conditions, distance between remote and unit may need to be reduced - Battery failure.
