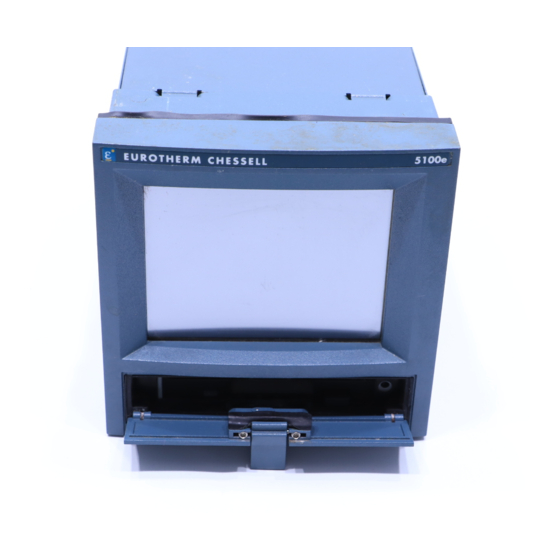

100 mm graphics recorder
Hide thumbs Also See for 5100e:
Table of Contents

Advertisement

Quick Links

E U ROT H E R M
User guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5100e and is the answer not in the manual?

Questions and answers

Summary of Contents for Eurotherm 5100e

  • Page 1 E U ROT H E R M User guide...
  • Page 3: Declaration Of Conformity

    Eurotherm Limited pursues a policy of continuous development and product improvement. The specifications in this document may therefore be changed without notice. The information in this document is given in good faith, but is intended for guidance only. Eurotherm Limited will accept no responsibility for any losses arising from errors in this document.
  • Page 5 100 MM GRAPHICS RECORDER: USER GUIDE GRAPHICS RECORDER USER MANUAL LIST OF SECTIONS Section Page 1 INTRODUCTION ......... . . 8 2 INSTALLATION .
  • Page 6: Table Of Contents

    100 MM GRAPHICS RECORDER: USER GUIDE GRAPHICS RECORDER USER MANUAL LIST OF CONTENTS Section Page Safety Notes ....................... SYMBOLS USED ON THE RECORDER LABELLING ..........1 INTRODUCTION ................. 1.1 UNPACKING THE RECORDER ............... 2 INSTALLATION ................... 2.1 MECHANICAL INSTALLATION ..............2.2 ELECTRICAL INSTALLATION ................
  • Page 7: Section Page

    100 MM GRAPHICS RECORDER: USER GUIDE LIST OF CONTENTS (Cont.) Section Page 4 SETTING UP THE RECORDER ............... 4.1 ARCHIVE ..................... 4.1.1 Archive to disk ..................4.1.2 Remote archiving (FTP transfer) .............. 4.2 SAVE / RESTORE ..................4.2.1 Save ....................SAVE FOR PRE VERSION 1.8 ..............
  • Page 8 100 MM GRAPHICS RECORDER: USER GUIDE LIST OF CONTENTS (Cont.) Section Page 4.3.3 Channnel/Alarm Configuration (Cont.) MAXIMUM DECIMAL DIGITS ..............COLOUR .................... ALARM NUMBER ................. ENABLE ....................TYPE ....................PARAMETERS ..................EXAMPLE .................... JOB NUMBER ..................CATEGORY ..................WHILE/ON ..................ALARM MESSAGES ................
  • Page 9 100 MM GRAPHICS RECORDER: USER GUIDE LIST OF CONTENTS (Cont.) Section Page 4.4 SECURITY ....................4.4.1 Access levels ..................SETTING PERMISSIONS ............... ACCESS WHEN: ................. NEW PASSWORD/RETYPE PASSWORD ..........CONNECT FROM REMOTE ..............REMOTE USER NAME/PASSWORD ............LOGIN DISABLED ................EDIT OWN PASSWORD ..............
  • Page 10 100 MM GRAPHICS RECORDER: USER GUIDE LIST OF CONTENTS (Cont.) Section Page 4.6.6 Copy ....................CONFIGURABLE PARAMETERS ............. COPY RULES ..................4.7 JOBS ......................4.7.1 No Action ................... 4.7.2 Drive relay ..................4.7.3 Totaliser category ................. 4.7.4 Message category ................4.7.5 Maths Category ...................
  • Page 11: Safety Notes

    100 MM GRAPHICS RECORDER: USER GUIDE SAFETY NOTES WARNING Any interruption of the protective conductor inside or outside the apparatus, or disconnection of the protective earth terminal is likely to make the apparatus dangerous under some fault conditions. Inten- tional interruption is prohibited. Note: in order to comply with the requirements of safety standard BS EN61010, the recorder shall have one of the following as a disconnecting device, fitted within easy reach of the operator, and labelled as the discon- necting device.
  • Page 12: Introduction

    100 MM GRAPHICS RECORDER: USER GUIDE USER MANUAL 1 INTRODUCTION This document describes the installation, operation and configuration of a 100mm graphics recorder. The recorder has the facility for FTP transfer and Remote viewer connection if the Ethernet option is fitted. The recorder instrument time can be updated from a unicast (i.e.
  • Page 13 100 MM GRAPHICS RECORDER: USER GUIDE 2 INSTALLATION (Cont.) 399 mm (15.7in) (LTC open) 284mm (11.18in) (LTC closed) Max. 30mm (1.2 in) 247.5mm (9.75in) (STC) 144mm (5.67in) 213mm (8.39in) View on right hand side Mounting slot (Left hand side) Lift then pull to open Panel thickness flap for mass storage (25.4mm (1 in) max)
  • Page 14: Electrical Installation

    100 MM GRAPHICS RECORDER: USER GUIDE 2.2 ELECTRICAL INSTALLATION 2.2.1 Signal wiring Ethernet Relay connector Supply connector (option) voltage (option) connector Figure 2.2.1a shows connector locations for the input Non-isolated TRS (option) channel and for the optional relay output/Ethernet board CONNECTOR WIRING DETAILS Maximum wire size (inputs) = 4.13mm (11 AWG)
  • Page 15: Supply Voltage Wiring

    100 MM GRAPHICS RECORDER: USER GUIDE 2.2.2 Supply voltage wiring WARNING DC supply voltages must never be applied to recorders fitted with isolated transmitter power supplies. Note: The minimum recommended wire size is 16/0.2 (0.5mm LINE SUPPLY The supply voltage to the recorder is terminated using an IEC socket which is connected to the mating plug at the rear of the recorder.
  • Page 16: Process Variable Display

    100 MM GRAPHICS RECORDER: USER GUIDE 3 PROCESS VARIABLE DISPLAY The operator interface consists of a touch-sensitive screen, showing either process variable values in one of a number of formats, or, showing configuration or operational details for use in setting up the recorder. This section (3) de- scribes the process variable displays.
  • Page 17: Truncation Of Numeric Values

    100 MM GRAPHICS RECORDER: USER GUIDE 3 PROCESS VARIABLE DISPLAY (Cont.) TRUNCATION OF NUMERIC VALUES If the amount of space on the display page is insufficient to display the full width of the process variable or scale value, then the displayed value is rounded down and the number of decimal places reduced. If the available space is still too restricted, the value is displayed in 'Scientific' format, or if this is still too wide, the final visible character of the integer part of the display is replaced by a '?'.
  • Page 18: Alarm Indicators

    100 MM GRAPHICS RECORDER: USER GUIDE 3.1.3 Alarm indicators This area of the display can contain up to four icons: Instrument alarm, Channel alarm, Battery change, Disk status. Pressing this area of the screen calls a pop-up display (figure 3.1.3a) allowing the user to view messages to acknowl- edge all channel alarms, or to display the Alarm Summary page.
  • Page 19: Alarm Acknowledgement

    100 MM GRAPHICS RECORDER: USER GUIDE 3.1.3 ALARM INDICATORS (Cont.) ALARM ACKNOWLEDGEMENT Alarms can be acknowledged globally (all alarms), individually or on a group basis. ALL ALARMS To acknowledge all active alarms, touch (e.g.) the channel alarm icon at the top of the screen. From the resulting pop- up menu, select 'Ack all Alarms', then finally, touch 'Yes' in the resulting pop-up confirmation box.
  • Page 20: Instrument Alarms

    100 MM GRAPHICS RECORDER: USER GUIDE 3.1.3 ALARM INDICATORS (Cont.) INSTRUMENT ALARMS This indicator appears, flashing, if any of the following alarms are active. The Instrument alarm summary page, de- scribed above, allows the user to view any such alarms. Archive failed -(message) Message explains archive failure - due to disk being missing, write protected, faulty, full etc.
  • Page 21: Channel Alarm

    100 MM GRAPHICS RECORDER: USER GUIDE 3.1.3 ALARM INDICATORS (Cont.) CHANNEL ALARM This red 'bell' indicator appears if any channel is in alarm. The symbol is illuminated continuously if all alarms are acknowledged or flashes if any active alarm is unacknowledged. Refer to ALARM ACKNOWLEDGEMENT, above, for details of how to acknowledge alarms.
  • Page 22: Navigation Keys

    100 MM GRAPHICS RECORDER: USER GUIDE 3.2 NAVIGATION KEYS These keys allow the user to perform various context-related tasks such as to access the recorder configuration, to archive data etc. In addition to this, left and right arrow keys or open/close folder keys appear where relevant. E n g i n e e r R o o t Left...
  • Page 23: Message Log

    100 MM GRAPHICS RECORDER: USER GUIDE 3.2.1 KEY FUNCTIONS (Cont.) MESSAGE LOG The Root menu/Goto View/Message log key calls the first Message Log page for the current group to the screen, as shown in figure 3.2.1c, below. Alternatively, Message Log can be selected from the Alarm & Message options menu, (section 3.1.3) and in this case, if there are multiple groups, the user selects a 'Group' for the Message Log display from a pop-up (Goto Group) menu.
  • Page 24 100 MM GRAPHICS RECORDER: USER GUIDE 3.2.1 KEY FUNCTIONS (Cont.) PERIOD FILTER This picklist allows the user to select one of the following to define the period of time that the message list is to en- compass: All History, Last Month (28 days), Last Week, Last 3 Days, Last Day or Last Hour, OPTION MENU Touching a message (highlights yellow) calls the Option Menu* as shown in figure 3.2.1d, below.
  • Page 25: First Switch-On

    100 MM GRAPHICS RECORDER: USER GUIDE 3.3 FIRST SWITCH-ON When power is applied the recorder initialises, and once this process is complete, the home page is displayed. It is unlikely that this will contain any useful information because the input channels will not, as yet, have been configured to suit the type of input signals being applied to them, as described in section Notes:...
  • Page 26: Access To Configuration

    100 MM GRAPHICS RECORDER: USER GUIDE 3.3.1 Access to Configuration Once the recorder has initialised, touch the Root key, followed by 'Login'. Touching the 'Logged out' field in the resulting display, calls the access level picklist as shown in figure 3.3.1a. Press 'Engineer' to call the Password request page.
  • Page 27: Text String Entry

    100 MM GRAPHICS RECORDER: USER GUIDE 3.3.1 ACCESS TO CONFIGURATION (Cont.) TEXT STRING ENTRY The keyboard which appears when the password area is touched is the same as that which appears when any non- numeric text string entry is required (e.g. channel descriptor). Figures 3.3.1b and 3.3.1c below are an attempt, within the limitations of the illustrating process, to depict the available keyboards and thus the available character set.
  • Page 28 100 MM GRAPHICS RECORDER: USER GUIDE 3.3.1 ACCESS TO CONFIGURATION (Cont.) TEXT STRING ENTRY (Cont.) Text String α β Γ δ ε η θ µ π Σ τ φ Ω Alphabet Numeric Symbols Alphabet 2 Shift Caps BSpce Cancel Text String The 'E' key is used when entering exponents Alphabet...
  • Page 29: Display Modes

    100 MM GRAPHICS RECORDER: USER GUIDE 3.4 DISPLAY MODES The display modes described below allow process values (input channels, totalisers etc. - known collectively as points) for the current group to be displayed as vertical or horizontal 'chart' traces (Trend modes), as bargraphs (verti- cal or horizontal) or as numeric values.
  • Page 30: Time Change Records

    100 MM GRAPHICS RECORDER: USER GUIDE 3.4.1 VERTICAL TREND DISPLAY (Cont.) TIME CHANGE RECORDS For vertical trend mode only, a line is drawn across the width of the chart whenever a time discontinuity in the record occurs. These lines are volatile in real-time i.e. they disappear if the display mode is changed, or if a configuration page is called etc.
  • Page 31 100 MM GRAPHICS RECORDER: USER GUIDE 3.4 DISPLAY MODES (Cont.) Entry to trend mode from Home key or by cycling screens. 13:39:12 Group Name 06/12/01 Engineer Channel 1 61.59 Channel 1 0.0000 100.00 61.59 Channel 2 Root menu Group 68.82 Current channel faceplates Home...
  • Page 32: Horizontal Trend Display

    100 MM GRAPHICS RECORDER: USER GUIDE 3.4 DISPLAY MODES (Cont.) 3.4.2 Horizontal Trend display This display (figure 3.4.2a) is similar to the Vertical Trend display described above, except that the traces are pro- duced horizontally rather than vertically. 12:03:27 Group Name 29/01/04 Engineer Channel 1...
  • Page 33 100 MM GRAPHICS RECORDER: USER GUIDE 3.4.2 HORIZONTAL TREND MODE (Cont.) Below the 'chart', is a message bar, containing the latest message. If there is more than one message, an arrow head icon appears near the right hand end of this message bar, and if this appears, then touching the message bar calls a pop-up box (figure 3.4.2b) in which all relevant messages are displayed.
  • Page 34: Vertical Bargraph

    100 MM GRAPHICS RECORDER: USER GUIDE 3.4 DISPLAY MODES (Cont.) 3.4.3 Vertical bargraph This display mode shows the Process Variable (PV) values as vertical bars. Faceplates containing digital values and alarm data appear above the bars for one or two points, or at the right hand side of the screen (as shown below) for three or more points.
  • Page 35: Horizontal Bargraph

    100 MM GRAPHICS RECORDER: USER GUIDE 3.4.4 Horizontal bargraph This display mode shows the Process Variable (PV) values as horizontal bars with digital values and alarm data dis- played, as shown in figure 3.4.4. Trend History mode is not available from this display mode. 10:39:38 Group Name 29/01/04...
  • Page 36: Numeric

    100 MM GRAPHICS RECORDER: USER GUIDE 3.4 DISPLAY MODES (Cont.) 3.4.5 Numeric Numeric display mode shows the Process Variable (PV) values as digital values. The format (which is automatically selected) is based on the number of channels in the display group. Figures 3.4.5a and 3.4.5b, show typical examples of the one column (up to four channels) and two column versions (five or six channels) of this display mode, respec- tively.
  • Page 37: Operator Notes

    100 MM GRAPHICS RECORDER: USER GUIDE 3.5 OPERATOR NOTES It is possible for the user to enter a note, of up to 60 characters, from any display page. Each note is associated with the current display group and becomes a part of that group's history. The notes appear on vertical and horizontal trend displays only, although they can be entered in any display mode (but not during configuration).
  • Page 38: Setting Up The Recorder

    100 MM GRAPHICS RECORDER: USER GUIDE 4 SETTING UP THE RECORDER As described in the 'Access to Configuration' (section 3.3.1) above, the setting-up of the recorder is divided into the following areas: Archive Section 4.1 - Allows manual archiving of data to disk or (if the Ethernet option is fitted) to a remote host...
  • Page 39: Archive

    100 MM GRAPHICS RECORDER: USER GUIDE 4.1 ARCHIVE Note: The archiving functions described below can also be initiated by job action - see section 4.7.12 4.1.1 Archive to disk This allows the user to initiate data transfer, to a mass storage medium such as a floppy disk, for all groups with 'Ar- chive to Media' enabled (Group configuration - section 4.3.2), by touching the relevant archive period key (e.g.
  • Page 40: Remote Archiving (Ftp Transfer)

    100 MM GRAPHICS RECORDER: USER GUIDE 4.1.2 Remote archiving (FTP transfer) This allows archiving of recorder files, for all groups with 'Archive via FTP' enabled, to a remote computer, connected (using the RJ45 telephone type connector at the rear of the recorder) either directly, or via a network . 'Archive via FTP' is enabled/disabled as part of (Group configuration - section 4.3.2)
  • Page 41: Save / Restore

    100 MM GRAPHICS RECORDER: USER GUIDE 4.2 SAVE / RESTORE As shown in figure 4.2a, touching the Save/Restore key calls the picklist: Save, Restore, New, Text, Import/Export user Linearisation. Archive Save/R.. Config Security Network System Configuration Data Save for pre Version 1.8 Save Security Data File Name...
  • Page 42: Save

    100 MM GRAPHICS RECORDER: USER GUIDE 4.2.1 Save Touching this item allows the current configuration to be saved in the recorder's memory. Files saved in this way are not in a 'readable' format and are used only for archive /security purposes or for transfer to another, similar, recorder. SAVE FOR PRE VERSION 1.8 Checking this box, prior to saving a configuration, means that the configuration can successfully be loaded (Restored) into other recorders running software versions prior to 1.8.
  • Page 43: Import User Linearisation

    100 MM GRAPHICS RECORDER: USER GUIDE 4.2.5 Import User Linearisation The Import Linearisation feature allows linearisation tables to be imported either via the floppy disk, or if the Remote Viewer option is fitted,directly from the host PC. Touching the User Linearisation field allows the user to select which of 'UserLin1' to 'UserLin4' is to contain the im- ported file.
  • Page 44: Configuration

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3 CONFIGURATION Touching this key calls the top level configuration pick list: Instrument, Groups, Channels, Views, Archive, Events, Messages, etc. as shown in the overview figure (figure 4.3). When making changes to the configuration the name of each changed parameter is displayed in red (instead of the normal black) until the 'Apply/Discard' key has been operated.
  • Page 45 100 MM GRAPHICS RECORDER: USER GUIDE 4.3 CONFIGURATION (Cont.) HA027271 User Guide Issue 12 Mar 04 Page 41...
  • Page 46 100 MM GRAPHICS RECORDER: USER GUIDE 4.3 CONFIGURATION (Cont.) User Guide HA027271 Page 42 Issue 12 Mar 04...
  • Page 47: Instrument Configuration

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.1 Instrument configuration Instrument Name Instrument Normal Display Saver Display Save After Minutes Modbus Address Modbus Security Disabled = Disabled Comms Channel Timeout Preset Hour Preset Minute Apply Discard Figure 4.3.1 Instrument Configuration menu INSTRUMENT NAME Allows the entry of an alphanumeric name for the recorder, up to 20 characters long.
  • Page 48: Group Configuration

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.2 Group configuration Note: Group 1 is a standard recorder feature. Group 2 is an optional extra This section allows the user to define, for each group, the following: a Group trend speed/interval b Group recording speed/interval c Group descriptor d Group content e Chart grid divisions...
  • Page 49: Trend Speed/Trend Interval

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.2 GROUP CONFIGURATION (Cont.) TREND SPEED/TREND INTERVAL Allows the 'chart' speed to be selected either as mm or in per hour, or as an interval. Entering a value in one field automatically converts the value in the other field. A trend interval of N seconds is equivalent to 1200/N mm/hr chart speed;...
  • Page 50: Recording Enable

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.2 GROUP CONFIGURATION (Cont.) RECORDING ENABLE This tick box allows the logging of this group's data to the Flash memory to be enabled or disabled. When disabled: a The Recording speed/interval fields, described below, do not appear. b Display trends are not preserved when changing 'Views'.
  • Page 51: Ack Message

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.2 GROUP CONFIGURATION (Cont.) ACK MESSAGE This tick box allows the printing of alarm acknowledgement messages on the 'chart' to be enabled (tick) or disabled (no tick) as required. Acknowledge messages appear on the trend display and in PC Review in the form HH:MM:SS ALARM ACKNOWLEDGE Alarms are acknowledged as described in section...
  • Page 52: Channel/Alarm Configuration

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.3 Channel/Alarm configuration Figure 4.3.3a below, shows a typical configuration menu. The actual fields that appear depend on what input type is selected, what linearisation type is selected, and so on. Channel Number 1) TurbineTempA Select channel number Value 18/04/02 15:17:10...
  • Page 53: Channel Number

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.3 CHANNEL/ALARM CONFIGURATION (Cont.) Example: A type J thermocouple is used to measure a temperature range of 100 to 200 degrees Celsius. This thermo- couple output is transmitted to the recorder by a 4 to 20 mA transmitter, for display as an efficiency value between 0 and 100%.
  • Page 54: Range Low

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.3 CHANNEL/ALARM CONFIGURATION (Cont.) RANGE LOW Enter the lowest value of the required linearisation range (e.g. 100) RANGE HIGH Enter the highest value of the required linearisation range (e.g. 200) RANGE UNITS Selectable from degrees Celsius, degrees Fahrenheit, Kelvin or Rankine. SCALED This box allows the user to select low and high values and units for a scale.
  • Page 55: Filter

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.3 CHANNEL/ALARM CONFIGURATION (Cont.) SCALE TYPE (Cont.) SCALE DIVISIONS - MAJOR Appears for Linear Scale types only. Setting major divisions to 1, means that the scale consists only of 'zero' and full scale. Setting Major divisions to 2, means that the scale has divisions at zero, 50% and full scale, and so on. Interme- diate scale values appear at major divisions if there is sufficient space.
  • Page 56: Break Response

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.3 CHANNEL/ALARM CONFIGURATION (Cont.) BREAK RESPONSE For thermocouples and other low level inputs (i.e. input voltages less than 150mV), the recorder can be made to re- spond in one of the following ways, if a break in the input circuit is detected. None trace drifts with the input wiring acting as an aerial.
  • Page 57: Zone

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.3 CHANNEL/ALARM CONFIGURATION (Cont.) ZONE This allows the portion of the chart which the channel occupies to be defined in terms of percent, where the left edge of the chart is 0% and the right hand edge is 100%. For example, setting a low value of 50 and a high value of 100 causes the channel trace to be confined to the right hand half of the chart.
  • Page 58: Alarm Number

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.3 CHANNEL/ALARM CONFIGURATION (Cont.) ALARM NUMBER Allows an alarm to be selected for configuration. (One or two for 16MB DRAM recorders; one to four for 32MB versions.) ENABLE Allows the alarm to be defined as Off, Unlatched, Latched or Trigger Alarm is disabled and the remainder of the alarm configuration is hidden.
  • Page 59: Parameters

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.3 CHANNEL/ALARM CONFIGURATION (Cont.) PARAMETERS Figures 4.3.3d, e and f illustrate the following terms for the different alarm types. Threshold For Absolute alarms, this defines the value (in engineering units) at which an alarm is triggered. The alarm also returns to its non-active state at this value unless a threshold value has been set, If a dwell value is set, the alarm does not become active until this dwell time has elapsed.
  • Page 60 100 MM GRAPHICS RECORDER: USER GUIDE 4.3.3 CHANNEL/ALARM CONFIGURATION (Cont.) Absolute high alarm definitions Absolute low alarm definitions symbol symbol Input signal Threshold Hysteresis Hysteresis Input signal Threshold Hysteresis: no Hysteresis: no Dwell: 0 secs Dwell: 0 secs Hysteresis: no Hysteresis: no Dwell: D secs Dwell: D secs...
  • Page 61: Job Number

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.3 CHANNEL/ALARM CONFIGURATION (Cont.) JOB NUMBER Only Job 1 is available CATEGORY Select the required job to be carried out when the channel is in alarm (e.g. Drive relay. See section 4.7 for Jobs de- scription.
  • Page 62: Views Configuration

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.4 Views Configuration This part of the recorder's configuration allows groups to be set up (individually or globally) to include the various display modes described in section 3.4, above. When enabled, display modes become selectable in the Root 'Goto View' menu.
  • Page 63: Scope

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.4 VIEWS CONFIGURATION (Cont.) SCOPE The remaining items of Views configuration can be selected to act globally (Instrument) or to act on individual groups (Group). When 'Instrument' is selected, enabled display modes appear in all groups' Root 'Goto View' menu (Figure 4.3.4b).
  • Page 64: Archive Configuration

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.5 Archive configuration This allows an archive strategy to be set up for saving data to disk or (if the Ethernet option is fitted) to a remote PC. The disk strategy includes archive period, disk full operation, compression factor and an estimate of how much ar- chive period is left in the recorder memory and on the disk.
  • Page 65: Compression

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.5 ARCHIVE CONFIGURATION (Cont.) COMPRESSION Select Normal or high compression. 'Normal' compresses the data but still provides an exact copy. 'High' compresses more, but channel values are saved only to 1 part in 10 resolution.
  • Page 66: Media Full Operation

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.5 ARCHIVE CONFIGURATION (Cont.) MEDIA FULL OPERATION For Disk Settings only: Overwrite Oldest data replaced with latest data when disk is full Stop Archiving stops when the disk is full Notes 1. The maximum number of history files (total for both groups) is 750 per directory. 2.
  • Page 67: Primary Remote Host

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.5 ARCHIVE CONFIGURATION (Cont.) PRIMARY REMOTE HOST For Remote settings only: If a Domain Name Service (DNS) is specified in the Network key ‘Name’ page (fig 4.5.2), then the Primary Remote Host is the server name. If DNS is not selected, then the Primary Remote Host is the IP address of the remote host, set up in the host’s Control Panel\Network.
  • Page 68 100 MM GRAPHICS RECORDER: USER GUIDE 4.3.5 ARCHIVE CONFIGURATION (Cont.) MEDIA/FTP FILE FORMAT (Cont.) CSV format is a standard open-file format for numeric data. A simple ASCII-based format, it is readable by a wide range of PC applications as well as being suitable for direct import into many commercial databases. CSV files have the extension '.csv'.
  • Page 69: Event Configuration

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.6 Event configuration A number of internal alarm sources (events) are available for use in running a job list when triggered. Events can have up to two sources each, but can themselves be used as sources allowing a large number of inputs to be used. Input sources can be logically combined, and can be inverted if required.
  • Page 70: Source 1 Sense

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.6 EVENT CONFIGURATION (Cont.) EVENT SOURCES (Cont.) Power up A transient event is triggered at power up. Maths channel partial failure For recoders fitted with the Maths pack option, this event is set if, say, one of the inputs to a group averaging function becomes invalid.
  • Page 71: Descriptor

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.6 EVENT CONFIGURATION (Cont.) DESCRIPTOR Allows a text string to be entered as the event title. See section 3.3.1 for text entry techniques. JOB NUMBER Only Job 1 is available. CATEGORY Select the required event job to be carried out (e.g. Drive relay). See section 4.7 for Jobs description.
  • Page 72: Messages

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.7 Messages This feature allows messages to be sent, by job action (section 4.7), to the display, to a specified group or to all groups. Messages can also be included in e-mails (Options manual, section 11) if the relevant option is fitted. The messages are of the form: Date, Time, Message.
  • Page 73 100 MM GRAPHICS RECORDER: USER GUIDE 4.3.7 MESSAGES (Cont.) Replace {n} with (Cont.) Specified Descriptor, Specified Value, Specified Alarm data: Produces a further field ‘{n} source’, described below. Instrument Name: Allows the Instrument Name (as entered in Configuration/Instrument - section 4.3.1) to be included in the message.
  • Page 74: Example

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.7 MESSAGES (Cont.) EXAMPLE To configure Message 2 to read “The value of Chan two = (Value channel 2) & Tot one = (Value totaliser 1)” Before configuring the message: In channel configuration: Set channel 2 descriptor to: Chan two Set Channel 2 alarm job to: Category:...
  • Page 75: User Linearisation Tables

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.8 User Linearisation Tables The Channel configuration item 'Lin Type' includes four linearisation tables called, initially, UserLin1 to UserLin4. This User Linearisation part of the instrument configuration allows the user to enter a linearisation look-up table of between two and 66 pairs of points.
  • Page 76 100 MM GRAPHICS RECORDER: USER GUIDE 4.3.8 USER LINEARISATION TABLES (Cont.) Number of points This is used to enter the total number of point pairs in the table. The following XY fields increase in number up to the entered value. (A scroll bar appears if there are more points than can be displayed in the available screen height.) X1 to XN The input values to the table, where N is the 'Number of Points' entered above.
  • Page 77: Options

    100 MM GRAPHICS RECORDER: USER GUIDE 4.3.9 Options Fitted channels 6 Events 6 Totalisers 6 Counters Timers 6 Maths 6 Groups 2 Alarms Per 4 Security Manager Enabled Remote Viewer Level Full Remote Viewers 4 File Transfer Protocol 4 Modbus/TCP Clients 2 Messages 12 User linearisations 4 Logarithmic Scales Enabled...
  • Page 78: Security

    100 MM GRAPHICS RECORDER: USER GUIDE 4.4 SECURITY Touching this key allows the operator to select 'Login' (described in section 3.3.1) 'Access' or 'Add/Remove User' for configuration. Selecting 'Access' displays the current user level. Touching this area allows the user to select 'Logged out', 'Operator', 'Engineer' or any added users.
  • Page 79: Setting Permissions

    100 MM GRAPHICS RECORDER: USER GUIDE 4.4.1 ACCESS LEVELS (Cont.) SETTING PERMISSIONS Once logged in at Engineer level, operate the 'Security' key and select 'Access'. A page similar to that shown in fig- ure 4.4.1 appears, allowing the permissions to be set for the various access level and for individual users. The list of parameters is the same for all access levels except for 'Logged out', for which the password parameters and 'login disabled' items do not appear.
  • Page 80: Remote User Name/Password

    100 MM GRAPHICS RECORDER: USER GUIDE 4.4.1 ACCESS LEVELS (Cont.) REMOTE USER NAME/PASSWORD These two entry boxes allow user name and password to be entered for use by the remote host operator. The remote user will be able to access the recorder configuration according to the other access permissions enabled in this page. The password must be entered twice to ensure integrity.
  • Page 81: Adjust Inputs

    100 MM GRAPHICS RECORDER: USER GUIDE 4.4.1 ACCESS LEVELS (Cont.) ADJUST INPUTS Allows the user to adjust recorder readings, as described in section 4.6.4, below. ARCHIVING CONTROL Allows each user, with this permission enabled, full access to disk archive control. SAVE/RESTORE Allows each user, with this permission enabled, full access to saving and restoring functions as described in section...
  • Page 82: Management (Option)

    100 MM GRAPHICS RECORDER: USER GUIDE 4.4.2 Management (option) This menu selection appears only if the Security Management option is fitted. Centralised security If this checkbox is enabled, the following parameters can no longer be edited at the recorder. Changes to these parameters can be made only by means of Security Management software: Security\Access: All parameters become 'Read only' (Section 4.4.1)
  • Page 83: Add User

    100 MM GRAPHICS RECORDER: USER GUIDE 4.4.3 Add user Figure 4.4.3 shows that the selecting of 'Add User' from the SECURITY picklist allows new users to be entered, to- gether with passwords, and a chosen set of access permissions, which can subsequently be edited under Security/ Access.
  • Page 84: Network Configuration

    100 MM GRAPHICS RECORDER: USER GUIDE 4.5 NETWORK CONFIGURATION Notes The Network key appears only if the Ethernet option is fitted This manual does not describe network setup in detail, as each network is different. In mosy cases, the help of the network administrator or supervisor will be required, for example, in the allocation of valid addresses and passwords.
  • Page 85: Subnet Mask

    100 MM GRAPHICS RECORDER: USER GUIDE 4.5.1 NETWORK ADDRESS (Cont.) SUBNET MASK This field is editable only if ‘Specify an IP address’ is selected in the ‘IP address lookup’ picklist above. The subnet mask is the network address plus the bits in the host address reserved for sub-network identification. By convention, all the network address bits are set to 1.
  • Page 86: Name

    100 MM GRAPHICS RECORDER: USER GUIDE 4.5.2 Name Figure 4.5.2 shows the ‘Name’ fields Save/R.. Config Security Network Archive System Andy136-4 Local Host Address Domain FishesRus.co.uk Name Domain Name Service Primary DNS Server 149.121.164.11 Secondary DNS Server 149.121.165.14 Apply Discard Figure 4.5.2 network name fields LOCAL HOST English language name for the recorder - Assigned to the IP Address...
  • Page 87: System

    100 MM GRAPHICS RECORDER: USER GUIDE 4.6 SYSTEM HA027271 User Guide Issue 12 Mar 04 Page 83...
  • Page 88: Clock

    100 MM GRAPHICS RECORDER: USER GUIDE 4.6 SYSTEM (Cont.) Touching the System key calls the pick list: Clock, Locale, Keycode, Input Adjust, About Figure 4.6 above, shows an overview of the System Menus. 4.6.1 Clock Selecting 'clock' causes the recorder's date and time to be displayed. To edit the date, touch the current date area, to call the keyboard and enter the new numbers.
  • Page 89 100 MM GRAPHICS RECORDER: USER GUIDE 4.6.4 INPUT ADJUST (Cont.) Figure 4.6.4a shows the initial display which appears when 'Input adjust' is first selected from the SYSTEM menu. Channels 1 to 6 are selected by default. Save/R.. Config Security Network Archive System Clock...
  • Page 90: Adjust Procedure

    100 MM GRAPHICS RECORDER: USER GUIDE 4.6.4 INPUT ADJUST (Cont.) ADJUST PROCEDURE Operation of the Adjust Channels key calls the low-end adjust page, as shown in figure 4.6.4b. Archive Save/R.. Config Security Network System Specify the sensor low point and connect the c o r r e s p o n d i n g i n p u t .
  • Page 91: About

    100 MM GRAPHICS RECORDER: USER GUIDE 4.6.5 About Selecting 'About' gives details of the version numbers of different aspects of the recorder, and details of the amount of memory fitted. Archive Save/R.. Config Security Network System Clock Instrument Variant: STN 100mm Appears only at Config Revision: 682711...
  • Page 92: Support File

    100 MM GRAPHICS RECORDER: USER GUIDE 4.6.5 ABOUT (Cont.) SUPPORT FILE If the unit is not performing as it should (e.g. it resets itself unexpectedly), the Support File key allows the user to save 'critical system files' into a single file (SupportInfo.uhq*) to the instrument's floppy disk/pc card, or to the remote viewer's PC, for despatch to the manufacturer for analysis.
  • Page 93: Copy

    100 MM GRAPHICS RECORDER: USER GUIDE 4.6.6 Copy This facility allows the user to copy a point or group configuration from one point, group etc. to one or more others. The user may choose whether or not to include alarm and (if applicable) job data when copying point configurations. Descriptors and colour selections are not copied.
  • Page 94: Copy Rules

    100 MM GRAPHICS RECORDER: USER GUIDE 4.6.6 COPY (Cont.) Once the copy is complete, the user should enter the configuration area of the items that have been copied, and edit/ apply the changes etc. COPY RULES 1. The first channel on any input card may not be a digital input type. 2.
  • Page 95: Jobs

    100 MM GRAPHICS RECORDER: USER GUIDE 4.7 JOBS A number of sources (e.g. channel, event, totaliser) can be set up to trigger one or more jobs. The following descrip- tions include all possible job categories, but the jobs which are available on any particular recorder depend on the options fitted to that recorder.Many job categories require the relevant access level permission to be set, as described section 4.4.1, above.
  • Page 96: Message Category

    100 MM GRAPHICS RECORDER: USER GUIDE 4.7.4 Message category One or more messages (section 4.3.7), can be directed to the display (where it appears in a pop-up window), to both groups or to a specified group. Messages must be contiguous - e.g. messages 2, 3 and 4 may be sent, but messages 1, 3 and 4 cannot be sent without message 2.
  • Page 97: Clock Category

    100 MM GRAPHICS RECORDER: USER GUIDE 4.7.6 Clock category This job causes the System Clock to be Preset to the value entered in Instrument Configuration (Preset Hour, Preset Minute) (Section 4.3.1). This job can be used to synchronise a number of recorders as follows: a.
  • Page 98: Timer Jobs

    100 MM GRAPHICS RECORDER: USER GUIDE 4.7.8 Timer jobs If the Timer option is fitted (section 6 of the Options manual), the following jobs become available: 1. Reset timer - sets the timer to zero 2. Start timer - causes the timer to start. 3.
  • Page 99: Trend Jobs

    100 MM GRAPHICS RECORDER: USER GUIDE 4.7.10 Trend jobs Trend jobs allow the following actions to occur: Span B Switches the point being configured to span B and zone B, for as long as the job is active. Span B Group Switches all the points in the selected group to their individual spans and zones B, for as long as the job is active.
  • Page 100: Archive Jobs

    100 MM GRAPHICS RECORDER: USER GUIDE 4.7.12 Archive jobs Archive jobs allows a job to be used to trigger an archive to the floppy disk or to a host computer using FTP transfer. The following jobs are available: Archive Last Hour, Last Day, Last 7 Days or Last 31 days to FTP Bring FTP archive up to date Cancel Archive to FTP Archive Last Hour, Last Day, Last 7 Days or Last 31 days to Media...
  • Page 101: File

    100 MM GRAPHICS RECORDER: USER GUIDE 5. FILE Figure 5, below, gives an overview of the File Menus. The area is entered by touching the 'File' key of the root menu, and can be used to display the contents of directories stored both in the user area of flash memory and on any disk currently inserted.
  • Page 102 100 MM GRAPHICS RECORDER: USER GUIDE 5 FILE (Cont.) Close Open folder folder 14:20:35 E n g i n e e r 03/01/01 Engineer Hide Root menu Name Type Home Operator \user\ Flash \Floppy\ Remov.. Select Hide key File volume Cycle Goto Group Login...
  • Page 103: File Structure

    100 MM GRAPHICS RECORDER: USER GUIDE 5.3 FILE STRUCTURE 5.3.1 Software versions prior to 3.1 The file structure on the floppy disk or pc card, is as depicted below in figure 5.3.1. The History folder contains one folder for each group fitted. Each Group folder contains all the history files for that group. Figure 5.3.1 illustrates this for a 2-group unit.
  • Page 104 100 MM GRAPHICS RECORDER: USER GUIDE This page is deliberately left blank User Guide HA027271 Page 100 Issue 12 Mar 04...
  • Page 105: Annex A: Specification

    100 MM GRAPHICS RECORDER: USER GUIDE ANNEX A: SPECIFICATION INSTALLATION CATEGORY AND POLLUTION DEGREE This product has been designed to conform to BS EN61010 installation category II and pollution degree 2. These are defined as follows: Installation category II The rated impulse voltage for equipment on nominal 230V ac mains is 2500V. Pollution degree 2 Normally, only non-conductive pollution occurs.
  • Page 106: Technical Specification (Recorder)

    100 MM GRAPHICS RECORDER: USER GUIDE TECHNICAL SPECIFICATION (Recorder) Inputs/Outputs 3- or 6-channel universal input (as specified at time of order) 1 Change-over relay output board (option) Transmitter power supply (non-isolated) (option) 3.5 inch floppy disk Other options Software: CSV archive file format E-mail (If Ethernet / relay option fitted) File transfer protocol (FTP) (If Ethernet / relay option fitted) Log Scales...
  • Page 107 100 MM GRAPHICS RECORDER: USER GUIDE TECHNICAL SPECIFICATION (RECORDER) (Cont.) Operator interface Colour STN LCD with cold cathode backlighting, fitted with resistive, analogue touch panel. Screen specification 1/4 VGA Resolution = 320 x 240 pixels Update/archive rates Input/relay output sample rate: 8 Hz.
  • Page 108: Technical Specification (Universal Inputs)

    100 MM GRAPHICS RECORDER: USER GUIDE TECHNICAL SPECIFICATION (Universal inputs) General* Termination Inputs: 22 - way Edge connector/terminal block Max. number of inputs Input ranges -38 mV to +38mV; -150 mV to +150mV; -1 Volt to +1Volt; -10 Volts to + 10Volts Input types Dc volts, dc millivolts, dc milliamps, (with external shunt), thermocouple, 2/3 wire resistance temperature detector (RTD), Ohms, Contact closure (not channel 1) (Minimum contact closure = 60msec.)
  • Page 109 0.01˚C Ni120 -50 to + 170 DIN43760:1987 0.01˚C Pt100 -200 to + 850 IEC751 0.01˚C Pt100A -200 to + 600 Eurotherm Recorders SA 0.09˚C -200 to + 850 Pt1000 IEC751 0.01˚C Thermocouple data Temperature scale ITS90 Bias current 0.05nA Cold junction types Off, internal, external, remote.
  • Page 110: Technical Specification (Ethernet/Relay Output Board Option)

    100 MM GRAPHICS RECORDER: USER GUIDE TECHNICAL SPECIFICATION (Ethernet/Relay output board option) Network Communications Type IEEE802.3 10BaseT Cable Type: CAT5 Maximum length: 100 metres Termination: RJ45 telephone connector Transport protocol TCP I/P, FTP Relay GENERAL Number of relays per board Maximum number of relay boards Type Single pole changeover (form C)
  • Page 111: Annex B: Reference

    100 MM GRAPHICS RECORDER: USER GUIDE ANNEX B: REFERENCE B1 DIAGNOSTICS DISPLAY At power-up, continuously hold a finger in contact with the screen until (after approximately 30 seconds) the diag- nostic display appears as shown in figure B1 If no further action takes place within approximately five minutes, the display times-out to the calibration display described in section B2, below.
  • Page 112: Circuit Boards Fitted

    100 MM GRAPHICS RECORDER: USER GUIDE SELF-TEST STATUS BARS (Cont.) MEDIA This sends a message to the disk, and then tries to read it back. Failure to succeed might be any one or more of the following: 1. No disk was fitted when the test was initiated. 2.
  • Page 113: B2 Screen Calibration (Offset Correction)

    100 MM GRAPHICS RECORDER: USER GUIDE B2 SCREEN CALIBRATION (OFFSET CORRECTION) This procedure ensures that the display screen image is positioned correctly, compared with the touch screen (so that 'what you touch is what you get'). The procedure, is necessary only rarely, if at all, and is included here only for the sake of completeness.
  • Page 114: B3.2 Maintenance Schedule

    100 MM GRAPHICS RECORDER: USER GUIDE B3.2 Maintenance schedule Battery replacement - Every three years B3.3 Battery replacement procedure Notes: The battery is of poly-carbonmonofluoride/lithium construction and should be disposed of accord- ing to local regulations covering this type of battery. It is recommended that the recorder be isolated from mains (line) power before the battery is re- placed.
  • Page 115: B4 Option Enabling

    100 MM GRAPHICS RECORDER: USER GUIDE B4 OPTION ENABLING In order to enable software functions, a key code or file name, obtained from the manufacturer, must be entered in the System/Key code page (Figure B4). Note: The key code is related to the instrument number, as displayed on the key code page. Please ensure that this instrument number has been noted before applying for a code or file name.
  • Page 116: B5 Colour Selection

    100 MM GRAPHICS RECORDER: USER GUIDE B5 COLOUR SELECTION The following table, gives RGB values and decimal and hex numbers for the available channel colours. Normally, this table is necessary only when communicating over the MOBUS link. Note: Colour representation varies from screen to screen. For this reason, it is unlikely that the colour on a PC will match those on these pages or those on the recorder display.
  • Page 117 100 MM GRAPHICS RECORDER: USER GUIDE B5 COLOUR SELECTION (Cont.) Colour Red Green Blue Decimal Terracotta Blue Babe Lime Blue Jive Cucumber EuroGreen Wheatgerm Sea Blue Ginger Aqua Pool Pale Red Pale Blue Lilac Sky Blue Wild Moss Turquoise Pale Green Coffee Wicker Black...
  • Page 118: B6 Tcp Port Numbers

    100 MM GRAPHICS RECORDER: USER GUIDE B6 TCP PORT NUMBERS The following TCP ports are made use of by the recorder. (This information would be needed by anyone involved in setting up 'firewalls', which may be used selectively to block incoming or outgoing access to specific ports.) PORT Usage File Transfer Protocol - data...
  • Page 119: B7 Time Zones

    100 MM GRAPHICS RECORDER: USER GUIDE B7 TIME ZONES This section gives an explanation of the time zone abbreviations listed in the System/Lacale/Time Zone pick list. The list starts at GMT,travelling Eastwards round the world. Abbre- Full title Time at Hours of viation noon GMT...
  • Page 120 100 MM GRAPHICS RECORDER: USER GUIDE This page is deliberately left blank User Guide HA027271 Page 116 Issue 12 Mar 04...
  • Page 121: B8 Menu Structure

    100 MM GRAPHICS RECORDER: USER GUIDE B8 MENU STRUCTURE Section 4 E n g i n e e r Group Name 11:19:30 02/01/01 Engineer Archive Save/R.. Config Security Network System Root menu Home Operator File Goto Group Use Root/Goto View to Goto View Goto Group Group 2...
  • Page 122 100 MM GRAPHICS RECORDER: USER GUIDE B8 MENU STRUCTURE (Cont.) Archive Save/R.. Config Security Network System Save for pre Version 1.8 See figure B8d File Name See figure B8c See figure B8e Save Save SAVE/RESTORE (Section 4.2) Restore Configuration Data Save Security Data Restore...
  • Page 123 100 MM GRAPHICS RECORDER: USER GUIDE B8 MENU STRUCTURE (Cont.) Archive Save/R.. Config Security Network System Config\Instrument Instrument Name Instrument See figure B8d See figure B8b (Section 4.3.1) figure B8e Normal Display Instrument Saver Display Save After Minutes Groups For further menu items - Modbus Address see figure B8f Channels (Section 4.3.3)
  • Page 124 100 MM GRAPHICS RECORDER: USER GUIDE B8 MENU STRUCTURE (Cont.) Archive Save/R.. Config Security Network System Address (Section 4.5.1) See figure B8b Network See figure B8c See figure B8e Section 4.5 Instrument number 1867 Mac address 08:00:48:80:07:4B Security Login (Section 3.3.1) IP address lookup Obtain from a BootP Server (Section 4.4)
  • Page 125 100 MM GRAPHICS RECORDER: USER GUIDE B8 MENU STRUCTURE (Cont.) Archive Save/R.. Config Security Network System Clock (Section 4.6.1) Current date D D / M M / Y Y Y Y See figure B8b See figure B8d Clock Current time H H : M M : S S See figure B8c Locale...
  • Page 126 100 MM GRAPHICS RECORDER: USER GUIDE B8 MENU STRUCTURE (Cont.) Archive Save/R.. Config Security Network System Select maths channel number Maths Number 1) Math 1 See figure B8d See figure B8b Value 123.4567 Units Current value Timer number 1) Timer 1 Select timer figure B8e Config\Maths...
  • Page 127: Index

    100 MM GRAPHICS RECORDER: USER GUIDE INDEX Symbols .uhq file ................ 88 Bargraph displays ............30 {n} source ..............68 Battery Diagnostics ............108 Icon ................17 Low (Event Source) ..........66 A/B Switching ............44, 52 Replacement ............110 About ................
  • Page 128 100 MM GRAPHICS RECORDER: USER GUIDE Configuration (Cont.) Access ..............22 Alarm ................ 54 Damping ............... 51 Amount ..............55 Dark Background ............58 Average time ............55 Data Change time ............55 Compression ratio ........... 61 Deviation value ............ 55 Date Dwell period ............
  • Page 129 100 MM GRAPHICS RECORDER: USER GUIDE E-mail Hardware version ............87 Job ................96 History ................46 Earlier messages............20 Amount of ............26, 46 Edit Password permission ........... 76 Home Enabling Group ............... 58 Display modes ............59 Page (Display mode) ..........
  • Page 130 100 MM GRAPHICS RECORDER: USER GUIDE Labelling symbols ............7 NAND ................66 Language selection ............. 84 Navigation keys ............18 Latched ................ 54 Network Later messages............20 Configuration ............80 Left cursor key ............. 18 Name ............... 82 Line across the chart ...........
  • Page 131 100 MM GRAPHICS RECORDER: USER GUIDE P (Cont.) Preventive maintenance ..........109 Safety notes ..............7 Primary Sample rates .............. 103 DNS Server .............. 82 Save for Pre version 1.8 ..........38 Login Name ............. 63 Save/Restore ............... 37 Remote Host ............63 Permission ...............
  • Page 132 100 MM GRAPHICS RECORDER: USER GUIDE Tag, Channel ..............52 Un'ackd Alarm on group ..........65 TCP port usage ............114 Unack'd point alarm ............. 65 Text Unlatched ..............54 Save and Restore ............ 38 Unsupported File message ......... 38 String entry ..............
  • Page 133 Fax: 82 2 488 8508 http://www.eurotherm.tm.fr http://www.chessell.com E U ROT H E R M EUROTHERM LIMITED Faraday Close, Durrington, Worthing, West Sussex, BN13 3PL Telephone: 01903 695888 Facsimile: 01903 695666 e-mail: info@eurotherm.co.uk Website: http://www.eurotherm.co.uk Specification subject to change without notice. ©Eurotherm Limited. HA027271/12 (CN15174)

Table of Contents
