Summary of Contents for OLED PU-27

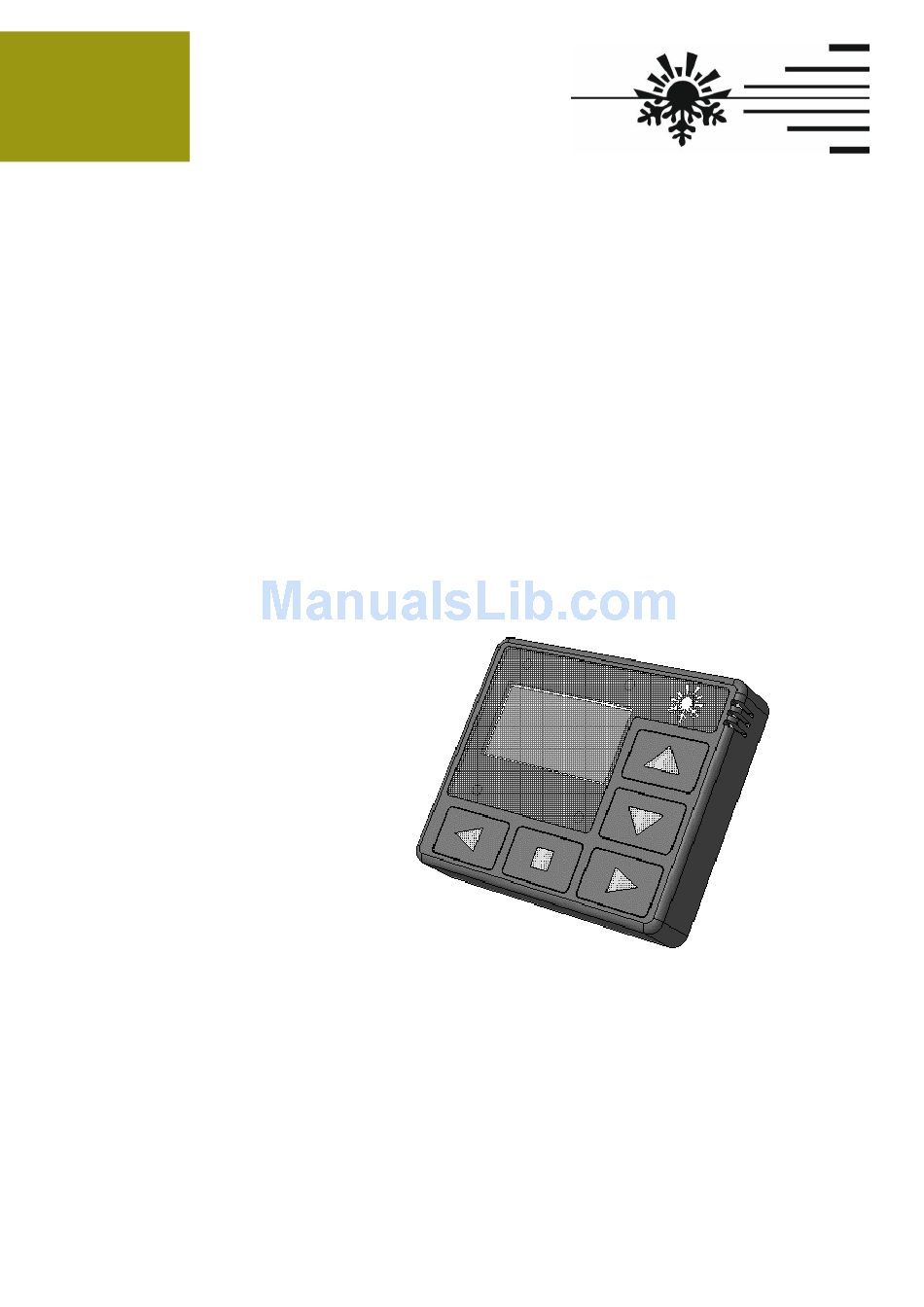

Page 1 Operating Manual PU-27 Control Panel Ver. 1.0.0.1.
Page 2: Table Of Contents
Contents Introduction Warranty and liability Safety Purpose Control panel description Starting control panel operation Main menu Timers settings menu Fast access to startup timers activation menu Hydronic pre-heaters settings menu Air heaters settings menu Parameters settings menu Time settings menu Language settings menu Software version display menu Operation Time settings menu...
Page 3: Introduction
Introduction This Operating Manual is part of the documentation for hydronic pre-heaters and air heaters (hereinafter referred as the product). The Manual contains information for the user on safe maintenance of the product. This control panel is compatible with the following products: pre-heaters: •...
Page 4 - failure to follow the rules for installation, operation, storage, and transportation specified in the Operating Manual; - use of the control panel for purposes other than intended.
Page 5: Safety
Safety Do not switch on and operate the product in locations where combustible vapors or gases or large amounts of dust can form and accumulate (for example, filling stations or petroleum, fuel, coal, timber or grain storage facilities). Explosion hazard. Do not switch on and operate the product in enclosed or non-ventilated premises.
Page 6 Control panel external view 1 – activated startup timer. 2 - power supply voltage. 3 – LED indicator. 4 – control keys.
Page 7: Starting Control Panel Operation
Starting control panel operation After connecting the control panel to the product, the control panel software version and the process of establishing connection with the product will be displayed. After the connection is established, the main screen (current time, day of week and power supply voltage) will be displayed.
Page 8: Main Menu
Main menu Switch to the main menu from the main screen by clicking the Menu icon Description Startup timers menu. Product operating parameters setting menu. (*this menu cannot be used for products without settings). Control panel settings menu. Current time and day settings menu. Language settings menu.
Page 9: Timers Settings Menu
Timers settings menu The control panel allows the startup timers to be programmed. For startup timer setting, the following data must be indicated: • startup time in 24-hour format; • day of week (Mon. - Sun.) or select daily startup (Daily);...
Page 10: Fast Access To Startup Timers Activation Menu
Fast access to startup timers activation menu For fast access to the timer activation menu from the control panel main screen, press and hold the key. This menu is only intended for timer activation. Timers cannot be edited in this menu. Action of timers activation menu keys: Keys Action...
Page 11: Hydronic Pre-Heaters Settings Menu
Hydronic pre-heaters settings menu BINAR-5S heater settings menu: “Settings” menu items: Fluid temperature at which the pre-heater switches to standby mode (heater shuts off and pump continues to operate). When the fluid temperature drops, the pre-heater exits standby mode (the Pre-heater fluid heater starts again).
Page 12 Setting pump operation in standby mode. In the additional heater mode, after the heater switches to standby mode, the pre-heater shuts off and the pump continues to operate. Depending on this Additional setting: heater pump The pump operates continuously (from the moment of start standby to the moment of pre-heater shutoff).
Page 13: Air Heaters Settings Menu
Exit from menu to the main screen Change menu item value Air heaters settings menu Settings menu items: In the “heater T based” mode, the “Set temperature” of the Heater T based temperature sensor located in the heater is used for operation. In the “control panel T based”...
Page 14: Parameters Settings Menu
Navigation through the menu items Exit from this menu to the main screen Change menu item value Parameters settings menu This menu is intended for setting control panel parameters. Parameters menu items: Setting of indicator lighting time. By default, the control panel indicator lighting time is 30 seconds.
Page 15: Time Settings Menu
Keys lighting setting. ✓ - keys lighting ON. Keys lighting - keys lighting OFF. Action of Parameters menu keys: Keys Action Navigation through the menu items Change menu item value Exit from this menu to the main screen Time settings menu Current time is set and displayed in a 24-hour format.
Page 16: Language Settings Menu
Language settings menu This menu is intended for interface language selection. Action of Language menu keys: Action Keys Navigation through the menu items Confirmation of language selection and exit from this menu to the main screen Software version display menu In this menu, the information on software versions is displayed.
Page 17: Hydronic Pre-Heater Start
This menu is intended for setting pre-heater operating time with a 5 minute step. The operating time setting range depends on the product the control panel is connected to. Action of Operating Time menu keys: Action Keys Value editing. Confirmation of set value and exit from this menu to the main screen Hydronic pre-heater start Start of pre-heater from the main...
Page 18: Air Heater Start
Air heater start Start of heater from the main screen or from the temperature sensors screen. The indicator will appear as follows. Temperature sensors display. When the pre-heater is operating, enter the pre-heater operating time editing menu. Heater shutoff. Economy mode ON / OFF. (for 14ТС-mini and 14ТС-10) Pre-heater shutoff.
Page 19 Malfunctions occurring during pre-heater operation are coded and automatically displayed on the control panel display. For malfunction reset, press any key. The malfunction codes depend on the product the control panel is connected to. See malfunction code descriptions in the product operating manual. ATTENTION! Maintenance and repair should only be performed by trained, qualified personnel!
Page 20: Acceptance And Packing Certificate
Acceptance and packing certificate PU-27 control panel, serial number _________________ Is manufactured and accepted in accordance with the applicable technical documentation and found suitable for operation. Packing performed _____________________ _____________ Surname signature Production date________________________ Stamp Here QC Department...
Page 21 Notes...
