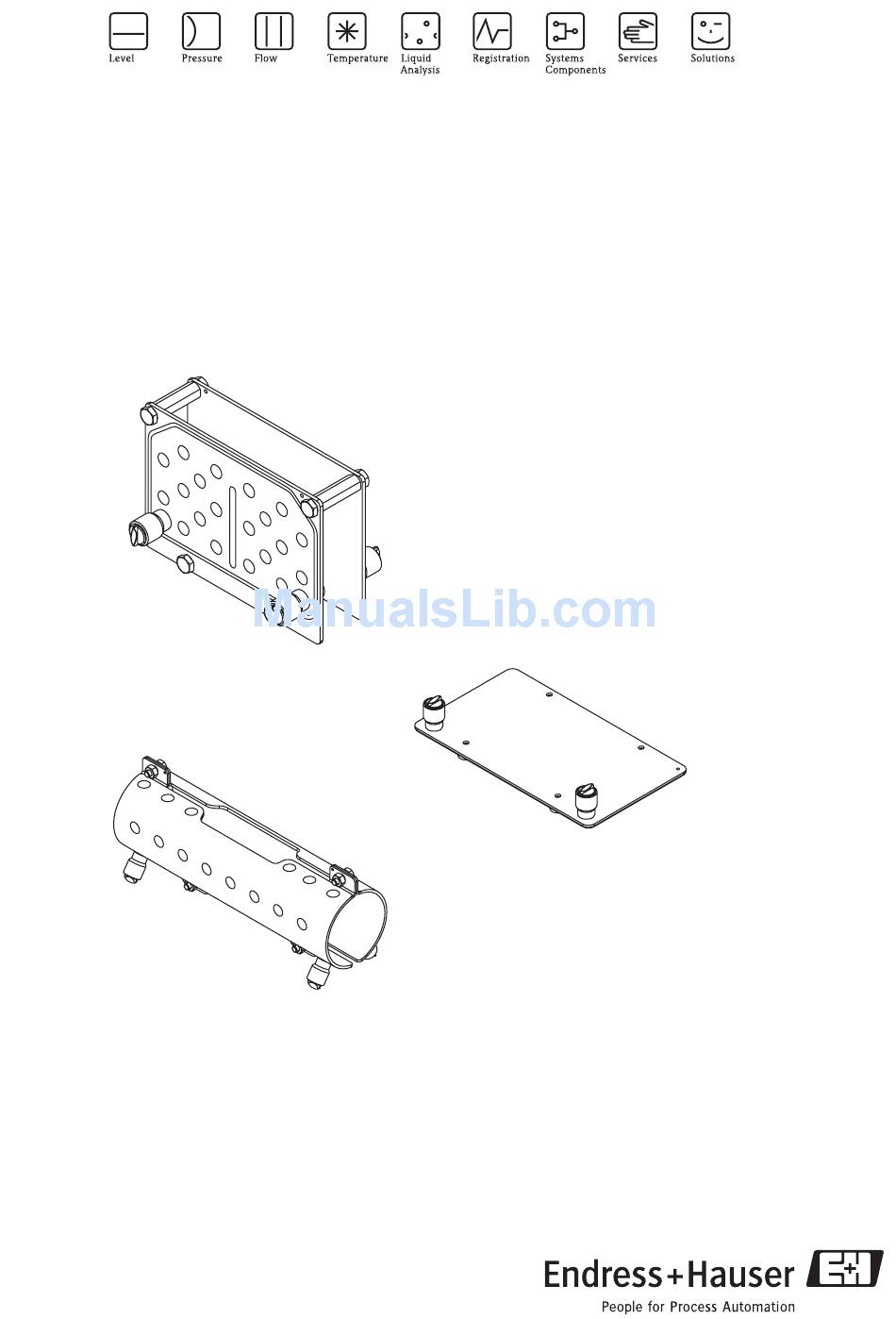

Operating Instructions Promass Heating jacket for Promass A, E, H, I, M, S, P BA099D/06/en/03.08 71070185... -
Page 3: Table Of Contents
Dimensions of heating jacket (SI Units) ..13 4.2.1 Promass A ......13 4.2.2 Promass E, H, S, P . -
Page 4: Safety Instructions
Safety instructions Designated use The heating jacket serves to transfer heat to maintain temperature of fluids in the Promass sensors of the M, E, A, H, I, S and P design Resulting from incorrect use or from use other than that designated, the operational safety of the measuring devices can be suspended. -
Page 5: Return
Heating jacket for Promass A, E, H, I, M, S, P Safety instructions Return The following procedures must be carried out before a flowmeter requiring repair, for example, is returned to Endress+Hauser: • Always enclose a duly completed "Declaration of contamination" form. Only then can End- ress+Hauser transport, examine and repair a returned device. -
Page 6: Identification

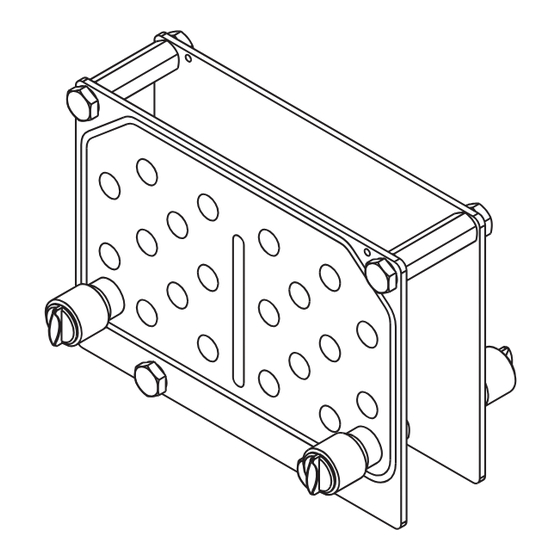

Device designation • Promass M and I: The heating jackets consist of two half-shells. • Promass A: The heating system consists of a heating plate. • Promass E, H, S, P: The heating system consists of two heating plates. 2.1.1 Nameplate... -
Page 7: Installation
Heating jacket for Promass A, E, H, I, M, S, P Installation Installation Incoming acceptance and transport 3.1.1 Incoming acceptance On receipt of the goods, check the following points: • Check the packaging and the contents for damage. • Check the shipment, make sure nothing is missing and that the scope of supply matches your order. -
Page 8: Orientation
Installation Heating jacket for Promass A, E, H, I, M, S, P 3.2.3 Orientation Vertical Horizontal Horizontal Inclined Inclined Transmitter at the at the side at the top at the bottom at the top bottom Sketch a0004576 a0004580 a0004572 A0008136... -
Page 9: Mount The Isolation
Heating jacket for Promass A, E, H, I, M, S, P Installation 3.3.2 Mount the isolation With additional heating jacket insulation, always keep to the minimum safety distances to the device Page 13 ff. 3.3.3 Connecting to in-house heating pipes Designing and making calculations for a tempered heating system is generally based on the highest heating needs ever to be expected. -
Page 10: Technical Data
Technical data at a glance 4.1.1 Application The heating jacket serves to transfer heat to maintain temperature of fluids in the Promass sensors of the M, E, A, H, I, S and P design: • Chocolate, condensed milk, liquid sugar •... - Page 11 Heating jacket for Promass A, E, H, I, M, S, P Technical data Flow rate Flow rate* in heating jacket in [kg/h] H, S, P – – – – – – – – – – – – – 1600 –...
-
Page 12: Mechanical Construction
Technical data Heating jacket for Promass A, E, H, I, M, S, P 4.1.6 Mechanical construction → Page 13 ff. Design, dimensions → Page 13 ff. Weight Materials Heating jackets: 1.4571 / 316 Ti Material load diagrams Heating jackets Materials: 1.4571 / 316 Ti "... -
Page 13: Dimensions Of Heating Jacket (Si Units)
Heating jacket for Promass A, E, H, I, M, S, P Technical data Dimensions of heating jacket (SI Units) US Units → Page 18 ff. 4.2.1 Promass A A0006941 Abb. 3: Heating jacket, Promass A Insulation, customer supply (e.g. mineral wool) Safety distance: min. -
Page 14: Promass E, H, S, P
Technical data Heating jacket for Promass A, E, H, I, M, S, P 4.2.2 Promass E, H, S, P A0006942 Abb. 4: Heating jacket Promass E, H, S, P Insulation, customer supply (e.g. mineral wool) Safety distance: min. 20 mm Process connection of the heating jacket acc. -
Page 15: Promass M, I
Heating jacket Promass M, I Promass M: DN 8 Promass M: DN 15, 25, 40, 50, 80 Promass I: DN 8, 15, 15 FB, 25, 25 FB, 40, 40 FB, 50 Insulation, customer supply (e.g. mineral wool) Safety distance: min. 20 mm Process connection of the heating jacket acc. - Page 16 Technical data Heating jacket for Promass A, E, H, I, M, S, P Promass I Weight Volume [kg] [liter] 170.5 170.5 15 FB 176.5 176.5 25 FB 0.15 40 FB 182.5 182.5 Dimensions in [mm]; FB = full bore version;...
-
Page 17: Npt Adapter
Heating jacket for Promass A, E, H, I, M, S, P Technical data 4.2.4 NPT Adapter A0006945 Abb. 6: Dimensions of Adapter NPT inner thread on conical ISO external thread ½ G ½ 1 1/16 AF (SW 27) 49.3 19.1 11.9... -
Page 18: Dimensions Of Heating Jacket (Us Units)
Technical data Heating jacket for Promass A, E, H, I, M, S, P Dimensions of heating jacket (US Units) SI Units → Page 13 ff. 4.3.1 Promass A A0006941 Abb. 8: Heating jacket Promass A Insulation, customer supply (e.g. mineral wool) Safety distance: min. -
Page 19: Promass E, H, S, P
Heating jacket for Promass A, E, H, I, M, S, P Technical data 4.3.2 Promass E, H, S, P A0006942 Abb. 9: Heating jacket Promass E, H, S, P Insulation, customer supply (e.g. mineral wool) Safety distance: min. 0.79" Process connection of the heating jacket acc. to tabele... -
Page 20: Promass M, I
Heating jacket Promass M, I Promass M: DN 3/8" Promass M: DN 1/2", 1", 1½", 2", 3" Promass I: DN 3/8", 1/2", 1/2" FB, 1", 1" FB, 1½", 1½"FB, 2" Insulation, customer supply (e.g. mineral wool) Safety distance: min. 0.79"... - Page 21 Heating jacket for Promass A, E, H, I, M, S, P Technical data Promass I Weight Volume [lbs] [US gal] 11.42 6.71 4.92 5.20 1.57 0.07 9.06 1.18 3.31 0.03 11.42 6.71 4.92 5.20 1.57 0.07 9.06 1.18 3.31 0.03 1/2 FB 16.85...
-
Page 22: Npt Adapter
Technical data Heating jacket for Promass A, E, H, I, M, S, P 4.3.4 NPT Adapter A0006945 Abb. 11: Dimensions of Adapter NPT inner thread on conical ISO external thread ½ G ½ 1 1/16 AF 1.94 0.75 0.47 ¾... - Page 23 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
