0229515

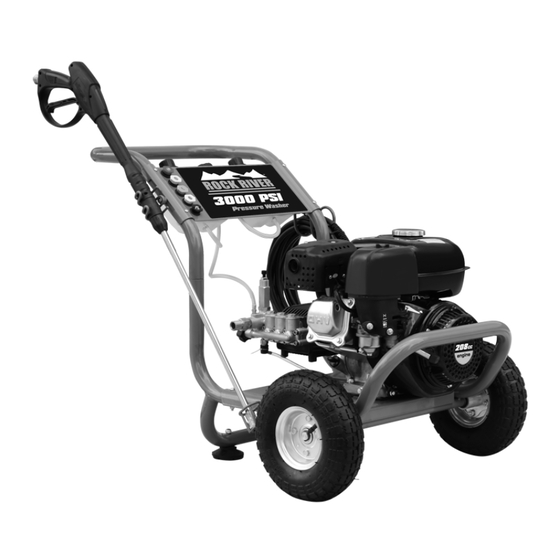

Owner's Manual
3000 PSI

Pressure Washer

Warning To Reduce The Risk Of Injury, User Must
Read And Understand Instruction Manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 PSI and is the answer not in the manual?

Questions and answers

Related Manuals for Rock River 3000 PSI

Summary of Contents for Rock River 3000 PSI

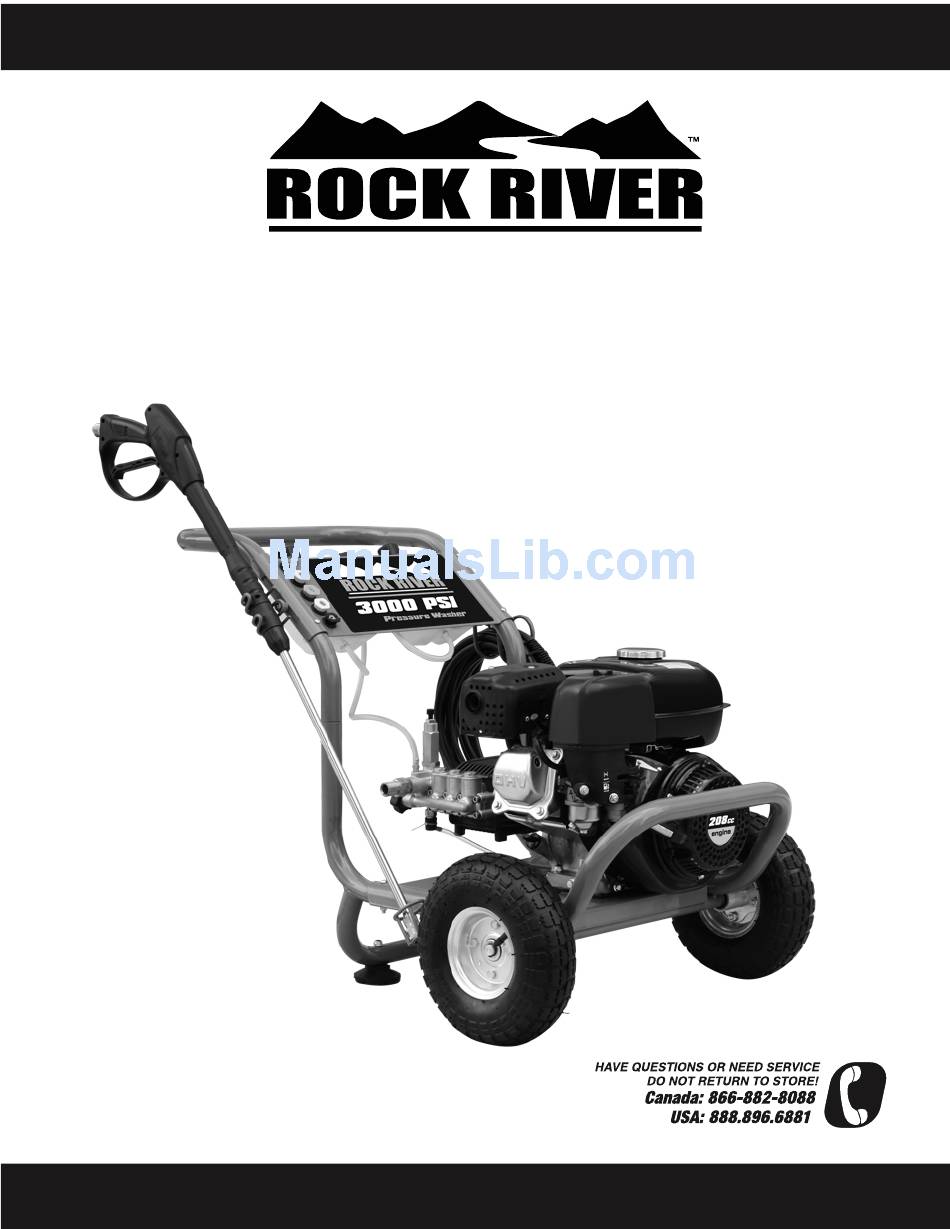

  • Page 1: Pressure Washer

    0229515 Owner’s Manual 3000 PSI Pressure Washer Warning To Reduce The Risk Of Injury, User Must Read And Understand Instruction Manual.

  • Page 2: Specifications

    SPECIFICATIONS Maximum Pressure 3000 PSI Maximum Water Volume 3.0 GPM Minimum Inlet Pressure 20 PSI Maximum Inlet Pressure 90 PSI Pump Type Heavy-duty maintenance-free axial cam Thermal Relief Valve Included Detergent Tank (Volume) Double,0.2Gallon(US) Maximum Temperature of Pumped Fluid 60°C Engine Power (OHV) 7.0 HP...
  • Page 3 This symbol warns of a hot surface which could cause damage to material and/or damage to human skin if HOT SURFACE touched. Please take proper precautions when you see this symbol. This symbol indicates that serious bodily injury or death could occur if proper precautions are not taken.
  • Page 4 fire extinguisher certified to handle gasoline or fuel fires. SPARKS, FIRE, HOT OBJECTS Cigarettes, sparks, fires, or other hot objects can cause gasoline or gasoline vapours to ignite. • ENGINE AND MUFFLER MAY BE HOT Place the pressure washer in an appropriate location, away from children and pedestrians. •...
  • Page 5 PREVENT ACCIDENTAL WATER SPRAY To prevent accidental water spray, the wand trigger should be placed in the locked position when • not in use. KEEP HANDS AWAY Keep hands and other body parts away from high pressure water stream as water pressure will •...

  • Page 6: Pressure Washer Features

    Do not run the pressure washer engine for more than 5 minutes without pressing the wand trigger • or damage to the pump may result. Never let the machine run unless connected to the water supply. Ensure water supply is running •...

  • Page 7: Assembly & Pre-Start Check

    – Detergent Dial – Allows you to switch between – Pump – Increases the water pressure. different detergents without stopping. – Spark Plug –Should be checked every 100 hours – Detergent Tank Caps – Take these caps off to fill of operation.
  • Page 8 2. Attach panel to handle and secure with bolts, below. nut, and washers x 4 sets. Tighten with wrench and screw driver. 3. Install the handle to the frame by sliding the top 7. Assemble the steel (A) wand and the metal handle posts into the frame posts and secure gun (B).
  • Page 9 PRE-START CHECK OIL LEVEL WARNING! Pressure washer has no oil currently in crankcase! Operating the unit without the correct amount of oil will damage the engine. Oil crankcase capacity: 0.6 L. Always check the oil level before starting the engine, make sure the pressure washer is on a level surface before checking oil level.

  • Page 10: Start-Up Procedures

    WARNING! The air filter should be checked after prolonged storage, the following steps should be done when checking the air filter. It is recommended to replace the air filter once every Spring. 1) Snap the top and bottom clips(A) backwards and remove the air filter cover(B).
  • Page 11 1) Check engine oil level; fill to recommended level if necessary. Check gasoline level fill if necessary. Fig. A 2) This pressure washer comes with a pump quick connect coupling. It allows you to quickly connect or disconnect the garden hose from the pump.

  • Page 12: Nozzle Usage

    To install a nozzle to the quick connect • coupler, pull the coupler ring(B) backwards and insert the desired nozzle, release the coupler ring to lock it in place. NOZZLE USAGE: 0° (red) - Thin and powerful stream of water for •...
  • Page 13 1) Ensure detergent siphon tubes are set up correctly. You may want to refer to assembly instruction #9 on page 10 to verify that siphon tubes are set up properly. 2) Pour the two kinds of detergents into detergent tanks. It is recommend to have one detergent...

  • Page 14: Using The Pressure Washer To Clean

    SPRAY NOZZLE USAGE’ on page 14 for instructions on how to connect detergent nozzle to wand. Fig.B 5) If the throttle lever is not in the fast position, the injection of the detergent may be decreased or stopped completely, in this case, move the throttle...

  • Page 15: Troubleshooting

    damage the painted surface. Allow the detergent to remain on the surface for a short time before rinsing with clean water under high pressure. Position the tip of the wand 6-8” (15-20 cm) • away from the surface to clean at a 45°angle. TROUBLESHOOTING PROBLEM CAUSE...

  • Page 16: Maintenance

    No intake of chemicals 1. Injection tube not securely 1. Push firmly into injector fitting inserted into unit 2. Replace tube 2. Tube cracked or split 3. Switch to low pressure nozzle 3. Wrong nozzle 4. Turn collar counter-clockwise 4. Injector dial turned off 5.

  • Page 17: Pressure Washer Storage

    ENGINE MAINTENACE: Engine Oil Replacement Engine oil should be replaced after the first • 20 hours of operation or after the first month of use. It should be replaced every 100 hours or • 6 months. To replace engine oil; Loosen the oil gauge •...

  • Page 18: Preventing Freezing Damage

    -If you plan on storing your pressure washer for an extended period of time, the following steps should be followed: 1) Add fuel stabilizer to fuel tank to minimize the formation of fuel gum deposits during storage. 2) Run engine at least 5 minutes after adding stabilizer to allow it to enter the fuel system.
  • Page 19 If your pressure washer is subjected to • freezing temperatures, damage could occur. This type of damage is not covered under warranty. To avoid possible damage, a small amount of antifreeze can be used. Place the unit on its side with the water inlet •...
  • Page 20 Ref No DESCRIPTION Ref No DESCRIPTION Hose hook Clip Bolt M5*45 Spring wire Washer 5 Wheel shaft Handle 10" (25.4 cm) wheel Detergent bottle cap Washer 16 Detergent bottle gasket Circlip Detergent bottle switch Washer 6 Spring Lock Locknut M6 Detergent bottle switch nut Gun tip holder Panel...

  • Page 21: Limited Warranty

    All decisions of ROCK RIVER with regard to this limited warranty shall be final. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

  • Page 22: This Warranty Does Not Cover

    • Merchandise sold by ROCK RIVER which has been manufactured by and identified as the product of another company, such as gasoline engines. The product manufacturer’s warranty, if any, will apply.
