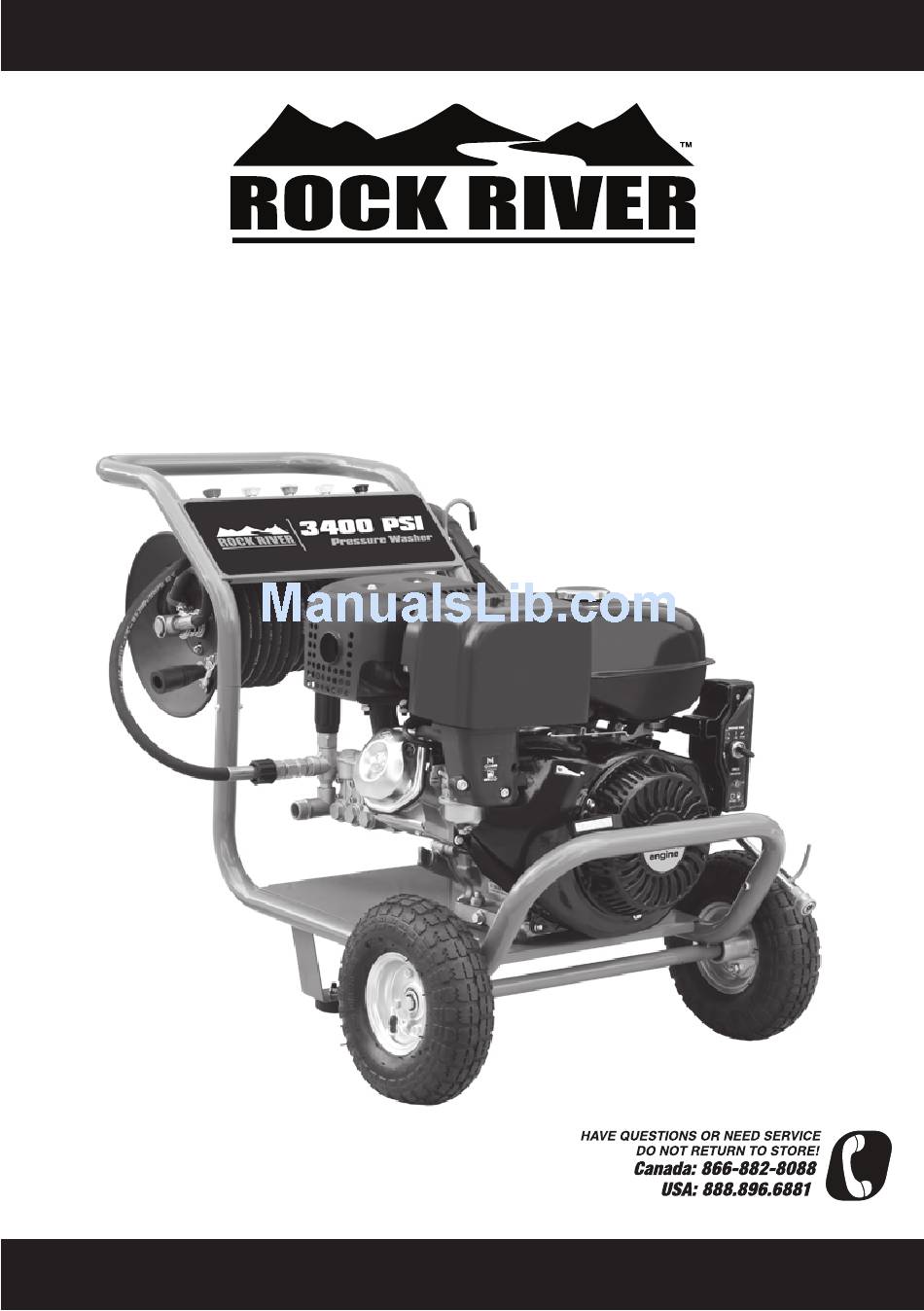

0229516
Owner's Manual
3400 PSI
Pressure Washer
Warning To Reduce The Risk Of Injury, User Must
Read And Understand Instruction Manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3400 PSI and is the answer not in the manual?

Questions and answers

Related Manuals for Rock River 3400 PSI

Summary of Contents for Rock River 3400 PSI

  • Page 1 0229516 Owner’s Manual 3400 PSI Pressure Washer Warning To Reduce The Risk Of Injury, User Must Read And Understand Instruction Manual.

  • Page 2: Specifications

    Owner’s Manual 1. General Assembly Item Description 1. Handle 2. Engine 3. Wheel 4. Interchangeable spray nozzles 5. High pressure hose 6. Hose reel 7. Spray gun 8. Pump 9. Battery 2.Specifications Maximum Pressure: 3400PSI Displacement: 291cc GPM (gallons per minute) 3.

  • Page 3: Pressure Washer

    Pressure Washer PLAN AHEAD 1. Always wear ear and eye protection and/or face shield to prevent debris from flying into eyes and face which could result in serious injury. 2. Dress with appropriate clothes safety boots, safety gloves, safety helmets with visors, and etc. Other protective equipment is advisable when using chemicals, cleaning detergents or other corrosive or abrasive substances.

  • Page 4: Water Supply (Cold Water Only)

    Owner’s Manual any repairs of your pressure cleaner. Failure to do so may result in injury or cause hazardous operating conditions to exist. WATER SUPPLY (Cold Water Only) Water hose must be at least 3/4 inch in diameter. Flow rate of water supply must be more than 1MPa. The water supply temperature must not exceed 147.6F(50°C).
  • Page 5 Pressure Washer 5.1 Assembly Step 1. Attach the handles to the frame of the pressure washer. Insert bolts and tighten with knobs. Step 2. For machines with hose reels: Attach the hose reel to the handle of the machine. Align holes insert bolts, and tighten.
  • Page 6 Owner’s Manual If your machine has interchangeable nozzles, make sure when using the black nozzle, soap nozzle is installed. Soap injectors will not work when high pressure nozzles are installed. If your machine has an adjustable nozzle (see next point), be sure it is in the low pressure position to draw soap.
  • Page 7 Pressure Washer • Removing marine growth from boats and marine equipment. • Removing rust from steel and oxidation from aluminum. C. 40 DEGREE- WASHING • Light cleaning and washing. • Washing and rinsing of automobiles and boats. • leaning roofs, windows, patios and driveways. - The operating pressure and flow for each nozzle Nozzle 0 degree...
  • Page 8 Owner’s Manual 2) Start engine according to the engine owner’s manual. 3) Press the trigger of high pressure gun to make sure water is flowing. In case of any emergency turn engine off. 5.4 Shut Down Procedure 1. Releasing the trigger will stop the water from flowing out. Engage the trigger safety lock to avoid any accidental spray.

  • Page 9: Troubleshooting Guide

    Pressure Washer as a safety device to guard against failure of pump parts, and the development of dangerously high pressures. 6. Maintenance and Cleaning: When doing maintenance, you may be exposed to hot surfaces, water pressure, moving parts, or fire resulting in death.
  • Page 10 Owner’s Manual Water leaking in pump Loose connections. Tighten. NOTE: Little leaking at pump outlet is normal. Oil leaking in pump Oil seals worn. replaced Pump overfilled. Check for correct amount. Incorrect oil used * Drain and fill with correct amount and type of oil.
  • Page 11 Pressure Washer t l o GW5401-02-YG Gasket φ t l o...
  • Page 12 Owner’s Manual GW5401-05-YG Gasket φ GW5401-11-YG Spring Gasket φ t l o t l o Under Frame t l o t l o GW5401-23-YG Spring Gasket φ GW5401-24-YG Gasket φ Clip Spring Shaft GW5401-28-YG 10” Wheel Ringφ16 Insert Retainer Under Bottom Gun Hook Battery Rubber Foot GW5401-33-YG Battery...
  • Page 13 Pressure Washer...
  • Page 14 Owner’s Manual APA Part No. Description Qty. GW5401-01-P-YG bot cover of crank case GW5401-02-P-YG oil drain plug GW5401-03-P-YG sheet of oil drain plug GW5401-04-P-YG crank case cover GW5401-05-P-YG slip crank case cover oil lever lence GW5401-06-P-YG gasket,lence GW5401-07-P-YG lence cap GW5401-08-P-YG oil inlet plug GW5401-09-P-YG...
  • Page 15 Pressure Washer APA Part No. Description Qty. GW5401-51-P-YG inner gasket, valve jacket GW5401-52-P-YG water return valve corn GW5401-53-P-YG water return valve jacket GW5401-54-P-YG outer gasket valve jacket GW5401-55-P-YG water return vlave seat GW5401-56-P-YG gasket, valve seat GW5401-57-P-YG water outlet tee connector GW5401-58-P-YG gasket, tee connector GW5401-59-P-YG...

  • Page 16: Limited Warranty

    All decisions of ROCK RIVER with regard to this limited warranty shall be final. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

  • Page 17: This Warranty Does Not Cover

    • Merchandise sold by ROCK RIVER which has been manufactured by and identified as the product of another company, such as gasoline engines. The product manufacturer’s warranty, if any, will apply.
