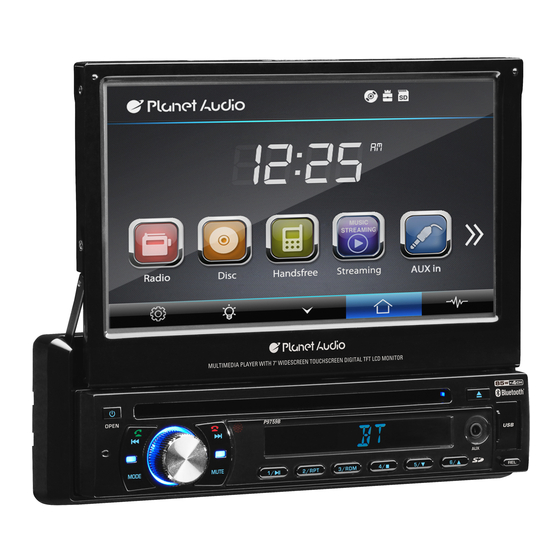

Planet Audio P9759B User Manual

Bluetooth dvd/mp3/cd am/fm receiver featuring motorized 7" (178mm) widescreen touchscreen digital tft lcd monitor

Hide thumbs Also See for P9759B:

User manual (12 pages)

User manaul (10 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the P9759B and is the answer not in the manual?

Questions and answers

Summary of Contents for Planet Audio P9759B

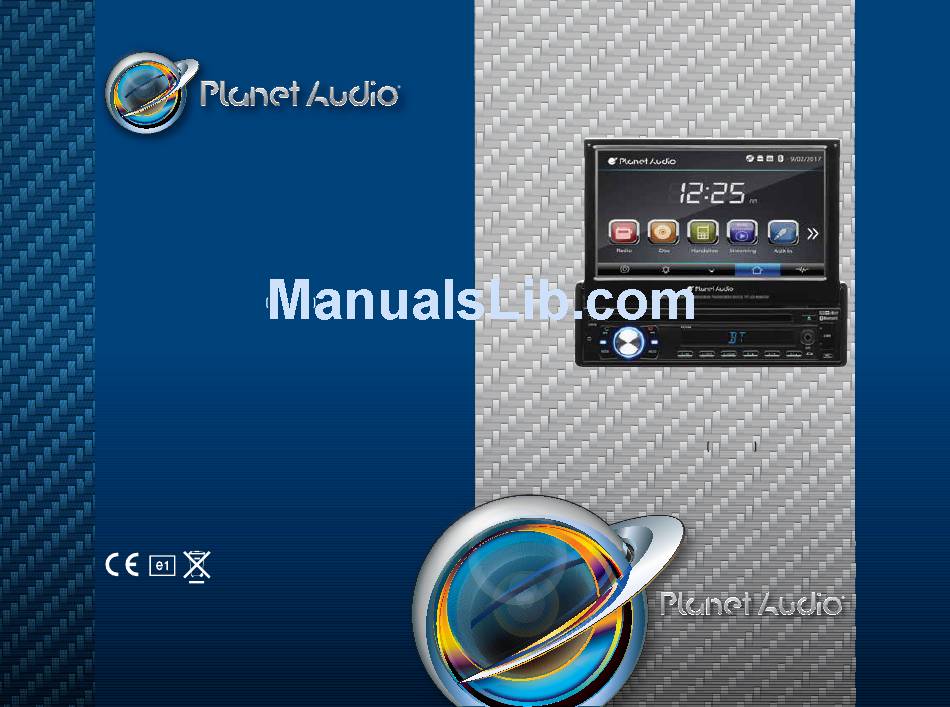

Page 1 0817 The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Planet Audio is under license. Other trademarks and trade names are those of their respective owners.
Page 2 To ensure safety while driving and to comply with laws, drivers should not watch video or operate the video device while driving.
Page 3: Table Of Contents
Congratulations on your purchase of a Boss Audio Systems Multimedia Receiver. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will offer you years of entertainment pleasure. Content Accessories ………………………………………………………………………………………………………………………………………... Unit Installation ………………………………………………………………………………………………………………………………..
Page 4: Accessories
Accessories Package contains the following accessories for installation and operation of the unit. (1) Washer, Spring (5) Rubber Washer, Cushion M5 Nut (2) Screw (6) Screw (7)installation bracket (3) Bolt (8)Half- sleeve (4) Mounting Strap Remote Control Power Cable User Manual Panel bag...
Page 5: Unit Installation
Unit Installation Note Before starting installation of the unit, make sure the wiring is connected properly. Use only the parts provided with the unit to ensure proper installation. The use of unauthorized parts may cause malfunction. Install the unit where it does not get in the driver’s way and will not injure the passenger in case there is a sudden stop, like an emergency stop.
Page 6: Wire Connection
Wire Connection The Description of the Input/output Interface of the Rear Chassis...
Page 7: Parking Brake Connection
Parking Brake Connection In order to view videos, the parking brake wire must be connected, and the vehicle stopped Connecting the reversing line to taillight on the car...
Page 8: Speaker Connection
Speaker Connection After connecting, when you start up the reverse gear, the unit will receive the picture from car rear view camera. Connect the speakers according the following diagram, incorrect connections will damage the unit or your loudspeakers. Correct connection Left front - Right front | Left rear - Right rear Incorrect connections...
Page 9: Button Description
Button Description 1.Open button Press the button to open/close the screen Press the button for short moment to turn on power,and long press it to turn off power. Press the button can adjustment the screen angle 2.Fast Forward button In radio mode, press the button to select station upward 3 .Fast Forward button In radio mode,press the button to select station backward...
Page 10 Button Description 4.MIC input Bluetooth microphone input socket 5. Mode Button When the unit is power on ,Repeat press this button can switch to different function mode as follow picture. 6. Mute Button Press the button will briefly to mute 7.
Page 11: Remote Control
Remote Control 1: MODE 2: POWER 3: UP 4: BAND/RANDOM/CLEAR 5: ENTER 6: LEFT 7: DOWN 8: EJECT 9: STEREO/MONO/* 10:P.SCAN/REPEAT/# 11: SEEK-/BACKWARD 12: LOUD 13: STOP/PBC 14: OSD 15: PLAY/PAUSE 16: MUTE/BLUETOOTH 17: MENU/ROOT 18: SUBTITLE 19: RIGHT 20: SETUP 21: DIAL/ANGLE 22: HANG UP 23: VOLUME UP...
Page 12 Remote Control In radio mode, PS (preset scan): Press to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds. AS (Auto Save), long press to save the stations with good reception automatically. In bluetooth mode, press it to make a # symbol.
Page 13 Remote battery select station. button frequency up. 27. VOLUME DOWN button Press to decrease volume level. 28. AUDIO In DVD mode press it to select the audio language. 29. NUMERIC KEY In radio mode, select 1-6 the desired band; In DVD mode, select track. In Bluetooth mode, press to input phone number，long press 0 number to make a + symbol.
Page 14: Main Menu
Main Menu The best way to discover the program is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour. Unit starts by displaying the main menu. This is the root of the screen hierarchy, and you can simply access all features by tapping on the touch screen buttons.
Page 15: Dvd Operation
Radio Operation Touch this button to adjust the brightness of TFT panel Touch this button to return to main menu Touch button go to EQ setting DVD Operation DVD Player To start DVD player, tap on DVD button from main menu screen. Touch Screen Menu You will not see any buttons while DVD is played, buttons will appear when you tap on TFT screen.
Page 16: Usb/Sd Operation
DVD Operation Touch it to turn on / off random playback. Touch it go to EQ mode Select the subtitle language Touch it setting the display brightness of TFT panel Touch it go to setting Press it to select title (only the file has many files) Press it to select file In VCD mode touch it can choose PBC ON or OFF USB/SD Operation...
Page 17: Settings Operation
Settings Operation Setting Control Your device has default system setting, you can customize the settings to suit your personal needs. Once you change settings, your new settings will remain until you change it again. To start setting, tap it on main menu. General Control OSD Language : select English/Spanish Wallpaper...
Page 18 Settings Operation Tap time setting button to setup time Tap SWC item to program SWC 1) First check whether the car has steering wheel button. 2) The steering wheel and the unit must be connected on the line. 3) While holding down the button on the steering wheel and the corresponding button on the SWC interface it will display complete setting.
Page 19 Settings Operation [3]. DVD Menu Lang setting:. With this option you can select the preferred language for the disc menu. When the selected language is recorded on the disc then this language will automatically be selected. If not, the first language recorded on the disc is displayed.
Page 20: Bluetooth Operation
According to mobile pairing device manual, after searching new device (BT friendly name: Planet Audio P9759B) select it, input password "0000" and confirm ok, device paring is finished. The phone name will available on the panel after the pairing is completed. It means device is connected and ready for bluetooth communication.
Page 21: Aux-In Operation
Bluetooth Operation Calling Button Tap on calling button to enter call mode. In call mode, the unit can be used as your phone, making and receiving calls are possible with bluetooth, simply tap phone number and tap button to make a call, and tap button to hang up.
Page 22: Notes Of Disc
Notes of Disc In order to view videos, the parking brake wire must be connected, and the vehicle stopped...
Page 23: Troubleshooting
Troubleshooting Symptom Cause Remedy Replace with fuse of the same amperage. If Power does not turn Fuse is blown the fuse blows again, consult your store of purchase (No sound is produced) In correct wiring Consult your local retailer 1. Turn off the unit 2.
Page 24 Troubleshooting symptom Cause Solution If the power supply is properly connected The car ignition is not on to the car accessory switch the ignition key to “ACC” No power The fuse is blown Replace the fuse Presence of disc inside the Remove the disc in the player then put a Disc cannot be loaded player...
Page 25: General Specification
General Specification General Power supply 11~16V DC Current consumption Max. 10 A Maximum power output 80W x 4 channels (max) Compatible formats DVD ±R/RW Video, CD ±R/RW Audio & Video Dimensions (W x D x H) / weight 7.0” x 6.4” x 2.0” /3.9 lbs Working temperature range -4°F -- +140°F ESP function...
