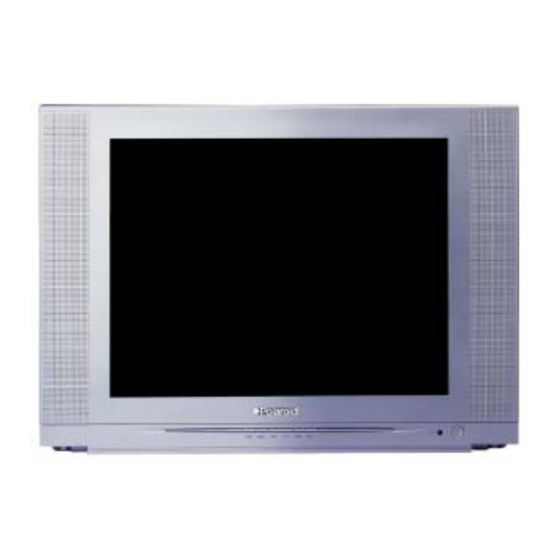

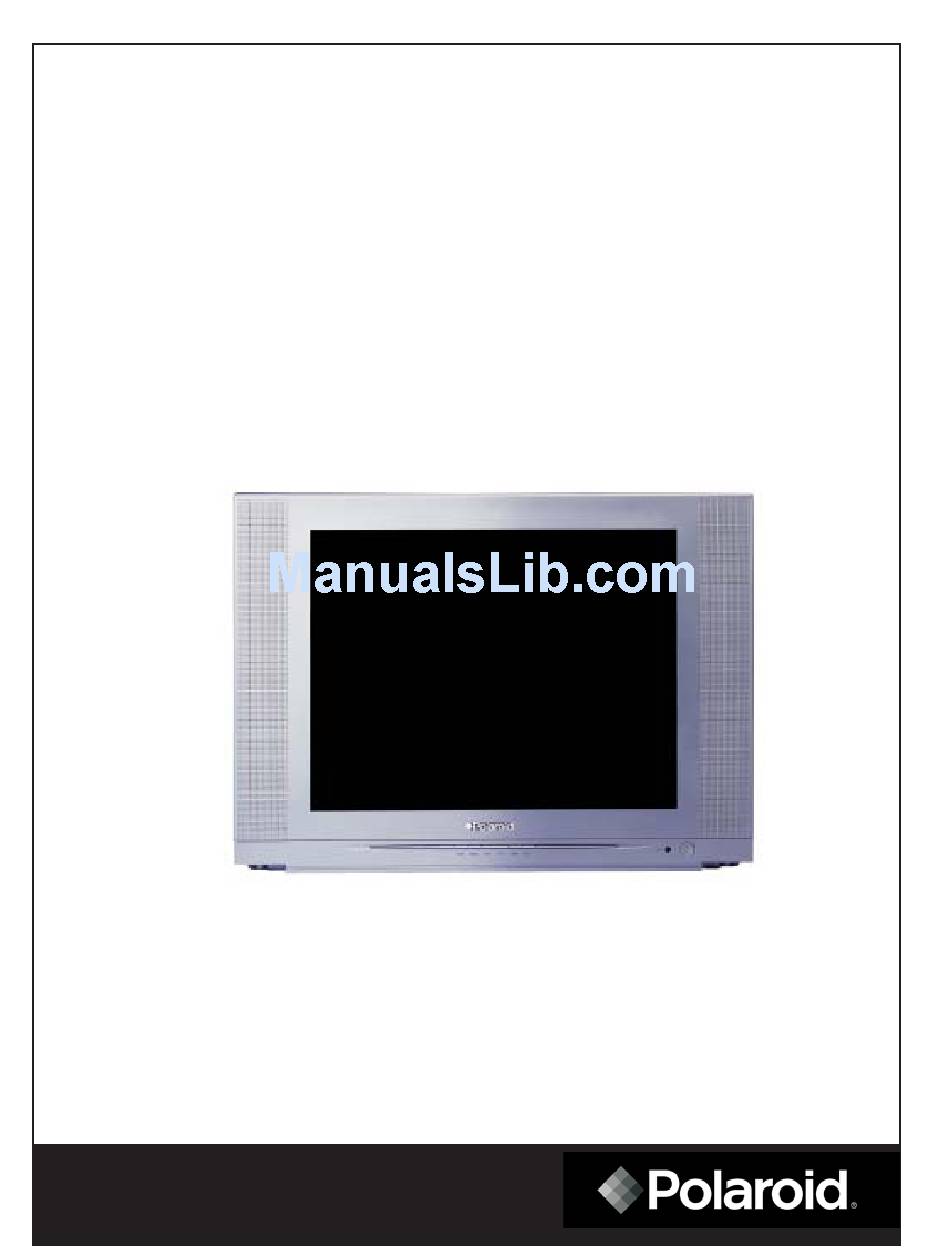

- Page 1 24” Color Television TTM-2401 Operating Manual 20050503...
-
Page 2: Table Of Contents
Congratulations on your purchase of this color television. We recommend that you thoroughly read this manual before use to fully enjoy the many functions and excellent features of this equipment. Retain this manual in an easily accessible location for future reference. * Screen displays and illustrations in this manual may differ from the actual ones for better visibility. -
Page 3: Important Safety Instructions
Important safety instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. efore using the unit, be sure to read all operating instructions carefully. - Page 4 Important safety instructions 13. LIGHTNING To protect your product from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
-
Page 5: Identification Of Controls
Identification of Controls Front MENU MENU TV/AV Back Back DVD input (VIDEO: Y,C,C, AUDIO:L/MONO,R) SVIDEO S-VIDEO input TV/AV Channel up Channel down Volume down ( ) 1 VIDEO VIDEO L/MONO AUDIO AUDIO Indicator Remote sensor Power button Volume up ( ) 2 AUDIO ( MONO VIDEO... -
Page 6: Remote Control
Identification of Controls Remote control Power on/Standby Direct channel select Sleep timer Program scan Volume down Open the menu TV/AV STEREO MUTE SCAN MENU TV/VIDEO input select To switch between STEREO, SAP or MONO Closed Caption decoder channel select Recall on-screen display Sound mute Return to previous channel Picture mode select... -
Page 7: Antenna Connection
Antenna connection CABLE TV (CATV) CONNECTION A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75- ohm coaxial cable to the set, screw the 75-ohm cable to the ANT. Terminal. Some cable TV companies offer "premium pay channels". Since the signals of these premium pay channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company. -
Page 8: Preparing The Remote Control
Preparing the remote control Installing batteries Open the battery cover. Install two "AA” batteries matching the +/- polarities of the battery to the +/- marks inside the battery compartment. Replace the battery cover. Notes: Do not recharge batteries that are not intended to be recharged. -
Page 9: External Equipment Connections
External equipment connections The following steps describe how to use and connect the TV with other AV equipment (for example, VTR, Video Camera, DVD, Video game, etc.) Please refer to the owner's manual of the equipment to be connected before proceeding. To connect AV input terminals Connect side AV inputs To access the unit connected... -
Page 10: To Connect The Av Outputs
External equipment connections To connect DVD input terminals The figure below shows how to connect the DVD input terminals of the TV set to the DVD Player, Laser Disk Player, etc. The TV set rear ( 1 ) VIDEO VIDEO L/MONO S - VIDEO AUDIO... -
Page 11: Power On/Off
TV/AV STEREO MUTE SCAN MENU Power on/off Turning on Insert the AC plug (with the 2 blades) into a conveniently located AC outlet. If no picture appears on the screen and the standby indicator lights up, the TV set is in STANDBY mode. Now please follow step 2. -
Page 12: Selecting Input Signal
Selecting input signal TV/AV TV/AV STEREO MUTE SCAN MENU Watching AV program This TV set provides AV input terminals for convenient connection to VCR, DVD or other video equipment. To watch video program from AV inputs, press TV/AV button repeatedly until you see the SVHS NOTE: AV1: Select AV1 when viewing the signals from the video... -
Page 13: Tuning In
TV/AV STEREO MUTE SCAN MENU Menu control buttons Tuning in TV/CATV selection Before your TV can memorize the available channels, you must specify the type of signal source that is connected to the unit. (i.e., an antenna or cable system) Press MENU repeatedly to display... -
Page 14: Manual Fine Tuning
TV/AV STEREO MUTE SCAN MENU * To exit the menu, press button or repeatedly press MENU button. Auto Fine Tuning (AFT) If Fine Tuning makes the picture and sound of a channel poor, you can correct this by using AFT. Enter into Search menu, press... -
Page 15: Channel Selection
Channel selection TV/AV STEREO Direct channel select buttons MUTE SCAN MENU You can select desired TV programs by one of the following methods. Use Direct Channel Select buttons AIR Mode Direct Channel Selection When the Signal Input menu option in position, all channels can be selected by directly entering the channel number. -
Page 16: Picture Adjustment
Picture adjustment TV/AV STEREO MUTE SCAN MENU Menu control buttons * To exit the menu, press button or repeatedly press MENU button. To select the picture mode You can select the picture quality instantly among three preset modes and one user-set mode. Press button to select the desired picture quality. -
Page 17: Sound Controls
Sound controls TV/AV STEREO STEREO MUTE MUTE SCAN MENU Adjusting volume Use Volume up/down button Press button, the volume decreases; Press button, the volume increases. Make use of Sound menu to adjust volume Press MENU twice to display Sound menu, then make use of V+/- button to adjust the level. -
Page 18: Timer Setting
TV/AV STEREO MUTE SCAN MENU Menu control buttons Timer setting Setting clock time This function sets the current time for the TV. Press MENU repeatedly to display the Timer menu. Press CH- to select ress to set the hour (0-23), press (00-59). -
Page 19: Setting Sleep Timer
TV/AV STEREO MUTE SCAN MENU Menu control buttons * To exit the menu, press button or repeatedly press MENU button. Timer setting Setting OFF timer With the OFF timer, the TV will automatically switch to standby mode at a preset time. Timer menu, press to select... -
Page 20: System Settings
TV/AV STEREO MUTE SCAN MENU * To exit the menu, press button or repeatedly press MENU button. System Settings To select OSD language There are several OSD ( choose from. Press MENU repeatedly to display Settings Press CH+/- to select ress Setting Blue Screen Enter into... -
Page 21: Closed Captions
Closed Captions TV/AV STEREO MUTE SCAN MENU Menu control buttons * To exit the menu, press button or repeatedly press MENU button. The unit decodes and displays the closed captions that are broadcast with certain TV shows. These captions are usually subtitles for the hearing impaired or foreign language translations. -
Page 22: Setting Parental Control
Setting Parental Control TV/AV STEREO 0-9 digit buttons MUTE SCAN MENU Menu control buttons * To return to upper-level menu, press button. To clear the menu screen, press button. Parental Control enables parents to prevent their children from watching inappropriate material on TV. Parental Control reads the ratings for programming (except for news, sports, unedited movies on premium cable and Emergency System signals) and denies access to programming if the program's rating... - Page 23 Setting Parental Control TV/AV STEREO 0-9 digit buttons MUTE SCAN MENU Menu control buttons U.S. TV Rating Set-up TV Parental Guidelines may have one or more letters added to the basic rating to let parents know when a show contains higher levels of violence, sex, adult language or suggestive dialogue.
-
Page 24: Movie Rating Set-Up
Setting Parental Control TV/AV STEREO 0-9 digit buttons MUTE SCAN MENU Menu control buttons Movie Rating Set-up Rating guidelines are provided by broadcast stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating System (MPAA) only. - Page 25 Setting Parental Control TV/AV STEREO 0-9 digit buttons MUTE SCAN MENU Menu control buttons CANADA English Rating Set-up Enter into Parental Control menu, press button to select CANADA English menu item. Press button to enter into the sub-menu. CANADA English sub-menu, CH+/- to select the desired...
-
Page 26: Troubleshooting Guide
Troubleshooting Guide Before calling service personnel, please check the following chart for a possible cause to the trouble you are experiencing. SYMPTOM POSSIBLE CAUSE No power The AC power cord is not connected. TV station experiencing problems. Picture control is not adjusted. Poor or no picture. -
Page 27: Reception Disturbances
Troubleshooting Guide Reception disturbances Most types of television interference can be remedied by adjusting the height and position of the VHF/UHF antenna. Outdoor antennas are recommended for best results if not using cable. The most common types of television interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV system, the disturbance may be caused by the local cable company broadcast. -
Page 28: Specifications
Note: Design and specifications are subject to change without notice. For service, support and warranty information, visit “Polaroid” is a registered trademark of Polaroid Corporation of Waltham, MA USA and licensed for use on the TTM-2401 to Petters Consumer Brands, LLC.
