  • Page 1 CoolPlug CooLinkHub HVAC Bridge Quick Installation Guide...
  • Page 3 Warning Read and understand the following Safety Guidelines and Warnings to ensure a safe installation Failure to follow WARNING may result in injury or death. This equipment is to be installed by accredited Install the equipment only in a restricted access electrician or similar technical personnel, as per location.
  • Page 4 Any damage caused by your modification or repair may result in an electric shock or fire. c) Near machinery emitting electromagnetic Do not expose CoolPlug or CooLinkHub to moisture. waves. Water can damage the CoolPlug or CooLinkHub, Electromagnetic waves may disturb or damage resulting in an electrical components failure, electric the operation of the CooLinkHub.
  • Page 5: Table Of Contents

    Contents 6 CooLinkHub + CoolPlug FJ (Fujitsu/General) - Option 2 System overview 14 Connecting CoolPlug Network Topology ME (Mitsubishi Electric)- CN-105 CoolPlug Models 15 Connecting CoolPlug 7 CoolPlug models ME (Mitsubishi Electric) - 1 2 8 Connecting CoolPlug 16 Connecting Home Automation, DK (Daikin) –...
  • Page 6: Coolinkhub + Coolplug

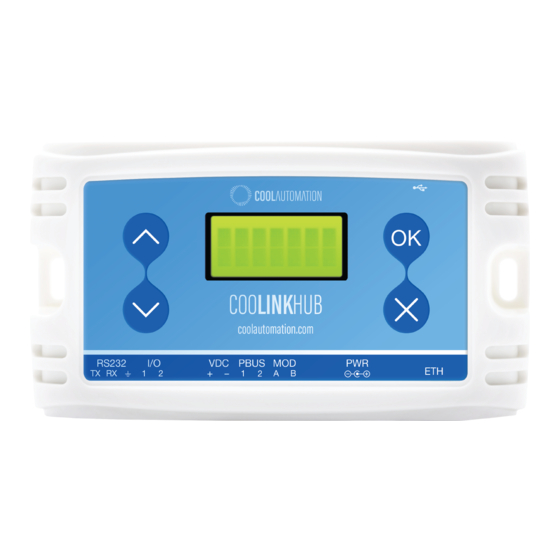

    HVAC Bridge CoolPlug - HVAC designated adapter, that connects directly to the HVAC indoor unit on one side, and to CoolPlug CooLinkHub on the other, by PBUS Casette Network. CooLinkHub - protocol converter, that allows integration to any Home Automation system.
  • Page 7: Network Topology

    Sticker Network Topology PBUS is a CoolAutomation’s HVAC Daikin proprietary Bus, running on shielded HVAC Daikin Siesta Series twisted pair cable (24AWG). PBUS utilizes free network topology HVAC Panasonic | Sanyo | Toshiba (‘star’ , ‘daisy-chain’ , etc.) No loops HVAC Fujitsu/General allowed.
  • Page 8: Connecting Coolplug

    – S21 port on the indoor unit’s PCB. Consult HVAC manufacturer’s installation manual for location of S21 on Control Board. Connecting CoolPlug to CooLinkHub Connect the signal wires of PBUS CooLinkHub Indoor Unit cable between CoolPlug terminals [-], [1] and [2],...
  • Page 9: Connecting Coolplug

    CoolPlug H VA C P B U S – Connecting CoolPlug to CooLinkHub Connect the signal wires of the PBUS cable coming from the [VDC-], [1] and [2] terminals on the CooLinkHub to the corresponding [-], [1] and [2] terminals on the...
  • Page 10: Connecting Coolplug

    Connecting CoolPlug to CooLinkHub Connect the signal wires of the PBUS cable, using [VDC-], [1] and [2] Indoor Unit terminals on the CooLinkHub, to the CooLinkHub corresponding [-], [1] and [2] terminals on the CoolPlug. Optional: Connect the wired Remote to the ‘W.R.C’...
  • Page 11: Connecting Coolplug Pn/Sa/To (Panasonic | Sanyo | Toshiba)

    H VA C P B U S – * To connect to Panasonic indoor unit use R1 R2 terminals. Connecting CoolPlug to CooLinkHub Connect the signal wires of the PBUS cable coming from the [VDC-], [1] and [2] terminals on the CooLinkHub...
  • Page 12: Connecting Coolplug

    Connecting CoolPlug to CooLinkHub Connect the signal wires of the PBUS cable, using [VDC-], [1] and [2] terminals on the CooLinkHub, to the CooLinkHub Indoor Unit corresponding [-], [1] and [2] terminals on the CoolPlug.
  • Page 13: Connecting Coolplug

    Connecting CoolPlug FJ (Fujitsu/General) - Option 2 Connecting CoolPlug to CooLinkHub PBUS HVAC Connect the signal wires of the PBUS cable coming from the [VDC-], [1] and [2] terminals on the CoolPlug H VA C P B U S –...
  • Page 14: Connecting Coolplug Me (Mitsubishi Electric) - 1

    Indoor Unit Connecting CoolPlug to CooLinkHub Connect the signal wires of the PBUS cable, using [VDC-], [1] and CN-105 [2] terminals on the CooLinkHub, to the corresponding [-], [1] and [2] terminals on the CoolPlug. PBUS network cable CN-105 cable...
  • Page 15: Connecting Coolplug

    [1] and [2]. Connecting CoolPlug to CooLinkHub Connect the signal wires of the PBUS cable, using [VDC-], [1] and [2] terminals on the CooLinkHub to the corresponding [-], [1] and [2] terminals on the CoolPlug. Optional: Connect the Wired Remote...
  • Page 16: Connecting Home Automation, Bms & Coolremote

    Connecting Home Automation, BMS & CoolRemote RS 232 Modbus IP 12-24 VDC E thernet RTU BMS Router Internet 100 V -240 V AC 50/60hz H ome A utomation / BMS CoolRemote App...
  • Page 17: Coolremote App Registration

    Connect the device to the Internet for registration and setup. Option A - Automatic Option B - Manual Scan the QR code from the type label to auto fill-in all the CooLinkHub details Go to: https://coolremote.net/register for CoolRemote App. Enter CooLinkHub SN number and PIN code, printed on the sticker.
  • Page 18: Coolplug Installation Complete

    CoolPlug Installation Complete CoolPlug Indicators The three LEDs that surround the CoolPlug push-button provide information about the CoolPlug configuration and status. After applying power to CoolPlug the Firmware version is displayed by flashing LEDs followed by the operation state of the system. CoolPlug Normal Operation In normal operation the blue LED blinks infrequently.
  • Page 19: Determining The Coolplug Uid

    Determining the CoolPlug UID Short Press The CoolPlug UID is flashed after one ‘Short’ press on the CoolPlug push-button. Toggling the HVAC ON/OFF long Press Toggle the HVAC state ON/OFF with one ‘Long’ press on the CoolPlug push-button. Short Press + long Press Resetting the CoolPlug Reset the CoolPlug with one ‘Short’...
  • Page 20 Mounting the CoolPlug On Metal Surface The CoolPlug back plate has two magnets that allow you to mount it on any metal surface. On Wall Attach the CoolPlug back plate to the wall using screws as shown. The wires can be fed through the hole in the center of the cover or from the side as shown.
  • Page 21 On DIN rail Use back plate for DIN rail to attach it to the DIN rail utilizing magnets.
  • Page 22 Need more help? Visit us: http://coolautomation.com/support Email us: support@coolautomation.com...
