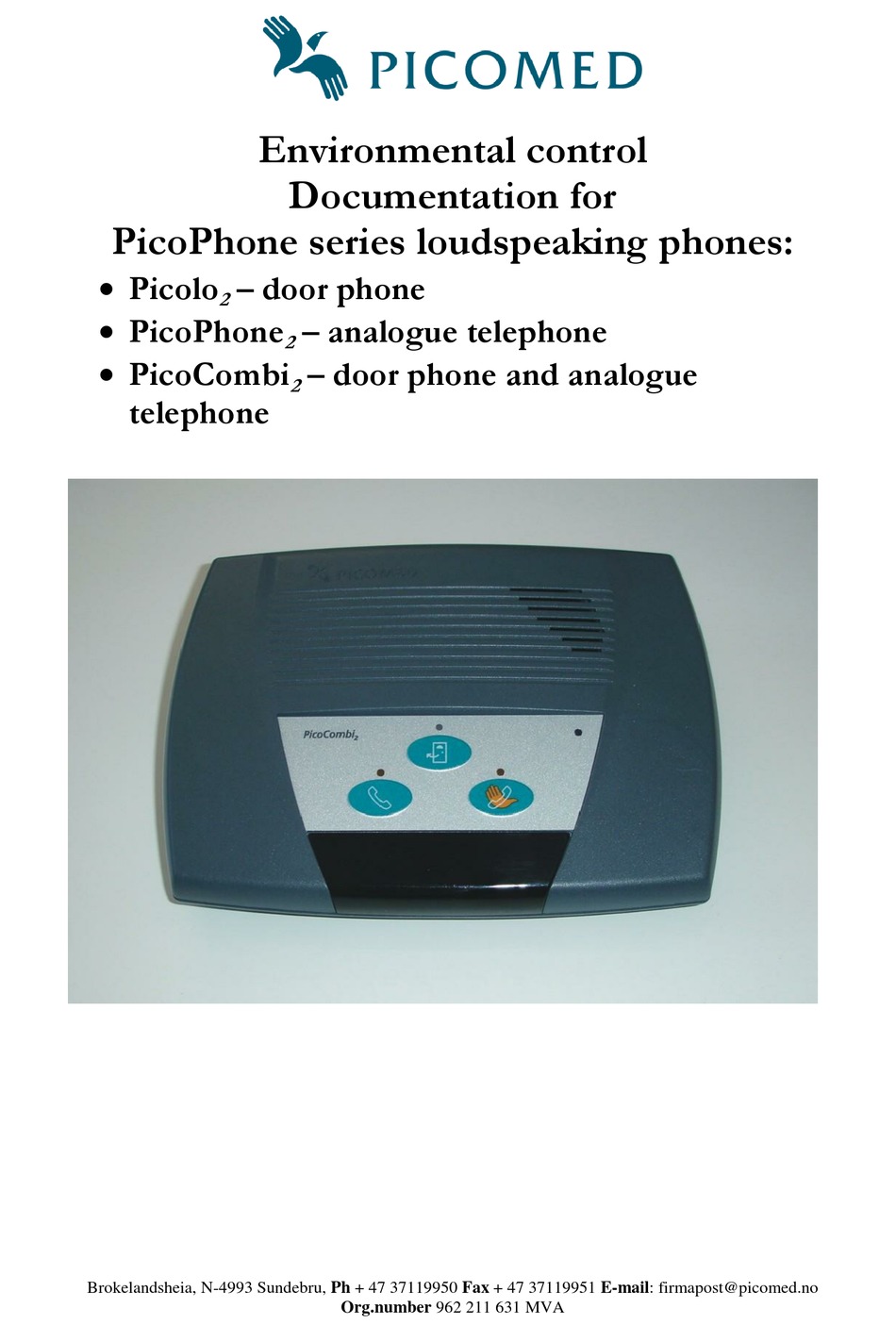

Environmental control
Documentation for
PicoPhone series loudspeaking phones:
 Picolo
– door phone
2
 PicoPhone
– analogue telephone
2
 PicoCombi
– door phone and analogue
2
telephone
Brokelandsheia, N-4993 Sundebru, Ph + 47 37119950 Fax + 47 37119951 E-mail: firmapost@picomed.no
Org.number 962 211 631 MVA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the picophone2 and is the answer not in the manual?

Questions and answers

Related Manuals for Picomed picophone2

Summary of Contents for Picomed picophone2

  • Page 1 PicoPhone series loudspeaking phones:  Picolo – door phone  PicoPhone – analogue telephone  PicoCombi – door phone and analogue telephone Brokelandsheia, N-4993 Sundebru, Ph + 47 37119950 Fax + 47 37119951 E-mail: firmapost@picomed.no Org.number 962 211 631 MVA...

  • Page 2: Table Of Contents

    Revision list When changes are made in the documentation it will listed below with date and a short description. Revision list: Date Name Description 22.11.2012 Bent-Håvard Sollid. First version. Based on Norwegian version 01.07.2010. Contents – Documentation PicoPhone series Introduction ........................4 PicoPhone products in general ...................
  • Page 3 Technical information ....................22 Fixed mounting ......................23 Inside the PicoPhone series ..................23 8.2.1 12 VDC, power supply ..................23 8.2.2 Internal IR sensor ....................24 8.2.3 External IR sensor ....................24 8.2.4 Door phone ......................24 8.2.5 Multiple indoor units .................... 25 8.2.6 Door indicator ......................

  • Page 4: Introduction

    1 Introduction This documentation is made for Picomeds PicoPhone series. This is a series of loudspeaking IR-controlled analogue telephone and door phone and they are a part of Picomeds environmental control system. This user manual covers all versions of the PiocPhone series. Some of the functions described in this document are not available in all versions.

  • Page 5: User Manual - Quick Guides

     Connect the power supply to a 230 VAC line and thereafter connect the output from the power supply to the connection point marked with “12V” on the reverse of the apparatus.  PicoPhone and PicoCombi: connect the telephone wire to an analogue telephone line and the other end of the wire to the reverse of the device in the connection marked with “Tele”.

  • Page 6: User Manual

     Manual hook on can be done with “E” Volume control  Press key “F” when you are speaking in the phone  A long “beep” indicates maximum volume Brokelandsheia, N-4993 Sundebru, Tlf + 47 37119950 Faks + 47 37119951 E-mail: firmapost@picomed.no Foretaksnr 962 211 631 MVA...
  • Page 7  PicoPhone automatically calls last used number Volume control  Press key “F” when you are speaking in the phone  A long “beep” indicates maximum volume Brokelandsheia, N-4993 Sundebru, Tlf + 47 37119950 Faks + 47 37119951 E-mail: firmapost@picomed.no Foretaksnr 962 211 631 MVA...
  • Page 8 Disconnect door phone - return to parked telephone  A long “beep” indicates maximum volume conversation  Press key “E” (does not open door) Brokelandsheia, N-4993 Sundebru, Tlf + 47 37119950 Faks + 47 37119951 E-mail: firmapost@picomed.no Foretaksnr 962 211 631 MVA...

  • Page 9: User Manual - Detailed

    4 User manual – detailed 4.1 Keys There are 2 respectively 3 keys on the front of the device. Denomination Function PicoPhone: Telephone symbol Hook on/off, and to refuse anyone at the outdoor. Hand with telephone symbol Enable/disable automatic answering function. Picolo and PicoCombi: Door Get in touch with anyone at the outdoor unit, and to unlock/open symbol...

  • Page 10: User Modes

    4.4 User modes The PicoPhone series can operate in different modes. These are:  Ordinary use.  Programming – plain. Programming made only by use of an IR-remote controller. This mode shall be used to save telephone numbers in the telephone book. ...

  • Page 11: Stand By

    4.7.1 Stand by Entrance to Programming – plain. 0 F 0 0 F “hold Auto- Entrance to Programming – advanced.  The autoanswer key on the apparatus has to be pressed answerkey” (on device) maximum 3 seconds after the time when “F” is released, and it has to be pressed for at least 3 seconds.

  • Page 12: Door Phone

    4.8 Door phone When a bell button is pressed a chime (“ding-dong”) from the Picolo or the PicoCombi will sound. Chime may be disabled, see chapter 4.5.1. To answer, do as follows:  Press the “D” button on the remote controller, or: ...

  • Page 13: Door Phone 1 And 2

    No function. Open/unlock door and end conversation with door phone Door key on device when door opening signal has been activated in 1 second. Go back to parked telephone conversation (the user will be able to hear doorlock/dooropener operate for 1 second). End conversation with door phone without open/unlock door Telephone key on device and go back to telephone conversation.

  • Page 14: Auditory Feedback

    The volume for the door phone conversations on the Picolo and the PicoCombi are regulated with the same procedure as for telephone conversations. Telephone volume setting and door phone volume setting are stored independent of each other. 4.10 Auditory feedback It is possible to record a predefined set of words into the PicoPhone series which may be used as an auditive feedback in ordinary use, and while programming the device.

  • Page 15: Telephone Book

    for telephone and for the door phone. A light indicator will illuminate when the function is enabled. Please refer to chapter 4.5, 4.7 and 4.8.3 for more information. Be aware of the following: if this function is enabled, it is possible to call to the user and listen to what happens in the room.

  • Page 16: Programming

     External microphone.  Headset. 5 Programming The PicoPhone series may be programmed in different ways.  Programming – plain: Save and edit telephone numbers in telephone book.  Programming – advanced: Adjustments intended to be performed by a technician. ...

  • Page 17: Programming - Super User

    01-50 <Existing number <telephone number> Saved Telephone number >/ Empty Pressed numbers will be stored. 01-50 <Existing number Saved Telephone number >/ Empty will be deleted.  When a telephone book number is given, the stored telephone number will be played back digit by digit.
  • Page 18 SW version Version number readout. Stored digit 3-20 (5) Saved Number of ringing signals before the Pressed digit automatic answering function activates. Stored digit 1-30 (5) Saved Number of seconds before the automatic Pressed digit answering function activates door phone. Stored digit/ -, 1-99 (-) Saved...

  • Page 19: Additional Explanations For The Table Above

    –, nnn (-) Stored digit/ Saved Activate voice message(s) for situation 1. Empty Pressed digit (Answer door phone) –, nnn (-) Stored digit/ Saved Activate voice message(s) for situation 2. Empty Pressed digit (Unlock/open door) –, nnn (-) Stored digit/ Saved Activate voice message(s) for situation 3.

  • Page 20: Programming - Ir-Training Mode

    will come 3 short “beep” and the device are ready to record the first word (“0") in the sequence again.  D Finish the sequence. Start with “0”, go on with “1” and so on. “Pause” is the last word. Important! ...

  • Page 21: Programming - Default Setting

    device will also play back the word “Empty”. When passing the last channel (15) the device will leave IR-training programming mode. To delete all trained IR-signals, enter advanced programming mode and execute the “deactivate and delete IR” command, or make a recycling to get the device back to default settings.

  • Page 22: Troubleshooting

    7 Troubleshooting If your equipment does not behave as expected, first of all try to solve the problem yourself using the following table. Symptom Possible cause Recommended action  No power connected.  Ensure that the power Completely dead. No light indicators illuminated.

  • Page 23: Fixed Mounting

    8.1 Fixed mounting The PicoPhone series are designed to be placed on a flat surface, or it can be hung vertically with the help of the built-in screw holes.  Ensure that cables not are crushed between the device and surface. ...

  • Page 24: Internal Ir Sensor

    Controls LED on external IR-sensor(s). IR-signal from external IR-sensor(s). 1 or 2 external IR-sensors (Picomed IRS, option) can be connected to the terminal strip. They will be supplied with 0 and +12 VDC together with LED signal from the device. The IR- signal wires are also connected at the same terminal strip.

  • Page 25: Multiple Indoor Units

    Maximum 1 A current. Bell Connection 6. Yellow O V from bell button for door phone. Bell Voltage from bell button for door phone. Connect +12 VDC from “+12 VDC fixed” to (from manuf.) this connection. Picolo and PicoCombi are designed to supply door lock/door opener with 12 VDC. It is also possible to use external power supply for this purpose.

  • Page 26: External Switches

    8.3 External switches External switches can be connected to the device to activate telephone book numbers in position 1-3, door key and telephone key. They shall be one-pole N.O switches with 3,5 mm mono jack. External switches make the device to work in the same way as if i receive an IR- signal.

  • Page 27: External Microphone

     voice messages, telephone numbers and other data will be deleted. Store.  8.6 Technical data  Picomed loudspeaking IR-controlled analogue telephone and Type door phone.  Picomed IR-remote controller with 16 channels. Operate  An other IR-remote controller with 16 channels.
  • Page 28 8.7 CE Picomeds environmental control systems are developed and manufactured in accordance with EU directives, national regulations and harmonised standards which are applicable, and thereafter marked with the CE-mark. The Declaration of Conformity is in English version and it is available from manufacturer on request. PicoPhone series –...
