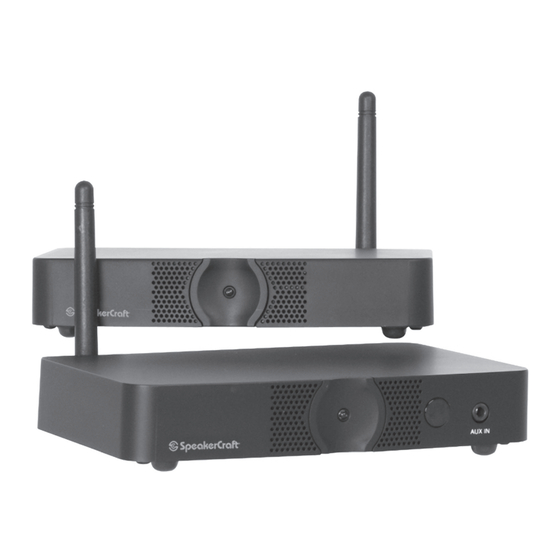

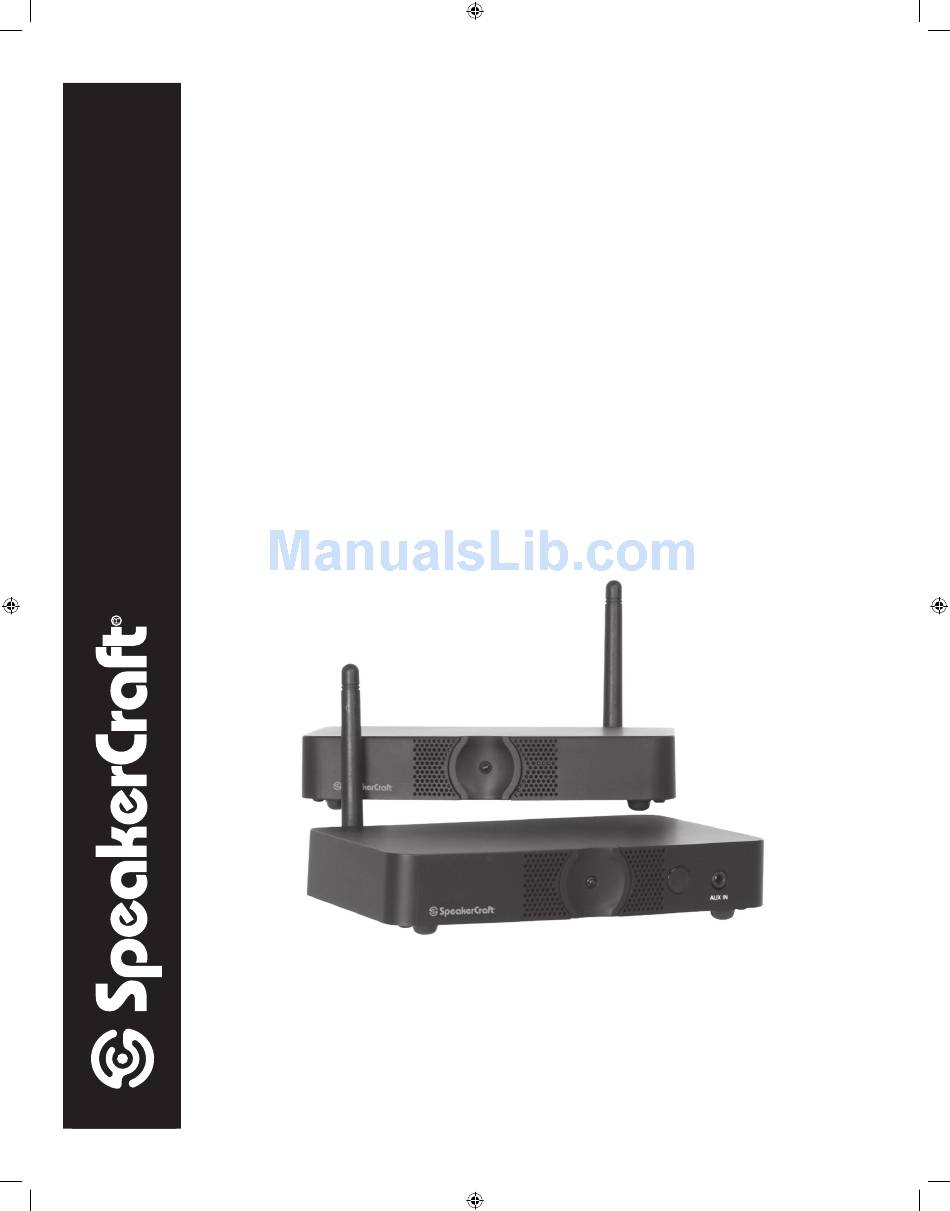

- Page 1 INSTALLATION INSTRUCTIONS SonicAir SA 2.1 Wireless Speaker Transmitter & Receiver...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential APPLICABLE FOR USA, CANADA OR installation. -
Page 3: Table Of Contents
NOTES TABLE OF CONTENTS SAFETY INSTRUCTIONS ......................... 2 FCC COMPLIANCE ..........................3 NOTES ..............................4 TABLE OF CONTENTS ..........................5 INTRODUCTION ............................ 6 WHAT’S INCLUDED ..........................7 SA 2.1 FEATURES ..........................8 SA 2.1 Transmitter ..........................8 SA 2.1 Receiver ..........................10 SA 2.1 Remote Control ........................ -
Page 4: Introduction
Four position RF channel selector SA 2.1 Receiver directly to a powered subwoofer. IR Remote The SpeakerCraft SonicAir SA 2.1 Wireless Speaker Transmitter and Receiver System gives you music Volume where you want it...not just where the speaker wires are. -
Page 5: Sa 2.1 Transmitter
This can be the Pre-Out on an audio receiver such as the SpeakerCraft VITAL 710, the Zone 2 Pre-Out on an A/V receiver such as the SpeakerCraft VITAL 910 or the line level audio output on The SA 2.1 Receiver converts the RF signals back to audio content and outputs amplified speaker level audio to... -
Page 6: Sa 2.1 Receiver
AUDIO RECEIVER (Multi-room Stereo) - If the Transmitter is connected to the ‘B’ speaker terminals on an SA 2.1 Receiver Front Panel Features audio receiver such as the SpeakerCraft VITAL 710 for multi-room audio, connect to the left and right 1. POWER LED - This multicolored LED has multiple modes to indicate SA 2.1 Receiver status. -
Page 7: Sa 2.1 Remote Control
INSTALLATION SONICAIR SA 2.1 FEATURES SA 2.1 Remote Control SA 2.1 Transmitter/Receiver Location & Transmission Range The SA 2.1 IR Remote Control provides simple control of the SA 2.1 Wireless Speaker System. The remote must be in ‘line-of-sight’ to the SA 2.1 Receiver IR Sensor when send- ing commands for proper control. -
Page 8: Installation
9. After all connections have been made and confirmed and the sub has been All SpeakerCraft powered subwoofers fea- reconnected to AC power, set the sub- ture audio sensing that will automatically woofer Power Switch to AUTO (or other... -
Page 9: Connections
SA 2.1 Receiver Sub Out and turn speakers. OFF after there has been no signal for the SPEAKER LEVEL OUTPUT POWER: 50 WATTS PER duration specified by the manufacturer. All CHANNEL; MAX LOAD: 4 OHMS 6. Confirm connections and polarity. SpeakerCraft powered subwoofers feature audio sensing. -
Page 10: Aux In Connections (Sa 2.1 Receiver)
OPERATING THE SA 2.1 CONNECTIONS Operating the SA 2.1 Aux In Connections (SA 2.1 Receiver) Turning the SA 2.1 ON/OFF 1. Using a stereo RCA-stereo male 3.5mm mini ON - When properly set up, the SA 2.1 system will turn ON/OFF automatically. The SA 2.1 Transmitter Pre-Amp plug patch cable with gold ends, connect and Speaker Level Inputs feature audio sensing circuitry that instantly and automatically turns the SA 2.1 system the left and right line level audio outputs of... -
Page 11: Operating The Sa 2.1
OPERATING THE SA 2.1 OPERATING THE SA 2.1 Volume Control CONNECTION SOURCE/INPUT CONTROL How volume is controlled, is dependent upon SA 2.1 connections, configuration and input selection. Depend- A/V Receiver Connected to the To select sources connected to the A/V receiver, use ing upon the current configuration, the volume may be adjusted with the SA 2.1 IR Remote, the audio receiver SA 2.1 Transmitter Speaker or Pre-Amp Level Inputs the A/V receiver remote or front panel controls. -
Page 12: Specifications
In any case, the risk of loss or damage in transit is to be borne by the purchaser. Transmitter Speaker Level Input Power/Channel 14.5V AC RMS If, upon examination by SpeakerCraft it is determined that the unit is in fact defective, SpeakerCraft will, at its option: • Repair or replace the product at no additional charge; or Input Overload (Pre-amp Level Input/Aux In) 3.3 Vms @ 1% THD... - Page 13 940 Columbia Avenue, Riverside, CA 92507 (800) 448-0976 Fax (951) 787-8747 www.speakercraft.com LIT31000 © 2010 SpeakerCraft, Inc.
