Glen RB60K User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

BUILT-IN OVEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB60K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Glen RB60K

Summary of Contents for Glen RB60K

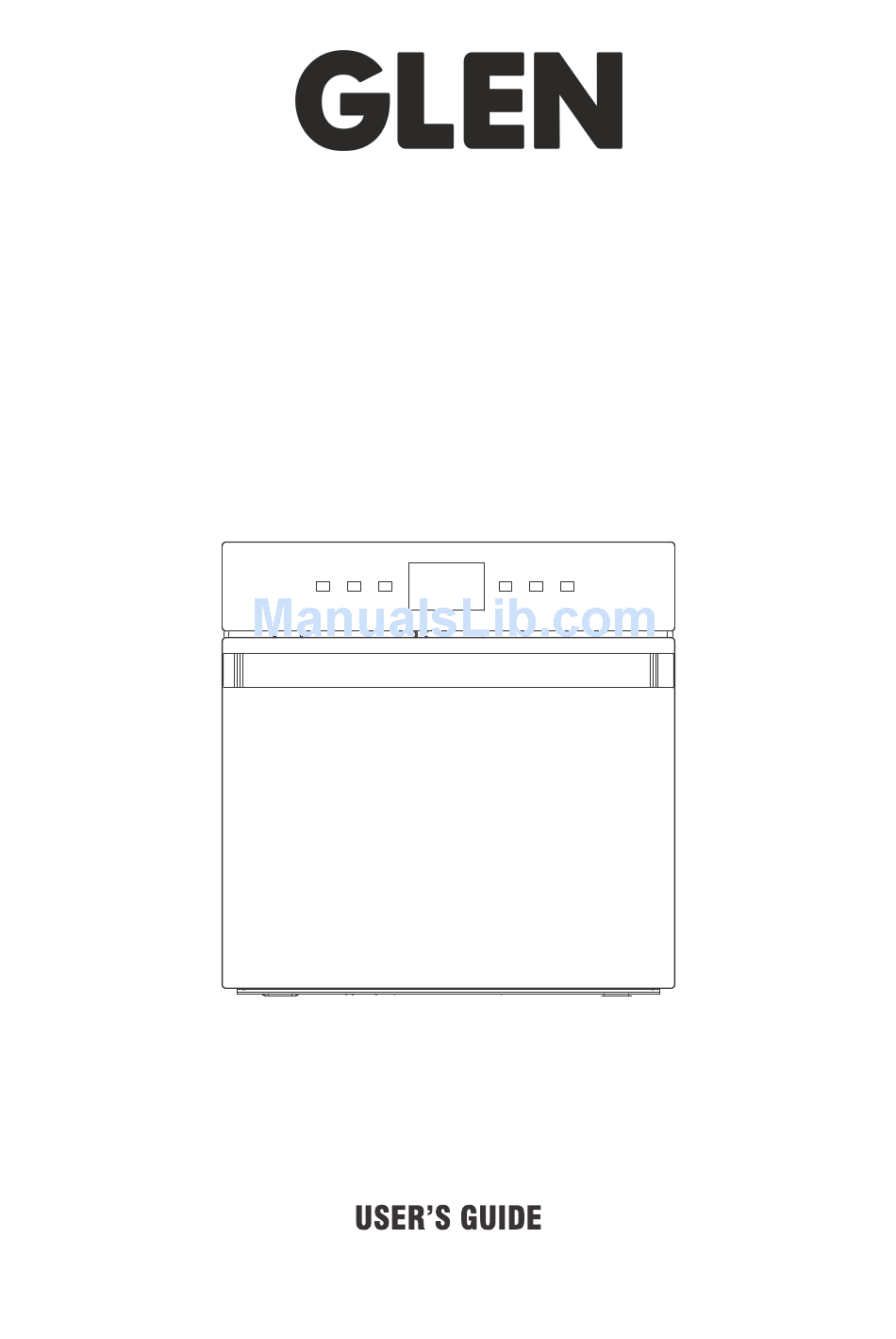

  • Page 1 BUILT-IN OVEN...

  • Page 4: Get To Know Your Oven

    GET TO KNOW YOUR OVEN The Oven Diagram 1. Control Panel T.temp/Timer Mode Defrost T.temp/Timer Timer/Clock Start/pause/reset 2. Roof liner T.temp/Timer Mode Defrost T.temp/Timer Timer/Clock Start/pause/reset 3. Inside light 4. Rack and tray support frames 5. Insert for the rotisserie rod 6.
  • Page 5 Structure diagram Screen display rules When the Oven power on, the display screen begin demo. and icons on screen begin flashing from left to right/ top to botton in 2HZ frequency. When all icons lighting on, they will flashing for two times and then flash off for a cycle Press any button to setting water hardness(botton 4 “8”...

  • Page 6: Using The Oven

    USING THE OVEN Description On functions Setting Cooking time, temperature Input cooking time/temperature: use time+, or time- to setting cooking time 0-23 hour 59 minutes: evry push for 1 minute 50C degree to 250C degree: every push for 25C degree. Time+ for add ;...
  • Page 7 Function models setting Under standby situation, open the oven door and put food inside, press fire button display icons: and the default temperature of models for setting please ref. below: Models Default Temp Default Time(hour) Allowed Temperature （℃） （℃） 50-250 50-250 50-250 50-175...

  • Page 8: Defrost Function

    Defrost function a. When standby, open oven door and put food inside to press defrost, icons flashing, upper 4bit “8” display “30C”(default), bottom 4bit “8” display “30:00”(default), then press”start/cancel” button to begin work; icon keeps lighting. b. During setting or Cooking, press defrost button, “30C” begin flash,press “timer+/-” to change temperature, (temp. range: 30-40C degree);...

  • Page 9: Cleaning And Maintenance

    CLEANING AND MAINTENANCE NEVER USE A STEAM JET FOR CLEANING THE APPLIANCE. Cleaning stainless steel To keep stainless steel in good condition it should be cleaned regularly after use. Let it cool first. Cleaning the glass of the lid To keep the glass surfaces in good condition they should be cleaned regularly after every use of the oven .

  • Page 10: What To Do If

    WHAT TO DO IF... a. No wind or weak wind 1. Check the motor blade turning in right position, if turning in opposite direction, do change the wire + with wire --. 2. Blade wheel is dropping, open oven door and remove the blade cover and replace the balde, fix the screw. 3.

  • Page 15: Specifications

    Instructions for the installor Open the oven door, and fix the oven to intergrated kitchen with 4 selfscrew. as above diagram. SPECIFICATIONS Model GL 658 TOUCH Product Name Electric oven Capacity Cavity Rated Voltage/Frequency 220-240V~50Hz Rated Power 2600W Net Weight 31kg 34kg Gross Weight...

  • Page 16: Schematic Diagram

    SCHEMATIC DIAGRAM (DOOR OPENED,COOK OFF CONDITION) CONTROLLER L:LAMP FM:FAN MOTOR CM:CONVECTION MOTOR CIRCUIT SUBJECT TO CHANGE WITHOUT NOTICE H:HEATER...

This manual is also suitable for:

Gl 657 touch
