PRE-RIDE INSPECTIONS
Before Starting the Engine

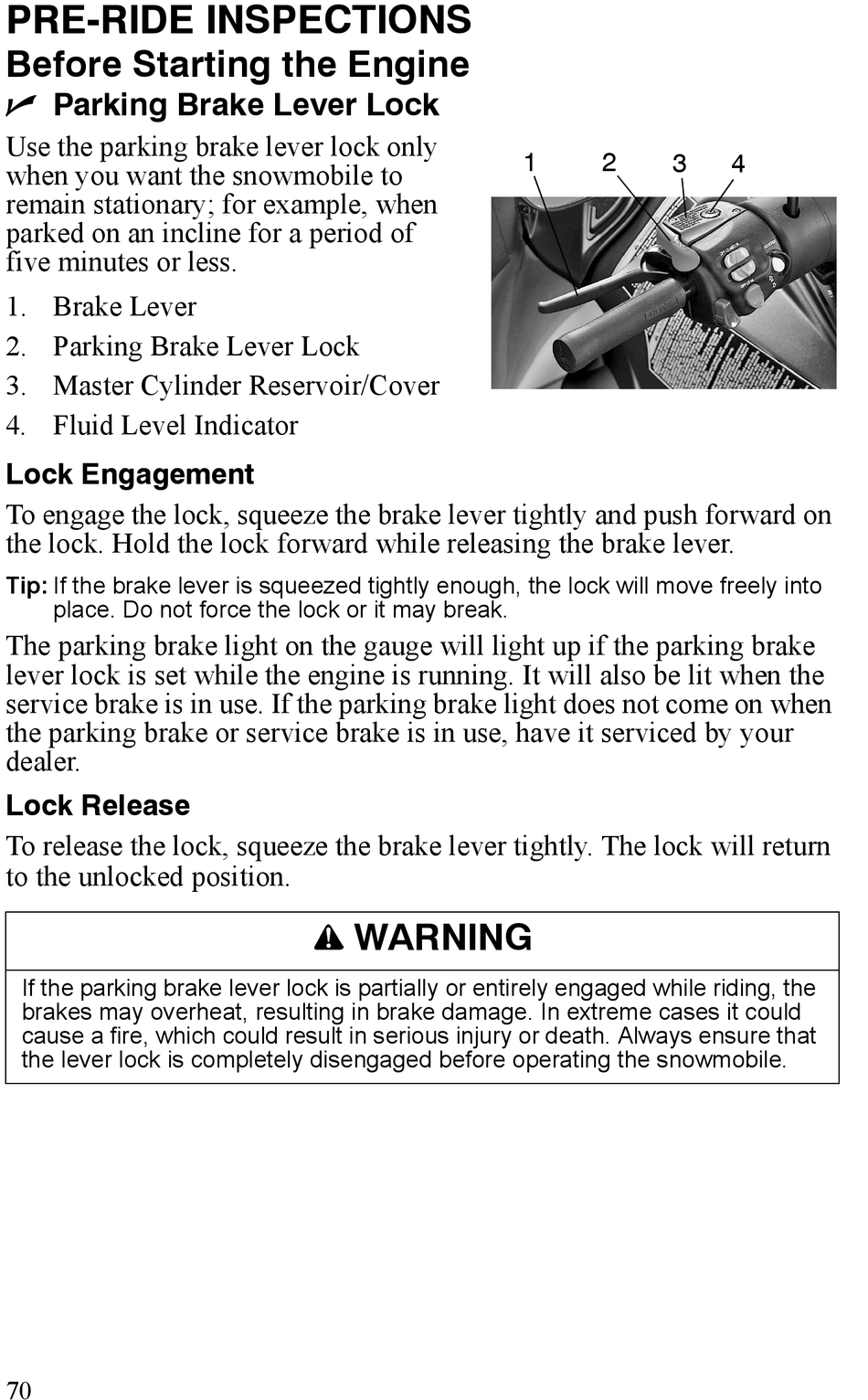

n Parking Brake Lever Lock
Use the parking brake lever lock only
when you want the snowmobile to
remain stationary; for example, when
parked on an incline for a period of
five minutes or less.
1. Brake Lever

2. Parking Brake Lever Lock

3. Master Cylinder Reservoir/Cover
4. Fluid Level Indicator
Lock Engagement
To engage the lock, squeeze the brake lever tightly and push forward on
the lock. Hold the lock forward while releasing the brake lever.
Tip: If the brake lever is squeezed tightly enough, the lock will move freely into
place. Do not force the lock or it may break.
The parking brake light on the gauge will light up if the parking brake
lever lock is set while the engine is running. It will also be lit when the
service brake is in use. If the parking brake light does not come on when
the parking brake or service brake is in use, have it serviced by your
dealer.

Lock Release

To release the lock, squeeze the brake lever tightly. The lock will return
to the unlocked position.
If the parking brake lever lock is partially or entirely engaged while riding, the
brakes may overheat, resulting in brake damage. In extreme cases it could
cause a fire, which could result in serious injury or death. Always ensure that
the lever lock is completely disengaged before operating the snowmobile.
70
WARNING
1 2
3 4
