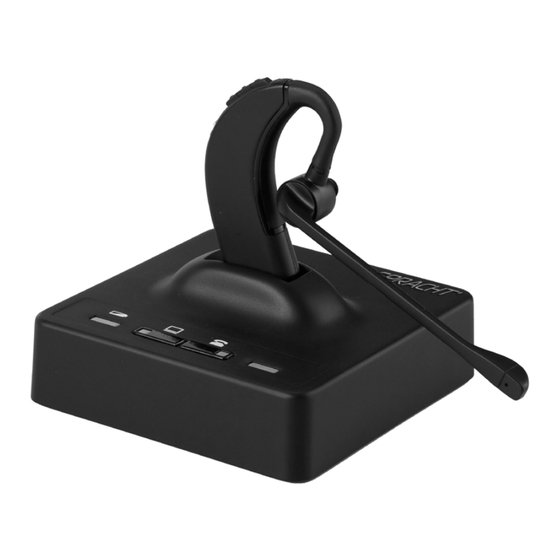

ZuM eco-Set
USB/DECT 6.0 Ultra Low Emissions
Headset and Base Station
Lowest Possible Level of Emissions
TM
USER GUIDE
English Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZuM eco-Set and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Spracht ZuM eco-Set

  • Page 1 ZuM eco-Set USB/DECT 6.0 Ultra Low Emissions Headset and Base Station Lowest Possible Level of Emissions USER GUIDE English Only...
  • Page 2 Telephone/USB Base Station 1. Battery Indicator 2. Mac/PC button 3. Telephone (TEL) button 4. Online indicator 5. USB connector (computer port) 6. Power socket 7. EHS port 8. Telephone connector (’Tel’ port) 9. Handset connector 10. EHS Selection switch 11. Microphone volume up/down 12.
  • Page 3 ZuM eco-Set™ USB/DECT 6.0 Ultra Low Emissions Headset and Base Station 1. Receive volume up/down 2. Mute 3. Headset ON/OFF 4. Noise cancelling boom microphone 5. Replaceable earplug 6. Battery...
  • Page 4: Table Of Contents

    3.9 Registering headsets to the base..................9 3.10 Using multiple headsets...................... 9 3.11 Using ZuM eco-Set™ for call recording ................10 3.12 Using ZuM eco-Set™ with Skype for Business™ (Lync™)..........10 3.13 Switching Auto Pickup Mode On and O ..............10 3.14 Overview of audio signals ....................10 4.
  • Page 5: Product Description

    1. Product Description Stand up. Walk around. Get a cup of coffee. ZuM eco-Set™ is a fully wireless headset solution offering you the ability to work "handsfree" with true wireless mobility. Main features: • DECT wireless headset solution • Universal headset base •...
  • Page 6: Setup

    2. Setup Connect the power adaptor supplied with ZuM eco-Set™ to the Base Unit. The Base Unit's power LED will light up. NOTE: Before you use your headset for the first time, we recommend you charge the headset for a minimum of 4 hours.
  • Page 7: Connecting Ehs With Dhsg Protocols (Refer To Your Supplier)

    USB port on your computer. The computer should automatically recognize the device and install the correct drivers. Wait a few seconds before using the ZuM eco-Set™ headset. 2.6 Replacing the earplugs To replace the earplug of the ZuM eco-Set™...
  • Page 8: Receiving An Incoming Call In Telephone Mode

    While the headset is in Mute mode, a short beep will be heard on the headset every 8 seconds. Press the 'Mute' button again to release the mute. 3.4 Headset transmitting volume setting You can adjust the transmit volume of the headset by using the two buttons located on the bottom of the headset base. ZuM eco-Set™...
  • Page 9: Adjusting Headset Receive Volume

    80%-100% 3.8 Making A Conference Call Your ZuM eco-Set™ headset allows for a second headset to be temporarily connected to the base so that you can have a three way conference call. • Setup the call using the primary headset unit.
  • Page 10: Registering Headsets To The Base

    NOTE: The additional headset will only remain registered to the base for the duration of the call. After the primary headset has ended the call, the unit will return to its normal state. ZuM eco-Set™ headset also allows you to make a conference call between your normal phone and a computer.
  • Page 11: Using Zum Eco-Set™ For Call Recording

    3.11 Using the ZuM eco-Set™ for call recording You can record calls while using ZuM eco-Set™ in the USB conference mode (see section 3.8) using voice recording software on your computer, PC or Mac. 3.12 Using ZuM eco-Set™ with Skype for Business (Microsoft Lync) When your ZuM eco-Set™...
  • Page 12: Troubleshooting

    Incorrect reassembly can cause electric shock or fire when you subsequently try to use the device. Do not insert anything into any part of the ZuM eco-Set™ headset because this may cause damage to the internal components or injury to you.
  • Page 13 Discontinue use of the headset and contact Spracht Customer Service if the product overheats, has a damaged cord or plug, if the product has been dropped or damaged, or if the product has come into contact with liquids.
  • Page 14 Charge the headset according to the instructions in this guide. RECYCLING: the battery used in your headset must be recycled or disposed of properly. For instructions on proper disposal of your headset, contact your local recycling center. ZuM eco-Set™...
  • Page 15: Important Safety Instructions

    (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this equipment not expressly approved Spracht could void your warranty and your ability to operate the equipment. ZuM eco-Set™...
  • Page 16 FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. ZuM eco-Set™...
  • Page 17 If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. This equipment is hearing aid compatible. Save these instructions www.spracht.com ZuM eco-Set™...
  • Page 18 Europe Declaration This product is CE marked according to the provisions of the R and TTE directive (99/5/EC). This product is in compliance with the essential requirements and other relevant provisions of the directive 1999/5/EC. Safety:....EN60950-01:2006+A11:2009 EMC:....... EN301489-6 V1.3.1:2008-08 ....
