Casio G-SHOCK GW-1501B Service Manual & Parts List

Module qw-3765
Hide thumbs

Advertisement

Table of Contents

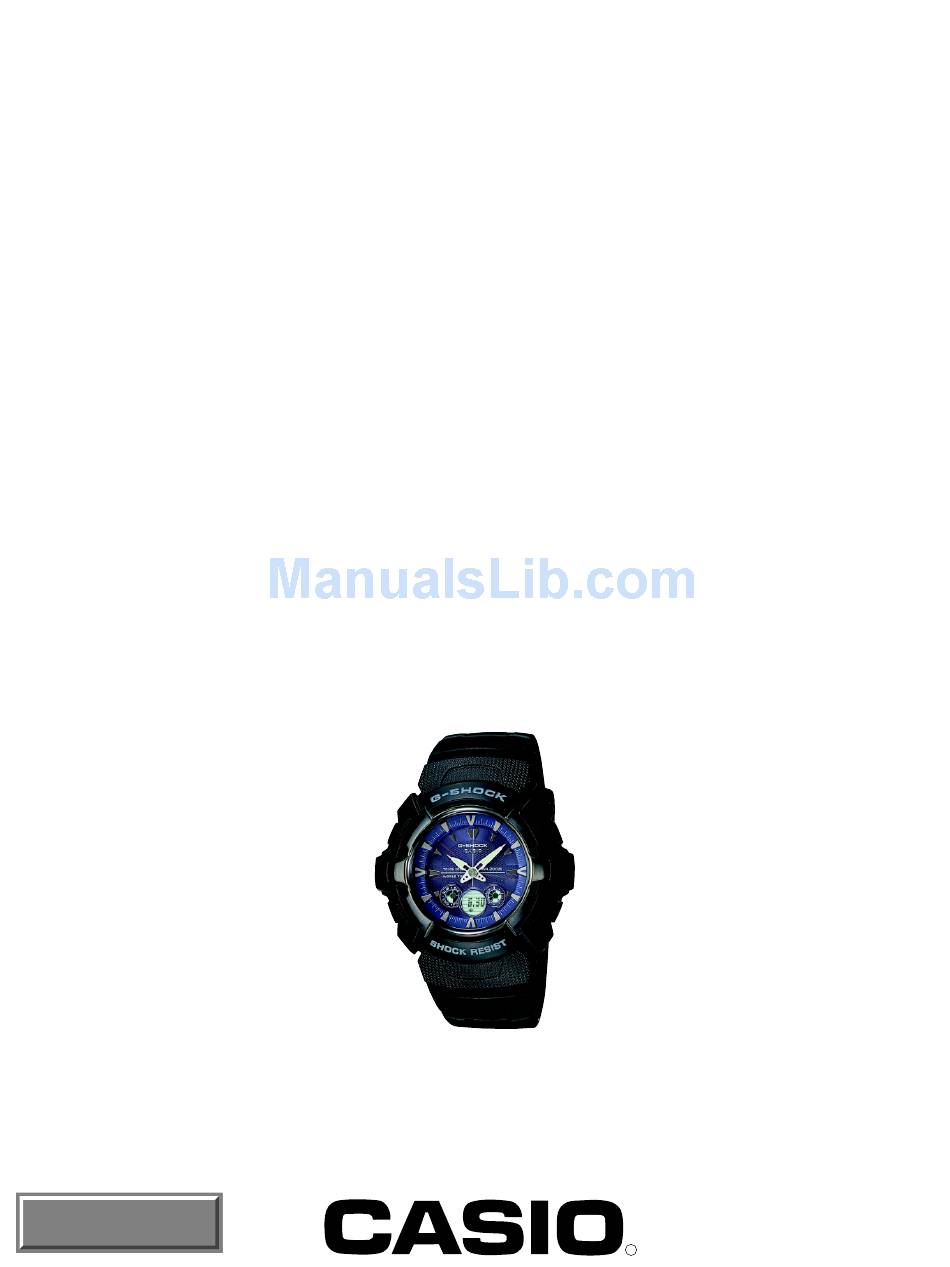

S
M
ERVICE
ANUAL
& PARTS LIST
REF. NO. S/M-880
FEB. 2005
MODULE NO.
QW-3765
GW-1501B
GW-1501S
Ver.1 : May. 2006
INDEX
(WITHOUT PRICE)
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-SHOCK GW-1501B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Casio G-SHOCK GW-1501B

Summary of Contents for Casio G-SHOCK GW-1501B

  • Page 1 ERVICE ANUAL & PARTS LIST REF. NO. S/M-880 FEB. 2005 MODULE NO. QW-3765 GW-1501B GW-1501S Ver.1 : May. 2006 INDEX (WITHOUT PRICE)

  • Page 2: Table Of Contents

    CONTENTS Page 1. SPECIFICATIONS: MODULE QW-3765 ............ 1 2. OPERATION CHART: MODULE QW-3765 ..........2 3. DRAWINGS: MODULE QW-3765 3-1. LCD DIAGRAM ..................... 6 3-2. CIRCUIT DIAGRAM ..................7 3-3. CHECKING TERMINALS AND COMPONENTS .......... 8 4. EXPLODED VIEW: MODULE QW-3765 ............ 9 5.

  • Page 3: Specifications: Module Qw-3765

    1. SPECIFICATIONS: MODULE QW-3765 Item Detail Battery CTL1616 (Storage battery) Note: Use CTL1616 only. Other storage battery or CR1616 can cause damage to the watch. Battery life Approx. 10 months (from full charged condition) 0.5 µA maximum Current consumption Alarm system Piezo plate on Cover/Back ±15 sec./month Accuracy...

  • Page 4: Operation Chart: Module Qw-3765

    2. OPERATION CHART: MODULE QW-3765 Getting Acquainted Congratulations upon your selection of this CASIO watch. To get the most out of your • The actual level at which some functions are disabled depends on the watch model. purchase, be sure to read this manual carefully and keep it on hand for later reference •...
  • Page 5 To adjust the analog time To test the alarm 1. In the Timekeeping Mode, press C five times to enter In the Alarm Mode, hold down D to sound the alarm. the Hand Setting Mode. 2. Hold down A until the current digital time starts to To turn the alarm and the Hourly Time Signal on and off 1.
  • Page 6 Level 1 rechargeable battery may lose its ability to achieve a full charge. If you experience problems getting the special rechargeable battery to fully charge, contact your dealer or CASIO distributor about having it replaced. Outdoor sunlight (50,000 lux) 3 hours...
  • Page 7 City Code Table To turn Power Saving on and off City City Other major cities in same time zone 1. In the Timekeeping Mode, hold down A until the city Code Differential Power saving –11 –11.0 Pago Pago code starts to flash, which indicates the setting screen. on indicator Honolulu –10.0...

  • Page 8: Drawings: Module Qw-3765

    3. DRAWINGS: MODULE QW-3765 3-1. LCD DIAGRAM DST1 CHARGE SAVE RECOVER A.LIGHT COM. COM. SEG. SEG. X8Y4 X8Y3 X8Y2 X8Y1 X8Y0 X1Y4 X1Y3 X1Y2 X1Y1 X1Y0 X9Y4 X9Y3 X9Y2 X9Y1 X9Y0 X0Y4 X0Y3 X0Y2 X0Y1 X0Y0 X10Y4 X10Y3 X10Y2 X10Y1 X10Y0 X5Y4 X5Y3...

  • Page 9: Circuit Diagram

    3-2. CIRCUIT DIAGRAM — 7 —...

  • Page 10: Checking Terminals And Components

    3-3. CHECKING TERMINALS AND COMPONENTS SENSOR/TILT (7105 5275) LED2 COIL LEDOUT COIL VOUT COIL LEDOUT VDD2 VDD3 LEDOUT VOUT VOUT LED1 CUSHION 506 (7211 9631) VDD2 VOUT VDD2 VOUT LED2 VDD2 SCIN LED1 VOUT SCIN SCIN LEDOUT 16. PCB ASS'Y LEDOUT LED3 (7640 8453)

  • Page 11: Exploded View: Module Qw-3765

    4. EXPLODED VIEW: MODULE QW-3765 9 (1015 5782) 8 (1001 4042) 8 (1001 4042) Casing parts: DIAL Casing parts: SOLAR CELL SPACER 18 (1012 3230) 11 (1015 5789) 25 (7224 0652) 26 (1015 5787) 1 (7640 7573) 17 (7228 0511) 4 (1013 0977) 17 (7228 0511) 22 (1005 3572)

  • Page 12: Parts List: Module Qw-3765

    5. PARTS LIST: MODULE QW-3765 Note: 1. Prices and specifications are subject to change without prior notice. 2. Spare parts are classified as follows according to their importance in after-sales service. A Rank ---------------------------------------- Very Important B Rank ---------------------------------------- Important C Rank ---------------------------------------- Less important 3.

  • Page 13: Precautions For Repair: Module Qw-3765

    6. PRECAUTIONS FOR REPAIR: MODULE QW-3765 6-1. AC (ALL CLEAR) AND REMOVING OF MODULE 1. Perform AC (ALL CLEAR) when inserting a new battery, or else the memories and/ or counters may give erratic displays. Touch the AC contact and the main plate with the metallic tweezers. The contact should be made for about two seconds.

  • Page 14: Solar Cell-Pcb Ass'y Contact Checking

    6-3. SOLAR CELL-PCB ASS'Y CONTACT CHECKING Check a Solar cell and PCB ass'y are contacted correctly by contact spring, when a module is disassembled. To enter TEST mode. 1) While pressing D button, press A and B buttons in the normal timekeeping mode. Check a Solar cell and PCB ass'y contact in the following order.
  • Page 15 Ver. 1 : May. 2006 Correction of pages 9 and 10 CASIO COMPUTER CO.,LTD. Overseas Service Division 6-2, Hon-machi 1-Chome Shibuya-ku, Tokyo 151-8543, Japan...

This manual is also suitable for:

G-shock gw-1501s
