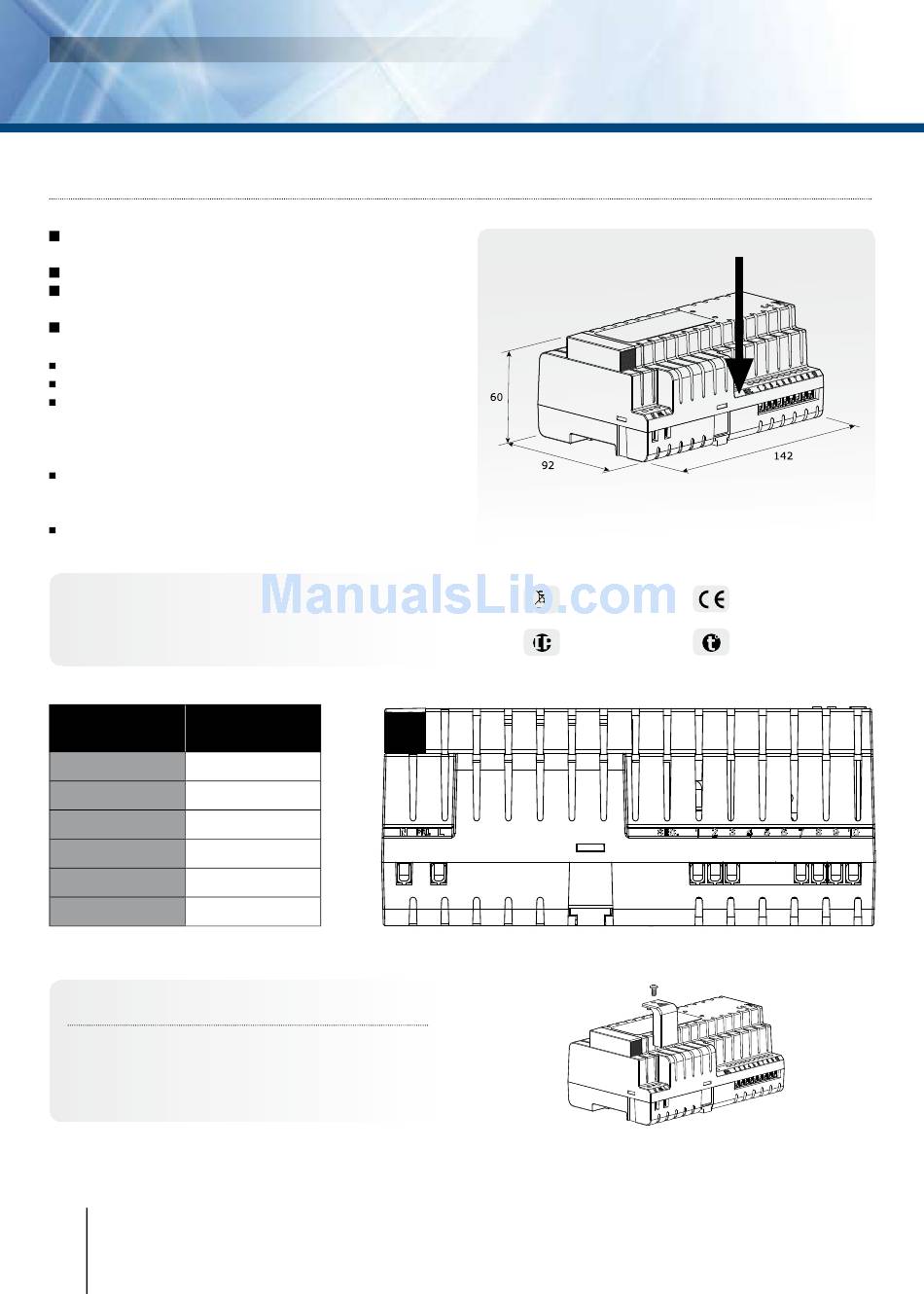

INSTALLATION MANUAL
ARD2/12
Rectifi ed and fi ltered PSU
PRODUCT PRESENTATION
Designed for locking devices
with electromagnetic locks.
Rectifi ed, fi ltered and not regulated PSU.
Primary and secondary inputs
protected by automatic fuses.
Additional AC output.
Input voltage: 230v ± 10%, 50/60 Hz.
Max power consumption : 0.16A.
2 outputs:
- Main 12V dc rectifi ed and fi ltered
and non-regulated.
- Additional 12vac.
Maximum load current:
- 12v dc output / 1.5A (nominal), 2A (peak),
- 12v ac output / 0.3A.
Wall fi xing (screw and plastic anchor included)*
Inputs and outputs protected by resettable fuses.
(After an overload or short-circuit, disconnect
the network for 1 minute to reset the fuse.)
TErMINAL
vOLTAGE
BLOCK OUTPUTS
1 12v ac
2 12v ac
7 - 8 0v dc
9 - 10 +12v dc
N 230v ac
L 230v ac
COMPLIANT WITH EUROPEAN STANDARDS
EN 55022 EN 61000-4-2
EN 61000-3-2 EN 61000-4-3
EN 61000-3-3 EN 61000-4-4
This product must be installed in accordance
with the local safety standards.
cdvi.com
2
cdvigroup.com
*Wall fi xing
N L
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
on each side
WEEE & RoHS
IP20
Mains terminal block cover in the event of mounting
outside a standard electrical equipment box.
CE compliance
-25°C to +55°C
1 2 7 8 9 10
