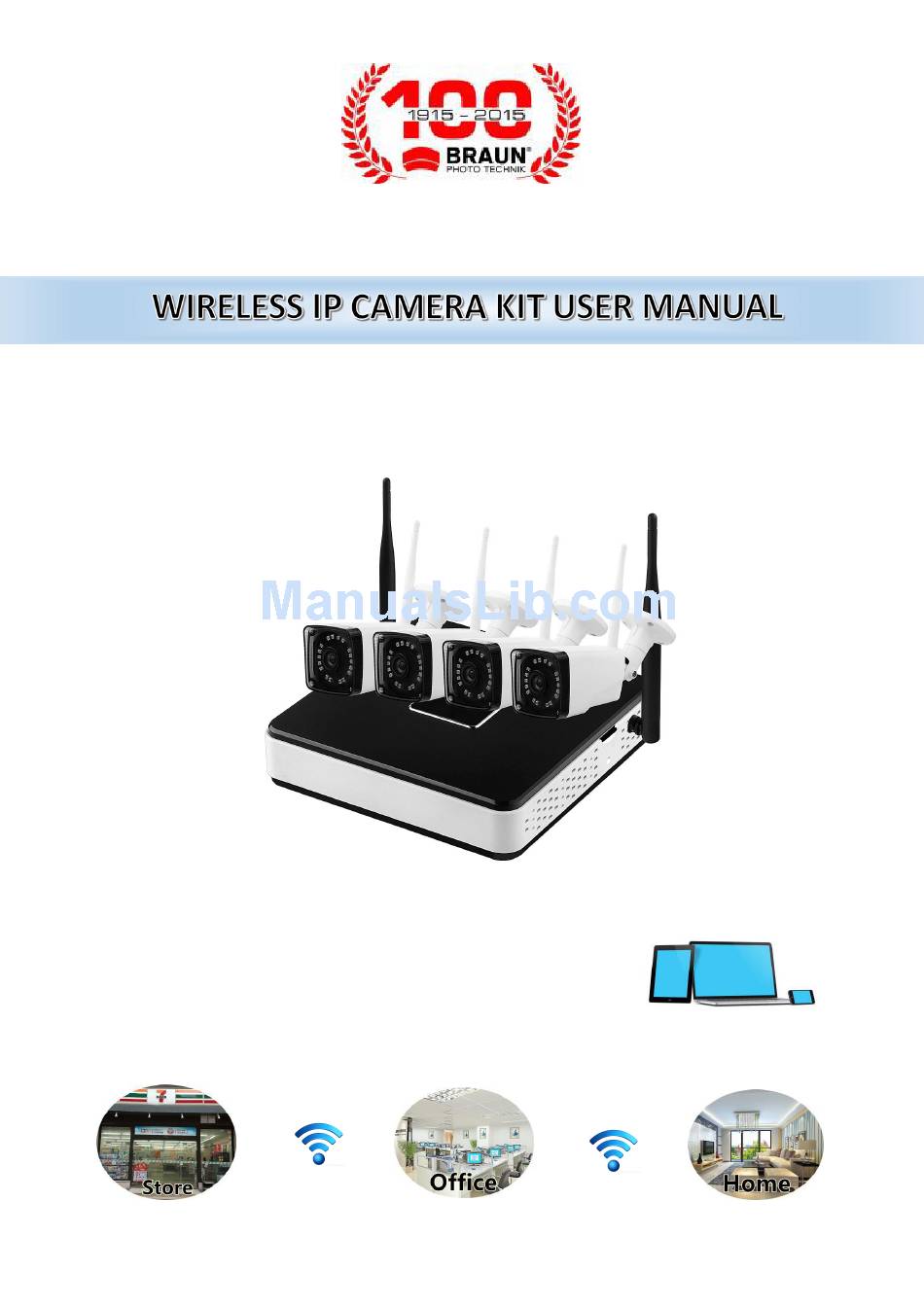

  • Page 1 COPY RIGHT@PS.V1705...

  • Page 2: Table Of Contents

    CONTENTS CONTENTS PART A - PRODUCT INSTALLATION AND INSTRUCTION CHAPTER ONE : DESCRIPTION 1-1 STATEMENT .............................. Page 01 1-2 ATTENTIONS ............................. Page 01 1-3 PACKAGE INSPECTION ..........................Page 01 - 02 1-4 PRODUCT DESCRIPTIONS ......................... Page 02 - 03 CHAPTER TWO : QUICK INSTALLATION 2-1 INSTALL WIRELESS CAMERAS ........................

  • Page 3: Chapter One : Description

    CHAPTER ONE : DESCRIPTION CHAPTER ONE : DESCRIPTION 1 - 1 STATEMENT Thanks greatly for your purchasing our products, if you have any questions or needs, please contact us freely. This manual applies to wireless network video recorder.Based on the enhancements of products features, the company will update the content of this manual, renew the products and process described in this manual.In case of the description inconsistent with materials object, prevail in hand.

  • Page 4: Product Descriptions

    CHAPTER ONE : DESCRIPTION DC 12V@2A Power supply (NVR) Product user manuals Wireless IP Camera DC 12V@0.5A Power supply (for IPC) Screw bag(4 screws 1 Date line and 1power line for IPC) 1 - 4 PRODUCT DESCRIPTIONS 【Wireless Camera】 Item Description Antenna interface Install Antenna...

  • Page 5: Chapter Two : Quick Installation

    CHAPTER ONE : DESCRIPTION 【WIRELESS NVR】 Item Description Antenna interface Install Antenna Network interface Connector for LAN VGA interface DB9 connector for VGA output HDMI interface HDMI video output connector USB interface for USB mouse, U disk Power Supply 12VDC power supply CHAPTER TWO : QUICK INSTALLATION 2 - 1 INSTALL WIRELESS CAMERAS 1.

  • Page 6: Install Wireless Nvr

    CHAPTER TWO : QUICK INSTALLATION 3. Loosen the setscrew and knob, adjust the camera angle according to your surveillance need, then fasten the screws. 2 - 2 INSTALL WIRELESS NVR Steps: 1. Install the hard disk with a cross screwdriver. - 4 -...

  • Page 7: Connection Of Device

    CHAPTER TWO : QUICK INSTALLATION (1) Unfasten the screws on the rear panel, and side panel. (2) Remove the up cover from the NVR. (3) Connect the data cable and power cable to HDD. (4) Fasten the screws on the bottom to fix the HDD. (5) Connect the data cable and power cable from HDD to NVR.
  • Page 8 CHAPTER TWO : QUICK INSTALLATION Note: 1. If obstructions or long distance between NVR with wireless IP cameras or other weakening factors, please connect the wireless cameras to NVR with network cable. If not, the signal is weak, the image abnormal. 2.

  • Page 9: Chapter Three : Install Software Of App

    CHAPTER THREE : INSTALL SOFTWARE OF APP CHAPTER THREE : INSTALL SOFTWARE OF APP 3 - 1 APP FOR MOBILEPHONE OR TABLET PC SECTION A : Download and install 【CloudLens2】 on Google Play or APP store Method 1: Scanning the 【CloudLens2 】QR code in the user manual or the system maintenance windows of NVR to download, and install the APP platform.
  • Page 10 CHAPTER THREE : INSTALL SOFTWARE OF APP Step 2: Add device (1) Tap button in the main interface view to open the device . - 8 -...
  • Page 11 CHAPTER THREE : INSTALL SOFTWARE OF APP (2)Here are three methods to add devices: Two-dimensional code scanning: Scan the QR code on your NVR(in “system maintenance”menu) to fill in the GID blank column. Manual enter: Fill in the info manually. The GID displays in system maintenance menu of NVR. LAN Search: If the device is connected into the same local network with your phone, CloudLens2 would find them automatically.
  • Page 12 CHAPTER THREE : INSTALL SOFTWARE OF APP CloudLens2 Function Introduction In addition, CloudLens2 also supports mobile PTZ , screen shots, video, editing, local and remote video playback, equipment, and other functions. When customers click on tools column, slide and flip over to find the other related functions.

  • Page 13: App For Computer And Laptop

    CHAPTER THREE : INSTALL SOFTWARE OF APP 3 - 2 APP FOR COMPUTER AND LAPTOP STEP 1 : Please install the 【HCMS_2.2.10.4】on PC. STEP 2 : Run the HCMS after install completed,entry 【User Name/Password:admin】 to Login. - 11 -...
  • Page 14 CHAPTER THREE : INSTALL SOFTWARE OF APP STEP 3 : ADD DEVICE INTO【HCMS_2.2.10.4】 1) Click Button”Configure Manager” - 12 -...
  • Page 15 CHAPTER THREE : INSTALL SOFTWARE OF APP 2) Click the button”Device Manage” - 13 -...
  • Page 16 CHAPTER THREE : INSTALL SOFTWARE OF APP 3) Click “Add Manually” ,and entry “ 【Device Type:P2P_GLNK】/ 【UID(p2p ID):by01d070e9】/ 【User ID:admin】/ 【Password:admin】”.Then click”OK” to finish add device 4) Please go to 【Device List】,select the IP address of the device added,then double click the cameras and add them to display on the channels.

  • Page 17: Chapter Four : Main Menu

    CHAPTER FOUR : MAIN MENU CHAPTER FOUR : MAIN MENU NVR STARTING DISPLAY MAIN MENU CONTENTS : 【PLAY BACK】 【BACKUP】 【MANUAL】 【HD MANAGER】 【RECORDING】 【CHANNEL】 【SYSTEM】 【MAINTENANCE】 【SHUT DOWN】 - 15 -...

  • Page 18: Playback

    CHAPTER FOUR : MAIN MENU INITIALIZING OPTIONS COLUMN FUNCTION : CAN QUICKLY MOVE TO SOME SETTINGS AND VIEW THE INFORMATION OF SYSTEM. 4 - 1 PLAYBACK NOTE: METHOD A - CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN AND CHOOSE PLAYBACK MOVE TO OPTIONS WINDOW OF PLAYBACK.
  • Page 19 CHAPTER FOUR : MAIN MENU METHOD B - CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN GO TO MAIN MENU AND CHOOSE PLAYBACK MOVE TO OPTIONS WINDOW OF PLAYBACK. COLUMN - 1 PLAYBACK BY SINGLE CHANNEL * Check the video record by designated single channel playback. COLUMN - 2 PLAYBACK BY MULTIPLE CHANNELS * Check the video record by designated multiple channels playback.

  • Page 20: Backup

    CHAPTER FOUR : MAIN MENU 4 - 2 BACKUP FUNCTIONS : BACKUP BY FILE,EVENT,LOCK RECORDING FILE,ETC. 1) Choose the channels to be backup; 2) Choose the recording type; 3) Choose the starting and ending time of record; 4) Search the files and backup. - 18 -...

  • Page 21: Hd Manage

    CHAPTER FOUR : MAIN MENU 4 - 3 HD MANAGE METHOD B - CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN GO TO 【MAIN MENU】 AND CHOOSE 【HD MANAGER】 MOVE TO OPTIONS WINDOW OF HARD DISK MANAGEMENT. BASIC SETTING OF HARD DISK : 1) Check the current status of Hard Disk;...

  • Page 22: Record

    CHAPTER FOUR : MAIN MENU 4 - 4 RECORD NOTE: CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN AND CLICK【MAIN MENU】AND CHOOSE 【RECORDING】MOVE TO OPTIONS WINDOW OF 【RECORD SETTING】. RECORDING SETTING : 1) Check the current schedule of recording; 2) Select the channel of recording; 3) Enable record program;...

  • Page 23: Channel

    CHAPTER FOUR : MAIN MENU 6) Copy a schedule of record; 7) Save the record setting. 4 - 5 CHANNEL METHOD A : CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN AND CHOOSE 【CHANNEL SETTING】 MOVE TO OPTIONS WINDOW OF CHANNEL MANAGEMENT. METHOD B : CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN AND GO TO 【MAIN MENU】...
  • Page 24 CHAPTER FOUR : MAIN MENU COLUMN - 1 CHANNEL SETTING 1) Check channel and IP addresses of cameras; 2 ) Search IP addresses of cameras; 3 ) Edit IP addresses and ports of cameras; 4) Add IP addresses of camera into NVR; 5) Auto configure information of channels;...
  • Page 25 CHAPTER FOUR : MAIN MENU COLUMN - 3 ENCODE SETTING FUNCTIONS: 1) Set “Stream Type” of designated channel; 2) Set “Resolution” of designated channel; 3) Set “Frame Rate” of designated channel; 4) Set “Rate Type” of designated channel; 5) Set “Bit Rate” of designated channel; 6) Set “I/P Rate”...
  • Page 26 CHAPTER FOUR : MAIN MENU FUNCTIONS : 1) Enable or Disable the function of MOTION DETECTION in designated channel; 2) Set Sensitivity of MOTION DETECTION in designated channel; 3) Set the area of MOTION DETECTION in designated channel; 4) Delete the area of MOTION DETECTION; 5) Apply the setting of MOTION DETECTION.

  • Page 27: System

    CHAPTER FOUR : MAIN MENU FUNCTIONS : 1) Set the 【Brightness】 of image under MOTION DETECTION and designated channel; 2) Set the 【Hue】 of image under MOTION DETECTION and designated channel; 3) Set the 【Saturation】 of image under MOTION DETECTION and designated channel; 4) Set the 【Contrast】...
  • Page 28 CHAPTER FOUR : MAIN MENU COLUMN - 1 GENERAL A: BASIC SETTING FUNCTIONS : 1) Set LANGUAGE of system; 2) Set RESOLUTION of device; 3) Set TIMEZONE of system; 4) Set FORMAT OF DATE DISPLAY in system; 5) Set DATE of system; 6) Set TIME of system;...
  • Page 29 CHAPTER FOUR : MAIN MENU B: MORE SETTING FUNCTION : Set TIME of screen protection. COLUMN - 2 NETWORK SECTION A: BASIC SETTING 1) Check the current information of network in system; 2) Check the current MAC address of NVR; 3) Enable or Disable to get the IP address of NVR automatically(DHCP);...
  • Page 30 CHAPTER FOUR : MAIN MENU 6) Check the current default gateway of NVR; 7) Check the current DNS server of NVR; 8) Save current information. SECTION B: WIFI SETTING 1) Check the current status of WIFI SETTING; 2) Enable or Disable the function of DHCP; 3) Set the start IP port;...
  • Page 31 CHAPTER FOUR : MAIN MENU SECTION C : WIFI CONFIGURATION STEP 1 : 1) PLEASE POWER ON THE CAMERAS AND NVR; 2) BOTH OF THE CAMERAS AND NVR NEED TO BE CONNECTED TO ROUTER OR SWITCH; 3) PLEASE CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN AND CHOOSE 【AUTO CONFIGURE】 TO ADD THE CAMERAS INTO NVR BY AUTOMATICALLY.
  • Page 32 CHAPTER FOUR : MAIN MENU STEP 4 : CLEARN AND DELETE THE DEFAULT IP ADDRESSES 【192.168.1.XX】 STEP 5 : RE-SEARCH AND ADD NEW IP ADDRESSES 【192.12.12.XX】INTO NVR - 30 -...
  • Page 33 CHAPTER FOUR : MAIN MENU REMARKS: 1) THE FUNCTION OF WIFI CONFIGURING FOR DEVICES INITIALZING CONFIGURING ONLY; 2) THE WIFI SETTING AND DEVICES CONFIGURATION TO BE COMPLETED WITH FACTORY DEFAULT SETTING.CUSTOMER NO NEED TO DO THIS BY GETTING RECEIVING THE PRODUCT. 3) IN CASE OF REPLACEMENT OF THE CAMERA,PLEASE MOVE TO THE INITIALIZING SCREEN AND CHOOSE “WIFI SETTING”...
  • Page 34 CHAPTER FOUR : MAIN MENU SECTION D: NTP (Network Time Protocol) 1) Check the current status of NTP; 2) Enable or Disable the function of FTP; 3) Check the interval time of NTP; 4) Check the address of NTP server; 5) Check the NTP port;...

  • Page 35: Maintenance

    CHAPTER FOUR : MAIN MENU 4 - 7 MAINTENANCE STEP: CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN AND GO TO 【MAIN MENU】 AND CHOOSE 【MAINTENANCE】 MOVE TO OPTIONS WINDOW OF 【MAINTENANCE】. COLUMN A : SYSTEM INFORMATION FUNCTIONS : 1) Check current system 【Master Version】; 2) Check current 【Encode Version】;...
  • Page 36 CHAPTER FOUR : MAIN MENU 4) Check current 【Status】 of P2P ID; 5) Install mobile APP (P2P) software on mobile phone or tablet PC with OS of Android or iOS,by scanning QR Code of 【APP Store】and 【Android】,and add the device into the Mobile APP by scanning QR code of 【PPCN ID】. COLUMN B : LOG INFORMATION FUNCTIONS : 1) Check current information of Log;...
  • Page 37 CHAPTER FOUR : MAIN MENU FUNCTION : SET AND SAVE THE TIME PERIOD OF AUTOMATICALLY SYSTEM MAINTENANCE. COLUMN D : VERSION UPGRADE FUNCTION : UPGRADE THE CURRENT VERSION OF SYSTEM BY USB. NOTE : THE DEVICE WILL RESTART AUTOMATICALLY TO COMPLETE UPGRADATION,PLEASE DON’T DO ANY OPERATION DURING UPGADE.

  • Page 38: Shut Down

    CHAPTER FOUR : MAIN MENU COLUMN E : DEFAULT CONFIGURE FUNCTIONS : 1) Restore to the default configuration and system will restart automatically; 2) Some default settings and configurations will be cleaned. NOTE : PLEASE DON’T DO THIS OPERATION WITHOUT ANY ACCIDENTAL SITUATIONS OR PROBLEM ON WORKING. OTHERWISE THE DEVICE NEED TO BE RE-CONFIGURED AND RE-SET.

  • Page 39: Chapter Five : Auto Configure

    CHAPTER FIVE : AUTO CONFIGURE CHAPTER FIVE : AUTO CONFIGURE NOTE: METHOD A - CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN AND CHOOSE 【AUTO CPNFIGURE】 TO SEARCH / CONFIGURE AND ADD DEVICES BY AUTOMATICALLY. METHOD B - CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN GO TO 【MAIN MENU】 AND CHOOSE 【CHANNEL 】TO OPTIONS WINDOW OF CHNANEL MANAGEMENT,ENABLE “Auto Configure”...

  • Page 40: Chapter Five : Auto Configure

    CHAPTER FIVE : AUTO CONFIGURE METHOD C - CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN GO TO 【CHANNEL SETTING】 AND MOVE TO OPTIONS WINDOW OF 【CHANNEL MANAGEMENT】 AND CHOOSE “Auto Configure” TO SEARCH / CHECK / AUTOMATICALLY CONFIGURE AND ADD THE DEVICES. * THE FUNCTION OF AUTO CONFIGURE IS ABLE TO SEARCH / CHECK / CONFIGURE AND ADD THE DEVICE BY AUTOMATICALLY.

  • Page 41: Chapter Six : Uotput Adjust

    CHAPTER SIX : OUTPUT ADJUST CHAPTER SIX : OUTPUT ADJUST NOTE: CUSTOMER CAN CLICK RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN AND CHOOSE OUTPUT ADJUST TO SET THE EFFECT OF PICTURE DISPLAY TO BE “STANDARD” / “BRIGHT” / “COLORFUL” “SOFT” . CHAPTER SEVEN : LOCK SCREEN NOTE: THE SCREEN DISPLAY WILL BE LOCKED BY CLICKING RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN AND CHOOSE “LOCK”.

  • Page 42: Chapter Eight : Restart Device

    CHAPTER EIGHT : RESTART DEVICE NOTE: THE DEVICE WILL BE RESTARTED BY CLICKING RIGHT BUTTON OF MOUSE ON INITIALIZING SCREEN AND CHOOSE “RESTART”. CHAPTER NINE : FAQ AND TROUBLE SHOT FAQ : Q: No video after providing power A: Maybe the power supply voltage abnormality, please check the power supply voltage and pole whether exactitude (Default: DC 12V/2A);...
  • Page 43 CHAPTER NINE : FAQ AND TROUBLE SHOT failure; c. Products used to be maintained by non-factory authorized maintenance units. d. Beyond promise to change, the warranty period. 2. When users buy the product with failure, please take the registration card and contact related dealers or units for technical supports.

  • Page 44: Warranty Card

    Note: If a replacement, please record the original product number; This coupon is for Distributors’ retention Do not attempt to disassemble the camera.If the camera can not work,please contact local distributor or customer service. BRAUN PHOTO TECHNIK GmbH Merkurstrasse 8,72184 Eutingen,Germany Tel: +49 7457 946560 Fax.: +49 7457 946572...
