Polar RS800sd
A complete training system
for runners and endurance athletes
2
Polar RS800 Training System
3

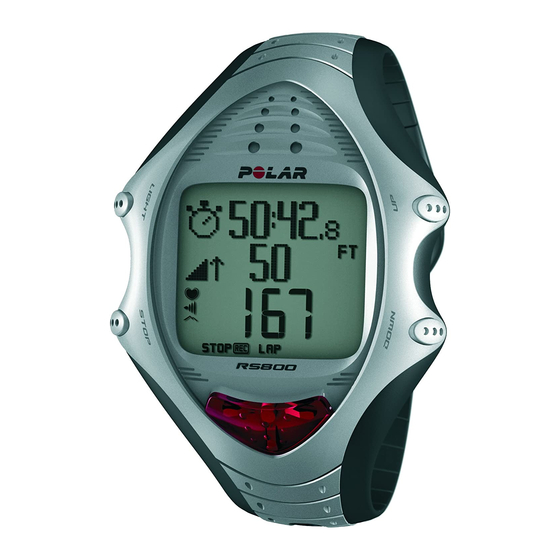

RS800 Wrist Unit
4
Polar s3 stride sensor™ W.I.N.D. (option)
®
5
Polar WearLink
W.I.N.D. Transmitter
6
Polar ProTrainer 5™ Software for Windows
7
Optimising training effect with the RS800
8
Plan
– Train – Analyse:
Using the Polar RS800 training system
9
Plan –
Train
– Analyse:
Using the Polar RS800 training system
10-11 Plan – Train –
Analyse:
Using the Polar RS800 training system
12
Detecting training effect by Measuring Heart Rate Variability –
R-R Recording
®
13
Polar OwnZone
14
Polar OwnOptimizer™
15
Running Index
16
Running Cadence and Stride Length
17
Polar sport zones
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Polar Electro RS 800 SD
Summary of Contents for Polar Electro RS 800 SD
- Page 1 Polar RS800sd A complete training system for runners and endurance athletes Polar RS800 Training System RS800 Wrist Unit Polar s3 stride sensor™ W.I.N.D. (option) ® Polar WearLink W.I.N.D. Transmitter Polar ProTrainer 5™ Software for Windows Optimising training effect with the RS800 Plan –...
- Page 2 The next generation of running / training computers Polar’s RS range is the culmination of 30 years research and development to deliver the most complete and effective heart rate monitor based training management system for recreational runners, competitive runners and endurance athletes.
- Page 3 Using interference free Polar W.I.N.D. (Wireless Integrated Network Device) technology, RS800 communicates with the Polar WearLink transmitter W.I.N.D. and Polar s3 stride sensor™ W.I.N.D. over a wireless 2.4GHz frequency. Wearlink sends 1ms resolution ECG data to the wrist unit and, tracking the position of the foot 1000 times a second, the s3 stride sensor (option) sends speed, distance and cadence data.
- Page 4 Polar ProTrainer 5™ PC software. Low battery warnings will also be displayed on the RS800 wrist unit. Polar s3 stride sensor is the most effective technology for tracking real- time pace, distance and cadence. s3 Stride Sensor Specifications: Polar W.I.N.D.
- Page 5 The WearLink W.I.N.D. transmitter and soft textile chest strap is the latest generation of Polar’s proprietary heart rate sensing and transmission technology. The transmitter is also fully compatible with adidas Fusion apparel.
- Page 6 Heart rate curve Speed curve Elevation curve With Polar ProTrainer 5, you can analyse your training sessions based on: heart rate zones, speed, distance, time and increasing/ decreasing heart rate. Polar ProTrainer 5 is a professional tool for training planning...
- Page 7 The unique package of features in the RS800 enables you to monitor your recovery, compare exertion levels (even across different sports) as well as find the optimal training intensity for your current physical state. Polar sport zones: Use sport zones to guide intensity during the training session to achieve desired effect (hard to recovery).
- Page 8 An example of a distance-based interval session created with the Polar ProTrainer 5 software. The power to compare targets vs. results Actual mileage achieved Weekly mileage target Polar ProTrainer 5 calendar view gives a snapshot view of your training plan month by month. 10 minute cooldown...
- Page 9 PLAN – TRAIN – ANALYSE: USING THE POLAR RS800 TRAINING SYSTEM The RS800 During Training During training there are up to 6 different display settings which can be scrolled through. Each display setting shows 3 pieces of information on separate rows. The information for each row is fully user configurable allowing the optimal combination of real time feedback.
- Page 10 Time PLAN – TRAIN – ANALYSE: TOTAL LAP RECALL USING THE POLAR RS800 TRAINING SYSTEM Post Training Analysis on the RS800 For quick analysis, you can review recorded data on the display of the RS800 immediately after training. The information available is as follows: •...
- Page 11 PLAN – TRAIN – ANALYSE: USING THE POLAR RS800 TRAINING SYSTEM Post Training Analysis in ProTrainer 5 Once the exercise file has been transferred to ProTrainer 5 software you can analyse every aspect of your training session in exacting detail.
- Page 12 Measuring Heart Rate Variability – R-R Recording Heart rate varies with every heartbeat. Heart rate variability (HRV) is the timing between beats, also known as R-R intervals. An average heart rate of 60 beats per minute (bpm) does not mean that the interval between successive heartbeats would be exactly 1.0 sec, instead they may fluctuate/vary from 0.5 sec up to 2.0 sec.
- Page 13 ® When you exercise your heart rate increases and the variability timing between beats decreases. Polar’s research has identified that the point where the timing difference plateaus (i.e. becomes too negligible to measure) is the point where your aerobic training becomes effective.
- Page 14 To avoid this, overloading must always be followed by an adequate recovery period. Polar OwnOptimizer measures heart rate and beat to beat variability during a simple orthostatic (laying down to standing) test. In this way it is able to identify the level of your training status and recovery, helping you to obtain optimal longer term performance benefits by ensuring you don’t over or under train.
-
Page 15: Running Index
Running Index Combining aerobic fitness (VO ) and exercise economy (how efficient 2max your body is at running), Running Index offers an easy way to measure performance (how fast/easily you run at a given pace). By recording your Running Index over time, you can monitor progress. Improvement means that running at a given pace requires less of an effort, or that your pace is faster at a given level of exertion. -
Page 16: Running Cadence And Stride Length
- Not a good idea!. By focusing on leg speed as part of your training plan you can easily improve your overall technique and benefit from greater running efficiency. For more information on Running Cadence and Stride Length please visit the Polar Article Library http://articles.polar.fi/en/main.html Recommended Cadence vs. Height 4hours 3.5hours... -
Page 17: Sport Zones
Recommended for: For recovery and cool-down exercises throughout the training season Sport Zones Polar sport zones introduce a new level of ease in heart rate-based training. Training is divided into five sport zones based on percentages of maximum heart rate. With sport zones, you can easily select and monitor training intensities to achieve optimal results.
