Summary of Contents for golmar DQ-CAM-GB2

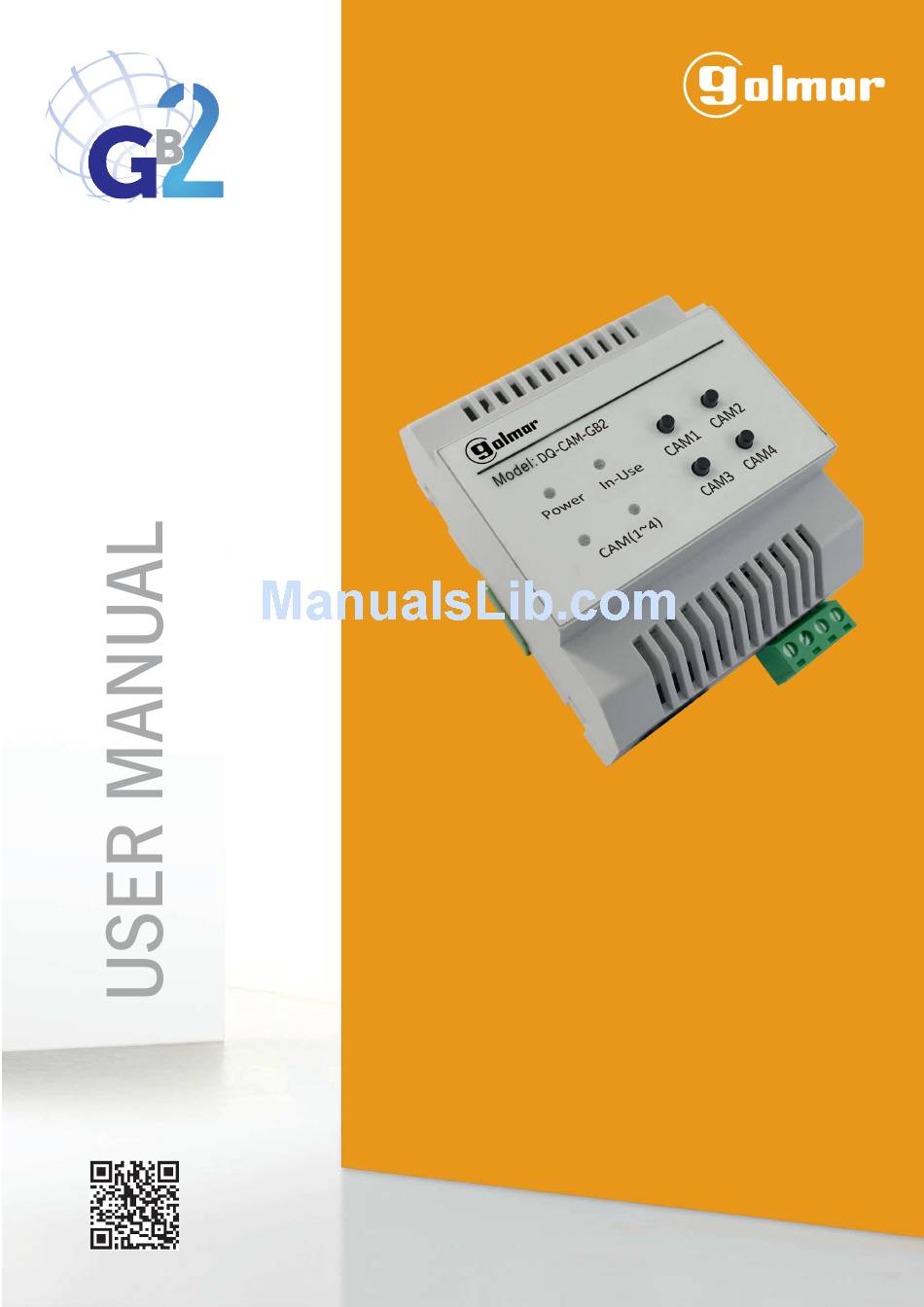

- Page 1 TECHNOLOGY DQ-CAM-GB2 Camera interface Nexa Modular GB2 2-Wire Code 50122168 REV.0 1 DQ-CAM- B2...
-
Page 2: Safety Precautions
The wiring must run at least 40 cm away from any other wiring. Install the DQ-CAM-GB2 module in a dry protected location free from the risk of dripping or splashing water. Install the DQ-CAM-GB2 module with an FA-GB2A power supply. - Page 3 Bus output terminals. INSTALLATION Illustration of DQ-CAM-GB2 camera interface installation: Install the DQ-CAM-GB2 module in a dry protected location free from the risk of dripping or splashing water. Install the DQ-CAM-GB2 module with an FA-GB2A power supply. Model: DQ-CAM-GB2 Power In-Use...
- Page 4 DQ-CAM-GB2 CAMERA INTERFACE INSTALLATION Description of the DIP switch: The DIP switch is located at the top of the module. Leave DIP 1 and 2 in the OFF position. Leave DIP 3 in the OFF position if cameras 3 and 4 have not been installed.
- Page 5 LED on: Indicates that the device is operating normally. Power In-Use CAM1 In -use: LED on: Indicates that the DQ-CAM-GB2 unit is broadcasting video. CAM (1~4) CAM3 CAM(1~4): Indicates the camera that is broadcasting video. The CAM (1~4) LEDs blink when the monitor shows the image of more than 1 camera.
-
Page 6: Wiring Diagrams
DQ-CAM-GB2 CAMERA INTERFACE WIRING DIAGRAMS: Video door entry system building installation with 4 analogue CCTV cameras. VESTA2 Master ( ) 3 ( ) 3 APARTMENT 23 End of line VESTA2 Master ( ) 3 ( ) 3 APARTMENT 2 End of line... - Page 7 DQ-CAM-GB2 CAMERA INTERFACE NOTES:...
- Page 8 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
