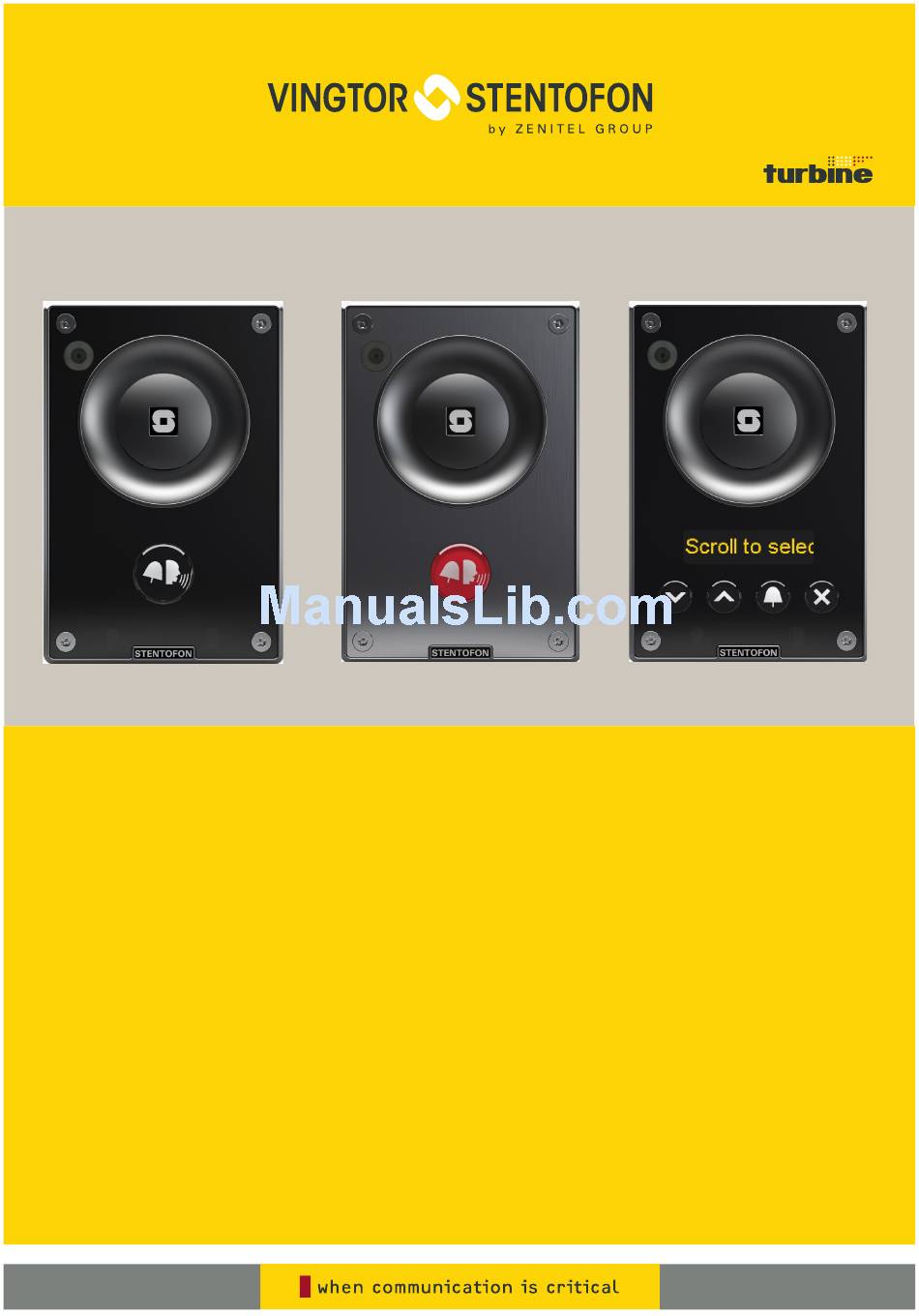

- Page 1 Configuration Manual Turbine Compact IP Video Stations TCIV-2 TCIV-3 TCIV-6 TECHNICAL MANUAL A100K11559...
-
Page 2: Tciv
This document describes the setup procedure and configuration of the various models of the Turbine Compact IP Video station series. Station Firmware Version: VSF-Turbine 4.7 Product Item Number Tubine Compact IP Video Station - TCIV-2 1008115020 Tubine Compact IP Video Station - TCIV-3 1008115030 Tubine Compact IP Video Station - TCIV-6... -
Page 3: Table Of Contents
Contents 1 Turbine Compact IP Video Stations ..................... 5 2 Station Connections ........................7 2.1 External Connectors on IP Video Station ................7 2.2 Power Supply .......................... 7 2.3 Network Connection ........................ 7 2.4 Input/Output Connections ....................... 7 3 Starting Up the Video Station ....................... 8 4 Turbine Video Settings ........................ - Page 4 9.2 Reset to Factory Default Settings with Static IP ..............53 10 Camera Field of View ........................54 Figures Figure 1 Turbine TCIV-2 / TCIV-3 Station Keys & Functions .............. 5 Figure 2 Turbine TCIV-6 Station Keys & Functions ................6 Figure 3 External Connectors on IP Station ..................
-
Page 5: Turbine Compact Ip Video Stations
Stainless steel frontplate with single call button Thermoplastic frontplate with single call button Thermoplastic frontplate with call & scrolling buttons and PMOLED display Camera Lens Speaker Call Button Microphone Figure 1 Turbine TCIV-2 / TCIV-3 Station Keys & Functions A100K11559 Turbine IP Video Station Configuration Guide... -
Page 6: Figure 2 Turbine Tciv-6 Station Keys & Functions
Camera Lens Speaker PMOLED Display Scroll Down Cancel Call Button Scroll Up Microphone Figure 2 Turbine TCIV-6 Station Keys & Functions A100K11559 Turbine IP Video Station Configuration Guide... -
Page 7: Station Connections
Station Connections External Connectors on IP Video Station 24 VDC for external secondary power if PoE is not used. Pin 1 is positive. - COM relay - NO relay - NC relay RJ-45 - 5.3V (LED driver) port - GND - Input/Output 1 - Input/Output 2 - Input/Output 3... -
Page 8: Starting Up The Video Station
● Pulse station SIP Video Phone ITSV-1 Video Phone iPBX (SIP domain) Desktop Video Display Station IP Network Turbine TCIV-3 Turbine TCIV-6 AlphaComXE7 Turbine TCIV-2 AlphaCom XE Server/Exchange Figure 4 Turbine Video AlphaCom/Pulse/SIP System A100K11559 Turbine IP Video Station Configuration Guide... -
Page 9: Turbine Video Settings
Turbine Video Settings After logging into the station via the web interface: ● Select menu option Video Settings The parameters for video settings are as shown below: Video Mode This parameter defines whether the video stream will be in either of the two modes: MJPG in http or H.264 in RTP. -
Page 10: Alphacom Configuration
IP Desktop Station with Video Display IP Network Turbine TCIV-3 Turbine TCIV-6 AlphaComXE7 Turbine TCIV-2 AlphaCom XE Server/Exchange Figure 5 AlphaCom Video Intercom System Logging into the Station Access the station by logging into the web interface using a standard web browser: 1. -
Page 11: Station Main Settings
● Select the Use Alphacom radio-button Product Model And Accessory ● Model Select one of the options from the drop-down box : - Video Normal (TCIV-2, TCIV-3) - Video Scrolling Station (TCIV-6) Registration Settings ● AlphaCom IP-address - Enter IP address of AlphaCom in which TCIV is to be registered as a subscriber ●... -
Page 12: Alphacom Configuration For Itsv-1 Video Phone
AlphaCom Configuration for ITSV-1 Video Phone ● Vingtor-Stentofon ITSV-1 Video Phone - item no. 1490001010 5.3.1 Video Settings for ITSV-1 To configure video settings: ● Select Advanced Alphacom > Video ● Select or set values for the parameters: Enable Video: Check box to enable video calls Resolution: Select 480P Frames per second: Select 15fps Camera IP address and port: Enter the port number - default is 8090 Video setup mode: Select Default... -
Page 13: Itsv-1 Phone Settings
5.3.2 ITSV-1 Phone Settings ● Log into the ITSV-1 phone interface by entering its IP address in a browser on your PC Login Credentials Username: admin Password: alphaadmin 5.3.3 ITSV-1 Account Setup ● Select Account > Account 1 > General Settings ● Enter the values shown above for the parameters Account Active: Check Yes box SIP Server: IP address of AlphaCom server (see Main Settings in TCIV) SIP User ID: Directory Number of ITSV-1 phone... -
Page 14: Itsv-1 Audio Codec Settings
The TCIV camera must have a static IP address. ● Select Account 1 > Call Settings ● Click the Yes box for Start Video Automatically ● Select Vingtor Stentofon System from Special Feature dropdown box ● Click Configure to open the camera list A100K11559... -
Page 15: Alphacom Configuration For Vs Desktop Video Display Station
● Enter the camera URL and the directory number of the TCIV station Door System URL : http://< TCIV camera IP address>:<port no.>/mjpg/video.mjpg Example: http://10.5.101.46:8090/mjpg/video.mjpg Door System SIP User ID : Directory Number of TCIV station AlphaCom Configuration for VS Desktop Video Display Station ● Vingtor-Stentofon IP Desktop Video Station - item no. 1408001635 5.4.1 Video Settings for Desktop Station To configure video settings: ●... -
Page 16: Vs Desktop Station Video Configuration
L The video camera and the Turbine station have the same IP address. - The video stream from the camera can be viewed by entering the IP address and port number in a web browser, e.g. 10.5.101.46:8090 L Video calls in the AlphaCom system are made in MJPG mode only. e.g. - Page 17 ● Click Cameras ● Enter values for the parameters as shown Camera Types ● Camera Type is TCIV with URL :8090/mjpg/video.mjpg L ‘8090’ is the default port number for the camera set in section “5.4.1 Video Settings for Desktop Station” Camera Allocation AlphaCom Node Number: Node number of network (e.g.
-
Page 18: Sip Configuration
Bria Softphone IP Network ITSV-1 Video Phone Turbine TCIV-3 Turbine TCIV-2 Figure 6 SIP Video Intercom System Logging into the Station Access the station by logging into the web interface using a standard web browser: 1. Open a web browser 2. -
Page 19: Station Main Settings
Product Model And Accessory ● Model Select one of the options from the drop-down box : - Video Normal (TCIV-2, TCIV-3) - Video Scrolling Station (TCIV-6) IP Settings ● Static IP – Select this option if the IP station shall use a static IP address. Enter values for: of TCIV (e.g. -
Page 20: Sip Configuration For Itsv-1 Video Phone
SIP Configuration for ITSV-1 Video Phone ● Vingtor-Stentofon ITSV-1 Video Phone - item no. 1490001010 6.3.1 SIP Settings for ITSV-1 ● Select SIP Configuration > SIP Settings Account Settings Directory Number (SIP ID): Directory number of Turbine Video station Server Domain (SIP): IP address of the SIP Server L The values for both these parameters are determined by the system administrator in the SIP server domain. -
Page 21: Video Settings For Itsv-1
6.3.2 Video Settings for ITSV-1 To configure video settings: ● Select SIP Configuration > Video Settings ● Select or set values for the parameters: Video Mode: Set to H264 RTP Enable Video: Check box to enable video calls Resolution: Select 480P Frames per second: Select 15fps Bitrate: Select 1000 kb/s Video setup mode: Select Default ●... -
Page 22: Itsv-1 Account Setup
Login Credentials Username: admin Password: alphaadmin 6.3.4 ITSV-1 Account Setup ● Select Account > Account 1 > General Settings ● Enter the values shown above for the parameters Account Active: Check Yes box SIP Server: IP address of SIP Server SIP User ID: Directory Number of the ITSV-1 phone 6.3.5 ITSV-1 Video Configuration The video is streamed directly from the TCIV camera to the ITSV-1. -
Page 23: Sip Configuration For Cisco Video Phone
SIP Configuration for Cisco Video Phone 6.4.1 SIP Settings ● Select SIP Configuration > SIP Settings Account Settings Directory Number (SIP ID): Directory number of Turbine Video station Server Domain (SIP): IP address of the Cisco Unified Communications Manager (CallManager) L The values for both these parameters are determined by the settings in Cisco Unified Communications Manager (CallManager). ● Enter values for the other parameters under Account Settings and Call Settings ●... -
Page 24: Video Settings For Cisco Phone
6.4.2 Video Settings for Cisco Phone H.264 bitrate and resolution combinations for Cisco video phone 128 kb/s 300 kb/s 500 kb/s 1 Mb/s 2.5 Mb/s 320x240 (240P) 640x480 (480P) Not recommended 1280x720 (720P) L ‘Not recommended’ means that this combination should not be used when bandwidth is limited. ●... -
Page 25: Direct Access Key Settings
To set up the call key on the Turbine station to call the Cisco phone directly: ● Enter the directory number of the Cisco phone in the Value field for DAK 1 L This parameter is valid for TCIV-2 and TCIV-3 only L See A100K11194 Turbine IP Stations Technical Manual for the configuration and import of an Address Book for TCIV-6. -
Page 26: Sip Configuration For Bria Softphone
SIP Configuration for Bria Softphone L Exceptions must be made for Bria in Windows Firewall to be able to receive video. During instal- lation Bria adds rules to Windows Firewall by default, but in some cases this is not sufficient and exceptions must be added manually. If in doubt, consult your system administrator on how to add exceptions for Bria in Windows Firewall. ●... -
Page 27: Video Settings For Bria Softphone
6.5.1 Video Settings for Bria Softphone H.264 bitrate and resolution combinations for Bria softphone 128 kb/s 300 kb/s 500 kb/s 1 Mb/s 2.5 Mb/s 320x240 (240P) 640x480 (480P) recommended 1280x720 (720P) recommended recommended L ‘Not recommended’ means that this combination should not be used when bandwidth is limited. ●... -
Page 28: Direct Access Key Settings
6.5.2 Direct Access Key Settings ● Select SIP Configuration > Direct Access Key Settings To set up the call key on the Turbine station to call the Bria softphone directly: ● Enter the directory number of the Bria softphone in the Value field for Direct Access Key 1 - In this example, the directory number of the Bria softphone is 9910 6.5.3 Bria Softphone Settings ●... - Page 29 Account Settings ● Select Softphone > Account Settings User Details User ID: Directory number of the Bria softphone Domain: IP address of SIP Server Domain A100K11559 Turbine IP Video Station Configuration Guide...
-
Page 30: Sip Configuration For Vs Desktop Video Display Station
SIP Configuration for VS Desktop Video Display Station ● Vingtor-Stentofon IP Desktop Video Station - item no. 1408001635 6.6.1 SIP Settings ● Select SIP Configuration > SIP Settings Account Settings Directory Number (SIP ID): Directory number of Turbine Video station Server Domain (SIP): IP address of the SIP Server L The values for both these parameters are determined by the system administrator in the SIP server domain. -
Page 31: Video Settings For Desktop Video Display Station
6.6.2 Video Settings for Desktop Video Display Station ● Select SIP Configuration > Video Settings ● Enter the values shown above for the parameters Video Mode: Set to MJPG HTTP Enable Video: Check box to enable video calls Resolution: Select 240P Frames per second: Select 15fps Camera IP address and port: Enter the port number - default is 8090 Video setup mode: Select Default... - Page 32 ● Enter the Video-IP address as shown above (e.g. 192.168.45.45) in a web browser to log into the video part of the desktop station. To log into the video part of the station: 1. Enter the default Username: admin 2. Enter the default password: alphaadmin ●...
- Page 33 ● Enter values for Camera Types and Camera Allocation as shown Camera Types ● Define Camera Type for Turbine Video station TCIV by entering URL :8090/mjpg/video.mjpg L ‘8090’ is the default port number for the camera set in section “6.6.2 Video Settings for Desktop Video Display Station”.
-
Page 34: Pulse Configuration
ITSV-1 Video Phone Bria Softphone Turbine TCIV-3 Turbine TCIV-2 Figure 7 Pulse Video Intercom System L It is recommended to NOT use the Turbine Video station as the Pulse Server. In the Pulse system example above, the Desktop Video Display Station is used as the Pulse Server. In order for SIP stations to be registered in the system, the Pulse Server must first install SIP station licenses. -
Page 35: Station Main Settings
L For optimal system operation, it is recommended to NOT use TCIV-x as the ‘Pulse Server’. Product Model And Accessory Model: Select one of the options from the drop-down box : - Video Normal (TCIV-2, TCIV-3) - Video Scrolling Station (TCIV-6) IP Settings ● Static IP – Select this option if the IP station shall use a static IP address. Enter values for: of TCIV (e.g. -
Page 36: Pulse Configuration For Itsv-1 Video Phone
Pulse Configuration for ITSV-1 Video Phone ● Vingtor-Stentofon ITSV-1 Video Phone - item no. 1490001010 7.3.1 SIP Settings ● Select SIP Configuration > SIP Settings Account Settings Directory Number (SIP ID): directory number of Turbine Video station Server Domain (SIP): IP address of intercom station set up as Pulse Server ● Click Save ●... -
Page 37: Video Settings For Itsv-1
Frames per second: Select 15fps Bitrate: Select 1000 kb/s Video setup mode: Select Default ● Click Save ● Click Back to config page 7.3.4 Direct Access Key Settings ● Select SIP Configuration > Direct Access Key Settings L This feature applies to TCIV-2 and TCIV-3 only A100K11559 Turbine IP Video Station Configuration Guide... -
Page 38: Itsv-1 Phone Settings
L See A100K11194 Turbine IP Stations Technical Manual for the configuration and import of an Address Book for TCIV-6. To set up the call key on the Turbine station to call the ITSV-1 Video Phone directly: ● Enter the directory number of the ITSV-1 Video Phone in the Value field for Direct Access Key 1 - In this example, the directory number of the ITSV-1 Video Phone is 999 ●... -
Page 39: Itsv-1 Video Configuration
Account Active: Check Yes box SIP Server: IP address of intercom station set as Pulse Server SIP User ID: Directory Number of the ITSV-1 phone SIP Authentication ID: Same as SIP User ID 7.3.5.2 ITSV-1 Video Configuration The video is streamed directly from the TCIV camera to the ITSV-1. The TCIV camera must have a static IP address. -
Page 40: Pulse Configuration For Bria Softphone
Pulse Configuration for Bria Softphone 7.4.1 SIP Settings ● Select SIP Configuration > SIP Settings Account Settings Directory Number (SIP ID): directory number of Turbine Video station Server Domain (SIP): IP address of station set up as Pulse Server ● Click Save ● Click Back to config page 7.4.2 Video Settings for Bria Softphone ● Select SIP Configuration > Video Settings A100K11559 Turbine IP Video Station Configuration Guide... -
Page 41: Direct Access Key Settings
● Click Back to config page 7.4.3 Direct Access Key Settings ● Select SIP Configuration > Direct Access Key Settings L This feature applies to TCIV-2 and TCIV-3 only L See Turbine Configuration Manual for the configuration and import of an Address Book for TCIV-6. To set up the call key on the Turbine station to call the Bria softphone directly: ● Enter the directory number of the Bria softphone in the Value field for Direct Access Key 1 - In this example, the directory number of the Bria softphone is 801 ●... -
Page 42: Bria Softphone Configuration
● Click Apply - This will reboot all the stations in the Pulse system 7.4.5 Bria Softphone Configuration ● Start the Bria softphone application on your PC Video Codecs ● Select Softphone > Preferences > Video Codecs ● Enable codec H.264 Account Settings ●... -
Page 43: Verifying Registration Of Bria Softphone
User ID: Directory number of Bria softphone Domain: IP address of intercom station set as Pulse Server 7.4.6 Verifying Registration of Bria Softphone When the configuration for both the Turbine Video station and the Bria softphone has been done, verify that they’re both registered in the Pulse system. L To verify station registration, you need to log into the station that has been set up as the Pulse Server. -
Page 44: Video Settings For Snom Phone
Account Settings Directory Number (SIP ID): directory number of Turbine Video station Server Domain (SIP): IP address of station set up as Pulse Server ● Click Save ● Click Back to config page 7.5.2 Video Settings for Snom Phone ● Select SIP Configuration > Video Settings ● Enter the values shown above for the parameters Video Mode: Set to MJPG HTTP Enable Video: Check box to enable video calls Resolution: Select 240P... -
Page 45: Direct Access Key Settings
7.5.3 Direct Access Key Settings ● Select SIP Configuration > Direct Access Key Settings L This feature applies to TCIV-2 and TCIV-3 only L See Turbine Configuration Manual for the configuration and import of an Address Book for TCIV-6. To set up the call key on the Turbine station to call the Snom Video Phone directly: ● Enter the directory number of the Snom Video Phone in the Value field for Direct Access Key - In this example, the directory number of the Snom Video Phone is 802 ●... -
Page 46: Snom Phone Settings
7.5.5 Snom Phone Settings ● Log into the Snom phone interface by entering its IP address in a browser on your PC Directory Setup ● Select Operation > Directory ● Enter the values shown above for the parameters Number: Directory number of the Turbine Video station Action-Url: http://<IP address of Turbine Video station>:<port no.>/snoma.cgi - in this example: http://10.5.2.134:8090/snoma.cgi Configuration Identity... -
Page 47: Verifying Registration Of Snom Video Phone
● Enter the values shown above for the parameters Account: Directory number of the Snom phone, e.g. 802 Registrar: IP address of intercom station set as Pulse Server, e.g. 10.5.2.134 7.5.6 Verifying Registration of Snom Video Phone When the configuration for both the Turbine Video station and the Bria softphone has been done, verify that the they’re both registered in the Pulse system. -
Page 48: Video Settings For Desktop Video Display Station
● Click Save ● Click Back to config page 7.6.2 Video Settings for Desktop Video Display Station ● Select SIP Configuration > Video Settings ● Enter the values shown above for the parameters Video Mode: Set to MJPG HTTP Enable Video: Check box to enable video calls Resolution: Select 240P Frames per second: Select 15fps Camera IP address and port: Enter the port number - default is 8090... -
Page 49: Direct Access Key Settings
7.6.3 Direct Access Key Settings ● Select SIP Configuration > Direct Access Key Settings L This feature applies to TCIV-2 and TCIV-3 only L See Turbine Configuration Manual for the configuration and import of an Address Book for TCIV-6. To set up the call key on the Turbine station to call the Desktop Video Display Station directly: ● Enter the directory number of the Desktop Video Display Station in the Value field for Direct... - Page 50 ● Click Cameras ● Enter values for Camera Types and Camera Allocation as shown A100K11559 Turbine IP Video Station Configuration Guide...
- Page 51 Camera Types ● Define Camera Type for Turbine Video station TCIV by entering URL :8090/mjpg/video.mjpg L ‘8090’ is the default port number for the camera set in section “7.6.2 Video Settings for Desktop Video Display Station”. Camera Allocation AlphaCom Node Number : 0 (Not in use for Pulse system) AlphaCom Directory Number : 0 (Not in use for Pulse system) SIP ID : Directory number of TCIV as specified in section 7.6.1 (e.g.
-
Page 52: Station Indication Leds
Station Indication LEDs LEDs on Front Plate Status LEDs - Bell icon lights yellow when a call is placed and ringing - Talk icon lights green when a call is active and in conversation - Door icon lights red when the door is unlocked or relay is active Talk Icon: Flashing at 1 second intervals - Station has no connection to the AlphaCom server/exchange. -
Page 53: Restoring Factory Defaults
Restoring Factory Defaults A Turbine IP Station may have to be reset to its original factory default settings if, for instance, the password to the station web interface is forgotten. The defaults can either be set to Activated DHCP or Static IP. Reset to Factory Default Settings with Activated DHCP To reset: 1. -
Page 54: Camera Field Of View
10 Camera Field of View 75 cm 150 cm 70° 90° Horizontal Angle Vertical Angle A100K11559 Turbine IP Video Station Configuration Guide... - Page 55 A100K11559 Turbine IP Video Station Configuration Guide...
- Page 56 www.zenitel.com Zenitel Norway AS The WEEE Directive does not legislate that Zenitel, as a ‘producer’, shall collect ‘end of life’ WEEE. This ‘end of life’ WEEE should be recycled appropriately by the owner who should use proper treatment and recycling measures. It should not be disposed to landfill. Many electrical items that we throw away can be repaired or recycled. Recycling items helps to save our natural finite resources and also reduces the environmental and health risks associated with sending electrical goods to landfill.
