- Page 1 Security at Fingertips User Manual Single Door RFID Based Access Control SA32-E www.esslsecurity.com...
-
Page 2: Product Overview

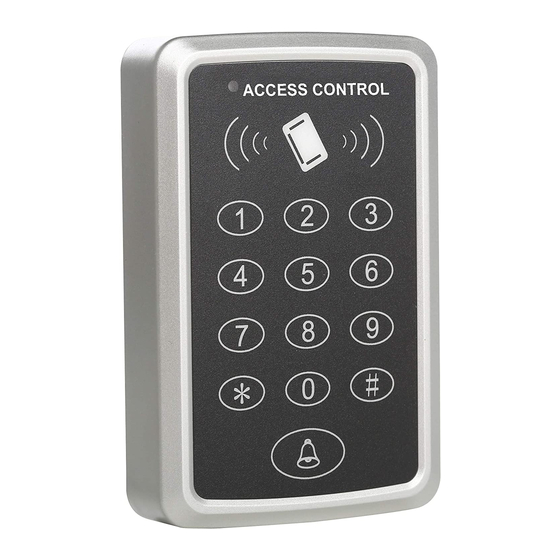

Product Overview SA32-E Single Door RFID Based Access Control SA32-E is an Access Control Standalone Device with contact-less smart card and password verifications, which enables 3 verification modes (Card only, PIN only, and Card & PIN) to ensure maximum safety and flexibility. -
Page 3: Specifications
1. Specifications: 1.1Technical parameters: Item Value Operating voltage DC 12V±10% Operating current < 100mA Dimensions 120mm×78mm×22mm Weight 110g Ambient temperature 0 —60 Relative humidity 20%—80% Storage 1000users Card type (alternative) EM(ID) card(IC card for options) Card reading distance 1－15CM 1.2 Factory Default: Programming Common Access 123456... - Page 4 2. Installations Guide JP1 terminal: Mark Color Function +12V Power+ Black Power- PUSH BLUE Low level output OPEN Yellow Door Release BELL Grey BELL BELL White BELL JP2 terminal: Mark Color Function Remark +12V Power+ Black Power- For options DATA0 Green WG DATA0 DATA1...
- Page 5 3. Programming Guide To reset to Factory Programming Password (123456) Step1、Turn off power and connect bin 2&3 of RST(S1)。 Step2、Turn on power and buzzer gives 3 long buzz with green light flash fast。 If need to set Manager Card, now read two empty cards first one as Manager Add Card and Second one as Manager Delete Card with red light flashing and continuous short buzz .
- Page 6 #24,Shambavi Building, 23rd Main, Marenahalli, JP Nagar 2nd Phase, Bangalore - 560078 Phone: 91-8026090500 | Email : sales@esslindia.com www.esslsecurity.com...
