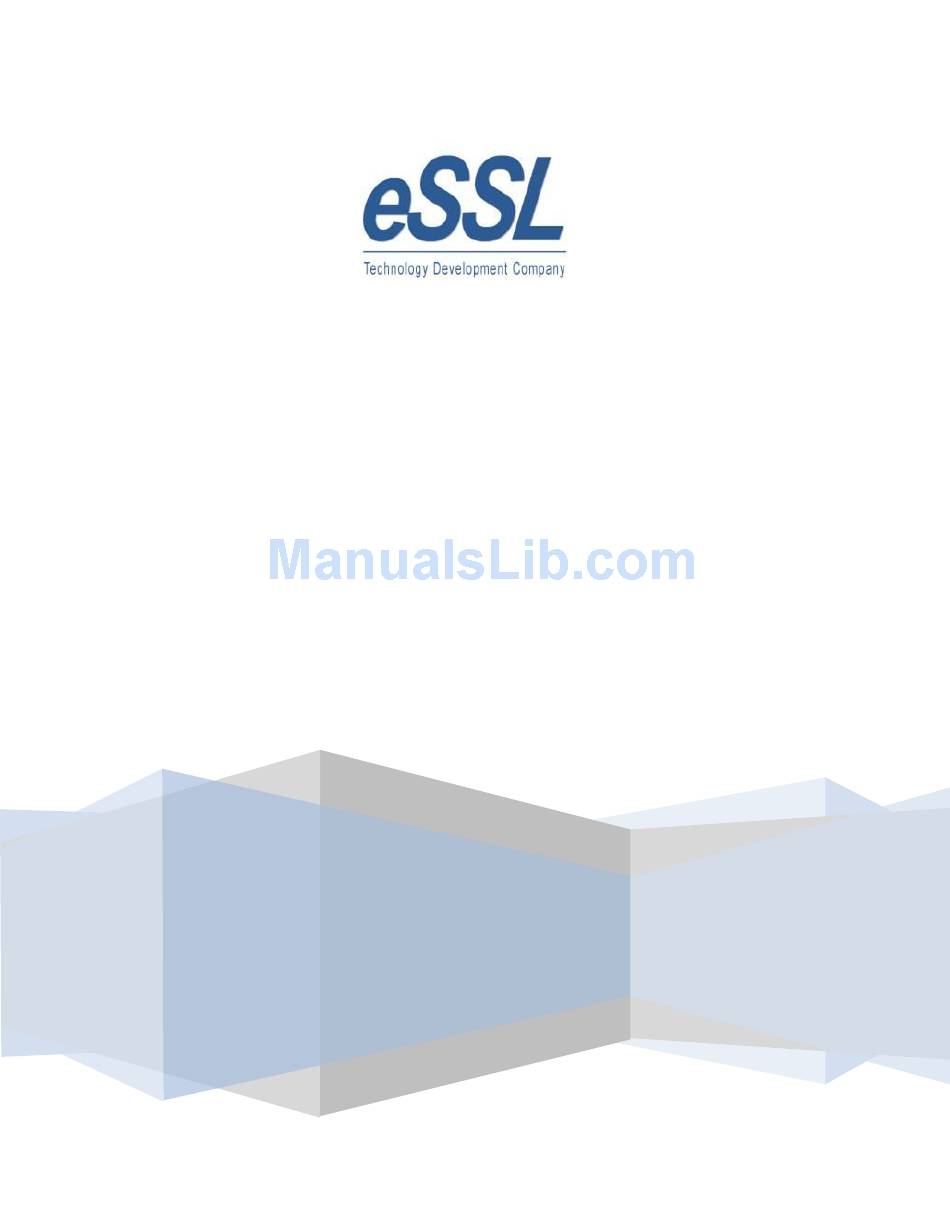

X7 – User Manual
www.esslindia.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X7 and is the answer not in the manual?

Questions and answers

HR MANAGER
April 23, 2025

We’d like to confirm whether the system supports alphanumeric employee codes (e.g., AB001, LTT001), or if it is restricted to numeric-only formats.

0
HR MANAGER
April 23, 2025

only numberic employee code can be given or we can add alphabets in emplyee code? for eg- AB001, LTT001

0

Subscribe to Our Youtube Channel

Related Manuals for eSSL X7

Summary of Contents for eSSL X7

  • Page 1 X7 – User Manual www.esslindia.com...

  • Page 2: Functions Of The Device

    Instructions Recommended Procedure: Step 1: Install the device and power on. Step2: After the administrator password is authenticated and changed, register user’s fingerprints, cards, or passwords. Step3: Configure access control parameters, including modifying eight passwords for opening the door and configuring the unlocking duration, authentication mode, stealth mode, door status mode, and alarm.
  • Page 3 2. Access Control Management 2.1 Change Eight Passwords for Opening the Door 2.2 Configure Unlocking Duration 2.3 Configure Authentication Mode 2.4 Configure Concealed Mode 2.5 Configure Door Sensor Mode 2.6 Configure Alarm  Configure Alarm setting  Configure Error Operation-Triggered Alarm ...

  • Page 4: User Management

    Operation Instructions 1. User Management 1.1 Administrator Operations To ensure data security of the device , you can operate the device only after the administrator password is authenticated.  Authenticator the Administrator Password 1. Press (*) 2. Press (#) 3. Enter the administrator (The indicator is off and (You can authenticate the password.( The initial...

  • Page 5: Change Administrator Password

     Change Administrator Password 1. The administrator 2. Press 8. (You can 3. Enter a new password is change the password) administrator password. authenticated. Failed The indicator turns red and makes three beeps 5. Succeeded. (The 4. Enter the new 6.

  • Page 6: Add Users

    Note: This Function can be used to open the door.  Administrator Password Be Forgotten If the administrator password is forgotten, you can press the disassembly key three times to reset the password to the initial administrator password 30 to 60 seconds after the device is disassembled from the wall or door.
  • Page 7 Note: 1. In the registration process, the user ID increases automatically. The device automatically enters the process of registering the next user when a user is successfully registered. 2. The registration process fails if the fingerprint is of poor quality or the fingerprint or the card has been registered. After the device indicator turns green, you can register the user again.
  • Page 8 2. You must clear all the registered users before registering cards in batches. IDs of to-be-registered cards must be consecutive numbers. 1.3 Authentication Users Authentication Users’ Fingerprints/Cards/Passwords After the device is powered on, it enters the authentication state for users to unlock the door.

  • Page 9: Delete A User

     Delete a User 1. The administrator 3. Enter a user ID, pres 2. Press 2. (The indicator password is the fingerprint, or swipe turns green and makes a authenticated. the card. long beep.) Failed (The indicator turns red and makes three beeps) 6.

  • Page 10: Access Control Management

    Note: Press 9 for automatic confirmation. Other values are considered invalid. If an invalid is entered, the device indicator turns red, and the device makes a long beep and exits the process. 2. Access Control Management 2.1 Change Eight Passwords for Opening the Door 1.
  • Page 11 2. If a password is successfully changed, enter the password ID of the to-be changed password to change the next password. 2.2 Configure Unlocking Duration 1. The administrator 2. Press 4. (The indicator 3. Enter the unlocking password is authenticated. turns green and makes a duration.

  • Page 12: Authentication Mode

    Authentication Mode Type Description Mode 1 (number 1) Only password verification Mode 2 (number 2) Only RF Card verification Mode 3 (number 3) Only fingerprint verification Fingerprint or password or RF Mode 4 (number 4) FP/ PW/ RF verification Mode 5 (number 5) RF/ PW RF and password verification Fingerprint and password...

  • Page 13: Configure Alarm

    2.5 Configure Door Sensor Mode The door sensor switch includes three modes:  NONE The door sensor switch is not used.  The lock is open as long as the door is open  The lock is closed after the door is closed. 1.
  • Page 14 1. The administrator 3. Press 1. (The indicator 2. Press 0. (The indicator password is authenticated. turns green and makes a turns green and makes a long beep.) long beep.) 6. Exit. (The device 5. The configuration is 4. Configure the alarm automatically exits the successful.
  • Page 15 1. The administrator 2. Press 7. (The indicator 3. Configure whether to password is authenticated. turns green and makes a enable the tamper alarm. long beep.) (0: enable; 1: disable.) 6. Exit. (The device 5. The configuration is automatically exits the successful.
