Taurus CP-300
The Taurus CP-300 dispenses liquid chemicals with a high degree
of accuracy and repeatability. A separately wired remote provides a
convenient way to start the cycle. Simple mounting, setup, and low cost
make it ideal for single-product applications.

General Specifications

Feature
Pump delay time
Pump run time
Pump lockout time
Pump rate
Wall-mounted transformer
Hardwired remote with 2 buttons and 3 LEDs

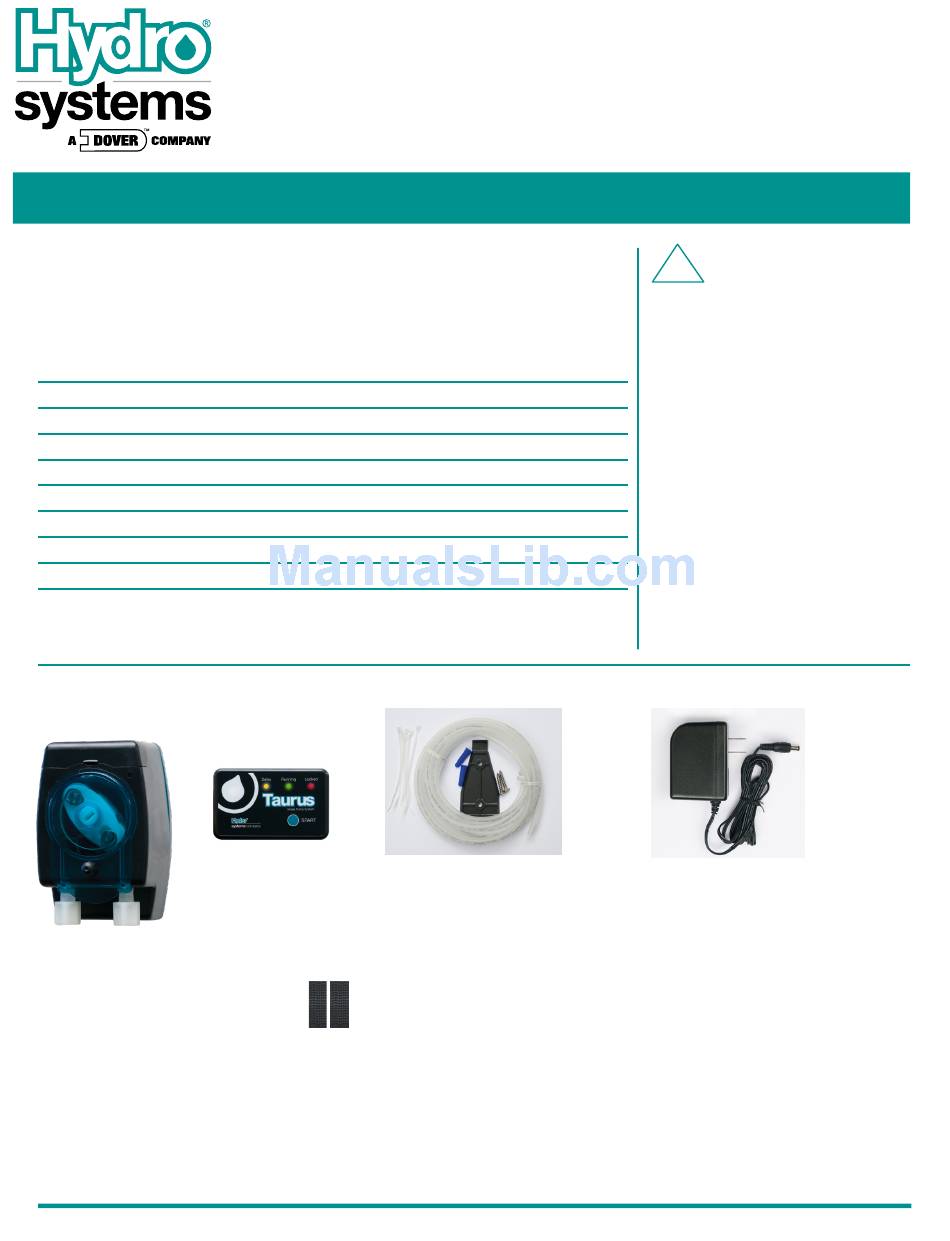

Complete Package Contents
Remote

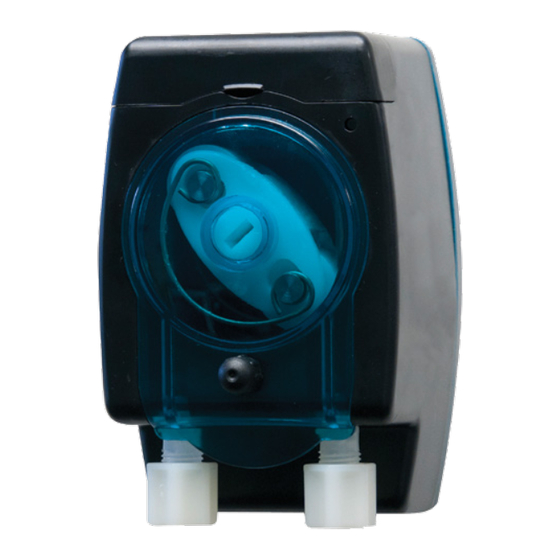

Taurus CP-300 Pump, Complete
P/N 00-08879-00,
(Includes Cat 5e Cable)
PN-20-09208-00 F
© Hydro Systems Company, Inc. 2015
Single Pump
Range
0 – 30 min. (5 min. increments)
0 – 20 min. (real time)
0 – 30 min. (5 min. increments)
Approx. 8 ounces / minute
24 VDC, 1 A
Wall Mount Kit
P/N 13-08607-00
Adhesive-backed
Fasteners
P/N 36-06158-16025
!
WARNING
ADVERTENCIA:
The CP-300 should be installed
by a qualified technician only, in
accordance with all applicable
electrical and plumbing codes.
El equipo CP-300 debe ser
instalado sólo por técnicos
calificados y de acuerdo con
todas las normas de plomería y
eléctricas que apliquen.
Wall-Mounted Transformer
(100-240 VAC)
P/N 10096229
This Quickstart Guide
P/N 20-09208-00
HydroSystemsCo.com
Toll Free: 1.800.543.7184
1
