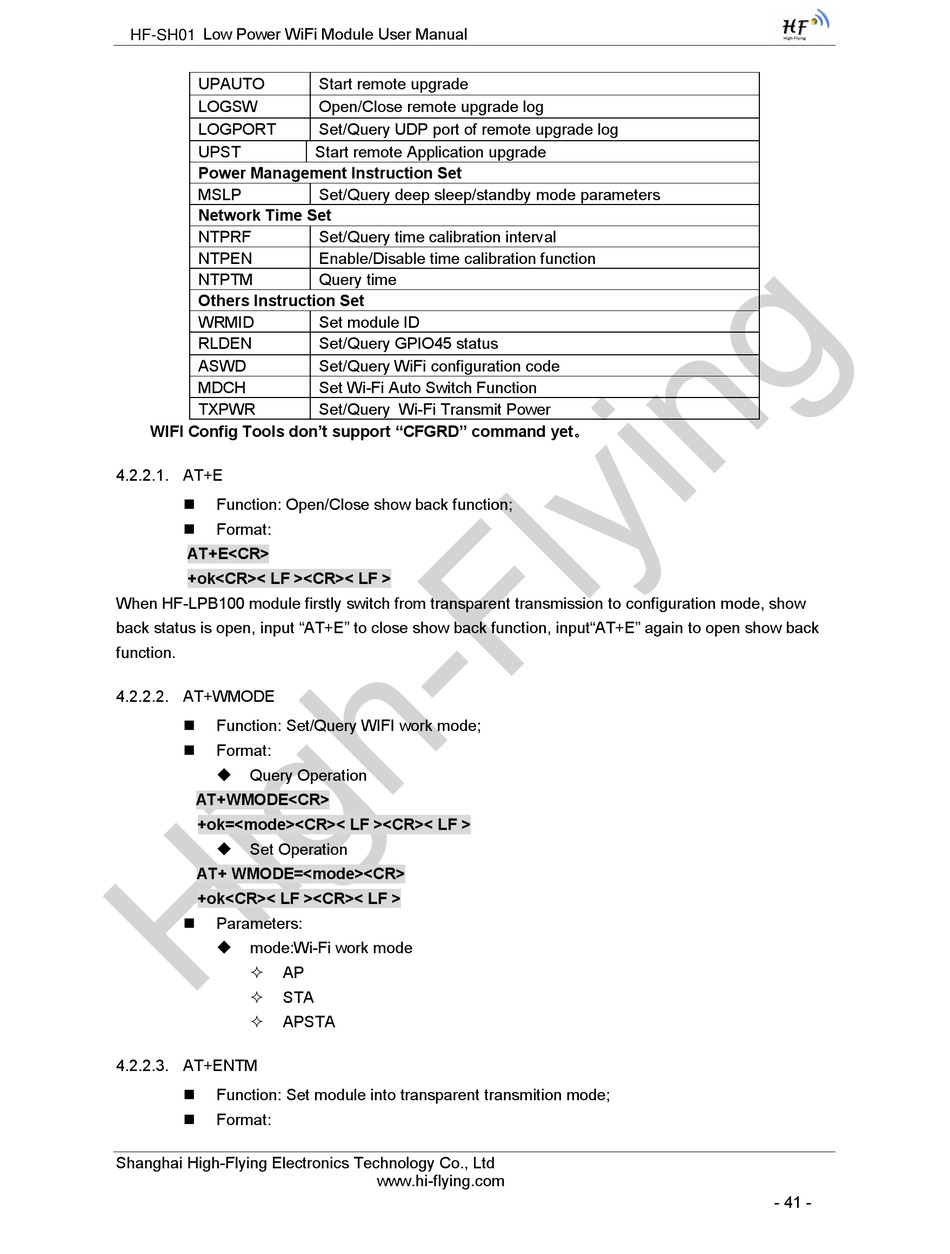

At+E; At+Wmode; At+Entm - Shanghai High-Flying Electronics HF-SH01 User Manual

Low Power WiFi Module User Manual
UPAUTO
LOGSW
LOGPORT
UPST
Power Management Instruction Set
MSLP
Network Time Set
NTPRF
NTPEN
NTPTM
Others Instruction Set
WRMID
RLDEN
ASWD
MDCH
TXPWR
WIFI Config Tools don't support "CFGRD" command yet。

4.2.2.1. AT+E

 Function: Open/Close show back function;
 Format:
AT+E<CR>
+ok<CR>< LF ><CR>< LF >
When HF-LPB100 module firstly switch from transparent transmission to configuration mode, show
back status is open, input "AT+E" to close show back function, input"AT+E" again to open show back
function.

4.2.2.2. AT+WMODE

 Function: Set/Query WIFI work mode;
 Format:
 Query Operation
AT+WMODE<CR>
+ok=<mode><CR>< LF ><CR>< LF >
 Set Operation
AT+ WMODE=<mode><CR>
+ok<CR>< LF ><CR>< LF >
 Parameters:
 mode:Wi-Fi work mode
 AP
 STA
 APSTA

4.2.2.3. AT+ENTM

 Function: Set module into transparent transmition mode;
 Format:
Shanghai High-Flying Electronics Technology Co., Ltd
Start remote upgrade
Open/Close remote upgrade log
Set/Query UDP port of remote upgrade log
Start remote Application upgrade
Set/Query deep sleep/standby mode parameters
Set/Query time calibration interval
Enable/Disable time calibration function
Query time
Set module ID
Set/Query GPIO45 status
Set/Query WiFi configuration code
Set Wi-Fi Auto Switch Function
Set/Query Wi-Fi Transmit Power
www.hi-flying.com
- 41 -
