3. OPERATION GUIDELINE

3.1. Configuration via Web Accessing

When first use HF-LPB100 modules, user may need some configuration. User can connect to HF-
LPB100 module's wireless interface with following default setting information and configure the
module through laptop.
Table 8
Parameters
SSID
IP Address
Subnet Mask
User Name
Password

3.1.1. Open Web Management Interface

Step 1: Connect laptop to SSID "HF-LPB100" of HF-LPB100 module via wireless LAN card;
Step 2: After wireless connection OK. Open Wen browser and access "http://10.10.100.254";
Step 3: Then input user name and password in the page as following and click "OK" button.
The HF-LPB100 web management page support English and Chinese language. User can select
language environment at the top right corner and click "Apply" button.
The main menu include nine pages: "System", "Work Mode", "STA Setting", "AP Setting", "Other
Setting", "Account", "Upgrade SW", "Restart", "Restore".

3.1.2. System Page

At this page, user can check current device's important information and status such as: device ID
(MID), software version, wireless work mode and related Wi-Fi parameters.
Shanghai High-Flying Electronics Technology Co., Ltd
HF-LPB100 Web Access Default Setting
Default Setting
HF-LPB100
10.10.100.254
255.255.255.0
Admin
Admin

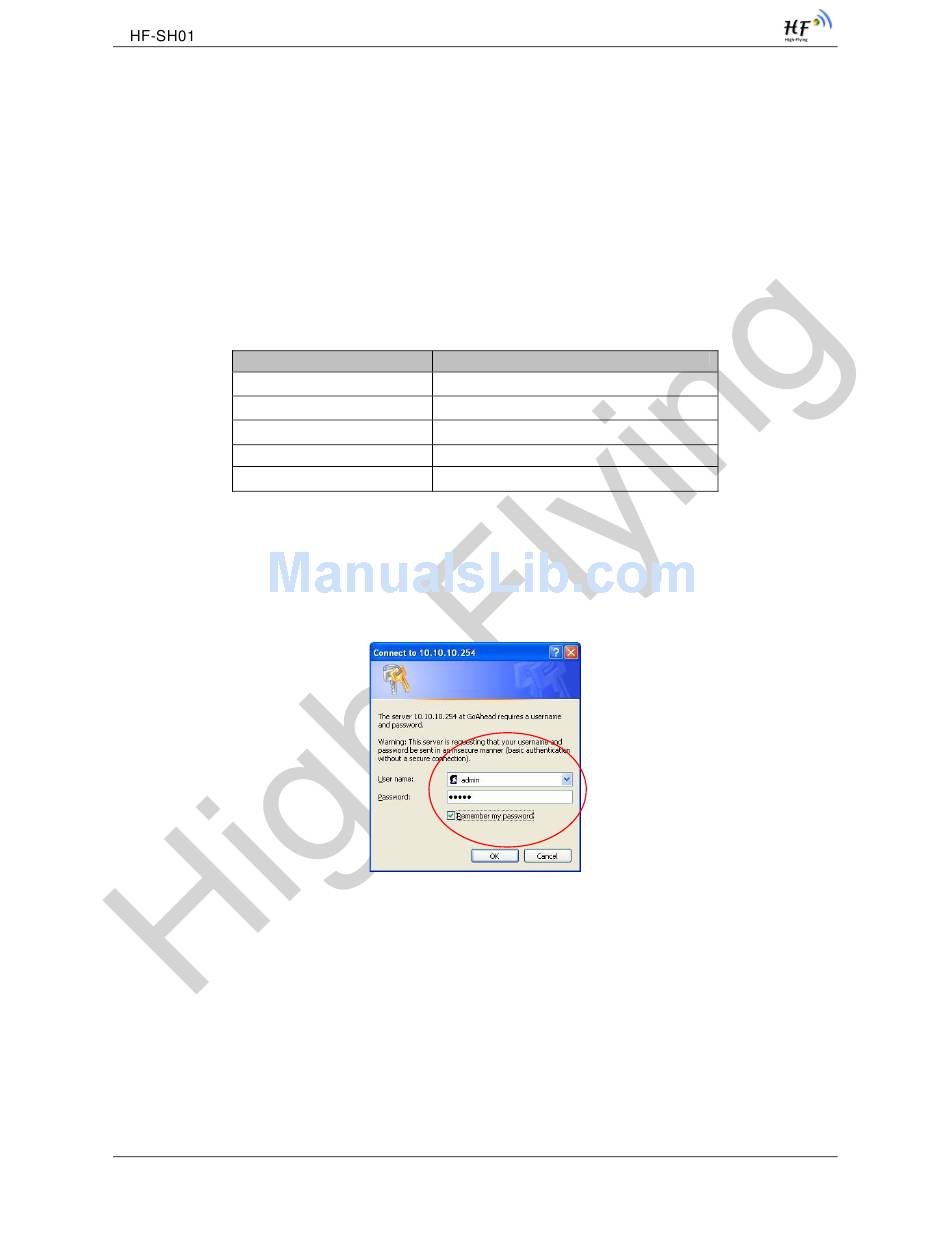

Figure 13. Open Web Management page
