GAUGE INSTALLATION
Pipe Mount – The digital test gauge comes standard with a
tion. Good piping practices recommend using teflon tape or a pipe sealant
on the gauge threads. Utilize a ⁄ ˝ wrench on the wrench flat of the gauge
7
16
to tighten the gauge to the process.
NEVER TIGHTEN GAUGE THREADS BY HOLDING THE BODY OF THE GAUGE.
DOING SO MAY DAMAGE THE GAUGE AND MAKE THE GAUGE INOPERABLE.

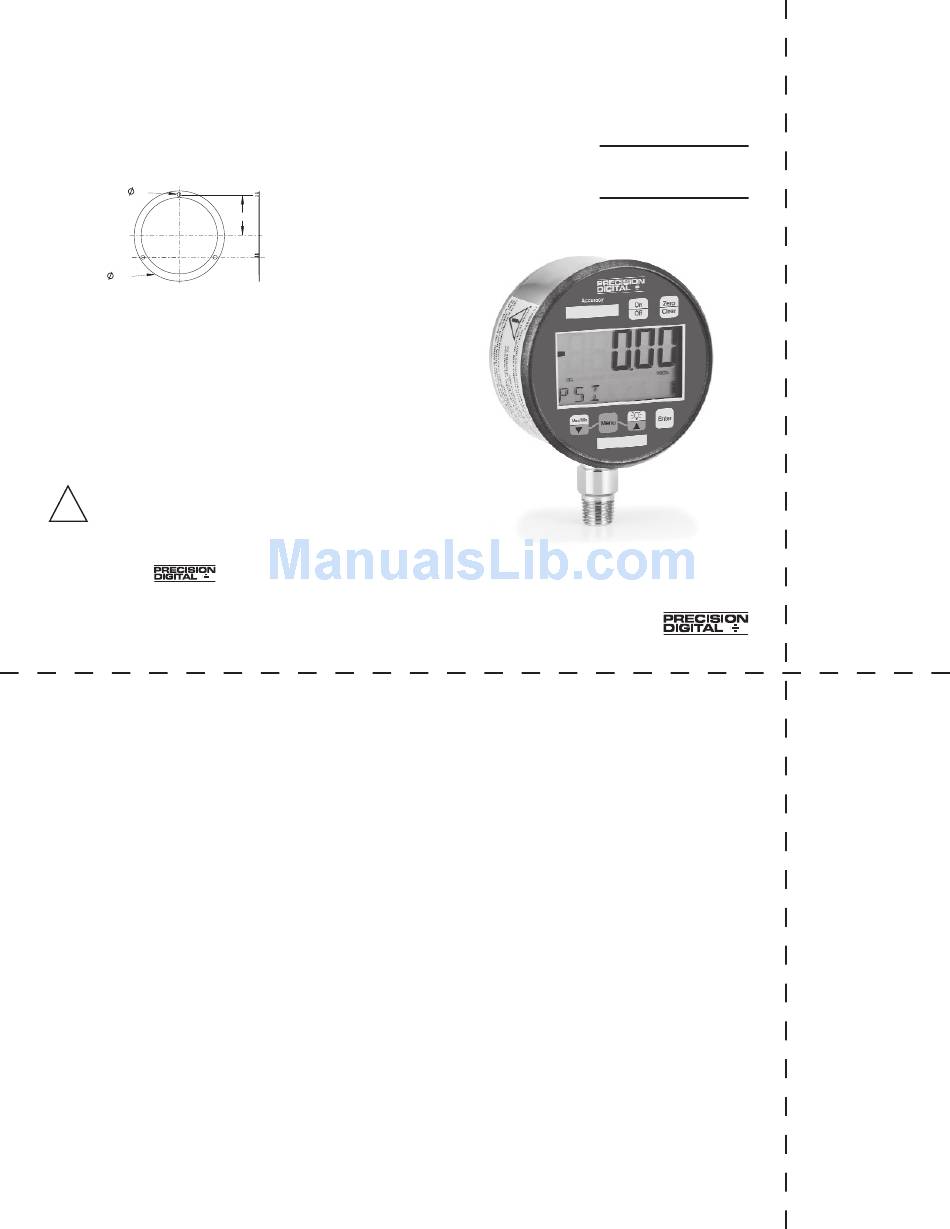

Panel Mount – The lower connected digital test gauge is available with an
optional flange for panel mounting. Please refer to illustration and dimen-
sions below.
.17
HOLE
CUTOUT
DIAMETER
3.406
(3 13 ⁄ ± 1 ⁄ )
32 32
4.00
Battery Installation and Replacement:
The gauge comes standard with a quantity of three AAA alkaline batteries
(installed). Use either Duracell MN2400, MX2400 or Energizer E92BP,
X92RP AAA alkaline, non-rechargeable batteries.
Batteries have a life of approximately 1000 hours. Battery life is dependent
on gauge usage, backlite settings and power off settings. When the display
flashes LOW BAT, batteries should be replaced.
To replace the batteries:
1) Remove the single screw on the back of the gauge case.
2) Hold the keypad in the palm of hand.
3) Carefully remove the three batteries from the holder and replace the bat-
teries. Use only AAA alkaline non-rechargeable batteries.
!
Pipe to which gauge is attached must be properly grounded.
I&M008-10135-9/05 dwg. 83B234-01 Rev. A
⁄ NPT connec-
1
4
1.860
Precision Digital Corporation
19 Strathmore Road
Natick, MA 01760-2418
Tel: 800-343-1001
Fax: 508-655-8990
Precision Digital
Test Gauge
Model PD233, PD243,PD253
Operating
Instructions
