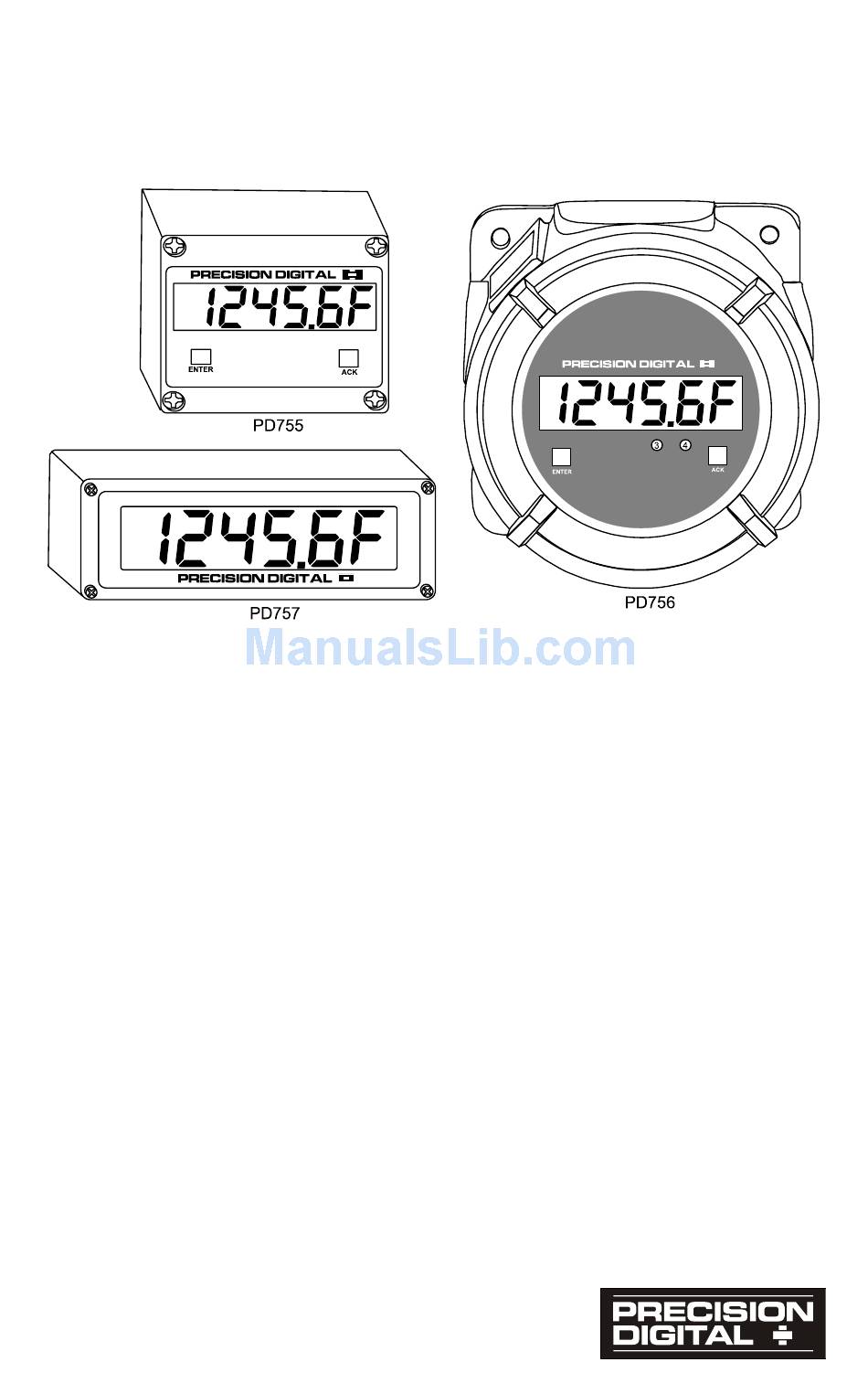

Large Display Temperature Meters
Instruction Manual
• Handles Thermocouple and RTD Inputs with Simplicity
• J, K, T, E, R and S Thermocouples
• 100 Ω Platinum RTDs (0.00385 or 0.00392 curve)
• Large Display Readouts: 2.3", 1.0" and 0.8" High
• Display Resolution
Thermocouples: 1°, Type T T/C Displayed to 1° or 0.1°
RTDs Resolution: 1° or 0.1°, Field Selectable
• Displays °F or °C, Field Selectable
• No Calibration Necessary – Factory Calibrated
• Maximum/Minimum Temperature Display
• Input Offset Adjustment
• NEMA 4X and Explosion-Proof Enclosures
• 115 or 230 VAC Power, Field Selectable
• 24 VDC Powered Models, Optional
• 24 VDC Isolated Power Supply Standard on AC Models
• 4 Visual Alarm Points with Front Panel LED Status Indication
• 2 or 4 Relays and/or 4-20 mA Output Options
PRECISION DIGITAL CORPORATION
19 Strathmore Road • Natick MA 01760 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
