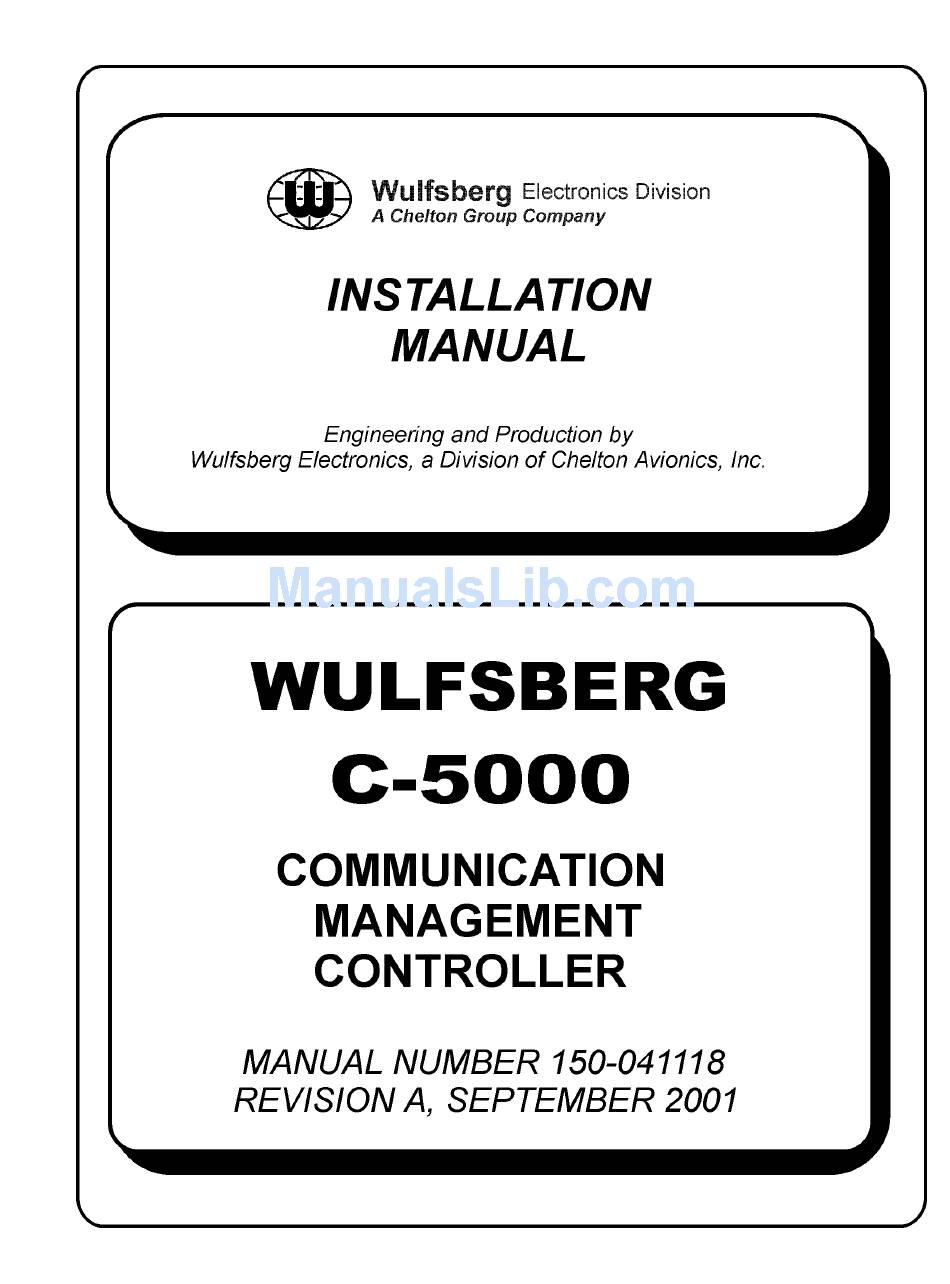

Page 2 Wulfsberg Electronics Division, located in Prescott, Arizona, designs and manufactures the C-5000 Communication Management Controller Wulfsberg Electronics Division makes no warranty, expressed or implied, with regard to this manual, including but not limited to any implied warranties of merchantability, fitness for a particular purpose, and non-infringement.
Page 3 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Record of Revisions Date Date Date Inserted Date Inserted 9/2001 Publication No. 150-041118 Page iii Rev A Table of Contents Sep 2001...
Page 4 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Record of Revisions Date Date Date Inserted Date Inserted Page iv Publication No. 150-041118 Table of Contents Rev A Sep 2001...
Page 5: Table Of Contents
FLEXCOMM II ....................2-2 FLEXCOMM I ....................2-8 System Interface......................2-9 C-5000 Control Unit/FLEXCOMM II RT System Interface ......2-10 C-5000 Control Unit/FLEXCOMM I RT System Interface ......2-11 C-5000 Control Unit/Hybrid FLEXCOMM II/FLEXCOMM I Interface ..2-12 System Operational Modes ..................2-13 Single Channel Normal Operation...............
Page 6 AT-140 ......................3-5 SECTION 4 - ELECTRICAL INSTALLATION General ........................4-1 Wiring Considerations....................4-1 C-5000 System Interface Connector, P500........... 4-2 C-5000 Transceiver Interface, RT-5000 ............4-13 RT-=5000 Transceiver Installation .............. 4-17 C-5000 Communication Management Controller Installation...... 4-35 C-5000 Transceiver Interface FLEXCOMM..........4-37 C-5000 Transceiver Interface ..............
Page 7 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL TABLE OF CONTENTS (cont’d) Page SECTION 5 – CONFIGURATION AND PROGRAMMING Introduction ..........................5-1 Features........................5-1 Transceiver Overview ....................5-1 Steps to Successful Setup and Operation..............5-3 Basic Operation ........................5-4 Front Panel & Controls ....................5-4 The Home Page......................
Page 8 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL TABLE OF CONTENTS (cont’d) Page SECTION 5 –CONFIGURATION AND PROGRAMMING (cont’d) Disabling (Turning Off) a Transceiver............5-11 Enabling (Turning On) a Transceiver ............5-11 Using the Edit Page ....................... 5-13 Editing a Preset Channel ..................5-13 Editing a Manual Channel..................
Page 9 Configuring the C-5000......................5-32 Configuring the C-5000..................... 5-32 Configuring the C-5000 to Control an RT-5000............5-34 Configuring the C-5000 to Control a Non RT-5000 ..........5-35 Setting Passwords ....................5-38 Setting Miscellaneous Configuration Options............5-39 Configuring the C-5000 Using a PC ................. 5-40 Downloading a Configuration from RP into the C-5000 ......
Page 10 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL TABLE OF CONTENTS (cont’d) Page SECTION 6 – SYSTEM VERIFICATION PROCEDURE General ........................7-1 System Checkout......................7-1 Page x Publication No. 150-041118 Table of Contents Rev A Sep 2001...
Page 11: Section 1 - Introduction
This section contains system component dimensions, the racking requirements, weights, and component installation data. SECTION 4 - FLEXCOMM II ELECTRICAL INSTALLATION This section contains the wiring information to install the C-5000 Control Unit with the FLEXCOMM II Transceiver in an aircraft. SECTION 5 - FLEXCOMM I ELECTRICAL INSTALLATION This section contains the wiring information to install the C-5000 Control Unit with the FLEXCOMM I Transceiver in an aircraft.
Page 12: Components
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Components The following components can be installed: A. Communication Management Controller C-5000 PN 31300-1X02-1XX0 (See Figure 1-1) B. FLEXCOMM II (1) Transceivers RT-5000 PN 400-015525-XXXX (See Table 1-1) (2) Antennas Systems (Refer to Table 1-2)
Page 13: Flexcomm Ii
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL C. FLEXCOMM I (1) Transceivers RT-30 PN 400-0098-XXX (See Table 1-3) RT-118 PN 400-0119-XXX (See Table 1-4) RT-138 PN 400-0102-XXX (See Table 1-5) RT-138F PN 400-014525-XX/5X (See Table 1-6) RT-406F PN 400-012785-XX/5X (See Table 1-7)
Page 14: Part Numbering
PN 300-031325. Processor board PN 300-017305 can be used with Parallel R/T PN 300-031325 and Serial R/T board PN 300-016290. The installation and operation of the Frequency Agile C-5000 Control Unit is limited to aircraft installations per FCC Rules and Regulations, Part 90, Section 90.423 and 90.203(h).
Page 15 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Table 1-1. RT-5000 Part Numbers Part Number RT-5000 Description 400-015525-0101 Transceiver, No Guard Receiver 400-015525-0201 Transceiver, Crystal Controlled Guard Receiver, 30MHz -50MHz 400-015525-0301 Transceiver, Crystal Controlled Guard Receiver, 138 MHz - 174 MHz 400-015525-0401...
Page 16 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Table 1-1. RT-5000 Part Numbers (cont’d) Part Number RT-5000 Description 400-015525-2311 Transceiver, VHF138 MHz MTM Guard Receiver and UHF403 MHz MTM Guard Receiver 400-015525-2411 Transceiver, D.E.S. Encrypted VHF138 MHz MTM Guard Receiver and D.E.S.
Page 17 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Table 1-3. RT-30 Part Numbers Part Number RT-30 Description 400-0098-000 Transceiver, FLEXCOMM Lo Band VHF, 29.70-49.99 MHz. 400-0098-001 Transceiver, FLEXCOMM Lo Band VHF, 29.70 - 49.99 MHz, with Guard Receiver 400-0098-002 Transceiver, FLEXCOMM Lo Band VHF, 29.70 - 49.99 MHz, with Guard Receiver and Guard Receiver CTCSS Tones.
Page 18 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Table 1-6. RT-138F Part Numbers Part Number RT-138F Description 400-014525-00 Transceiver, FLEXCOMM Hi Band VHF, 138.0000-173.9975 MHz. 400-014525-01 Transceiver, FLEXCOMM Hi Band VHF, 138.0000 - 173.9975 MHz, with Guard Receiver. 400-014525-02 Transceiver, FLEXCOMM Hi Band VHF, 138.0000 - 173.9975MHz, with Guard Receiver and Guard Receiver CTCSS Tones.
Page 19 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Table 1-7. RT-406F Part Numbers Part Number RT-406F Description 400-012785-00 Transceiver, FLEXCOMM UHF Band, 406.0000 511.9875 MHz. 400-012785-01 Transceiver, FLEXCOMM UHF Band, 406-0000 511.9875 MHz, with Guard Receiver. 400-012785-02 Transceiver, FLEXCOMM UHF Band, 406.0000 511.9875 MHz, with Guard Receiver and Guard Receiver CTCSS Tones.
Page 20 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Table 1-9. RT-7200 Part Numbers Part Number RT-7200 Description 400-0087-000 Transceiver, RT-7200 VHF HI-Band, 138.0000 - 173.995 MHz, 14/28 VDC, 100mW Audio, Recessed Connector. 400-0087-001 Transceiver, RT-7200 VHF HI-Band, 138.00 - 173.995 MHz, 14/28 VDC, 100mW Audio, Recessed Connector, with Guard Receiver.
Page 21 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Table 1-11. RT-9600F Part Numbers Part Number RT-9600F Description 400-0140-002 Transceiver, RT-9600F VHF HI-Band, 150.0000 - 173.995 MHz, 14/28 VDC, 100 mW Audio, Protruding Connector 400-0140-005 Transceiver, RT-9600F VHF HI-Band, 150.0000 - 173.995 MHz, 14/28 VDC,...
Page 22 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Table 1-11. RT-9600F Part Numbers (Cont’d) Part Number RT-9600F Description 400-0140-076, Transceiver, RT-9600F VHF HI-Band, 150.0000 - 173.995 MHz, 14/28 VDC, 400-0140-176 100 mW Audio, Recessed Connector, with CTCSS Tones, and Voice Encryption interface compatible 400-0140-077, Transceiver, RT-9600F VHF HI-Band, 150.0000 - 173.995 MHz, 14/28 VDC,...
Page 23: Section 2 - System Installation
General This section contains system specifications, interface information, and examples of typical system configurations for the C-5000 Communication Management Controller installed with FLEXCOMM II, FLEXCOMM I, or a configuration consisting of both FLEXCOMM II and FLEXCOMM I transceivers. System power requirements are included in Table 2-1. Figures 2-1 through 2- 6 show generalized system interface diagrams.
Page 24 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Figure 2-4. Dual Transceiver, RT-5000 and Flexcomm I Figure 2-5. Dual Transceiver, RT-5000 and Parallel Flexcomm I Transceivers Figure 2-6. Dual Transceiver with External Encryption Page 2-2 Publication No. 150-041118 Section 2 – System Installation...
Page 25: C-5000 Communication Management Controller
A. C-5000 Communication Management Controller Note: The installation and operation of the Frequency Agile C-5000 Control Unit is limited to aircraft installations per FCC Rules and Regulations, Part 90, Section 90.423 and 90.203(h). A non-frequency agile C-5000 is available for other than aircraft installations and is in compliance with FCC Rules and Regulations 90.203(g).
Page 26: Flexcomm Ii
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (5) Audio Output: Standard: 100 mV into 600 ohm load, shop adjustable 0.1 to 250 mW, 600 ohms Unsquelched Audio: 0.5 VRMS/2k ohms, adjustable 0.1 to 1.5 V (6) Audio Input Level: Std. Voice: 0.25 Vrms 150 ohm balanced pair, shop adjustable 30 mV to 1.5 Vrms Narrowband: same as...
Page 27 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL C. RT-5000 Antennas AT-560 Antenna Frequency: 29.7 - 960 MHz VSWR: 2.5:1 maximum Radiation Pattern: Omnidirectional in azimuth Polarization: Vertical Impedance: 50 ohms Power: 20 Watts Gain: 30 MHz, -14 dBi 88 MHz, -6 dBi...
Page 28 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Frequency: 29.7 - 960 MHz VSWR: 2.5:1 maximum Radiation Pattern: Omnidirectional in azimuth Polarization: Vertical Impedance: 50 ohms Power: 20 Watts Gain: 30 MHz, -15 dBi 88 MHz, -7.5 dBi 118-174 MHz, -3 dBi 225-960 MHz, 0 dBi Temperature: -55°C to + 70°C...
Page 29 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL AT-50 Antenna Frequency: 29.7 - 400 MHz VSWR: 2: 1 maximum Radiation Pattern: Omnidirectional in azimuth Polarization: Vertical Impedance: 50 ohms Power: 20 Watts Gain: 30 MHz, -11 dBi 88 MHz, -6 dBi 108-174 MHz, 0 dBi 225-400 MHz, + 2 dBi Temperature: -54°C to + 71°C...
Page 30 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL AT-140 Antenna Frequency: 29.7 - 400 MHz VSWR: 2.5: 1 at 30-88 MHz 5.0: 1 at 108-117 MHz 2.5: 1 at 118-174 MHz 2.0: 1 at 225-400 MHz Radiation Pattern: Omnidirectional in azimuth Polarization: Vertical...
Page 31: Flexcomm I
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL D. FLEXCOMM I Note: Refer to FLEXCOMM I Transceiver System Installation Manual, Manual Number 150-040011, for specification data on FLEXCOMM Transceivers and Antennas. Refer to VHF/FM Transceivers RT-7200, RT-9600, AN/ARC-513(V) Installation /Operators Manual, Manual Number 150-0061-000, for specification data on RT-9600 and RT-7200 transceivers.
Page 32 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL This page intentionally left blank. Page 2-10 Publication No. 150-041118 Section 2 – System Installation Rev A Sep 2001...
Page 33: Section 3 - Mechanical Installation
General This section contains instructions and considerations for the proper mechanical installation of the C-5000 Communication Management Controller with FLEXCOMM II and FLEXCOMM I Systems. The information presented here is necessary for the proper operation and satisfactory performance of the equipment.
Page 34: General Installation Requirements
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL General Installation Requirements A. Component Weights Component Weight C-5000 3.1 to 3.9 lbs (1.4 to1.8 kg) depending on configuration RT-5000 16.2 to 19.7 lbs (7.3 to 8.9 kg) depending on configuration AT-560 2.7 lbs (1.2 kg) AT-160 2.7 lbs (1.2 kg)
Page 35: Installation Of Multipin Crimp Connectors
423 N. Campbell Ave. PO Box 8247 Springfield, Missouri 65801 Installation of C-5000 Mount C-5000 on Dzus/rails per MIL MS-25213. See Figure 3-1 for mounting dimensions. Installation of RT-5000 The RT-5000 is designed for horizontal or vertical fixed tray mounting. However, vertical A minimum of 1 inch clearance is required on all mounting results in better cooling.
Page 36: Installation Of Antennas
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Installation of Antennas The antenna should be mounted on the bottom of the aircraft if possible. Unpainted aluminum base must make good electrical contact with airframe. Antenna should be installed on flat surface. A bead of sealant such as Dow Corning RTV-738 should be applied to the outside perimeter of the mounting surface.
Page 37 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Note: For full 29.7-900 MHz frequency coverage, the user must also install the AT-400 antenna for 400-960 frequencies. See the AT-50 and AT-51 envelope drawings, Figures 3-10 and 3-11, for dimensions. Mount antenna with No. 10 screws.
Page 38 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL This page intentionally left blank Page 3-6 Publication No. 150-041118 Section 3 – Mechanical Installation Rev A Sep 2001...
Page 39 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page and insert: 154-031300, Sheet 1 of 1 (Figure 3-1) 154-015525, Sheet 1 of 1 (Figure 3-2) 300-316835, Sheet 1 of 1 (Figure 3-3) 300-316605, Sheet 1 of 1 (Figure 3-4) 121-040130, Sheet 1 of 1 (Figure 3-5)
Page 40 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page. Page 3-8 Publication No. 150-041118 Section 3 – Mechanical Installation Rev A Sep 2001...
Page 41: Section 4 - Electrical Installation
If two radios are installed, use primary mic/headset for transceiver system #1 and secondary mic/headset for transceiver system #2. If only one mic/headset port is available on the audio panel, use the primary mic/headset port and configure the C-5000 to operate in “single mic mode”.
Page 42: C-5000 System Interface Connector, P500
Note that if you have two RT-5000’s in your system, copy the wiring illustrated for P501 to P502. In other words, choose the wiring for each radio and apply it to the appropriate connector. A. C-5000 System Interface Connector, P500 Wiring Considerations (1) P500 Connector Figure 4-2...
Page 43 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (2) System Interface Connector P500 Pin Names. SIGNAL NAME SIGNAL NAME RT-X REXMT AUDIO OUT RESERVED SPARE C RS-422 TX LO RT-X SELECT B XMT AUDIO IN HI RT-X REXMT CONTROL KEY OUT XMT AUDIO COMMON...
Page 44 (7) Shield (Pin 11) All shields of signals originating at the C-5000 and terminating at other equipment should be connected to this pin and left unterminated at the other equipment. Similarly, the shields of signals originating at other equipment and terminating at the C-5000 should be grounded at the other equipment and left unterminated at the C-5000.
Page 45 These pins provide for aircraft lite dimmer bus control of the keyboard lighting. Either 28 Vdc, 5 Vrms or 5 Vdc lighting may be used. The C-5000 does not draw power from the buss but simply monitors the voltage for proper lite tracking. Only 5 V or 28 V may be connected at once.
Page 46 This pin provides a ground to repeat the mic input (primary only). (21) PTT From External Cipher (Pin 15) When grounded, this pin will cause the C-5000 to remain in transmit mode. Transmitter end of text messages can be transmitted after mic PTT has been released by utilizing this input as a stretched or delayed PTT input.
Page 47 1, 2 or 3 to be routed to the internal or external system interface for encryption or other functions connected to the system interface. Normal mode with C-5000 selection of the RT-X (1, 2 or 3) system is provided when these lines are open circuit.
Page 48 The signal is the decoded or de-encrypted voice band clear text from the encryption system. By proper C-5000 system programming, this signal can be routed directly as the selected RT system (1, 2 or 3) recovered audio or it can be internally summed with the selected RT system guard audio, sidetone, or both.
Page 49 200 mA. In addition, the combined external load of +15V, -15V and +5V outputs cannot exceed 11.5 Watts. (37) AUX GND (Pin 62) This is a C-5000 power ground connection suitable for electrical reference ground to other auxiliary equipment. Publication No. 150-041118...
Page 50 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL This page intentionally left blank. Page 4-10 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 51 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page and insert 147-014995 Sheet 1 of 1 (Figure 4-3) Publication No. 150-041118 Page 4-11 Rev A Section 4 –Electrical Installation Sep 2001...
Page 52 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page. Page 4-12 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 53 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL B. C-5000 Transceiver Interface to RT-5000 Transceiver Wiring Considerations (1) P501/P502 Connectors Figure 4-4. P501/P502 Connectors (2) C-5000 Transceiver (RT-5000) Connector P501, P502. SIGNAL NAME SIGNAL NAME DIGITAL SHIELD SPARE CONTROL TX L SPARE...
Page 54 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Note: Verify that the C-5000 Serial RT Card is installed in for this interface. (3) Digital Shield (Pin 1) Shield ground connection for RS-422. (4) Control TX L (Pin 2) This output is the active low sense serial data output and meets EIA RS-485 voltage levels.
Page 55 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (16) Spare (Pin 15) (17) Plain/Cipher (Pin 16) 30 mA to ground is standard; open is cipher. (18) Take Control (Pin 17) Grounding tri-states RS-422 TX lines. (19) EXT XMT Audio (Pin 18) This output is the single ended extra wide band audio output. It has a nominal impedance between 2k Ohms and 5k Ohms and a 3 dB bandwidth of 1 Hz to 40 kHz.
Page 56 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (29) UNSQL MN RCV AUDIO (Pin 31) (30) Spare (Pin 32) (31) TX (Pin 33) Grounding activates transmit. (32) In Spare No. 3 (Pin 34) (33) Spare (Pin 35) (34) In Spare No. 2 (Pin 36) (35) Control Ground (Pin 37) Loss of this ground may disable the RT-5000 or cause intermittent function.
Page 57: Rt-=5000 Transceiver Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL C. RT-5000 Transceiver Installation Wiring Considerations (1) J101 Connector Figure 4-5 Connector J101 Publication No. 150-041118 Page 4-17 Rev A Section 4 –Electrical Installation Sep 2001...
Page 58 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (2) RT-5000 Transceiver Connector J101 Pin Names. SIGNAL NAME SIGNAL NAME AUX AUDIO IN GUARD AUDIO INHIBIT AUX SIDETONE AUDIO HI RES SPARE A AUDIO LO CONTROL GND AUDIO SHIELD GND ANT RX H...
Page 59 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (3) RT-5000 Connector J101 (a) Aux Audio In (Pin A) This input will take audio from an external source unit and add to the normal transceiver audio. (b) Aux Sidetone (Pin B) This input will take alert tone audio from an external source and produce headset sidetone.
Page 60 CONTROL TX L (Pin L) This input is the active low sense serial data input and meets EIA RS-485 voltage levels. The data from this input comes from the C-5000. CONTROL TX H (Pin M) This input is the active high sense serial data input and meets EIA RS-485 voltage levels.
Page 61 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL This input is the standard 150 Ohm carbon microphone high input. The nominal input is .25 Vrms and is adjustable over a range of .125 Vrms to 1.5 Vrms. The 3 dB bandwidth is 100 Hz to 8.7 kHz for raw audio and 300 Hz to 3 kHz for processed audio per EIA specifications.
Page 62 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (gg) AUDIO HI (Pin j) This is the high side differential audio output. It can drive a 150 Ohm load to 100 mW and a 600 Ohm load to 25 mW. 3 dB bandwidth is 300 Hz to 3 kHz.
Page 63 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Grounding this input causes 180 degrees of phase shift in the main received audio. This phase shift may be required when using an external encryption device. (rr) WIDE BAND GUARD RX AUDIO (Pin w) This output is the single ended wide band guard audio output.
Page 64 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL SIGNAL NAME SIGNAL NAME RECEIVE HI RECEIVE LO GROUND TRANSMIT HI TRANSMIT LO GROUND GROUND GROUND Figure 4-6. FC-50 / FC-550 / FC-5000 Connector J1 Page 4-24 Publication No. 150-041118 Section 4 – Electrical Installation...
Page 65 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL SIGNAL NAME SIGNAL NAME +27.5 VDC DC RETURN Figure 4-7. FC-50 / FC-550 / FC-5000 Connector J2 Publication No. 150-041118 Page 4-25 Rev A Section 4 –Electrical Installation Sep 2001...
Page 66 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL NOTE: FC-50 Connector J3 connects to AT-50/AT-51 antennas. These pins provide proprietary channeling information to the antenna. SIGNAL NAME SIGNAL NAME Proprietary Proprietary Proprietary Proprietary Proprietary Proprietary Proprietary Proprietary Proprietary Proprietary Figure 4-8. FC-50 / FC-550 / FC-5000 Connector J3 Page 4-26 Publication No.
Page 67 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page and insert 152-140131 Sheet 1 of 4 (Figure 4-9) Publication No. 150-041118 Page 4-27 Rev A Section 4 –Electrical Installation Sep 2001...
Page 68 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page. Page 4-28 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 69 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page and insert 152-140131 Sheet 2 of 4 (Figure 4-9) Publication No. 150-041118 Page 4-29 Rev A Section 4 –Electrical Installation Sep 2001...
Page 70 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page. Page 4-30 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 71 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page and insert 152-140131 Sheet 3 of 4 (Figure 4-9) Publication No. 150-041118 Page 4-31 Rev A Section 4 –Electrical Installation Sep 2001...
Page 72 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page. Page 4-32 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 73 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page and insert 152-140131 Sheet 4 of 4 (Figure 4-9) Publication No. 150-041118 Page 4-33 Rev A Section 4 –Electrical Installation Sep 2001...
Page 74 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page. Page 4-34 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 75: C-5000 Communication Management Controller Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL D. C-5000 Communication Management Controller Installation Wiring Considerations (1) C-5000 Transceiver (FLEXCOMM I) Connector P501 or P502. Figure 4-10. C-5000 Transceiver (FLEXCOMM I) Connector P501 or P502 Publication No. 150-041118 Page 4-35 Rev A Section 4 –Electrical Installation...
Page 76 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (2) C-5000 Transceiver (FLEXCOMM I) Connector P501 or P502. SIGNAL NAME SIGNAL NAME TONE C LINE 4 MHZ CHN LINE TX PWR LITE MIC LO/PTT 0.08 MHZ CHN LINE 0.01 MHZ CHN LINE 120 MHZ CHN LINE 0.005 MHZ CHN LINE...
Page 77: C-5000 Transceiver Interface Flexcomm
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL E. C-5000 Transceiver Interface FLEXCOMM Transceivers, RT-30, RT-118, RT-138, RT-138F, RT-406F and RT-450 Figure 4-11. Table 4-5. CHANNEL LINES (Pins 3, 4, 5, 9, 10, 26, 27, 28, 30, 31, 32, 34, 35, 37, 44, 49, 51,...
Page 78 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL This line, when grounded, will activate the 28 V system relay and provide +27.5 Vdc aircraft power to the Transceiver. MAIN RX AUDIO DISABLE (Pin 13) Grounding this line mutes Main Receiver audio, but does not affect sidetone or Guard Receiver audio.
Page 79 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL • Antenna switching • External encoder enable (disable). • External decoder enable (disable). • Any functional or equipment switching associated with a given channel. These switch closures may be combined with a digital decoder to expand the capabilities.
Page 80 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL 5 kHz. Standard 3 kHz modulation of a 1 kHz tone will produce approximately 0.6 Vrms into a 20k Ohm load. (21) MAIN AUDIO INHIBIT (Pin 13) This line will mute Main Receiver audio when grounded and can be paralleled for use with external decoders.
Page 81 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Figure 4-12a. FLEXCOMM Transceivers Installation Wiring Diagram (Sheet 1 of 3) RT-30, RT-118, RT-138, RT-138F, RT-450 and RT-406F (Dwg No 147-014991, Rev B) Publication No. 150-041118 Page 4-41 Rev A Section 4 –Electrical Installation...
Page 82 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL This page intentionally left blank. Page 4-42 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 83 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page and insert 147-014991 Sheet 2 of 3 (Figure 4-12b) Publication No. 150-041118 Page 4-43 Rev A Section 4 –Electrical Installation Sep 2001...
Page 84 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page. Page 4-44 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 85 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page and insert 147-014991 Sheet 3 of 3 (Figure 4-12c) Publication No. 150-041118 Page 4-45 Rev A Section 4 –Electrical Installation Sep 2001...
Page 86 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page. Page 4-46 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 87: F. C-5000 Transceiver Interface
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL F. C-5000 Transceiver Interface, RT-9600, RT-9600F, RT-7200 Transceivers (1) Connector P501/P502 Figure 4-13. Connector P501/P502 Publication No. 150-041118 Page 4-47 Rev A Section 4 –Electrical Installation Sep 2001...
Page 88 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (2) C-5000 Transceiver (RT-9600(F)/7200) Connector P50X (P501, P502, or P503) SIGNAL NAME SIGNAL NAME TONE SELECT C 4 MHZ TX POWER ANNUNCIATE 0.08 MHZ 0.01 MHZ 20 MHZ 0.005 MHZ 80 MHZ GUARD TONE ENABLE TONE E RT7200: 40 MHZ, RT9600(F): .0025...
Page 89 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (3) AUDIO AND SIDETONE HI AND LO (Pins 13, 14, 15 and 16) These wires are provided separately for those systems that have separate transmitter sidetone circuits. They should be paralleled when driving a speaker directly. 10 Watt audio rated transceivers are not accommodated.
Page 90 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL (10) EXTERNAL CTCSS TONE IN (Pin 18) Provision for modulating the transmitter with audio outside the normal audio frequency range of 300 to 3000 Hz. Approximately 0.3 Vrms will give 5 kHz deviation. (11) TRANSMITTER POWER SELECT (Pin 27) When used with control units not providing transmitter power selector switches, grounding this line at the mounting rack will provide 10 watts of RF output power.
Page 91 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page and insert 147-014992 Sheet 1 of 1 (Figure 4-14.) Publication No. 150-041118 Page 4-51 Rev A Section 4 –Electrical Installation Sep 2001...
Page 92 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Remove this page. Page 4-52 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 93 “N” for RG-58 Straight, PN 129-016858-02 “N” for RG-58 Right Angle, PN 129-016858-01 AT-140 “N” for RG-58 Straight, PN 129-016858-02 Note: Numbers in parentheses are Wulfsberg Part numbers. Equivalent connectors by other manufacturers may be substituted. Table 4-7. Connectors Used Publication No. 150-041118 Page 4-53 Rev A Section 4 –Electrical Installation...
Page 94 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL This page intentionally left blank. Page 4-54 Publication No. 150-041118 Section 4 – Electrical Installation Rev A Sep 2001...
Page 95: Introduction
Wulfsberg transceivers. The C-5000 supports the full line of Wulfsberg FLITECOMM, FLEXCOMM I, and FLEXCOMM II transceivers. This manual is intended to quickly instruct the user on the basic operations of the C-5000 and also outline the advanced operations that set the C-5000 apart from any other communication device.
Page 96 FLITECOMM This product line is no longer manufactured, but remains in wide use. It consisted of the RT-7200, RT-9600, and RT-9600F transceivers. They were available with a two-channel, crystal-controlled, Guard Receiver that could be user-specified for any Guard frequency between 138.000 and 173.9950 MHz (RT-7200) or between 150.000 and 173.9975 MHz (RT-9600/9600F).
Page 97: Steps To Successful Setup And Operation
While we would like to pull products out of the box and immediately start to use them, this system is one that takes a little work to get to that point. The following checklist will help installers and initial users setup the C-5000 and RT-5000.
Page 98: Basic Operation
Front Panel & Controls DISPLAY - The C-5000 has a 2 line display, with 20 characters on each line. It provides the visual feedback for the system. Exactly what is displayed depends on the current operating mode of the C-5000. During normal operation, the top line shows information for transceiver #1 and the bottom line shows information for transceiver #2.
Page 99 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL KEYPAD – The C-5000 has a 12 button keypad. Each button’s primary functions are described below. 1:DIR Toggles the transceiver under cursor control in and out of DIRECT mode. Use this button to enter a “1” during keypad entry mode.
Page 100: The Home Page
The Home Page The HOME PAGE is the primary operational page of the C-5000. The HOME PAGE becomes visible when the C- 5000 is ready for user input, immediately after the power up and initialization sequences have completed. The C- 5000 can control two radios.
Page 101: Turning The System On And Off
HOME button to return to the HOME PAGE. Setting the Volume Level When you first power ON the C-5000, the volume level will be reset to the level that was active when the unit was powered down. You can change the volume level as follows.
Page 102: Selecting A Preset Channel Using The Cursor/Value Knob
Selecting a Preset Channel Using the Cursor/Value Knob When the C-5000 first powers on, the selected channels will be reset to those that were active when the unit was powered down. To select a different preset channel, do one of the following: •...
Page 103: Selecting A Channel By Alphanumeric Identifier
Selecting the Manual Channel The manual channel is used to tune channels not already programmed as presets into the C-5000’s memory. Each radio has its own manual channel. The manual channel is located at channel number 0, and is displayed as “..M”.
Page 104: Using The Direct/Repeat Feature
Receiving/Transmitting Receiving The C-5000 is constantly monitoring its radios for reception. When a signal is received, the C-5000 will light the receive indicator for the receiving radio, and route the audio to the operator’s headset (Assuming the associated intercom switch is selected). The following illustration depicts Radio #1 receiving.
Page 105: Enabling/Disabling Transceivers
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL TX Indicator → → → → ► ► ► ► 1 2 3 3 0 0 . 0 0 0 T φ φ φ φ . . 1 T A C T I C A L - 0 0 1...
Page 106 → → → → 1 2 3 L U K E A F B T W R 1 φ φ φ φ . . 1 T A C T I C A L - 0 0 1 Page 5-12 Publication No. 150-041118 Section 5 –...
Page 107: Using The Edit Page
RT-5000 radios, because the other radios do not have variable power capability. The following illustration is an example of what the EDIT PAGE looks like. Your C-5000’s display may appear differently depending on the currently selected channel and its associated properties.
Page 108: Editing A Manual Channel
Changing PL & DPL (CTCSS and DCS) Tones The C-5000 supports both CTCSS (PL) and DCS (DPL) tones. The tone used by a channel can be temporarily overridden on the EDIT PAGE. You can select any valid tone, or turn tones off. (Channels programmed to use the...
Page 109: Selecting A Ctcss Tone
Rotate the VALUE knob clockwise to increment the tone, or counterclockwise to decrement the tone. Keep rotating the VALUE knob until the desired tone is displayed. Appendix A lists the frequencies associated with the Wulfsberg CTCSS tone numbers. NOTE: Selecting a DCS Tone •...
Page 110: Changing Transmit Power
Changing Transmit Power The C-5000 supports the selection of high and low transmit power. Normally high power is used, however, if interference or other transmit issues are experienced, low power may be selected to help remedy the issue. If you have a radio that supports multiple power levels, such as the RT-5000, you can alter the power setting from the EDIT PAGE as follows.
Page 111: Changing Receiver Bandwidth
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL . . 1 5 0 6 . 9 8 7 R T . 1 7 5 0 9 . 9 8 7 T T . 1 7 • Rotate the VALUE knob clockwise once. The modulation indicator will toggle between AM and FM. (118- 136 MHz and 225-400 MHz are normally AM frequencies.
Page 112: Enhanced System Features
Phone Patch Mode The C-5000 can patch into the phone system using both DTMF and pulse dialing. This requires equipment on the ground, such as a transceiver and an interface box, to connect the base station radio to the telephone lines. This is NOT a cellular phone.
Page 113: Relay Operation
Relay Operation Relay Mode allows your aircraft’s C-5000-based transceiver system to function as a cross-band repeater. If a Relay Mode link is established between two locations, a message received from one location is automatically retransmitted to the other.
Page 114: Relay/Simulcast Operation
P R E S S E N T E R B U T T O N F O R R E L A Y M O D E • Press the ENTER button. The following illustrates the RELAY PAGE for radio 1 on channel 1 and radio 2 on channel 2.
Page 115: Repeater Operation
INSTALLATION MANUAL Repeater Operation Repeater mode allows the C-5000-based system to act as an airborne repeater, providing a radio link between two ground locations that transmit and receive in the same frequency band. You can establish repeater operation as follows.
Page 116: Encryption Features
Put the cursor on the top or bottom line depending on which radio is to be selected. Press the PVT button to toggle encryption on and off. If the C-5000 has been configured to control an RT-5000 with an encryption module and the preset channel being used has been set up for encryption, the privacy indicator will light.
Page 117: Performing An Otar
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Performing an OTAR • Ensure you are on the HOME PAGE, and the cursor is on the line of the radio you wish to select and an OTAR capable channel is also selected. •...
Page 118: Erasing Encryption Keys
O T A R A B O R T I N G φ φ φ φ . . 1 T A C T I C A L - 0 0 1 The OTAR process will automatically time-out after 2 minutes of unsuccessful OTAR attempts. NOTE: Erasing Encryption Keys It may be desirable to erase the encryption keys contained in a RT-5000 transceiver.
Page 119: Manually Loading Encryption Keys
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL ← ← ← ← E N D K E Y E R A S E R A D I O K E Y S E R A S E D • Press the UPPER SOFT KEY to acknowledge the key erase is complete. The display will return to the main KEY ERASE PAGE, allowing you to select another radio and/or digital transceiver module to erase.
Page 120 ← ← ← ← E N D K V L L O A D R A D I O K V L M O D E • Connect the Key-loader device to the transceiver data port. Load the desired keys using the procedure for the key-loader as prescribed its manufacturer.
Page 121: Programming Preset Channels
Ensure you are on the HOME PAGE. • Press the PROG button. If the C-5000 has been programmed to require a password to enter this mode, you will be prompted to enter a password, as follows. E N T E R P A S S W O R D # = .
Page 122 P R O G : 2 = N E X T 3 = B A C K A D D - . . 1 • Use the cursor/value knobs to select the number for the new channel. Only available channel numbers will be displayed.
Page 123 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL • IF THE CHANNEL IS TO BE PROGRAMMED FOR THE INTERNAL TRANSCEIVER MODULE IN THE RT-5000, THE ZONE AND CHANNEL MUST MATCH THE ZONE, CHANNEL, AND FREQUENCY INFORMATION PROGRAMMED INTO THE ITM. P R O G :...
Page 124 P R O G : 2 = N E X T 3 = B A C K E N C R Y P T I O N T Y P E = C L R • Use the cursor/value knobs to input the channel’s encryption type. This option can be CLR (no encryption), EXT (external encryption), STD (internal encryption on internal transceiver module), or OTAR (internal encryption with OTAR capability on internal transceiver module).
Page 125 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL P R O G : 2 = N E X T 3 = B A C K 3 R D I N J E C T I O N = • Use the cursor/value knobs to input the channel’s third I.F. Injection as HI or LO. The default is LO. Press the MODE button to go to the next menu page.
Page 126: Configuring The C-5000
C 5 0 0 0 P / N 1 2 2 0 • Use the cursor/value knobs to input the last four digits of your C-5000’s part number. Press the MODE button to display the next menu page. Page 5-32 Publication No. 150-041118 Section 5 –...
Page 127 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL S E T U P : 2 = N E X T 3 = B A C K E N T E R = S E T U P R A D I O •...
Page 128: Configuring The C-5000 To Control An Rt-5000
Configuring the C-5000 to Control an RT-5000 This section drills down into the radio setup sub-menu pages. Refer to the section on configuring the C-5000 for details on how to reach these menu pages. This section assumes the C-5000 part number you entered indicated an RT-5000 was present for Radio #1.
Page 129: Configuring The C-5000 To Control A Non Rt-5000
R T - 3 0 P R E S E N T - N O • Use the cursor/value knobs to tell the C-5000 if an RT-30 is present. Press the MODE button to display the next menu page. Publication No. 150-041118 Page 5-35 Rev.
Page 130 R T - 1 1 8 P R E S E N T - N O • Use the cursor/value knobs to tell the C-5000 if an RT-118 is present. Press the MODE button to display the next menu page. S Y S...
Page 131 G U A R D P R E S E N T - Y E S • Use the cursor/value knobs to tell the C-5000 if a Guard is present. Press the MODE button to display the next menu page. S Y S...
Page 132: Setting Passwords
B O A R D D C S - N O • Use the cursor/value knobs to tell the C-5000 if a DCS tone board is present. Press the MODE button to display the next menu page. S E T U P...
Page 133: Setting Miscellaneous Configuration Options
Use the cursor/value knobs to tell the C-5000 if external encryption is available (Future function). This option pertains only to a separate encryption device, i.e. one that is not part of the C-5000 or any of the transceivers. A KY-58 device is a typical example. Press the MODE button to display the next menu page.
Page 134: Configuring The C-5000 Using A Pc
Downloading a Configuration from RP into the C-5000 The C-5000 continuously polls the data port on the front panel for incoming data, so all the user has to do is initiate the download from RP. Refer to RP’s user manual for details on how to initiate a download. Once the communication channel is open, the C-5000’s display will change to the following.
Page 135: Uploading A Configuration From The C-5000 Into Rp
• Ensure the serial cable is connected to both the PC and the C-5000. Ensure the RP software is ready to receive data. Refer to RP’s user manual for details on how to prepare RP to receive data. Press the LOWER SOFT button on the C-5000 to initiate the transfer.
Page 136 P R O G : 2 = N E X T 3 = B A C K < E N T E R > = L O A D • Press the HOME button to return to the HOME PAGE. You will most likely want to save the uploaded data to a disk file on the PC.
Page 137: Rss Software Description And Programming
To program the ITM inside the RT-5000 the user must use a DOS based PC (the slower the better!) and Motorola’s RSS software. Users must obtain their own copies of the Software as Wulfsberg cannot supply it. The programming of the ITM requires three basic steps. First, enter the information that has to do with the setup of the way the RT-5000 communicates with the ITM.
Page 138 RT-5000. All that is required is a DB9 female to DB9 Female Cable connected to the serial port of the PC and to the Transceiver programming connector in the aircraft. To start the download, attach the cable, setup the C-5000 for RSS programming (Described elsewhere), and press F2 on this menu.
Page 139 To perform a CLONE, have an Archive loaded into resident memory. Set up the C-5000 per instructions located elsewhere in this document to make it ready to communicate with the RSS program. Connect the PC to the RT System programming port (a DB-9 connector located somewhere in the aircraft.) Go to this screen and press F3 to...
Page 140 following this section for further explanation. The TRUNKING Systems Option listed under F4 on this menu are not used at this time. Page 5-46 Publication No. 150-041118 Section 5 – Configuration and Programming Rev. A Sep 2001...
Page 141 If a further explanation for any entry is desired, simply highlight that entry and press F1. NOTE: These are necessary to allow integration of the ITM with the C-5000/RT-5000 system. Minimum Volume – 75 Block Pending CA/PC - Disabled Alert Tones –...
Page 142 Display on PTT – KEY NAME Display on Mode Change – KEY NAME Key ID Receive Hang Time – 0 Key ID Transmit Hang Time – 0 CKR Key Management – ENABLED Migrate from Securenet – ENABLED Keyset User Selectable – ENABLED Erase Previous Keyset On User Change –...
Page 143 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL RADIO WIDE SWITCH CONFIGURATION – Displayed by pressing F4 ! F3 ! F3 ! F3 from the Main Menu. Settings should be as follows: Switch Labels Conventional Feature Trunking Feature Two Position Concentric Position A...
Page 144: Personality Programming (Conventional Analog Fm Personalities)
Monitor Type and Latch Enable Timer. They MUST be set to Open Squelch and Disabled respectively for the TEST feature to function properly on the C-5000 control head. Other settings should remain as listed below: Monitor Type – OPEN SQUELCH Latch Enable Tone –...
Page 145 Analog only channels, set this to NON-ASTRO. TX Voice/Signal Type – See above. Frequency – This is where the actual Receive and Transmit frequencies are entered. NOTE: The C-5000 PRESET CHANNEL MUST BE PROGRAMMED WITH THIS INFORMATION IN ORDER TO OPERATE PROPERLY.
Page 146 Proper Code Detect – Controls the un-mute of the speaker when encrypted data is received. When Disabled, it will unmute on reception of ALL encrypted transmissions, including those with no matching key in the ITM. Leave this ENABLED in order to keep the speaker quiet until signals are received with code matching those currently in the radio.
Page 147: Personality Programming (Conventional P25 Personalities)
Menu. This menu controls various additional options for the particular personality: Smart PTT – This feature is not enabled – Leave set to DISABLED Tx Power Level – This function is controlled by the Wulfsberg Software. Leave set to HIGH. Busy LED – Not used – May be left ENABLED Unmute Type / Mute Type –...
Page 148 TX Deviation – Transmitter Deviation – Leave set to 2.5 Khz for Digital 12.5 Khz channel spacing. TX Deviation T/A and Channel Spacing are set automatically. ASTRO CONVENTIONAL PERSONALITY OPTIONS – Displayed by pressing F4 ! F6 ! F3! F9 ! F6 from the Main Menu.
Page 149 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL DOS (Data Squelch) – ENABLED Operation – 1200-1800 Khz Coast Time – 267.00 Sel Call Reset – Auto w/Carr Auto Reset Time – 5 CALL LIST TABLE – Displayed by pressing F4 ! F6 ! F4 ! F4 from the Main Menu. This table is for setting up group and individual calling in an MDC Analog system.
Page 150 Although it has no functionality in the C-5000 integration, the channel locations within a zone should be labeled with the proper name of the frequencies that are loaded into the respective personality. This will aid greatly in viewing printouts of the codeplug data. If a given zone has more than 8 channels assigned to it, use the page up or page down buttons to slew the display screen to the opposing set of 8 channels within the zone.
Page 151 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL PRINT MENU – Displayed by pressing F5 from the Main Menu. This menu lists the various printouts that the RSS software can generate. The most simplistic printer available will be the best to use. If an old Dot Matrix is available, use that.
Page 152: Glossary
Flexcomm I – First generation of Flexcomm control heads and transceivers. This includes the C-1000 control head and RT-30, RT-138(F), RT-450, RT-406F transceivers. Flexcomm II – Second generation of Flexcomm control heads and transceivers. This includes the C-5000 control head and RT-5000 multi-band transceiver.
Page 153 On the C-5000 this special channel is labeled “..M” and is located at channel 0. MODE 1 – Operational mode of the C-5000/RT-5000 system where the operator does not know there is a main and guard located in the transceiver. This simplifies the user interface dramatically. However, only one receiver, the main or the ITM module in the Guard is in operation at one time so only one channel is monitored.
Page 154 RP - Acronym for “Remote Programmer”. Wulfsberg’s software to program the C-5000 with channel information via a connector of the front of the C-5000 is called the RP Software. It is recommended that this method is used whenever possible to program the C-5000 memory. While front panel programming is available for emergencies, using the RP software is less prone to operator errors and automatically provides for memory backup in case on control head failure.
Page 155: Appendix A – Ctcss (Pl) Tone Codes
C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Appendix A – CTCSS (PL) Tone Codes C-5000 C-5000 TONE TONE TONE TONE TONE FREQ (HZ) TONE CODE FREQ (HZ) CODE CODE CODE 179.9 67.0 71.9 186.2 74.4 192.8 77.0 203.5 79.7 82.5 85.4 210.7...
Page 156: Appendix B – Mode 2 Operation
Overview The C-5000 has the capability to control the RT-5000 in such a way that the user can monitor both the main and the Guard (ITM) channel at the same time. This mode of operation is more difficult to use than MODE 1.
Page 157 C-5000 COMMUNICATION MANAGEMENT CONTROLLER INSTALLATION MANUAL Setting the Active Transceiver You can toggle the active transceiver for a radio between Main and Guard by pressing the soft keys. The UPPER SOFT key toggles the active transceiver for radio 1. The LOWER SOFT key toggles the active transceiver for radio 2.
Page 158 This page intentionally left blank. Page 5-64 Publication No. 150-041118 Section 5 – Configuration and Programming Rev. A Sep 2001...
Page 159 Make sure all necessary switches on the audio panel are enabled. Verify all volume pots on the audio panel are at a normal level. Press the TEST button on the C-5000 keypad. The squelch indicator for Transceiver #1 should light and audio noise should be heard in the headset.
Page 160 Select Transceiver #1 using the audio panel and attempt to transmit to a known good receiver (Both the transmitter and the receiver must be using the same frequency). Press the aircraft PTT switch and verify that the C-5000 display shows a transmit condition and that the receiver detects a valid voice signal.

Wulfsberg C-5000 Installation Manual

Section 1 - Introduction

Section 2 - System Installation

Section 3 - Mechanical Installation

Section 4 - Electrical Installation

Section 5 - Configuration and Programming

SECTION 5 -CONFIGURATION and PROGRAMMING (Cont'D)

Appendix A – CTCSS (PL) Tone Codes

Appendix B – Mode 2 Operation

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wulfsberg C-5000

Summary of Contents for Wulfsberg C-5000

Table of Contents
