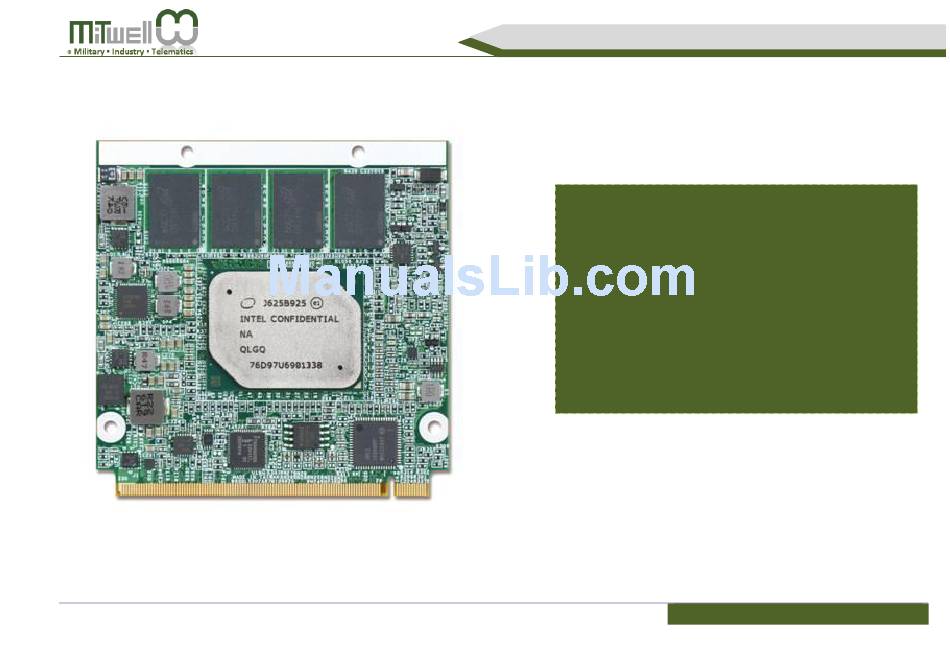

MITWELL PQ7-M108 User's Guide (Preliminary)

Qseven

PQ7-M108

User's Guide

Revision 0.1

(Preliminay)

PQ7-M108 User's Guide

Table of Contents

Need help?

Do you have a question about the Qseven PQ7-M108 and is the answer not in the manual?

Questions and answers

Summary of Contents for MiTWell Qseven PQ7-M108

Page 3: Table Of Contents
MITWELL PQ7-M108 User’s Guide (Preliminary) Table of Contents 1 Introduction ....................................10 2 Block Diagram................................... 11 3 Specifications .................................... 12 3.1 PQ7-M108 Processor & Chipset list ..........................14 3.2 Supported Operating Systems ............................15 3.3 Windows OS driver ................................16 3.4 Electrical Characteristics ..............................
Page 4 MITWELL PQ7-M108 User’s Guide (Preliminary) 6.7 Graphics ..................................38 6.7.1 eDP-to-LVDS configuration .............................. 39 7 System Resources ..................................54 8 BIOS Update..................................... 56 9 MITWELL Software Tool................................64 10 Industry Specifications ................................65 Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 5 MITWELL PQ7-M108 User’s Guide (Preliminary) List of Tables Table 1 PQ7-M108 Specification .............................. 13 Table 2 PQ7-M108 Processor list ............................. 14 Table 3 Supported Operating Systems ............................. 15 Table 4 Windows OS driver list ..............................16 Table 5 Electrical Characteristics ............................. 16 Table 6 Net weight ..................................
Page 6 MITWELL PQ7-M108 User’s Guide (Preliminary) List of Figures Figure 1 Block Diagram................................... 11 Figure 2 Power sequence ATX Mode (1st Power On) ........................17 Figure 3 Power sequence ATX Mode (w/o power off) ........................18 Figure 4 Power sequence AT Mode ..............................19 Figure 5 Mechanical Dimensions - Top/Bottom ..........................
Page 7: Copyright © Mitwell 2017 Pq7-M108 User's Guide
MITWELL PQ7-M108 User’s Guide (Preliminary) Figure 24 COM0 Console Redirection Settings ..........................50 Figure 25 BIOS - Security ................................51 Figure 26 BIOS - Boot..................................52 Figure 27 BIOS - Save & Exit ................................53 Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 8 MITWELL products, regardless of the legal theory on which the claim is based, and even if MITWELL has been advised of the possibility of such damages.
Page 9: Technical Support
MITWELL is certified to ISO 9001:2008 standard under PORTWELL GROUP. Technical Support MITWELL technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at http://www.MITWELL.com.tw/support/...
Page 10: Introduction
1 Introduction PQ7-M108, Mitwell's new Qseven Module product, the successor of PQ7-M108. Qseven is an Industrial Computer On Module standard, there are two form factors, 70 x 70 mm and smaller form factor 70 x 40 mm which known as uQseven. The Qseven connector use total 230 edge fingers that mate with MXM connector.
Page 12: Specifications
MITWELL PQ7-M108 User’s Guide (Preliminary) 3 Specifications  Product PQ7-M108  Qseven v2.1 | 70 x 70mm / 2.76” x 2.76” Form Factor  Processor Intel® Celeron® processor N3350 /Pentium® processor N4200 (code named Apollo Lake)  Intel® Atom™ processor E3900 family (code named Apollo Lake-I) (See below section for processor list) ...
Page 13: Table 1 Pq7-M108 Specification
MITWELL PQ7-M108 User’s Guide (Preliminary)  Serial IO   Serial Ports (TX / RX)  SMBus  PCI Express 4 PCI Express x1 Gen2 (5.0 GT/s)  4 x USB2.0 (480 Mbps)  3 x USB3.0 (5 Gbps) ...
Page 14: Pq7-M108 Processor & Chipset List
MITWELL PQ7-M108 User’s Guide (Preliminary) 3.1 PQ7-M108 Processor & Chipset list Intel® Atom™ x5-E3930 Intel® Atom™ x5-E3940 Intel® Atom™ x7-E3950 PQ7-M108 Processor list Intel® Pentium® N4200 Intel® Celeron® N3350 Performance # of Cores # of Threads Processor Base Frequency 1.30 GHz 1.60 GHz...
Page 15: Supported Operating Systems
MITWELL PQ7-M108 User’s Guide (Preliminary) 3.2 Supported Operating Systems The PQ7-M108 supports the following operating systems. Category Operating System Supported Windows 10 Enterprise (64bit) Microsoft Windows 10 IoT Core (32/64bit) Linux Yocto Project BSP tool-based embedded Linux distribution (64-bit) Table 3 Supported Operating Systems Copyright ©...
Page 16: Windows Os Driver
MITWELL PQ7-M108 User’s Guide (Preliminary) 3.3 Windows OS driver Please download the drivers from Mitwell website https://www.mitwell.com.tw:457/products/PQ7-M108.html Item Driver version Description Chipset 10.1.1.35 WIN10 x86,x64 Graphic 21.22.16.4550 WIN10 x64 Audio 6.0.1.8135 WIN10 x64 TXE_Driver 3.0.10.1129 WIN10 x64 LAN I210 21.1.30.0...
Page 17: Power Sequence
MITWELL PQ7-M108 User’s Guide (Preliminary) 3.5 Power sequence ATX Mode for 1st Power on Figure 2 Power sequence ATX Mode (1st Power On) Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 18: Figure 3 Power Sequence Atx Mode (W/O Power Off)
MITWELL PQ7-M108 User’s Guide (Preliminary) ATX Mode (without Power Off) Figure 3 Power sequence ATX Mode (w/o power off) Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 21: Pq7-M108 And Cooler Weight
131.0g Table 6 Net weight 3.8 Environmental Specifications Storage Temperature 0 ~ 50°C (APL) | -40 ~ 85°C (APL-I) w/ MiTwell Thermal Solution Operation Temperature 0 ~ 50°C (APL) | -40 ~ 85°C (APL-I) w/ MiTwell Thermal Solution Storage Humidity...
Page 22: Label Definition
MITWELL PQ7-M108 User’s Guide (Preliminary) 3.9 Label Definition MAC LABEL BOARD REVISION PRODUCT NUMBER SERIAL NUMBER MAC and S/N LABEL BIOS VERSION QC LABEL BIOS AUTHORITY LABEL CUSTOMER LABEL BY REQUEST Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 23: Heat Sink / Cooler Dimensions
MITWELL PQ7-M108 User’s Guide (Preliminary) 4 Heat sink / Cooler dimensions Figure 6 Heat sink / cooler mechanical dimensions Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 25: Packaging
MITWELL PQ7-M108 User’s Guide (Preliminary) 4.2 Packaging Package Appearance Size 180x135mm Anti-Static bubble bag White Paper Box 210x151x40mm Shipping Box 595x300x195mm (10 pcs White paper box) Table 8 Packaging Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 26: Table 9 Ordering Guide - Pq7-M108
MITWELL PQ7-M108 User’s Guide (Preliminary) 4.3 Ordering Guide PQ7-M108 Product Ordering P/N Status PQ7-M108-N3350-4G-8G AB7-3019Z Contact Us PQ7-M108-N4200-4G-8G AB7-3054Z Contact Us PQ7-M108-E39xx-xG-xG Table 9 Ordering Guide - PQ7-M108 PQ7-M108- E39xx-xG-xG On-board eMMC Capacity On-board DDR3L Capacity CPU SKU Accessory Product...
Page 27: Pin Out Tables
MITWELL PQ7-M108 User’s Guide (Preliminary) 5 Pin out Tables SIGNAL GROUP SIGNAL GROUP L1_MDI3_N L1_MDI2_N L1_MDI3_P L1_MDI2_P L1_100# L1_1000# L1_MDI1_N L1_MDI0_N L1_MDI1_P L1_MDI0_P L1_LINK# L1_LINK#/ACT# KBC_SLP_S4# WAKE1# KBC_SLP_S3# ICH_SUS_STAT_N PWRBTN#_D ICH_PME_N LID#_R ATX_PWROK BATLOW_N_3P3 SYS_RESET_N SATA_TXP0 SATA_TXP1 SATA_TXN0 SATA_TXN1 SATA_LED_N...
Page 28: Table 12 Pq7-M108 Pin-Out 2-5
MITWELL PQ7-M108 User’s Guide (Preliminary) SIGNAL GROUP SIGNAL GROUP SD3_D0 SD3_D3 SD3_D2 HDA_SYNC_3P3 SMB_CLK_3P3A HDA_RST_N_3P3 SMB_DATA_3P3A SMBUS HDA_BIT_CLK_3P3 Audio SMB_ALERT_N_EC HDA_SDIN0_3P3 KBC_SCL1 Audio HDA_SDOUT_3P3 KBC_SDA1 PM_THRM#_R WDTRIG# WDTO USB3_TXN0 USB3_RXN0 USB3.0 USB3.0 USB3_TXP0 USB3_RXP0 USB3_TXN2 USB3_RXN2 USB3.0 USB3.0 USB3_TXP2 USB3_RXP2...
Page 29: Table 13 Pq7-M108 Pin-Out 3-5
MITWELL PQ7-M108 User’s Guide (Preliminary) SIGNAL GROUP SIGNAL GROUP LVDS_A0- LVDS0_CHB_TXN0 LVDS_A1+ LVDS0_CHB_TXP1 LVDS_A1- LVDS0_CHB_TXN1 LVDS LVDS_A2+ LVDS0_CHB_TXP2 LVDS /EDP LVDS_A2- LVDS0_CHB_TXN2 LVDS0_VDDEN LVDS0_LIGHT_EN LVDS /EDP LVDS_A3+ LVDS0_CHB_TXP3 LVDS LVDS_A3- LVDS0_CHB_TXN3 LVDS_CLKA+ LVDS0_CHB_CLKP LVDS LVDS_CLKA- LVDS0_CHB_CLKN DDI1_BKLT_CTRL_3P3 LVDS /EDP LVDS0_DDC_DATA...
Page 30: Table 14 Pq7-M108 Pin-Out 4-5
MITWELL PQ7-M108 User’s Guide (Preliminary) SIGNAL GROUP SIGNAL GROUP DDI0_TXN0 DDI0_DDC_SCL TMDS DP /TMDS DDI0_HPD# DDI0_HPD# DP /TMDS PCIECLK_DIFF_P0 ICH_WAKE_N_R PCIE PCIECLK_DIFF_N0 CB_PLTRST PCIE_TXP3 PCIE_RXP3 PCIE PCIE PCIE_TXN3 PCIE_RXN3 PCIE_TXP2 PCIE_RXP2 PCIE PCIE PCIE_TXN2 PCIE_RXN2 TXDA#_EC RTSA_3P3_EC PCIE_TXP1 PCIE_RXP1 PCIE...
Page 31: Table 15 Pq7-M108 Pin-Out 5-5
MITWELL PQ7-M108 User’s Guide (Preliminary) SIGNAL GROUP SIGNAL GROUP 5VSB VCC_5V_SB 5VSB VCC_5V_SB MXM_TCK MXM_TDI MXM_TDO MXM_TMS VCC5 VCC5 Table 15 PQ7-M108 Pin-out 5-5 Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 32: Bios Setup Items
MITWELL PQ7-M108 User’s Guide (Preliminary) 6 BIOS Setup Items PQ7-M108 enters the boot process by AMI Aptio5 BIOS which is stored in an EEPROM through SPI interface on Module. Boot from Carrier board is also supported; please consult with your Sales Representatives for PQ7-M108 Carrier Design Guide.
Page 39: Edp-To-Lvds Configuration
MITWELL PQ7-M108 User’s Guide (Preliminary) 6.7.1 eDP-to-LVDS configuration Figure 14 BIOS - Graphics - eDP-to-LVDS configuration Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 48: Figure 22 Bios - Configuration - H/W Monitor
MITWELL PQ7-M108 User’s Guide (Preliminary) 6.14 H/W Monitor Figure 22 BIOS - Configuration - H/W Monitor Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 49: Figure 23 Bios - Configuration - Serial Port Console
MITWELL PQ7-M108 User’s Guide (Preliminary) 6.15 Serial Port Console Figure 23 BIOS - Configuration - Serial Port Console Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 54: System Resources
MITWELL PQ7-M108 User’s Guide (Preliminary) 7 System Resources Device I/O Address Note 6E/6F EC Address 62/66 EC ACPI CMD Port Embedded Controller (ITE8528) 200/201 EC BRAM Port for I2C function 0x3F8~0x3FF EC UART0 Table 16 System Resource - EC IO Address Copyright ©...
Page 55: Table 17 System Resource Irq
MITWELL PQ7-M108 User’s Guide (Preliminary) Interrupt Request Lines IRQ IRQ# Current Use Default Use IRQ 0 System ROM System Timer IRQ 1 System ROM Keyboard Event 【Unassigned】 IRQ 2 Usable IRQ IRQ 3 System ROM COM2 IRQ 4 System ROM COM1 【Unassigned】...
Page 56: Bios Update
MITWELL PQ7-M108 User’s Guide (Preliminary) 8 BIOS Update BIOS/EC DOS Update SOP process Step 1. Create a DOS USB DOK (Caution : Must be FAT or FAT32 format). Step 2. Unzip update file to the DOS USB DOK. Copyright © MITWELL 2017...
Page 57 MITWELL PQ7-M108 User’s Guide (Preliminary) Step 3. Plug the DOS USB DOK to the target system and boot from the DOS USB DOK. Step 4. Under the update file folder, type command: "update" and press enter. Copyright © MITWELL 2017...
Page 59 MITWELL PQ7-M108 User’s Guide (Preliminary) Step 5. The update process will start and you can see the update progress. Once finished, please power off and restart the system. <End of BIOS/EC DOS update process> Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 60 MITWELL PQ7-M108 User’s Guide (Preliminary) BIOS/EC UEFI Update SOP process Step 1. Prepare a USB DOK (Caution : Must be FAT or FAT32 format) Step 2. Unzip update file to the USB DOK. Step 3. Select UEFI boot mode in the BIOS boot menu and save, then restart the system.
Page 61 MITWELL PQ7-M108 User’s Guide (Preliminary) Step 4. Plug the USB DOK to the target system and boot from UEFI Shell. Step 5. Under the UEFI shell, direct to your USB DOK, below example fs0 and type command: "update" and press enter.
Page 62 MITWELL PQ7-M108 User’s Guide (Preliminary) Step 6. The update process will start and you can see the update progress. Once finished, please power off and restart the system. Copyright © MITWELL 2017 PQ7-M108 User's Guide...
Page 64: Mitwell Software Tool
Linux OS. For more information please contact MITWELL. MITWELL BIOS web Tool (PBT) The MITWELL BIOS web Tool (PBT) is a brand new on-line utility which innovated by MITWELL. PBT now is available for MITWELL's premiere customers who are able to...
Page 65: Industry Specifications
MITWELL PQ7-M108 User’s Guide (Preliminary) 10 Industry Specifications The list below provides links to industry specifications that apply to MITWELL COM Express Modules. Low Pin Count Interface Specification, Revision 1.0 (LPC) http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3...
